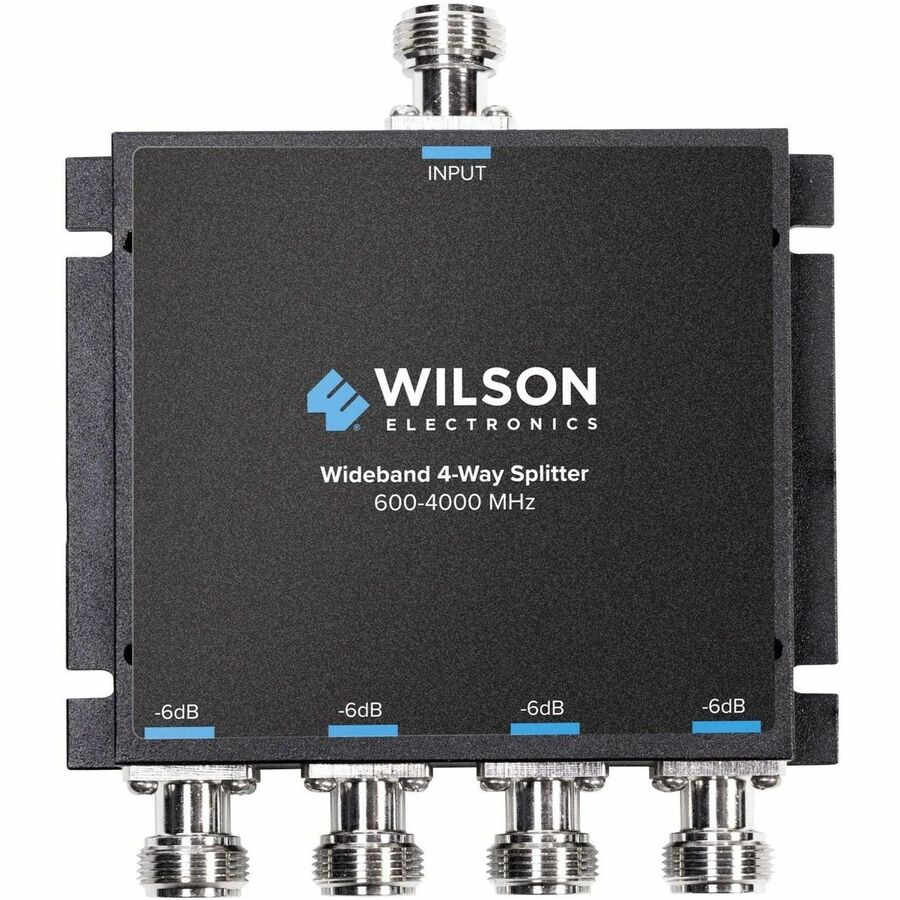

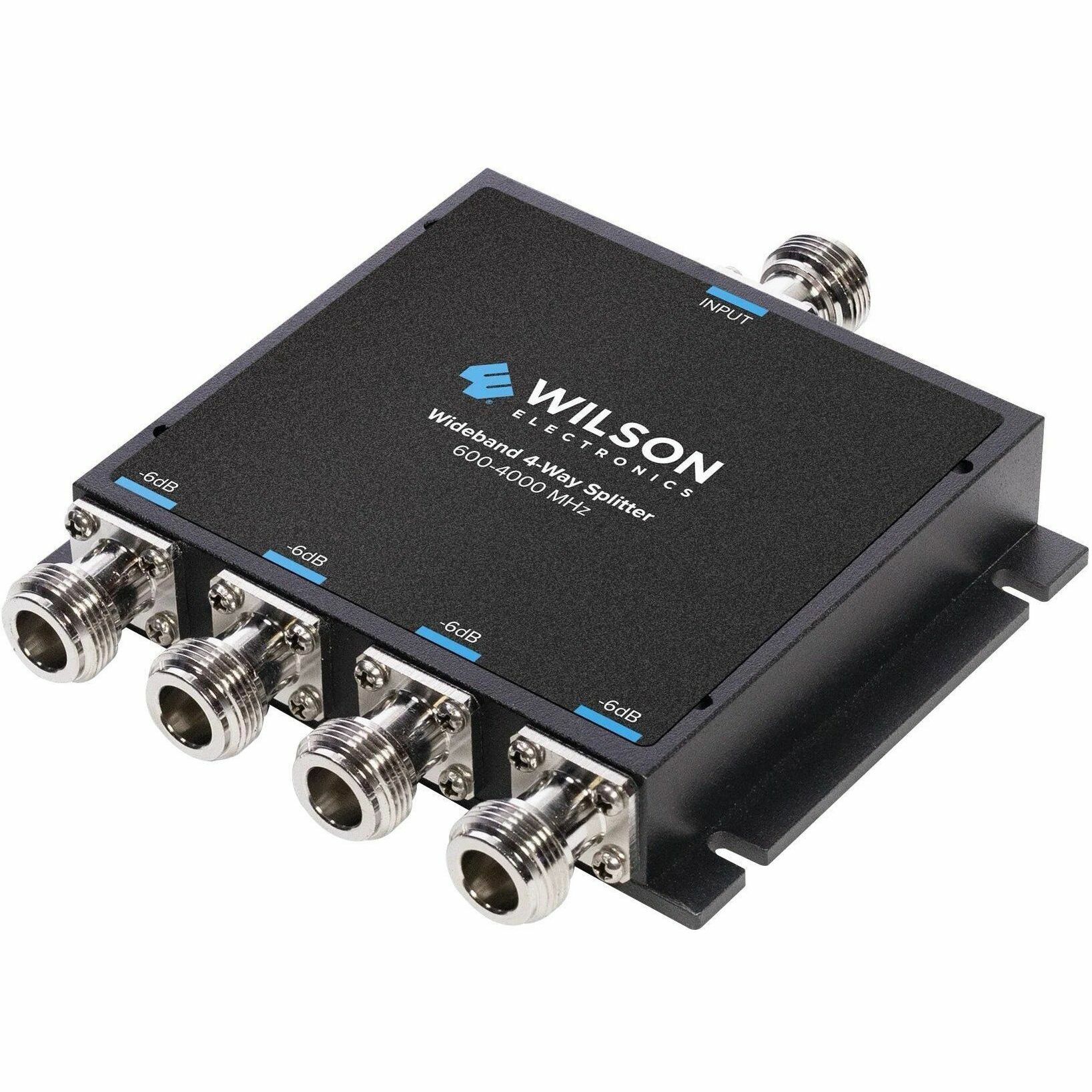

Wilson Electronics 859117 WilsonPro -6 dB 4-Way Splitter, 600-4,000 MHz, N-Female

The Wilson Electronics 859117 divides one cable from a WilsonPro cellular repeater into four equal outputs, so four antennas receive similar signal strength. It is intended for larger in-building deployments, such as multi-room offices, warehouses, clinics and retail floors, where one repeater must serve several antenna locations. The splitter covers 600 to 4,000 MHz, which includes T-Mobile Band 71 and C-Band, and it is Pro 710i compatible. Wilson specifies it as required when adding C-Band antennas (311245, 311243, 311242) and repeaters to an existing system. For current or future C-Band support, all antennas, splitters and taps in the path must be C-Band capable. It replaces the previous 4-way splitter, model 859981. The spec sheet lists 1.2 dB insertion loss, isolation of 16, average in-band VSWR of 1.35 or lower, 50 W total input power and 50 Ohm impedance, with N-Female connectors throughout. The IP65-rated housing operates from -30 to +70 degrees, so it can be installed above ceilings, in equipment rooms or on exterior runs. The package measures 4.625 x 5.0 x 1.0 in and weighs 0.81 lb. A manufacturer spec sheet is available for this model.
