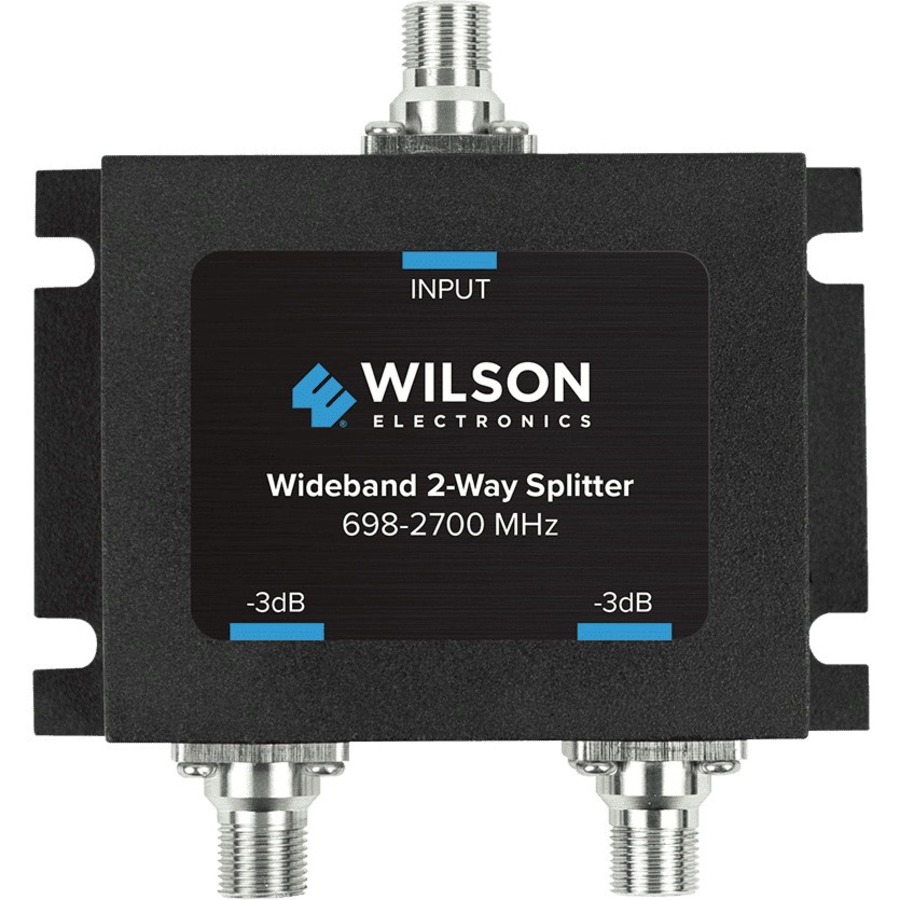

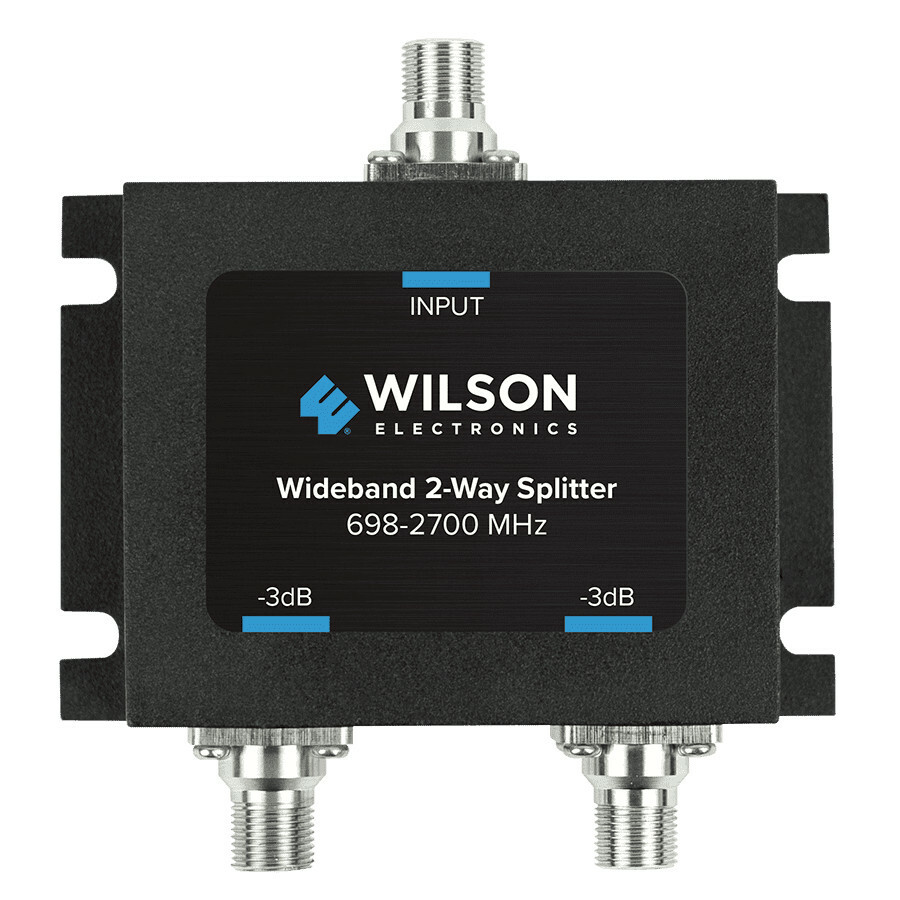

weBoost 850034 2-way 75 Ohm cellular signal splitter with three F-female connectors

weBoost 850034 2-Way Signal Splitter, -3 dB, 75 Ohm F-Female, 698-2700 MHz

Name: weBoost 850034 2-Way Signal Splitter, -3 dB, 75 Ohm F-Female, 698-2700 MHz
Brand: Wilson Electronics
SKU: 850034
Price: 89.99 USD
Availability: InStock

Wilson Electronics|

MPN: 850034

UPC: 811815028970

Low Stock (3 left)

$89.99

Request for QuoteCall 224-955-1644 for Sales

Free 2-Day ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 32% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

2-way splitter with -3 dB (3.0 dB) splitter loss
698-2700 MHz wide-band cellular frequency range
75 Ohm impedance with F-female connectors
0.4 dB insertion loss and VSWR ≤2.0:1
≥20 dB isolation and 50 W power capacity
Microstrip structure with low ripple; -40 to 140 °F operating range

The 850034 is a passive 2-way splitter for weBoost 75 Ohm signal distribution systems. Placed between the booster and the inside antennas, it divides the amplified signal into two equal outputs. The rated split is -3 dB, meaning each output carries about half the signal. That makes it the right part when two rooms, floors or zones of similar size each need their own inside antenna. The electrical design keeps losses low. Insertion loss is 0.4 dB beyond the split, VSWR is ≤2.0:1, and isolation between outputs is ≥20 dB. Power capacity is 50 W across the full 698-2700 MHz cellular range. The microstrip structure is specified for low ripple, so performance stays consistent across the bands a booster carries. Mechanically, the splitter uses 75 Ohm F-female connectors, matching 75 Ohm amplifiers, antennas and coax. It measures 3.6 x 3.5 x 0.8 in and weighs 7.04 oz. It is rated for operating temperatures from -40 to 140 °F. A spec sheet is available covering this model alongside the 3-way (850035) and 4-way (850036) versions. For installers, the 850034 is the standard building block for extending a single-antenna booster installation to two coverage areas. It also serves as the current replacement for the earlier Wilson 859993 -3 dB splitter.

Ideal For

Splitting amplified signal from a 75 Ohm booster to two inside antennas
Covering two similarly sized rooms, offices or floors from one booster
Expanding an existing single-antenna 75 Ohm installation
Replacing an earlier Wilson 859993 -3 dB splitter

Why This Product

12-way model has the lowest loss in the series: 3.0 dB split and 0.4 dB insertion loss, versus the 3-way (850035) and 4-way (850036)
2Best choice when only two inside antennas are needed, preserving the most signal per antenna
3Replacement for the earlier Wilson 859993 -3 dB 75 Ohm splitter

General

Mpn	850034
Upc	811815028970
Brand	Wilson Electronics
Product Line	weBoost
Product Name	Splitter -3 dB 2 Way (F-Female)
Product Type	Signal splitter
Configuration	2-way (1 input, 2 outputs)

Package

Master Carton	16 x 12 x 6 in, 14 lbs, 30 units
Package Weight	0.530 lbs
Package Dimensions	4.5 x 4.0 x 1.25 in

Support

Warranty

2-year warranty

Electrical

Vswr	≤2.0:1
Frequency	698-2700 MHz
Impedance	75 Ohm
Isolation	≥20 dB
Splitter Loss	3.0 dB (-3 dB)
Insertion Loss	0.4 dB
Power Capacity	50 W

Mechanical

Weight	7.04 oz
Connector	F-Female
Dimensions	3.6 x 3.5 x 0.8 in (L x W x D)
Operating Temperature	-40 to 140 °F

Purchasing this for your business?

Business account holders on AV Accessories typically save 32% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Splitter -3 dB 2 Way (F-Female) Spec Sheet

0.6mb

Frequently Asked Questions

What does -3 dB mean on this splitter?▾

It is the rated split loss. Each of the two outputs receives about half the incoming signal. There is an additional 0.4 dB insertion loss.

What frequencies does the 850034 cover?▾

It covers 698-2700 MHz.

What connectors and impedance does it use?▾

It uses F-female connectors and is a 75 Ohm splitter, for 75 Ohm amplifiers, antennas and coax.

When should I choose a 2-way splitter?▾

Use it when you want equal signal on two inside antennas serving similarly sized areas. For three or four antennas, the 850035 3-way and 850036 4-way splitters are the matching models.
