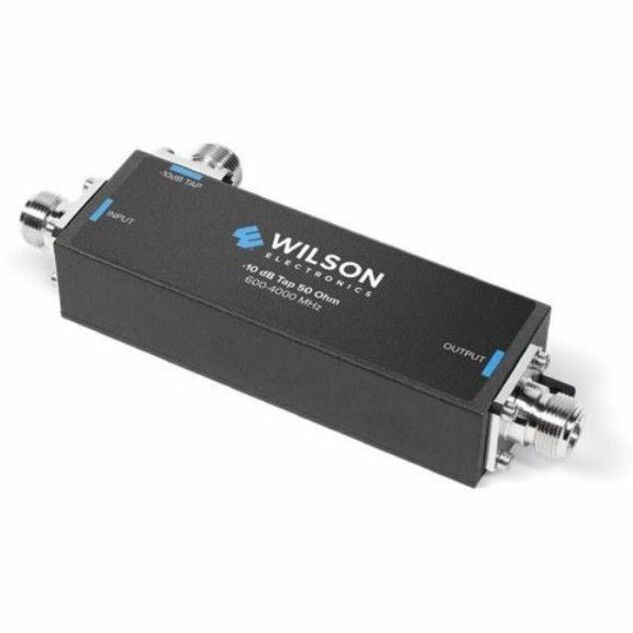

Wilson Electronics 859119 WilsonPro Wideband -10 dB Tap, 600-4,000 MHz, N-Female

The Wilson Electronics 859119 solves a common in-building problem: two antennas at very different distances from the repeater. The tap sends a small share of the signal to the nearby antenna through its -10 dB tap port. The larger share continues through the -0.5 dB pass-thru port toward the distant antenna, offsetting the extra cable loss so both antennas deliver similar power. The tap is designed for WilsonPro C-Band systems operating from 600 to 4,000 MHz. It supports C-Band and T-Mobile Band 71 and is Pro 710i compatible. Wilson lists it as required when adding C-Band antennas (311245, 311243, 311242) and repeaters to an existing system, and it replaces the previous tap, model 859907. The spec sheet lists 2G/3G/4G/LTE/5G coverage across a wider 575-6000 MHz frequency band. For RF planning, the spec sheet gives 10 dB coupling with ±1.5 dB accuracy and insertion loss of 1.1 dB or lower. Isolation is 29 dB or better from 575-2700 MHz. VSWR is 1.30 or lower up to 2700 MHz and PIM is -150 dBc or better. The tap handles 200 W per port. It operates from -30°C to +65°C at 5-95% humidity in an IP65 housing. The package measures 7.0 x 3.125 x 1.25 in and weighs 0.89 lb. A manufacturer spec sheet is available.
