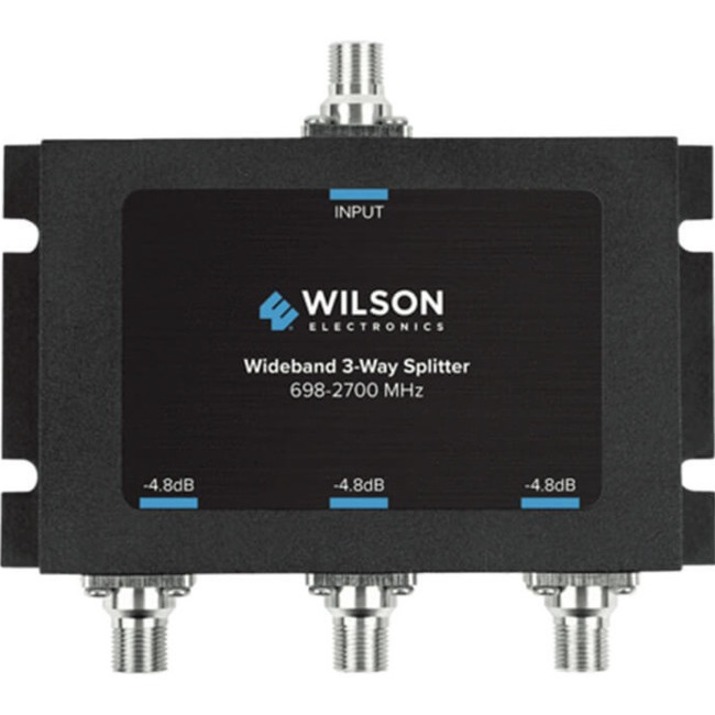

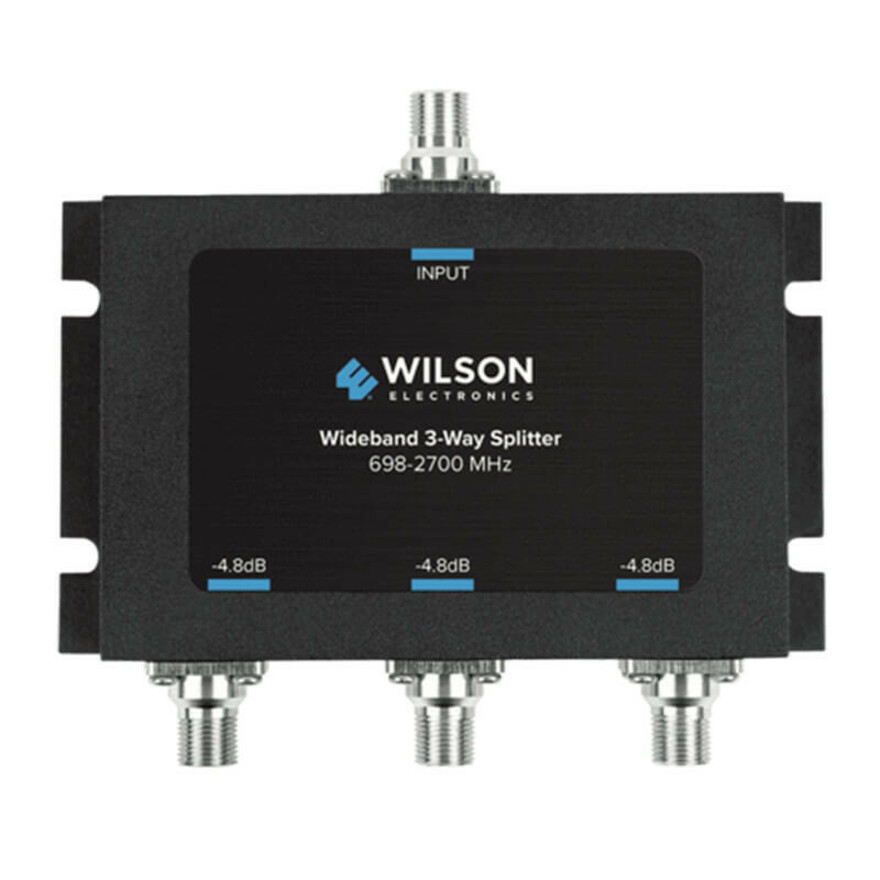

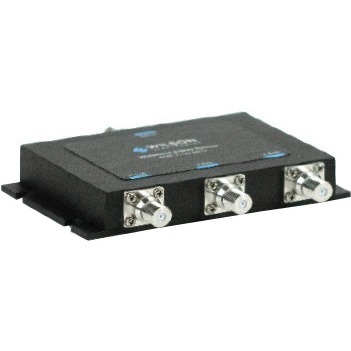

weBoost 850035 3-Way Signal Splitter, -4.8 dB, 75 Ohm F-Female, 698-2700 MHz

The 850035 is a passive 3-way splitter for weBoost 75 Ohm signal distribution systems. Installed between the booster and the inside antennas, it divides the amplified signal into three equal outputs. It is the right part when three rooms, offices or floors of similar size each need their own inside antenna. The rated split is -4.8 dB, the cost of dividing one signal three ways. It covers 698-2700 MHz, the full cellular range a booster system carries. Insertion loss is 0.5 dB and VSWR is ≤2.3:1. Isolation between outputs is ≥20 dB and power capacity is 50 W. The microstrip design is specified for low ripple, so performance stays consistent across bands. The splitter uses 75 Ohm F-female connectors to match 75 Ohm amplifiers, antennas and coax. It measures 4.0 x 4.7 x 0.8 in and weighs 10.88 oz. It is rated for operating temperatures from -40 to 140 °F, so it can be placed in attics, ceilings or equipment closets near the antenna runs. When planning a layout, match the splitter to the number of inside antennas. Place antennas in areas of similar size so the equal split delivers even coverage. The 850035 is also the current replacement for the earlier Wilson 859994 splitter.
