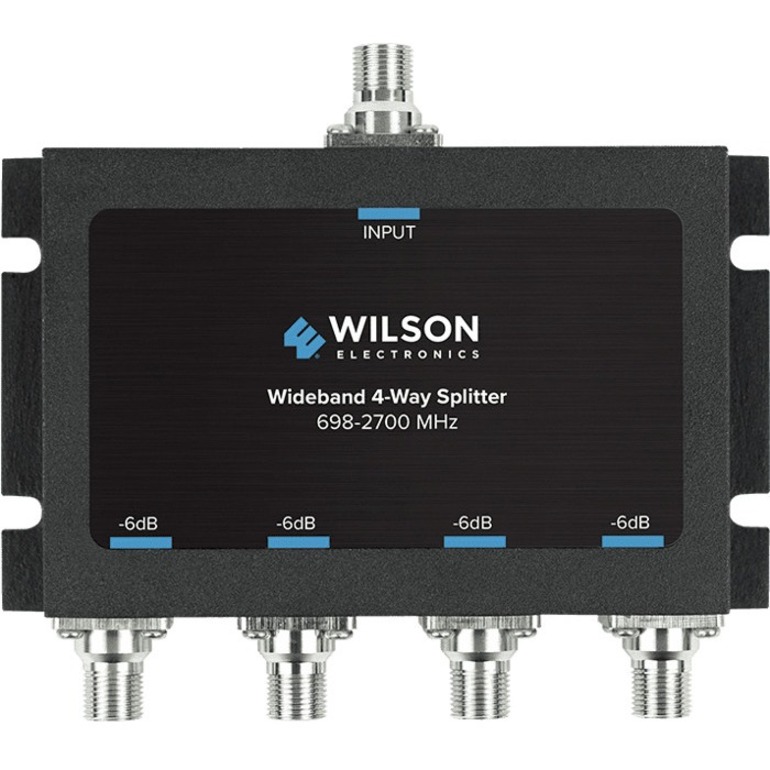

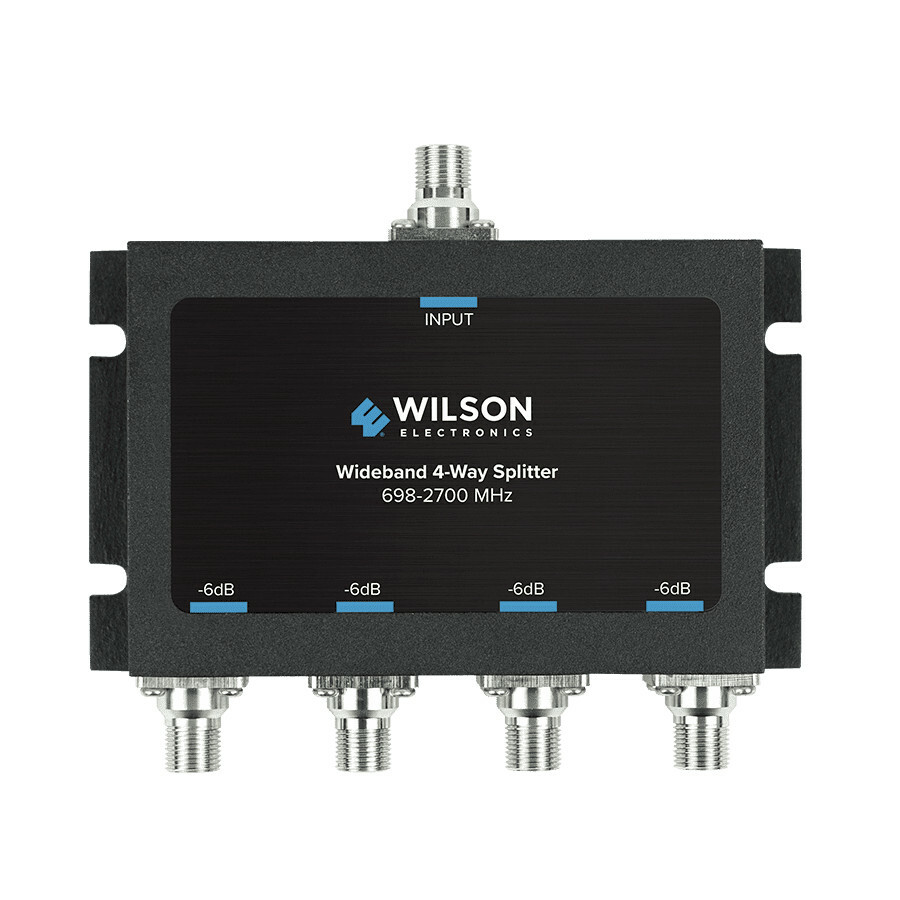

weBoost 850036 4-Way Signal Splitter, -6 dB, 75 Ohm F-Female, 698-2700 MHz

The 850036 is a passive 4-way splitter for weBoost 75 Ohm signal distribution systems. Installed after the booster, it divides the amplified signal into four equal outputs, one for each inside antenna. It suits deployments where four rooms, offices or floors of similar size each need coverage from a single booster. The rated split is -6 dB, meaning each output carries about a quarter of the incoming signal. It covers 698-2700 MHz, the full cellular range a booster system carries. Insertion loss is 0.6 dB and VSWR is ≤2.4:1. Isolation between outputs is ≥20 dB and power capacity is 50 W. The microstrip structure is specified for low ripple, so performance stays even across the bands being amplified. Connections are 75 Ohm F-female, matching 75 Ohm amplifiers, antennas and coax. The splitter measures 4.0 x 4.7 x 0.8 in and weighs 11.04 oz. It is rated for operating temperatures from -40 to 140 °F, so it can live in an attic, drop ceiling or equipment room close to the antenna runs. Because a four-way split spreads the signal thinnest, the 850036 performs best with a booster that has signal to spare. Place the four antennas in areas of similar size. It is the current replacement for the earlier Wilson 859106 splitter.
