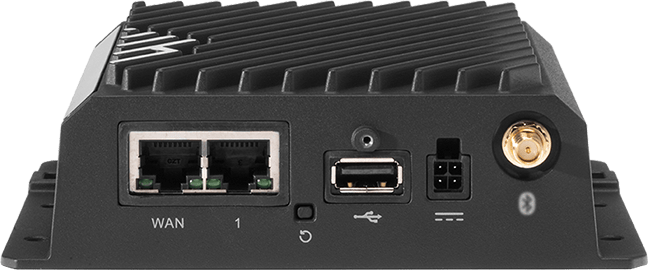

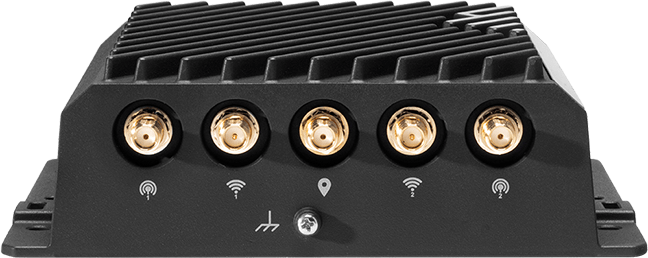

Front view of the Cradlepoint R920 ruggedized metal LTE vehicle router with SMA antenna connectors

Cradlepoint R920 Rugged Cat 7 LTE Vehicle Router with 5-Year TAA NetCloud Mobile Essentials + Advanced

Name: Cradlepoint R920 Rugged Cat 7 LTE Vehicle Router with 5-Year TAA NetCloud Mobile Essentials + Advanced
Brand: Cradlepoint
SKU: TAA-MAA5-0920-C7A-NA
Price: 2123.42 USD
Availability: InStock

Cradlepoint|

MPN: TAA-MAA5-0920-C7A-NA

UPC: 840292703667

In Stock

$2,123.42$2,260.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Monday, Oct 5

Order within 8h 0m to get it by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 11% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Embedded Cat 7 LTE modem with dual 4FF SIM slots: up to 300 Mbps downlink and 150 Mbps uplink
Dual-radio, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) plus 2 x GbE LAN/WAN switchable ports
Active GNSS tracking GPS, Galileo, GLONASS, BeiDou and QZSS simultaneously
IP64 ruggedized metal enclosure, -30 °C to 75 °C operation, 9-36 VDC with ignition sensing
Public safety certifications: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline; CBRS Band 48 private cellular support

The Ericsson Cradlepoint R920 is a compact ruggedized LTE networking platform for vehicles and IoT. Part number TAA-MAA5-0920-C7A-NA pairs the North American Cat 7 hardware with five years of NetCloud Mobile Essentials and Advanced plans. It is a TAA-compliant ordering option for the U.S. Federal Government. The hardware ships without an AC power supply or antennas, so installers supply the cabling and antennas for the vehicle or enclosure. The embedded Cat 7 LTE modem supports two 4FF SIMs with SIM-based auto-carrier selection. It uses 2x2 MIMO and carrier aggregation to reach up to 300 Mbps downlink and 150 Mbps uplink, and its band support includes B14, B71 and CBRS Band 48. The modem is certified on AT&T, T-Mobile and Verizon. It also carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications. Local connectivity comes from dual-concurrent 2x2 MU-MIMO Wi-Fi 6, two GbE ports that switch between LAN and WAN, embedded Bluetooth LE 5.1 and a screw-lock USB 2.0 port. For a second LTE or 5G modem and a serial port, add the RX20 Managed Accessory. The R920 is built for vehicles and other harsh locations. It has an IP64 metal housing and a 9-36 VDC input with ignition sensing. It holds E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G and Class I Div 2 hazardous-location certifications. Active GNSS tracks GPS, Galileo, GLONASS, BeiDou and QZSS together, and NetCloud uses it to build vehicle location history and cellular coverage maps. For security and edge computing, the router offers a 940 Mbps stateful firewall with IPS and application-aware services. It supports 20 concurrent VPN tunnels and up to 64 VLANs. A dual-core ARMv8 processor runs Docker containerized applications. NetCloud Manager provides device management and software updates for the full five-year term. The package also includes 24x7 support and a limited lifetime warranty while the subscription is active. The Cradlepoint R920 datasheet is available for full specifications.

Ideal For

Federal agency and public safety vehicles that need LTE connectivity from a TAA-compliant SKU
Fleet and field-service vehicles with location tracking and cellular coverage mapping
Rail rolling stock and heavy-vibration mobile installations
Private LTE deployments on CBRS Band 48
Edge applications running in Docker containers at the vehicle

Why This Product

1Smaller and lighter than the IBR1700 (595 g vs 1.7 kg), with Wi-Fi 6 instead of Wi-Fi 5
2Cat 7 LTE at 300/150 Mbps; second LTE or 5G modem and serial port added through the RX20 accessory
3200 Mbps IPsec VPN and 20 concurrent tunnels, plus Docker edge computing and a Class I Div 2 rating
45-year Essentials + Advanced term in a TAA-compliant SKU

Power

Fusing	Use a 3 A fuse for 9-12 VDC installations; 2 A fuse for > 24 VDC installations
Dc Input	9-36 VDC steady state input
Features	Ignition sensing (automatic ON and time-delay OFF)
Consumption	Sleep 15 mW; Idle 9 W; Typical 14.5 W; Heavy 15.2 W

General

Mpn	TAA-MAA5-0920-C7A-NA
Upc	840292703667
Brand	Cradlepoint (Ericsson Enterprise Wireless)
Model	Cradlepoint R920
Package Plan	5-Year NetCloud Mobile Essentials + Advanced Plans
Region Market	United States: Federal Government
Taa Compliant	TAA-compliant SKU
Shipping Weight	2.20 lb
Subscription Term	5 years
Hardware Configuration	Cat 7 with Wi-Fi (300 Mbps), no AC power supply or antennas

Gnss Gps

Power	Voltage supply 3.05-3.25 VDC; max current 100 mA
Accuracy	Horizontal: < 5 m (50%), < 9 m (95%)
Protocols	NMEA 0183
Frequencies	L1
Sensitivity	Acquisition: -145 dBm; Tracking: -160 dBm
Update Rate	1 Hz (once per second)
Constellations	GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time To First Fix	32 seconds (cold start)

Physical

Weight	595 g (1 lb 5 oz)

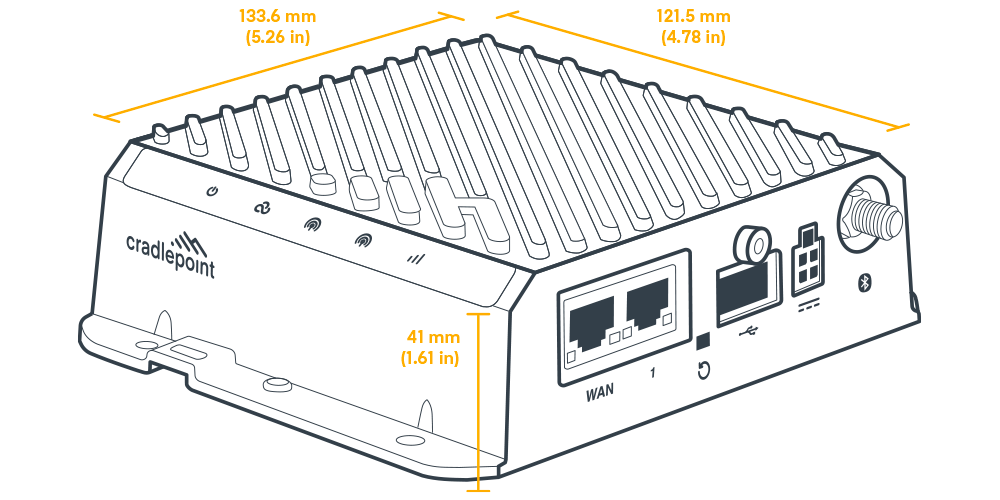

Dimensions	133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)

Interfaces

Wifi	Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz); 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Modem	Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors
Ethernet	2 x GbE (LAN/WAN switchable)
Bluetooth	Embedded Bluetooth LE 5.1; max TX power 10 dBm; 1 x RP-SMA Bluetooth antenna connector
Expansion	1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex micro-fit (3 mm locking)
Wifi Modes	AP, Wireless Client, and Wi-Fi as WAN
Wifi Roaming	802.11k (AP mode only), 802.11v
Wifi Security	WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Gnss Connector	1 x SMA GNSS antenna connector
Wifi Data Rates	574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wifi Certification	Wi-Fi Alliance Certified
Wifi Antenna Connectors	2 x RP-SMA Wi-Fi antenna connectors

Wifi Power

Ic	2.4 GHz 23.18 dBm; 5150–5250 MHz 22.7 dBm; 5250–5350 MHz 17.16 dBm; 5470–5725 MHz 20.9 dBm; 5725–5850 MHz 22.17 dBm (conducted)
Fcc	2.4 GHz 23.18 dBm; 5150–5250 MHz 21.73 dBm; 5250–5350 MHz 22.17 dBm; 5470–5725 MHz 20.79 dBm; 5725–5850 MHz 20.97 dBm (conducted)
Europe	2.4 GHz 14.23 dBm; 5150-5250 MHz 17.03 dBm; 5250-5350 MHz 17.12 dBm; 5500-5700 MHz 22.05 dBm (conducted)
Australia New Zealand	2.4 GHz 14.23 dBm; 5150-5250 MHz 17.03 dBm; 5250-5350 MHz 17.12 dBm; 5500-5700 MHz 22.05 dBm; 5475-5825 MHz 22.18 dBm (conducted)

Performance

L2 L3 Vlans	Up to 64
Stateful Firewall	940 Mbps
Typical Client Count	30
Concurrent Vpn Tunnels	20
Concurrent Sessions Tcp	130,000
Point To Point Ipsec Vpn	200 Mbps
Ips Application Aware Client Analytics	940 Mbps

Reliability

Calculated Mtbf

637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity	5% to 95%
Ingress Protection	IP64 (dust tight and splashing water)
Operating Humidity	10% to 90%
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	-30 °C to 75 °C (-22 °F to 167 °F)

Cellular Modem

Sms	Yes
Gnss	Active GNSS
Mimo	2x2 MIMO
Antennas	SMA female connectors; external 600 MHz-6 GHz paddle antennas (qty 2, included only with IoT packages); external multi-band 2x2 MIMO antenna system
Modulation	Up to 64 QAM DL; up to 64 QAM UL
Regulatory	FCC (U.S.), IC (Canada), CE (EU)
Technology	Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11
Fallback 3g	WCDMA/UMTS/HSPA+
Peak Uplink	LTE 150 Mbps; WCDMA 5.76 Mbps
Wcdma Bands	2, 4, 5
Lte Fdd Bands	B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71
Lte Tdd Bands	B41, B42, B43, B48
Peak Downlink	LTE 300 Mbps; WCDMA 42.2 Mbps
Transmit Power	LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1
Carrier Aggregation	Downlink Cat 7, 2 CA, 64 QAM = 300 Mbps; Uplink Cat 13, 2 CA, 64 QAM = 150 Mbps
Private Cellular Network	Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards	PTCRB (U.S., Canada), GCF (Worldwide)
Public Safety Certifications	FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications	AT&T, T-Mobile, Verizon

Certifications

Rail	EN 61373 Category 1, Class B (railway rolling stock)
Safety	UL/cUL, CB Scheme, EN 62368-1
Vehicle	E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security	FIPS 140-3 Level 1 Module in Process (R920 FIPS models only)
Shock Vibration	MIL-STD-810G Method 514.6, Annex C-2.1, Category 4 (Vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (Shock, Vibration)
Hazardous Locations	Class I Div 2
Substance Compliance	WEEE, RoHS, RoHS-2, California Prop 65

Cloud Services

Support	Support for the full subscription term (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty	Limited lifetime warranty for as long as an active NetCloud Service plan subscription is held
Service Plans	NetCloud Service for Mobile, NetCloud Service for Ruggedized IoT
Service Add Ons	NetCloud Exchange, NetCloud Advanced
Software Updates	NetCloud Manager for the full subscription term
Device Management	NetCloud Manager for the full subscription term

Edge Computing

Cpu	Dual-core ARMv8 64-bit
Memory	Up to 921 MB
Applications	Docker containerized applications
Flash Storage	Up to 8 GB

Product Summary

Poe	No
Wifi	Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Gps Gnss	Active
5g Status	5G Ready with RX20
Bluetooth	Yes, embedded
Usb Ports	1
Throughput	940 Mbps (Firewall)
Form Factor	Ruggedized Metal
Vpn Tunnels	20
Serial Ports	0
Ethernet Ports	2 GbE (LAN/WAN switchable)
Cloud Management	Yes
Special Features	Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support	Yes, with RX20
Subscription Terms	1, 3 & 5 years
Operating Temperature	-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity	LTE
Private Cellular Network	Yes, CBRS, 4G LTE
Network Operator Standards	PTCRB (U.S.), GCF (global)

Purchasing this for your business?

Business account holders on Routers typically save 11% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint R920 Datasheet

1.9mb

R920 Data Sheet

Frequently Asked Questions

Does this R920 bundle include antennas or an AC power supply?▾

No. This configuration is Cat 7 with Wi-Fi and ships with no AC power supply or antennas. The router runs from 9-36 VDC and uses SMA cellular and GNSS connectors and RP-SMA Wi-Fi and Bluetooth connectors.

Is the Cradlepoint R920 a 5G router?▾

No. The R920 has an embedded Cat 7 LTE modem. It is 5G ready: adding the RX20 Managed Accessory provides a second LTE or 5G modem and a serial port.

What does the 5-year subscription include?▾

It includes NetCloud Mobile Essentials and Advanced plans for five years. That covers NetCloud Manager device management and software updates, and 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5). It also includes a limited lifetime hardware warranty while the subscription is active.

Which public safety networks is the R920 certified for?▾

The modem is certified for FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. Its network operator certifications are AT&T, T-Mobile and Verizon.

Who is this SKU intended for?▾

It is a TAA-compliant ordering option for the United States Federal Government market.
