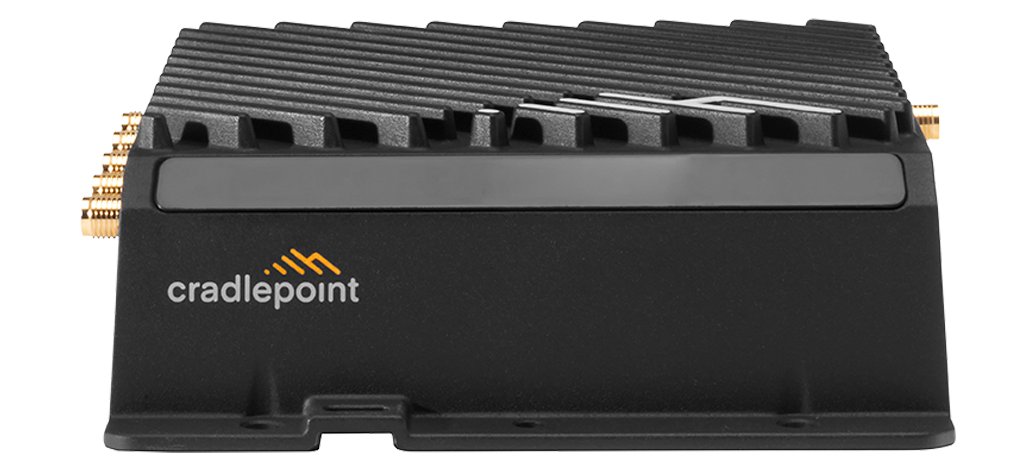

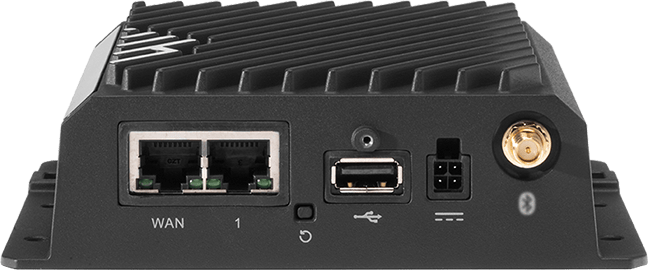

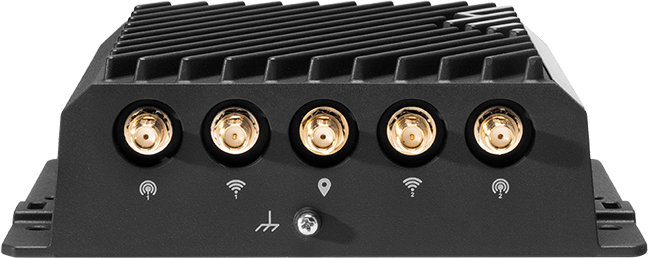

Cradlepoint R920 ruggedized metal LTE router with SMA and RP-SMA antenna connectors.

Cradlepoint R920 Ruggedized Cat 7 LTE Router, Wi-Fi 6, 3-Year NetCloud Ruggedized IoT Essentials + Advanced

Name: Cradlepoint R920 Ruggedized Cat 7 LTE Router, Wi-Fi 6, 3-Year NetCloud Ruggedized IoT Essentials + Advanced
Brand: Cradlepoint
SKU: TCA3-0920-C7A-NN
Price: 1391.50 USD
Availability: InStock

Cradlepoint|

MPN: TCA3-0920-C7A-NN

UPC: 840292703537

In Stock

$1,391.50$1,481.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Monday, Oct 5

Order within 8h 3m to get it by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 11% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Embedded Cat 7 LTE modem, 300 Mbps downlink and 150 Mbps uplink, dual 4FF SIM slots with SIM-based auto-carrier selection
Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with AP, client and Wi-Fi-as-WAN modes
2 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0 with screw lock, GPIO and Bluetooth Low Energy 5.1
Active GNSS tracking GPS, Galileo, GLONASS, BeiDou and QZSS simultaneously
IP64 ruggedized metal housing rated -30 °C to 75 °C, with E-Mark, EN 61373 rail, MIL-STD-810G and Class I Div 2 certifications

The Ericsson Cradlepoint R920 is a ruggedized LTE networking platform built for vehicles and IoT deployments. This part number, TCA3-0920-C7A-NN, is the North America (U.S. and Canada) configuration: a Cat 7 LTE router with Wi-Fi, an AC power supply and antennas. It comes with a 3-year NetCloud Ruggedized IoT Essentials + Advanced subscription, which covers NetCloud Manager device management, software updates and support for the full term. The embedded Cat 7 LTE modem uses 2 carrier aggregation to reach 300 Mbps downlink and 150 Mbps uplink. It has dual 4FF SIM slots with SIM-based auto-carrier selection and supports CBRS Band 48 for private cellular networks. The data sheet lists AT&T, T-Mobile and Verizon operator certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline for public safety. On the local side, the R920 has 2x2 MU-MIMO Wi-Fi 6 across 2.4 GHz and 5 GHz, two LAN/WAN-switchable Gigabit Ethernet ports, a screw-lock USB 2.0 port, GPIO and embedded Bluetooth Low Energy 5.1. The active GNSS receiver tracks GPS, Galileo, GLONASS, BeiDou and QZSS for location and coverage mapping. The optional RX20 Managed Accessory adds a second LTE or 5G modem and a serial port. The hardware is built for vehicles and industrial sites. It takes a 9–36 VDC input with ignition sensing and is rated IP64. Certifications include E-Mark, SAE J1455, EN 61373 rail, MIL-STD-810G shock and vibration, and Class I Div 2 hazardous locations. The stateful firewall and IPS both run at 940 Mbps, with up to 20 concurrent VPN tunnels. A dual-core ARMv8 processor runs Docker containerized applications at the edge. Essentials packages include 24x7 support and a limited lifetime warranty that remains in effect while the router has an active NetCloud subscription.

Ideal For

Public safety, utility and field-service vehicles that need in-vehicle Wi-Fi 6 and GNSS tracking
Rail and transit rolling stock connectivity, supported by EN 61373 certification
Industrial IoT and remote asset connectivity at Class I Div 2 hazardous locations
Private LTE deployments on CBRS Band 48
Edge computing with Docker containers for data collection close to the equipment

Why This Product

1Cat 7 LTE with a 150 Mbps uplink and dual SIMs; second LTE or 5G modem available through the RX20 Managed Accessory
2Wi-Fi 6 with 940 Mbps firewall and IPS throughput and up to 20 concurrent VPN tunnels
3IP64 housing with E-Mark, EN 61373 rail, MIL-STD-810G and Class I Div 2 certifications
4Ruggedized IoT package with 3 years of Essentials + Advanced, including AC power supply and cellular paddle antennas

Modem

3g	WCDMA/UMTS/HSPA+
Sms	Yes
Gnss	Active GNSS
Mimo	2x2
3g Bands	2, 4, 5
Antennas	SMA female connectors; 2 x external 600 MHz–6 GHz cellular paddle antennas (included with IoT packages); external multi-band 2x2 MIMO LTE antenna system
Tx Power	Power: LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1
Lte Bands	4G/LTE Bands: FDD B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71; TDD B41, B42, B43, B48
Modulation	Up to 64 QAM DL; up to 64 QAM UL
Regulatory	FCC (U.S.), IC (Canada), CE (EU)
Technology	Cat 7 LTE; Dual SIM slots (4FF); SIM-based auto-carrier selection; 3GPP Release 11
Peak Uplink	LTE 150 Mbps; WCDMA 5.76 Mbps
Peak Downlink	LTE 300 Mbps; WCDMA 42.2 Mbps
Carrier Aggregation	Downlink Cat 7, 2 CA, 64 QAM = 300 Mbps; Uplink Cat 13, 2 CA, 64 QAM = 150 Mbps
Private Cellular Network	Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards	PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications	Public Safety Network Certifications: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications	AT&T, T-Mobile, Verizon

Power

Fusing	3 A fuse for 9–12 VDC installations; 2 A fuse for > 24 VDC installations
Features	Ignition sensing (automatic ON and time-delay OFF)
Consumption	Sleep 15 mW; Idle 9 W; Typical 14.5 W; Heavy 15.2 W
Input Voltage	DC Input Steady State Voltage Range: 9–36 VDC

General

Mpn	Manufacturer Part Number: TCA3-0920-C7A-NN
Upc	840292703537
Brand	Cradlepoint (Ericsson Enterprise Wireless)
Model	Cradlepoint R920
Region	North America (U.S. & Canada)
Package Plan	3-Year NetCloud Ruggedized IoT Essentials + Advanced Plans
Subscription Term	3 years
Hardware Configuration	Cat 7 with Wi-Fi (300 Mbps), with AC power supply and antennas

Gnss Gps

Power	GNSS Antenna Power: 3.05–3.25 VDC; max current 100 mA
Accuracy	Horizontal < 5 m (50%), < 9 m (95%)
Protocols	NMEA 0183
Frequencies	L1
Sensitivity	Acquisition -145 dBm; Tracking -160 dBm
Update Rate	1 Hz (once per second)
Constellations	GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time To First Fix	32 seconds (cold start)

Physical

Weight	595 g (1 lb 5 oz)

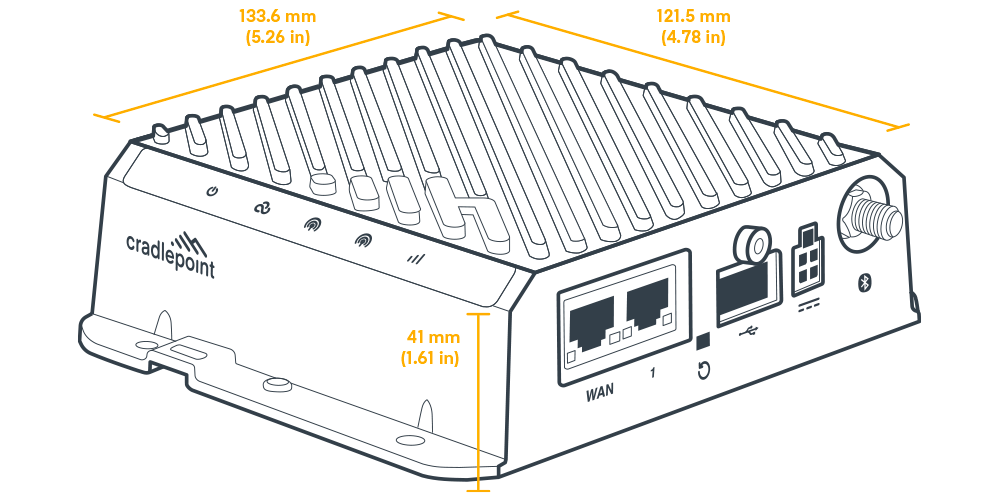

Dimensions	Size: 133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Shipping Weight	3.59 lb

Interfaces

Wifi	Dual-radio, dual-band concurrent 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS; AP, Wireless Client and Wi-Fi as WAN modes; 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz); 2 x RP-SMA connectors; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k (AP mode only), 802.11v; Wi-Fi Alliance Certified
Modem	Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors
Ethernet	2 x GbE (LAN/WAN switchable)
Bluetooth	Embedded Bluetooth Low Energy 5.1; Max TX Power 10 dBm; 1 x RP-SMA Bluetooth antenna connector
Expansion	1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex micro-fit (3 mm locking type)
Gnss Connector	GNSS/GPS: 1 x SMA GNSS antenna connector

Wifi Power

Ic	2.4 GHz 23.18 dBm; 5150–5250 MHz 22.7 dBm; 5250–5350 MHz 17.16 dBm; 5470–5725 MHz 20.9 dBm; 5725–5850 MHz 22.17 dBm (conducted)
Fcc	2.4 GHz 23.18 dBm; 5150–5250 MHz 21.73 dBm; 5250–5350 MHz 22.17 dBm; 5470–5725 MHz 20.79 dBm; 5725–5850 MHz 20.97 dBm (conducted)
Europe	2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm (conducted)
Australia New Zealand	2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm; 5475–5825 MHz 22.18 dBm (conducted)

Performance

Vlans	Layer 2 / Layer 3 VLANs: Up to 64
Ipsec Vpn	Point-to-Point IPsec VPN: 200 Mbps
Stateful Firewall	940 Mbps
Typical Client Count	30
Concurrent Vpn Tunnels	20
Concurrent Tcp Sessions	Concurrent Sessions (TCP): 130,000
Ips Application Aware Client Analytics	IPS/Application Aware Services/Client Analytics: 940 Mbps

Reliability

Calculated Mtbf

637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity	5% to 95%
Ingress Protection	IP64 (dust tight and splashing water)
Operating Humidity	10% to 90%
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	-30 °C to 75 °C (-22 °F to 167 °F)

Certifications

Rail	EN 61373 Category 1, Class B (railway rolling stock)
Safety	UL/cUL, CB Scheme, EN 62368-1
Vehicle	E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security	FIPS 140-3 Level 1 Module in Process (R920 FIPS models only)
Shock Vibration	MIL-STD-810G Method 514.6, Annex C-2.1, Category 4; MIL-STD-810G Section 2.2.2 Procedure 1
Hazardous Locations	Class I Div 2
Substance Compliance	WEEE, RoHS, RoHS-2, California Prop 65

Cloud Services

Support	Included for the full subscription term
Warranty	Limited lifetime warranty for as long as an active NetCloud Service plan subscription is maintained
Service Plans	NetCloud Service for Mobile, NetCloud Service for Ruggedized IoT
Service Add Ons	NetCloud Exchange, NetCloud Advanced
Software Updates	NetCloud Manager for the full subscription term
Device Management	NetCloud Manager for the full subscription term

Edge Computing

Cpu	Dual-core ARMv8 64-bit
Memory	Up to 921 MB
Applications	Docker containerized applications
Flash Storage	Up to 8 GB

Product Summary

Poe	No
Wifi	Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Gps Gnss	Active
5g Status	5G Ready with RX20
Bluetooth	Yes, embedded
Usb Ports	1
Throughput	940 Mbps (Firewall)
Form Factor	Ruggedized Metal
Vpn Tunnels	20
Serial Ports	0
Ethernet Ports	2 GbE (LAN/WAN switchable)
Cloud Management	Yes
Special Features	Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support	Yes, with RX20
Operating Temperature	-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity	LTE
Private Cellular Network	Yes, CBRS, 4G LTE
Network Operator Standards	PTCRB (U.S.), GCF (global)
Subscription Terms Available	1, 3 & 5 years

Purchasing this for your business?

Business account holders on Routers typically save 11% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint R920 Datasheet

1.9mb

Frequently Asked Questions

Is the Cradlepoint R920 a 5G router?▾

No. The R920 has an embedded Cat 7 LTE modem rated to 300 Mbps downlink and 150 Mbps uplink. Cradlepoint lists it as 5G Ready with the RX20 Managed Accessory, which adds a second LTE or 5G modem and a serial port.

What does part number TCA3-0920-C7A-NN include?▾

It is the North America (U.S. and Canada) R920 Cat 7 configuration with Wi-Fi, an AC power supply and antennas, bundled with a 3-year NetCloud Ruggedized IoT Essentials + Advanced subscription. The subscription covers NetCloud Manager device management, software updates and support for the full term.

Can the R920 be powered from a vehicle?▾

Yes. It accepts a 9–36 VDC input and has ignition sensing, which turns it on automatically and powers it off after a delay. Cradlepoint specifies a 3 A fuse for 9–12 VDC installations and a 2 A fuse for installations above 24 VDC.

Which carriers and public safety networks is the R920 certified for?▾

The data sheet lists AT&T, T-Mobile and Verizon network operator certifications. For public safety networks, it lists FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline.

What warranty and support come with this bundle?▾

Essentials packages include 24x7 support: phone support 24 hours on weekdays with emergency response on weekends, 24x7 web and 24x5 chat. The router also carries a limited lifetime warranty for as long as it has an active NetCloud Service plan.
