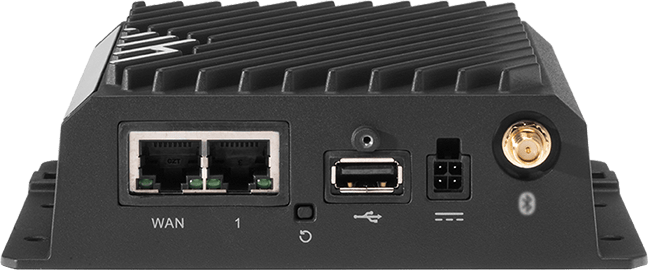

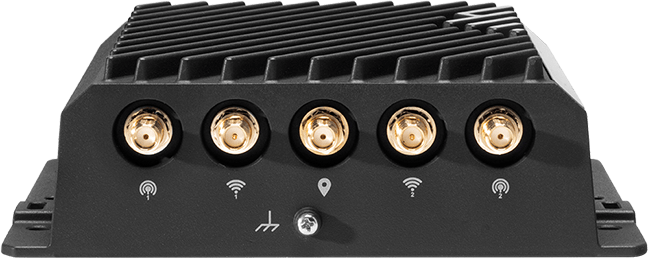

Compact Cradlepoint R920 ruggedized metal LTE router with SMA and RP-SMA antenna connectors and two Gigabit Ethernet ports.

Cradlepoint R920 Rugged LTE Cat 7 Router with Wi-Fi 6 and 3-Year TAA NetCloud Mobile Essentials + Advanced

Name: Cradlepoint R920 Rugged LTE Cat 7 Router with Wi-Fi 6 and 3-Year TAA NetCloud Mobile Essentials + Advanced
Brand: Cradlepoint
SKU: TAA-MAA3-0920-C7A-NA
Price: 1569.08 USD
Availability: InStock

Cradlepoint|

MPN: TAA-MAA3-0920-C7A-NA

UPC: 840292703650

In Stock

$1,569.08$1,670.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Monday, Oct 5

Order within 8h 0m to get it by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 11% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Embedded Cat 7 LTE modem: 300 Mbps downlink, 150 Mbps uplink, 2x2 MIMO, dual 4FF SIM slots
Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with WPA3
Embedded Bluetooth Low Energy 5.1 and active GNSS (GPS, Galileo, GLONASS, BeiDou, QZSS)
2 x Gigabit Ethernet (LAN/WAN switchable), USB 2.0 with screw lock, GPIO
Public safety certified: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline; CBRS Band 48 capable

The Cradlepoint R920 is a ruggedized LTE networking platform built for vehicles and IoT. It is small enough to standardize across a fleet and capable enough for video upload, field applications and public safety work. This SKU (TAA-MAA3-0920-C7A-NA) is the TAA-compliant U.S. Federal Government configuration. It pairs the R920-C7A with a 3-year Ericsson NetCloud Mobile Essentials + Advanced subscription and ships without an AC power supply or antennas. The embedded Cat 7 LTE modem uses 2x2 MIMO and two-carrier aggregation to reach 300 Mbps downlink and 150 Mbps uplink. It has dual 4FF SIM slots with SIM-based auto-carrier selection and covers North American bands including B12, B13, B14, B66, B71 and CBRS Band 48 for private cellular networks. It is certified on AT&T, T-Mobile and Verizon, and on FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline. On the local side, the router offers dual-band 2x2 MU-MIMO Wi-Fi 6, embedded Bluetooth LE 5.1, and two LAN/WAN-switchable Gigabit Ethernet ports. The optional RX20 Managed Accessory adds a second LTE or 5G modem plus a serial port. The R920 is built for harsh installs. It carries IP64 sealing, MIL-STD-810G vibration and shock ratings, E-Mark, SAE J1455, EN 61373 rail and Class I Div 2 hazardous-location certifications, and operates from -30 °C to 75 °C. Power comes from 9-36 VDC with ignition sensing, and the 595 g chassis measures 133.6 x 121.5 x 41 mm. A dual-core ARMv8 CPU runs Docker containers at the edge. NetCloud Mobile Essentials provides NetCloud Manager cloud management, software updates and 24x7 support for the full three years. The hardware carries a limited lifetime warranty while the subscription is active. The Advanced plan adds features such as coverage maps, content filtering, intrusion detection and prevention, and application-aware analytics.

Ideal For

Federal agency and public safety vehicle fleets procuring through TAA-compliant channels
Patrol cars, ambulances and fire apparatus using FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
Rail, transit and hazardous-location installs that need EN 61373 or Class I Div 2 certification
Field vehicles uploading video and data over LTE with Wi-Fi 6 for onboard devices
Private LTE deployments on CBRS Band 48 with edge applications in Docker containers

Why This Product

1Cat 7 LTE with 150 Mbps uplink and Wi-Fi 6 in a compact 595 g chassis, smaller than the IBR1700 at 1.7 kg
2Adds embedded Bluetooth LE 5.1, Docker edge computing and Class I Div 2 and EN 61373 rail certifications
3Two GbE ports and one USB port with no built-in serial port; the RX20 Managed Accessory adds a serial port and a second LTE or 5G modem
4200 Mbps IPsec VPN and 20 VPN tunnels, compared with 20 Mbps and 10 tunnels on the IBR1700

Power

Dc Input	9–36 VDC steady state input
Consumption	Sleep 15 mW; idle 9 W; typical 14.5 W; heavy 15.2 W
Ignition Sensing	Ignition sensing (automatic ON and time-delay OFF)
Fuse Requirements	3 A fuse for 9–12 VDC installations; 2 A fuse above 24 VDC

General

Mpn	TAA-MAA3-0920-C7A-NA
Upc	840292703650
Brand	Ericsson Cradlepoint
Model	Cradlepoint R920
Hardware Model	R920-C7A (Cat 7 LTE)
Product Status	Manufacturer status: Active

Package

Market	U.S. Federal Government ordering option
Documentation	Cradlepoint R920 Datasheet
Taa Compliant	TAA compliant
Shipping Weight	2.20 lb shipping weight
Subscription Plan	3-Year NetCloud Mobile Essentials + Advanced Plans
Subscription Term	3-year subscription term
Essentials Support	Phone: 24-hour weekdays with weekend emergency response; web: 24x7; chat: 24x5
Hardware Configuration	Cat 7 with Wi-Fi (300 Mbps); no AC power supply or antennas

Gnss Gps

Power	3.05-3.25 VDC supply; 100 mA max current
Accuracy	Horizontal: < 5 m (50%), < 9 m (95%)
Protocols	NMEA 0183
Frequencies	L1
Sensitivity	Acquisition -145 dBm; tracking -160 dBm
Update Rate	1 Hz (once per second)
Constellations	GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking)
Time To First Fix	32 seconds (cold start)

Physical

Weight	595 g (1 lb 5 oz)

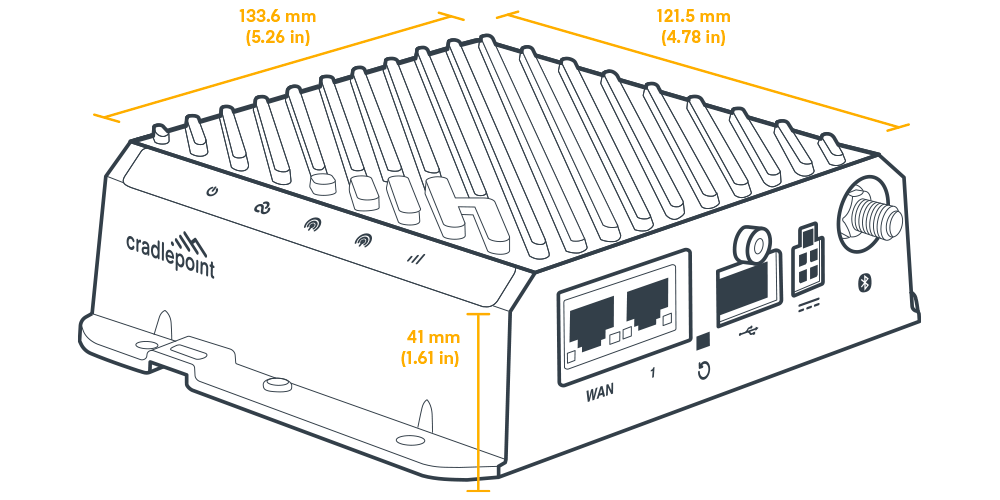

Dimensions	133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)

Interfaces

Usb	1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock for mechanically secure connections
Gpio	1 x 2-pin GPIO connector (shared with the DC power connector)
Modem	Embedded Cat 7 LTE modem with 2 x SMA cellular antenna connectors
Ethernet	2 x GbE (LAN/WAN switchable)
Bluetooth	Embedded Bluetooth Low Energy 5.1, 10 dBm max TX power, 1 x RP-SMA Bluetooth antenna connector
Wifi Modes	AP, Wireless Client and Wi-Fi as WAN
Wifi Radios	Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)
Wifi Roaming	802.11k (AP mode only), 802.11v
Wifi Security	WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
Wifi Standard	2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
Power Connector	2x2 Molex micro-fit (3 mm locking type)
Wifi Data Rates	574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz)
Wifi Certification	Wi-Fi Alliance Certified
Gnss Antenna Connector	1 x SMA GNSS antenna connector
Wifi Antenna Connectors	2 x RP-SMA Wi-Fi antenna connectors

Wifi Power

Ic	2.4 GHz 23.18; 5150–5250 MHz 22.7; 5250–5350 MHz 17.16; 5470–5725 MHz 20.9; 5725–5850 MHz 22.17 dBm (conducted)
Fcc	2.4 GHz 23.18; 5150–5250 MHz 21.73; 5250–5350 MHz 22.17; 5470–5725 MHz 20.79; 5725–5850 MHz 20.97 dBm (conducted)
Europe	2.4 GHz 14.23; 5150-5250 MHz 17.03; 5250-5350 MHz 17.12; 5500-5700 MHz 22.05 dBm (conducted)
Australia New Zealand	AU/NZ: 2.4 GHz 14.23; 5150-5250 MHz 17.03; 5250-5350 MHz 17.12; 5500-5700 MHz 22.05; 5475-5825 MHz 22.18 dBm (conducted)

Performance

Vlans	Up to 64 Layer 2 / Layer 3 VLANs
Ipsec Vpn	200 Mbps point-to-point IPsec VPN
Stateful Firewall	940 Mbps stateful firewall
Typical Client Count	30 typical clients
Concurrent Vpn Tunnels	20 concurrent VPN tunnels
Concurrent Tcp Sessions	130,000 concurrent TCP sessions
Ips App Aware Analytics	940 Mbps IPS / application aware services / client analytics

Reliability

Calculated Mtbf

637,911 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity	5% to 95%
Ingress Protection	IP64 (dust tight and splashing water)
Operating Humidity	10% to 90%
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	-30 °C to 75 °C (-22 °F to 167 °F)

Cellular Modem

3g	WCDMA/UMTS/HSPA+
Sim	Dual 4FF SIM slots with SIM-based auto-carrier selection
Sms	SMS supported
Gnss	Active GNSS
Mimo	2x2 MIMO
3g Bands	3G bands 2, 4, 5
Antennas	SMA female connectors for external 600 MHz - 6 GHz cellular paddle antennas (included only with IoT packages; not included with this Mobile SKU)
Modulation	Up to 64 QAM downlink and uplink
Regulatory	FCC (U.S.), IC (Canada), CE (EU)
Technology	Cat 7 LTE, 3GPP Release 11
Peak Uplink	LTE 150 Mbps; WCDMA 5.76 Mbps
Lte Fdd Bands	B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600)
Lte Tdd Bands	B41 (2500), B42 (3500), B43 (3700), B48 (3500)
Peak Downlink	LTE 300 Mbps; WCDMA 42.2 Mbps
Transmit Power	LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1
Carrier Aggregation	Downlink Cat 7, 2 CA, 64 QAM = 300 Mbps; uplink Cat 13, 2 CA, 64 QAM = 150 Mbps
Private Cellular Network	Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards	PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications	AT&T, T-Mobile, Verizon
Public Safety Network Certifications	FirstNet Trusted™, T-Mobile Connecting Heroes, Verizon Frontline

Certifications

Rail	EN 61373 Category 1, Class B (railway rolling stock)
Safety	UL/cUL, CB Scheme, EN 62368-1
Vehicle	E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2
Security	FIPS 140-3 Level 1 module in process on R920 FIPS models only (this SKU is a non-FIPS model)
Shock Vibration	MIL-STD-810G Method 514.6, Annex C-2.1, Category 4 (vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (shock, vibration)
Hazardous Locations	Class I Div 2
Substance Compliance	WEEE, RoHS, RoHS-2, California Prop 65

Cloud Services

Support	Ericsson NetCloud packages include support for the full subscription term
Warranty	Limited lifetime hardware warranty for as long as an active Ericsson NetCloud Service plan is licensed
Service Plans	NetCloud Service for Mobile or Ruggedized IoT (this SKU: Mobile)
Service Add Ons	NetCloud Exchange, Ericsson NetCloud Advanced
Software Updates	Software updates via NetCloud Manager for the full subscription term
Device Management	NetCloud Manager for the full subscription term

Edge Computing

Cpu	Dual-core ARMv8 64-bit
Memory	Up to 921 MB for containers
Applications	Docker containerized applications
Flash Storage	Up to 8 GB for containers

Product Summary

Poe	No
Wifi	Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Gps Gnss	Active
Bluetooth	Yes — embedded
Usb Ports	1
Throughput	940 Mbps (Firewall)
Form Factor	Ruggedized Metal
Vpn Tunnels	20
Serial Ports	0
Five G Status	5G Ready with RX20
Ethernet Ports	2 GbE (LAN/WAN switchable)
Cloud Management	Yes
Special Features	Add second modem and serial port with RX20 Managed Accessory
Dual Modem Support	Yes — with RX20
Subscription Terms	1, 3 & 5 years
Operating Temperature	-30 °C to 75 °C (-22 °F to 167 °F)
Wireless Connectivity	LTE
Private Cellular Network	Yes — CBRS, 4G LTE
Network Operator Standards	PTCRB (U.S.), GCF (global)

Purchasing this for your business?

Business account holders on Routers typically save 11% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint R920 Datasheet

1.9mb

R920 Data Sheet

Frequently Asked Questions

Is the Cradlepoint R920 a 5G router?▾

No. The R920-C7A has an embedded Cat 7 LTE modem with 300 Mbps downlink and 150 Mbps uplink. The manufacturer lists it as 5G Ready with the RX20 Managed Accessory, which can add a second LTE or 5G modem.

What is included with TAA-MAA3-0920-C7A-NA?▾

This TAA-compliant SKU includes the R920-C7A router with Wi-Fi and a 3-year NetCloud Mobile Essentials + Advanced subscription. It does not include an AC power supply or antennas. The router runs on 9–36 VDC with ignition sensing.

Which public safety networks is the R920 certified on?▾

The R920-C7A modem is certified for FirstNet Trusted™, T-Mobile Connecting Heroes and Verizon Frontline. It also holds AT&T, T-Mobile and Verizon network operator certifications and supports CBRS Band 48 for private cellular networks.

Can the R920 be installed on trains or in hazardous locations?▾

Yes. The R920 is certified to EN 61373 Category 1, Class B for railway rolling stock and to Class I Div 2 for hazardous locations. It also carries E-Mark, SAE J1455 and MIL-STD-810G shock and vibration certifications, plus IP64 ingress protection.

What does the 3-year NetCloud Mobile subscription provide?▾

Essentials includes NetCloud Manager cloud management, software updates, and 24x7 support for the full three years, plus the limited lifetime hardware warranty while the subscription is active. The Advanced plan adds features such as coverage maps, content filtering, intrusion detection and prevention, and application-aware analytics.
