Create Free Business Account| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Gnss | Active GNSS |
| Mimo | 2x2 |
| 3g Bands | 2, 4, 5 |

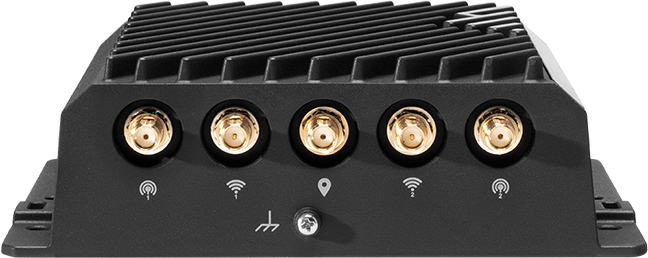

| Antennas | SMA female; 2 x external 600 MHz - 6 GHz paddle antennas (included with IoT packages); 2x2 MIMO |
| Tx Power | LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1 |
| Lte Bands | 4G/LTE Bands: FDD B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600); TDD B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Modulation | Up to 64 QAM DL and UL |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU) |
| Technology | Cat 7 LTE; Dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Carrier Aggregation | DL Cat 7, 2 CA, 64 QAM (300 Mbps); UL Cat 13, 2 CA, 64 QAM (150 Mbps) |
| Private Cellular Network | Yes, includes FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Public Safety Certifications | Public Safety Network Certifications: FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Fusing | 3 A fuse for 9-12 VDC installations; 2 A fuse for > 24 VDC installations |
| Features | Power Features: Ignition sensing (automatic ON and time-delay OFF) |
| Consumption | Power Consumption: Sleep 15 mW; Idle 9 W; Typical 14.5 W; Heavy 15.2 W |
| Input Voltage | DC Input Steady State Voltage Range: 9-36 VDC |
| Mpn | Manufacturer Part Number: TCA5-0920-C7A-NN |
| Upc | 840292703544 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R920 |
| Region | North America (U.S. & Canada) |
| Service Plan | Included Plan: NetCloud Ruggedized IoT Essentials + Advanced |
| Shipping Weight | 3.59 lb |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 7 with Wi-Fi (300 Mbps), with AC power supply and antennas |
| Power | GNSS Power: 3.05-3.25 VDC; Max Current 100 mA |
| Accuracy | Horizontal < 5 m (50%), < 9 m (95%) |
| Protocols | NMEA 0183 |
| Frequencies | L1 |
| Sensitivity | Acquisition -145 dBm; Tracking -160 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking) |
| Time To First Fix | 32 seconds (cold start) |
| Weight | 595 g (1 lb 5 oz) |

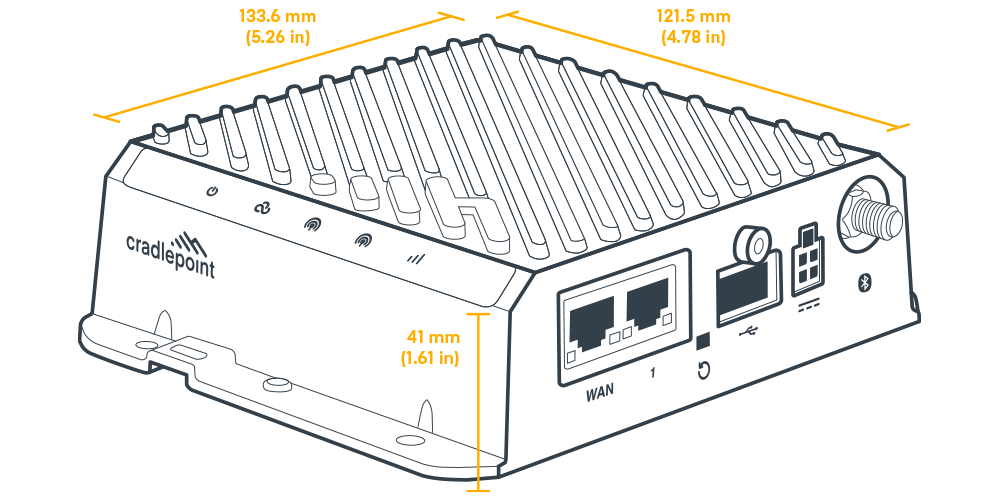

| Dimensions | Size: 133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in) |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock for secure connections |
| Gpio | 1 x 2-pin connector (shared with the DC power connector) |
| Wifi | Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz); 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS |
| Modem | Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors |

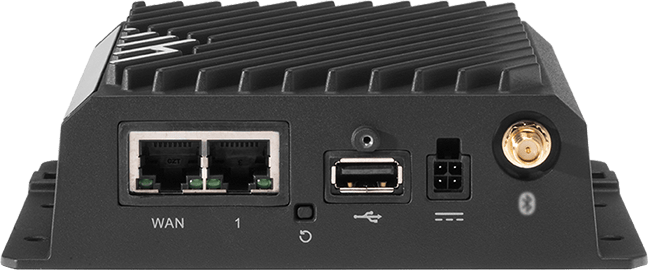

| Ethernet | 2 x GbE (LAN/WAN switchable) |
| Bluetooth | Embedded BLE 5.1; Max TX Power 10 dBm; 1 x RP-SMA antenna connector |
| Wifi Modes | AP, Wireless Client, and Wi-Fi as WAN |
| Wifi Speed | 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz) |
| Wifi Roaming | Roaming: 802.11k (AP mode only), 802.11v |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Gnss Connector | GNSS/GPS: 1 x SMA GNSS antenna connector |
| Power Connector | 2x2 Molex micro-fit (3 mm locking type) |
| Wifi Certification | Wi-Fi Alliance Certified |
| Wifi Antenna Connectors | 2 x RP-SMA |
| Ic | 2.4 GHz 23.18 dBm; 5150-5250 MHz 22.7 dBm; 5250-5350 MHz 17.16 dBm; 5470-5725 MHz 20.9 dBm; 5725-5850 MHz 22.17 dBm (conducted) |
| Fcc | 2.4 GHz 23.18 dBm; 5150-5250 MHz 21.73 dBm; 5250-5350 MHz 22.17 dBm; 5470-5725 MHz 20.79 dBm; 5725-5850 MHz 20.97 dBm (conducted) |
| Europe | 2.4 GHz 14.23 dBm; 5150-5250 MHz 17.03 dBm; 5250-5350 MHz 17.12 dBm; 5500-5700 MHz 22.05 dBm (conducted) |
| Australia New Zealand | 2.4 GHz 14.23 dBm; 5150-5250 MHz 17.03 dBm; 5250-5350 MHz 17.12 dBm; 5500-5700 MHz 22.05 dBm; 5475-5825 MHz 22.18 dBm (conducted) |
| Vlans | Layer 2 / Layer 3 VLANs: Up to 64 |
| Ipsec Vpn | Point-to-Point IPsec VPN: 200 Mbps |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 30 |
| Ips Application Aware | IPS/Application Aware Services/Client Analytics: 940 Mbps |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | Concurrent Sessions (TCP): 130,000 |
| Calculated Mtbf | 637,911 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Rail | EN 61373 Category 1, Class B (Railway rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2 |
| Security | FIPS 140-3 Level 1 Module in Process (R920 FIPS models only) |
| Shock Vibration | MIL-STD-810G Method 514.6, Annex C-2.1, Category 4; MIL-STD-810G Section 2.2.2 Procedure 1 |
| Hazardous Locations | Class I Div 2 |
| Substance Compliance | WEEE; RoHS; RoHS-2; California Prop 65 |
| Support | Included for the full subscription term |
| Warranty | Limited lifetime warranty with an active NetCloud Service plan |
| Service Plans | Ericsson NetCloud Service for Mobile, NetCloud Service for Ruggedized IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Cpu | Dual-core ARMv8 64-bit |
| Memory | Up to 921 MB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 8 GB |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Gps Gnss | Active |
| 5g Status | 5G Ready with RX20 (accessory) |
| Bluetooth | Yes, embedded |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Firewall) |
| Form Factor | Ruggedized Metal |
| Vpn Tunnels | 20 |
| Serial Ports | 0 |
| Ethernet Ports | 2 GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add second modem and serial port with RX20 Managed Accessory |
| Dual Modem Support | Yes, with RX20 |
| Subscription Terms | Available Subscription Terms: 1, 3 & 5 years |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes (CBRS, 4G LTE) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Routers typically save 11% vs. retail pricing. Create a free account to see your price.
No. The R920 has an embedded Cat 7 LTE modem. It is 5G ready through the optional RX20 managed accessory, which adds a second LTE or 5G modem and a serial port.
The R920 router in its Cat 7 with Wi-Fi configuration, an AC power supply, antennas, and a 5-year Ericsson NetCloud Ruggedized IoT Essentials + Advanced plan.
This SKU is the North America version for the U.S. and Canada, supporting LTE bands including B2, B4, B5, B12, B13, B14, B66, B71 and CBRS B48.
NetCloud Manager device management and software updates for the full term, 24x7 support, the Advanced plan feature set, and a limited lifetime hardware warranty while the subscription remains active.
Yes. It accepts 9-36 VDC input and supports ignition sensing with automatic power-on and time-delay power-off.
