Create Free Business Account| Fusing | 3 A fuse for 9–12 VDC; 2 A fuse for > 24 VDC |
| Features | Ignition sensing (automatic ON, time-delay OFF) |
| Consumption | Sleep 15 mW; idle 9 W; typical 14.5 W; heavy 15.2 W |
| Input Voltage | 9–36 VDC steady state |
| Mpn | MAA5-0920-C7A-NA |
| Upc | 840292703490 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R920 |
| Region | North America (U.S. & Canada) |
| Package Plan | 5-Year NetCloud Mobile Essentials + Advanced Plans |
| Product Status | Active |
| Shipping Weight | 2.20 lb |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 7 with Wi-Fi (300 Mbps); no AC power supply or antennas included |
| Ordering Guide Part Pattern | MAAx-0920-C7A-NA (Mobile — Essentials + Advanced) |
| Power | 3.05–3.25 VDC supply; 100 mA max current |
| Accuracy | Horizontal: < 5 m (50%), < 9 m (95%) |
| Protocols | NMEA 0183 |
| Frequencies | L1 |
| Sensitivity | Acquisition -145 dBm; tracking -160 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou, QZSS (simultaneous tracking) |
| Time To First Fix | 32 seconds (cold start) |
| Weight | 595 g (1 lb 5 oz) |

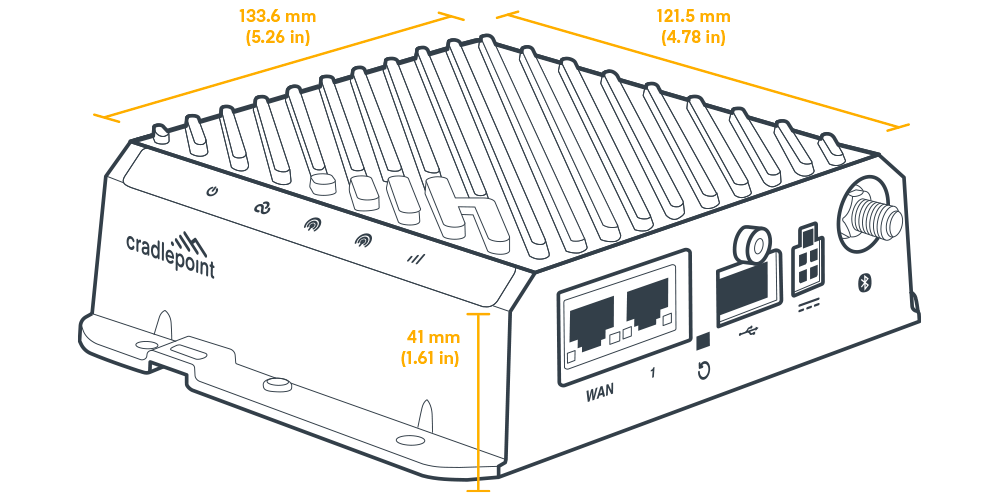

| Dimensions | 133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in) |
| Wifi | Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz); 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS |

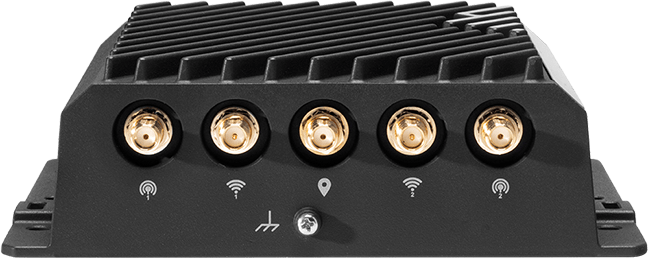

| Modem | Embedded Cat 7 LTE modem; 2 x SMA cellular antenna connectors |

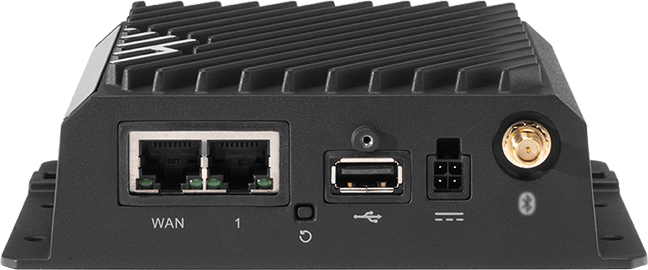

| Ethernet | 2 x GbE (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Bluetooth | Embedded Bluetooth LE 5.1; max TX power 10 dBm; 1 x RP-SMA Bluetooth antenna connector |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock; 1 x 2-pin GPIO (shared with DC power connector); 2x2 Molex micro-fit (3 mm locking) |
| Wifi Modes | AP, Wireless Client and Wi-Fi as WAN |
| Wifi Speed | 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz) |
| Wifi Roaming | 802.11k (AP mode only), 802.11v |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Wifi Certification | Wi-Fi Alliance Certified |
| Wifi Antenna Connectors | 2 x RP-SMA Wi-Fi antenna connectors |
| Ic | 2.4 GHz 23.18 dBm; 5150–5250 MHz 22.7 dBm; 5250–5350 MHz 17.16 dBm; 5470–5725 MHz 20.9 dBm; 5725–5850 MHz 22.17 dBm (conducted) |
| Fcc | 2.4 GHz 23.18 dBm; 5150–5250 MHz 21.73 dBm; 5250–5350 MHz 22.17 dBm; 5470–5725 MHz 20.79 dBm; 5725–5850 MHz 20.97 dBm (conducted) |
| Europe | 2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm (conducted) |
| Australia New Zealand | AU/NZ: 2.4 GHz 14.23 dBm; 5150–5250 MHz 17.03 dBm; 5250–5350 MHz 17.12 dBm; 5500–5700 MHz 22.05 dBm; 5475–5825 MHz 22.18 dBm (conducted) |
| Stateful Firewall | 940 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 30 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 130,000 |
| Point To Point Ipsec Vpn | 200 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | 637,911 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Gnss | Active GNSS |
| Mimo | 2x2 MIMO |
| 3g Bands | WCDMA bands 2, 4, 5 |
| Antennas | SMA female connectors; 2 x 600 MHz–6 GHz paddle antennas included only with IoT packages (not this SKU) |
| Tx Power | LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1 |
| Modulation | Up to 64 QAM DL and UL |
| Regulatory | FCC (U.S.), IC (Canada), CE (EU) |
| Technology | Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Lte Fdd Bands | B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600) |
| Lte Tdd Bands | B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Carrier Aggregation | DL Cat 7, 2CA 64 QAM = 300 Mbps; UL Cat 13, 2CA 64 QAM = 150 Mbps |
| Private Cellular Network | Yes, FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (worldwide) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Rail | EN 61373 Category 1, Class B (railway rolling stock) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Vehicle | E-Mark; SAE J1455 Operating Sinusoidal Vibe, Category 2 |
| Security | FIPS 140-3 Level 1 module in process (R920 FIPS models only) |
| Hazardous Locations | Class I Div 2 |
| Substance Compliance | WEEE, RoHS, RoHS-2, California Prop 65 |
| Shock Vibration Humidity | MIL-STD-810G Method 514.6, Annex C-2.1, Cat. 4 (vibration); MIL-STD-810G Section 2.2.2 Procedure 1 (shock, vibration) |
| Support | Full-term support: phone 24-hour weekdays plus weekend emergency response, web 24x7, chat 24x5 |
| Warranty | Limited lifetime warranty with an active NetCloud Service plan |
| Service Plans | NetCloud Service for Mobile; NetCloud Service for Ruggedized IoT |
| Service Add Ons | NetCloud Exchange; NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Cpu | Dual-core ARMv8 64-bit |
| Memory | Up to 921 MB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 8 GB |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Gps Gnss | Active |
| 5g Status | 5G Ready with RX20 |
| Bluetooth | Yes, embedded |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Ruggedized metal |
| Vpn Tunnels | 20 |
| Serial Ports | 0 |
| Ethernet Ports | 2 x GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add second modem and serial port with RX20 Managed Accessory |
| Dual Modem Support | Yes, with RX20 |
| Subscription Terms | 1, 3 & 5 years |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes, CBRS, 4G LTE |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Routers typically save 5% vs. retail pricing. Create a free account to see your price.
No. It has an embedded Cat 7 LTE modem rated to 300 Mbps down and 150 Mbps up. It is 5G-ready through the optional RX20 Managed Accessory, which adds a second LTE or 5G modem.
No. This configuration ships without an AC power supply or antennas. The R920 runs on 9–36 VDC with ignition sensing and uses SMA cellular and GNSS connectors plus RP-SMA Wi-Fi and Bluetooth connectors.
The -NA suffix designates North America (U.S. and Canada). The modem covers LTE bands including B2, B4, B5, B12, B13, B14, B66, B71 and CBRS B48. It is certified on AT&T, T-Mobile and Verizon.
It covers five years of NetCloud Manager device management and software updates, plus Advanced Plan capabilities and support for the full term. Support includes phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. The hardware carries a limited lifetime warranty while an active NetCloud plan is in place.
Yes. Its dual-core 64-bit ARMv8 CPU, with up to 921 MB of memory and up to 8 GB of flash, runs Docker containerized applications at the edge.
