| Features | Ignition sensing (automatic ON & time-delay OFF) |
| Required | 9–36 VDC (fused) or 802.3at PoE Type 2 (30 W) |
| Poe Class | 802.3at Class 4 PD (30 W) |
| Ac Power Supply | No AC power supply included |
| Consumption R2105 | R2105 (Wi-Fi model): Sleep 50 mW / Idle 8 W / Typical 14.5 W / Heavy 17 W |
| Consumption R2155 | R2155: Sleep 50 mW / Idle 6 W / Typical 10 W / Heavy 11.5 W |
| Mpn | TAA-TC05-2155-5GB-GA |
| Upc | 840292703452 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R2155 (R2100 Series) |
| Market | TAA-compliant U.S. Federal Government ordering option |
| Product Status | Active |
| Shipping Weight | 5.03 lb shipping weight |
| Subscription Plan | 5-Year NetCloud Ruggedized IoT Essentials Plan |
| Subscription Term | 5 years |
| Essentials Inclusions | Endpoint, 24x7 support, limited lifetime warranty, Enterprise Wireless University |
| Hardware Configuration | R2155 5G router without Wi-Fi (IoT); 4FF SIM not included; integrated antennas; no AC power supply |
| 3g | WCDMA/UMTS/HSPA+ |
| Sim | Dual 4FF SIM slots (SIM not included) |
| Sms | SMS supported |
| Mimo | 4x4 MIMO |
| 3g Bands | 1, 2, 4, 5, 6, 8, 9, 19 |
| Antennas | 4 internal cellular antennas |
| Gnss Gps | Passive GNSS |
| Lte Bands | FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48 |
| Modulation | Up to 256 QAM DL/UL |
| Peak Rates | Up to 4.14 Gbps down / 660 Mbps up |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA + LTE Cat 20; dual 4FF SIM; 3GPP Rel. 15 |
| 5g Nr Bands | NSA/SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
| Transmit Power | 5G NR 23 dBm ±1.5; ENDC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA) |
| Carrier Aggregation | LTE: up to 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Yes, includes CBRS Band 48 (FCC Part 96) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Public Safety Network Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified |

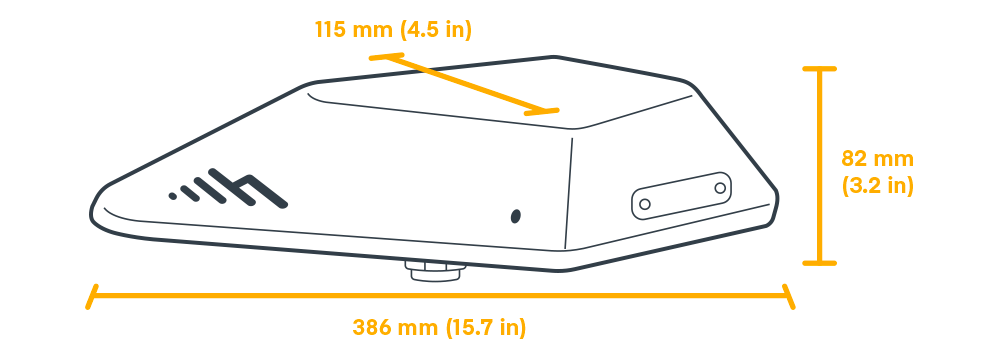

| Size | 115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in) |
| Weight | 1.46 kg (3 lb 4 oz) |
| Wifi | Not included on R2155 (Wi-Fi 6 is on the R2105 model) |
| Modem | Embedded 5G NR FR1 low-, mid-band, and 4G LTE Category 20 modem |

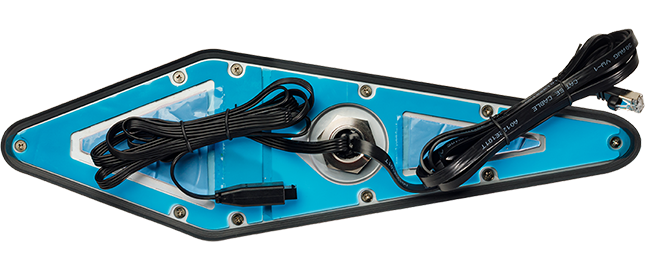

| Ethernet | 1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable |
| Gnss Gps | Passive GNSS (multiplexed with internal cellular antennas) |
| Bluetooth | N/A |
| Expansion Console | N/A |
| Stateful Firewall | 900 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 10 |
| Concurrent Sessions Tcp | 32,000 |
| Point To Point Ipsec Vpn | 300 Mbps |
| Ips Application Aware Client Analytics | 650 Mbps |
| Calculated Mtbf | 1,895,792 hours (Telcordia SR332 at 25 °C) |
| Shock Vibration | MIL-STD-810G, Sec. 2.2.2, Procedures 1 and 5 |
| Layer2 Layer3 Vlans | Up to 64 |
| Humidity | 5% to 95% (operating and storage) |
| Temperature | Operating -30 °C to 70 °C; Storage -40 °C to 85 °C |
| Impact Protection | IK09 (10 J impact) |
| Ingress Protection Corrosion | IP67; IEC60068-2-11 salt-mist corrosion resistance |
| Taa | TAA compliant |
| Rail | N/A |
| Safety | CB Scheme; IEC/EN 62368-1 |
| Vehicle | E-Mark; SAE J1455 Category 2 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; this SKU is not a FIPS model) |
| Shock Vibration | MIL-STD-810G, Sec. 2.2.2, Procedures 1 and 5 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty while NetCloud subscription is active |
| Service Plans | NetCloud Mobile Performance; NetCloud Ruggedized IoT |
| Service Add Ons | NetCloud Exchange; NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB (adjustable for NetCloud Container Orchestrator) |
| Applications | Docker containerized applications |
| Flash Storage | Up to 8 GB (adjustable for NetCloud Container Orchestrator) |
| Poe | 802.3at |
| Wifi | Wi-Fi 6 on R2105 only; not present on R2155 |
| Gps Gnss | Passive |
| 5g Status | 5G Embedded |
| Throughput | 900 Mbps (Firewall) |

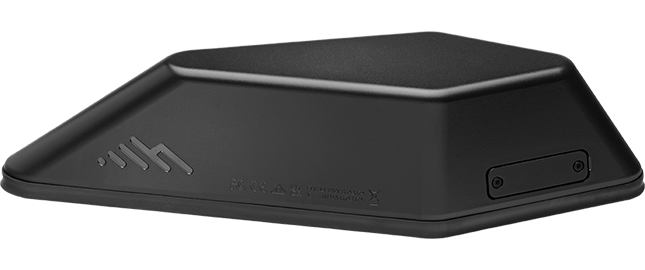

| Form Factor | Polycarbonate |
| Vpn Tunnels | 10 |
| Ethernet Ports | 1 x 2.5 GbE RJ45 |
| Cloud Management | Yes |
| Special Features | External mounting for best reception with no signal loss |
| Subscription Terms | Available terms: 1, 3 & 5 years |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Wireless Connectivity | Dual Connectivity; 5G & Cat 20 LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S. & Canada), GCF (worldwide) |
| Fcc | 2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP |
| Canada | 2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP |
| Applicability | Applies to R2105 only |
| European Union | EU (R2105): 2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP |
| Global Safe Mode | 2.4 GHz 20.0 dBm EIRP |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. The R2155 is the IoT configuration of the R2100 Series and has no Wi-Fi radio. It delivers 5G over a single 2.5 GbE RJ45 LAN port. The R2105 is the Wi-Fi 6 model.
It runs on 9–36 VDC through its integrated Molex Micro-Fit DC cable, with ignition sensing, or on 802.3at PoE (30 W). Use a 3 A fuse for 9–24 VDC installations and a 2.5 A fuse above 24 VDC. No AC power supply is included.
It covers the purpose-built endpoint, NetCloud Manager device management and software updates for the full term, and 24x7 support. It also includes Enterprise Wireless University access and a limited lifetime warranty while the subscription is active. A NetCloud Advanced licence can be added at any time for additional features.
Yes. It can run as a captive modem for supported Cradlepoint controlling routers. NetCloud Manager then manages both as a single entity and treats the R2155 as an internal modem, so no separate licence is needed for it.
No. The R2155 has dual 4FF SIM slots, and the SIM is not included.
