| Poe Class | 802.3at Class 4 PD (30 W) |
| Poe Input | Alternatively 802.3at PSE Type 2 (30 W) |
| Fuse 9 24 Vdc | 3 A fuse for 9–24 VDC installations |
| Dc Input Cable | 380 mm (14.96 in) non-removable cable, 4-pin 2x2 Molex micro-fit connector |
| Power Features | Ignition sensing (automatic ON & time-delay OFF) |
| Consumption Idle | R2105 Idle: 8 W |
| Dc Input Voltage | 9–36 VDC steady state |
| Fuse Over 24 Vdc | 2.5 A fuse for > 24 VDC installations |
| Consumption Heavy | R2105 Heavy: 17 W |
| Consumption Sleep | R2105 Sleep: 50 mW |
| Consumption Typical | R2105 Typical: 14.5 W |
| Mpn | MBA1-2105-5GB-GA |
| Upc | 840292701496 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R2105 (R2100 Series) |
| Region | All Regions |
| Package Plan | 1-Year NetCloud Mobile Performance Essentials + Advanced Plans |
| Product Status | Active |
| Subscription Term | 1 year |
| Hardware Configuration | R2105 5G router with Wi-Fi (Mobile); SIM not included; integrated antennas; no AC power supply |
| Sim Card | 4FF SIM not included |
| Ac Power Supply | No AC power supply |
| Shipping Weight | 5.03 lb |

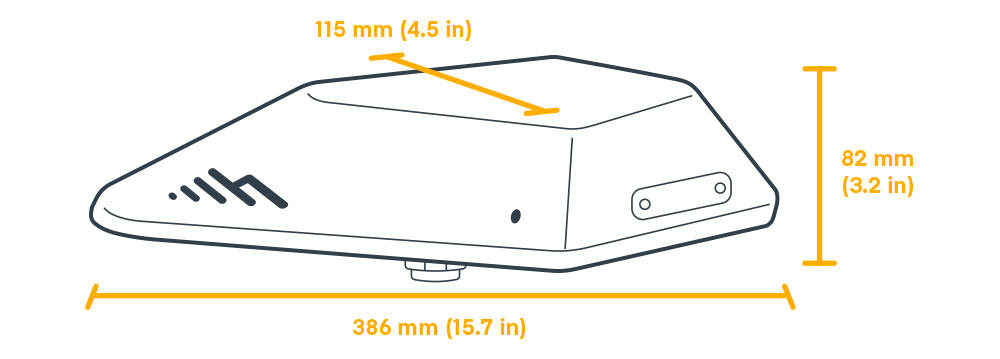

| Size | 115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in) |
| Weight | 1.46 kg (3 lb 4 oz) |
| Wifi | Dual-radio, dual-band concurrent (2.4/5 GHz) 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; 5 GHz limited to client mode in the EU |
| Modem | Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem |
| Ethernet | 1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded flat CAT5e cable with male RJ45 |
| Gnss Gps | Passive GNSS (multiplexed with internal cellular antennas) |
| Bluetooth | N/A |
| Expansion Console | N/A |
| Fcc | 2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP |
| Canada | 2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP |
| European Union | 2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP |
| Global Safe Mode | 2.4 GHz 20.0 dBm EIRP |
| Stateful Firewall | 900 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 10 |
| Concurrent Sessions Tcp | 32,000 |
| Point To Point Ipsec Vpn | 300 Mbps |
| Ips Application Aware Client Analytics | 650 Mbps |
| Calculated Mtbf | 1,895,792 hours (Telcordia SR332 at 25 °C) |
| Shock Vibration | MIL-STD-810G Sec. 2.2.2 Procedure 1 (Shock, Vibration) and Procedure 5 (Shock) |
| Layer2 Layer3 Vlans | Up to 64 |
| Storage Humidity | 5% to 95% |
| Impact Protection | IK09 (protected against 10 joules impact) |
| Ingress Protection | IP67 (dust tight and water immersion up to 1 meter) |
| Operating Humidity | 5% to 95% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Corrosion Resistance | IEC60068-2-11 corrosion resistance (salt mist) |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 4x4 MIMO |
| 3g Bands | 1, 2, 4, 5, 6, 8, 9, 19 |
| Antennas | 4 x internal cellular antennas |
| Gnss Gps | Passive GNSS |
| Modulation | 5G FR1: DL up to 256 QAM, UL up to 256 QAM (only enabled on particular carrier equipment) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ) |
| Technology | 5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15 |
| 5g Nr Bands | NSA/SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
| Peak Uplink | Up to 660 Mbps |
| Lte Fdd Bands | FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
| Lte Tdd Bands | TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48 |
| Peak Downlink | Up to 4.14 Gbps |
| Transmit Power | 5G NR 23 ± 1.5 dBm; ENDC 20 ± 1 dBm; LTE 23 ± 1 dBm; LTE HPUE 25 ± 1 dBm (B41 SA only) — typical conducted |
| Carrier Aggregation | LTE: DL up to 7 CA / UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA / UL 1 CA |
| Private Cellular Network | Yes, includes FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Public Safety Certifications | FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Rail | N/A |
| Safety | CB Scheme; IEC/EN 62368-1 |
| Vehicle | E-Mark; SAE J1455 Category 2 |
| Security | FIPS 140-3 Level 1 Module in process (R2100 FIPS models only) |
| Shock Vibration | MIL-STD-810G Sec. 2.2.2 Procedure 1 (Shock, Vibration) and Procedure 5 (Shock) |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty while an active NetCloud Service plan is licensed |
| Service Plans | NetCloud Service for Mobile Performance; NetCloud Service for Ruggedized IoT |
| Service Add Ons | NetCloud Exchange; NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB (adjustable for NetCloud Container Orchestrator) |
| Applications | Docker containerized applications |
| Flash Storage | Up to 8 GB (adjustable for NetCloud Container Orchestrator) |
| Poe | 802.3at |
| Wifi | Dual-radio, dual-band, concurrent; 2x2 MU-MIMO Wi-Fi 6 with DFS |
| Gps Gnss | Passive |
| 5g Status | 5G Embedded |
| Throughput | 900 Mbps (Firewall) |
| Form Factor | Polycarbonate |
| Vpn Tunnels | 10 |
| Ethernet Ports | 1 x 2.5 GbE RJ45 |
| Cloud Management | Yes |
| Special Features | External mounting for best reception with no signal loss |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Wireless Connectivity | Dual Connectivity; 5G & Cat 20 LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S. & Canada), GCF (worldwide) |
| Subscription Terms Available | 1, 3 & 5 years |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
It includes 1 year of NetCloud Mobile Performance Essentials plus the Advanced plan. Essentials covers NetCloud Manager device management, software and firmware updates, and 24x7 support: phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. It also includes access to Enterprise Wireless University, and a limited lifetime hardware warranty while the subscription is active. Advanced adds features such as coverage and location mapping.

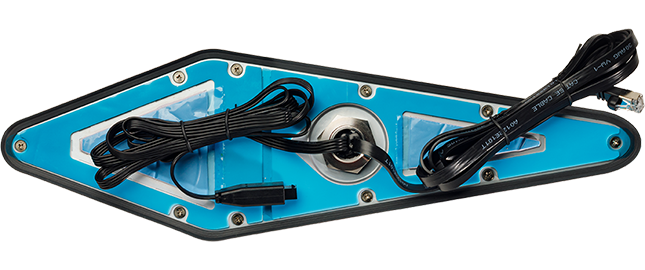

It accepts 9–36 VDC through a non-removable 380 mm cable with a 4-pin Molex micro-fit connector, with ignition sensing for automatic on and delayed off. It can also be powered over its 2.5 GbE port by an 802.3at PSE Type 2 (30 W) source. No AC power supply is included.
Yes. With supported Cradlepoint controlling routers, the R2105 can run as a captive 5G modem connected over Ethernet. NetCloud Manager treats it as an internal modem, so no separate licence is needed. With select routers it can also act as an additional Wi-Fi source.
The modem covers 5G NR FR1 (NSA and SA) and LTE Advanced Pro Cat 20 across a wide set of bands. It holds AT&T, T-Mobile and Verizon network certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications. It also supports CBRS Band 48 for private networks. Two 4FF SIM slots are provided, and SIM cards are not included.
It is rated IP67 (dust tight and immersion up to 1 meter) and IK09 for impact. It meets MIL-STD-810G shock and vibration procedures and IEC60068-2-11 salt-mist corrosion resistance. It operates from -30 °C to 70 °C (-22 °F to 158 °F).
