| Input | 9-33 VDC steady state input |
| Features | Reverse polarity and transient protection (ISO 7637-2); ignition sensing (auto ON, time-delay OFF) |
| Consumption | Idle 9 W / Typical 13 W / Heavy 14.5 W |
| Included Power Supply | AC power supply included |
| Mpn | TAA-TB05-0700C4D-NN |
| Upc | 840292705760 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 |
| Market | U.S. Federal Government ordering option |
| Service Plan | 5-Year NetCloud IoT Essentials Plan |
| Taa Compliant | TAA compliant |
| Product Status | Active |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi, AC power supply and antennas |
| Contents | S700 router, AC power supply, antennas, 5-year NetCloud IoT Essentials plan |
| Shipping Weight | 1.60 lb |
| Sms | Yes |
| Gnss | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 MIMO |
| Umts 3g | WCDMA/UMTS/HSPA+ |
| Antennas | SMA female; external 600 MHz-6 GHz cellular paddle antennas (antennas included in this package) |
| Lte Bands | LTE FDD B2, B4, B5, B12, B13, B14, B66, B71 |
| Modulation | Up to 16 QAM |
| Regulatory | FCC (U.S.), IC (Canada) |
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+; dual 4FF SIM; SIM-based auto-carrier selection |
| Umts 3g Bands | 2, 4, 5 |
| Lte Peak Rates | 150 Mbps down / 50 Mbps up |
| Transmit Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Wcdma Peak Rates | 42.2 Mbps down / 5.76 Mbps up |
| Carrier Aggregation | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Weight | 516 g (18.2 oz) |

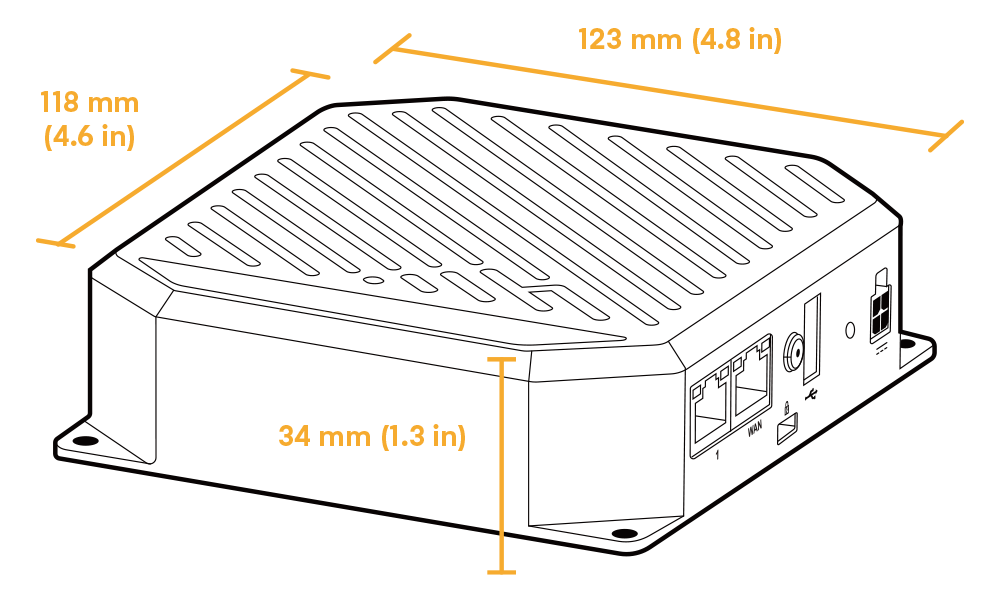

| Dimensions | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Construction | Aluminum housing |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Wi Fi | Dual-band concurrent 2x2 Wi-Fi 6; 574 Mbps / 1.2 Gbps; 2 x RP-SMA; WPA3 Personal/Enterprise; Wi-Fi Alliance Certified |
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Stateful Firewall | 480 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Concurrent Sessions Tcp | 100,000 |
| Point To Point Ipsec Vpn | 50 Mbps |
| Ips Application Aware Client Analytics | 480 Mbps |
| Calculated Mtbf | S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C) |
| Fcc | 2.4 GHz 35.66; 5150–5250 MHz 26.59; 5250–5350 MHz 25.33; 5470–5725 MHz 25.15; 5750–5825 MHz 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz 19.99; 5180–5240 MHz 22.38; 5260–5320 MHz 22.32; 5500–5700 MHz 27.45 dBm EIRP |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP30 |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Rail | EN 61373 Category 1, Class B (railway rolling stock) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Vehicle | SAE J1455-2006 Operating Sinusoidal Vibe, Cat. 2 Sec. 4.10.4.1 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; this SKU is not a FIPS model) |
| Shock Vibration | EN 61373 Cat. 2 vibration; MIL-STD-810H 514.8 Annex C-1 Cat. 4 vibration; MIL-STD-810H 516.8 Proc. I and V shock |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support for the full subscription term |
| Warranty | Limited lifetime warranty with active subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Software updates for the full term |
| Device Management | NetCloud Manager for the full term |
| Poe | No |
| Wi Fi | Dual-band, dual-concurrent Wi-Fi 6 (802.11ax) |
| Gps Gnss | Active |
| Usb Ports | 1 |
| Throughput | 480 Mbps (Firewall) |
| Form Factor | Metal |
| Serial Ports | 0 |
| Five G Status | No 5G |
| Ethernet Ports | 2 x GbE |
| Cloud Management | Cloud managed |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing |
| Dual Modem Support | No |
| Wireless Connectivity | LTE |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
The Cradlepoint S700 router in its Cat 4 (150 Mbps) with Wi-Fi configuration, an AC power supply, antennas and a 5-year NetCloud IoT Essentials plan.
No. It uses an embedded Cat 4 LTE modem rated at 150 Mbps down and 50 Mbps up, with DC-HSPA+ fallback.
Yes. The AC supply suits fixed sites. The router also accepts 9-33 VDC with ignition sensing and ISO 7637-2 transient protection for vehicle installs.
Support runs for the full 5-year term: phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. The hardware has a limited lifetime warranty while the subscription is active.
AT&T, T-Mobile and Verizon. It also holds FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.
