| Input | 9-33 VDC steady state input |
| Features | Reverse polarity and transient protection (ISO 7637-2); ignition sensing (auto ON, time-delay OFF) |
| Consumption | Idle 9 W / Typical 13 W / Heavy 14.5 W |
| Mpn | TAA-TB05-0700C4D-NA |
| Upc | 840292705722 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 |
| Market | U.S. Federal Government ordering option |
| Service Plan | 5-Year NetCloud IoT Essentials Plan |
| Taa Compliant | TAA compliant |
| Product Status | Active |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi |
| Shipping Weight | 1.60 lb |
| Sms | Yes |
| Gnss | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 MIMO |
| Umts 3g | WCDMA/UMTS/HSPA+ |
| Antennas | SMA female; external 600 MHz-6 GHz paddle antennas (Qty 2, certain packages only) |
| Lte Bands | LTE FDD B2, B4, B5, B12, B13, B14, B66, B71 |
| Modulation | Up to 16 QAM |
| Regulatory | FCC (U.S.), IC (Canada) |
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+; dual 4FF SIM; SIM-based auto-carrier selection |
| Umts 3g Bands | 2, 4, 5 |
| Lte Peak Rates | 150 Mbps down / 50 Mbps up |
| Transmit Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Wcdma Peak Rates | 42.2 Mbps down / 5.76 Mbps up |
| Carrier Aggregation | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Weight | 516 g (18.2 oz) |

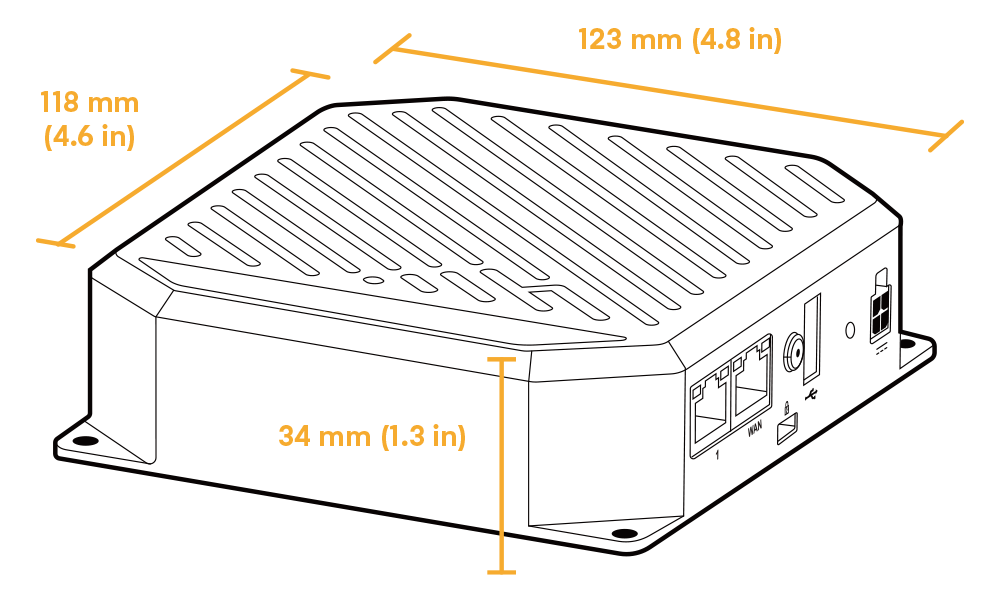

| Dimensions | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Construction | Aluminum housing |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Wi Fi | Dual-band concurrent 2x2 Wi-Fi 6; 574 Mbps / 1.2 Gbps; 2 x RP-SMA; WPA3 Personal/Enterprise; Wi-Fi Alliance Certified |
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Stateful Firewall | 480 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Concurrent Sessions Tcp | 100,000 |
| Point To Point Ipsec Vpn | 50 Mbps |
| Ips Application Aware Client Analytics | 480 Mbps |
| Calculated Mtbf | S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C) |
| Fcc | 2.4 GHz 35.66; 5150–5250 MHz 26.59; 5250–5350 MHz 25.33; 5470–5725 MHz 25.15; 5750–5825 MHz 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz 19.99; 5180–5240 MHz 22.38; 5260–5320 MHz 22.32; 5500–5700 MHz 27.45 dBm EIRP |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP30 |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Rail | EN 61373 Category 1, Class B (railway rolling stock) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Vehicle | SAE J1455-2006 Operating Sinusoidal Vibe, Cat. 2 Sec. 4.10.4.1 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; this SKU is not a FIPS model) |
| Shock Vibration | EN 61373 Cat. 2 vibration; MIL-STD-810H 514.8 Annex C-1 Cat. 4 vibration; MIL-STD-810H 516.8 Proc. I and V shock |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support for the full subscription term |
| Warranty | Limited lifetime warranty with active subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Software updates for the full term |
| Device Management | NetCloud Manager for the full term |
| Poe | No |
| Wi Fi | Dual-band, dual-concurrent Wi-Fi 6 (802.11ax) |
| Gps Gnss | Active |
| Usb Ports | 1 |
| Throughput | 480 Mbps (Firewall) |
| Form Factor | Metal |
| Serial Ports | 0 |
| Five G Status | No 5G |
| Ethernet Ports | 2 x GbE |
| Cloud Management | Cloud managed |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing |
| Dual Modem Support | No |
| Wireless Connectivity | LTE |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. It uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps down and 50 Mbps up. It falls back to DC-HSPA+.
Dual-radio, dual-band concurrent 2x2 Wi-Fi 6 (802.11ax), rated at 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz. It supports WPA/WPA2/WPA3 Personal and WPA2/WPA3 Enterprise.
NetCloud Manager device management and software updates for five years, plus 24x7 support. The hardware is covered by a limited lifetime warranty while the subscription remains active.
Yes. TAA-TB05-0700C4D-NA is the TAA-compliant ordering option for the U.S. Federal Government.
Yes. An Ericsson NetCloud IoT Advanced plan can be added to the Essentials package at any time, and NetCloud Exchange is available as an add-on.
