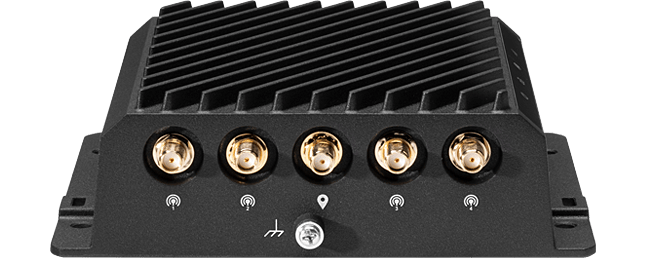

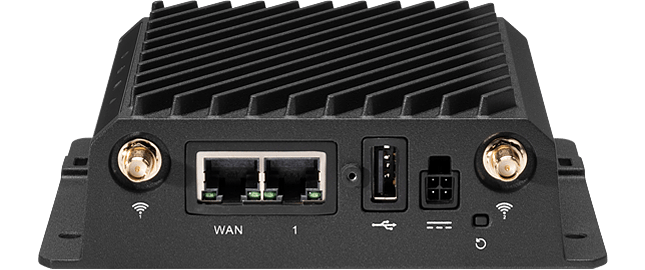

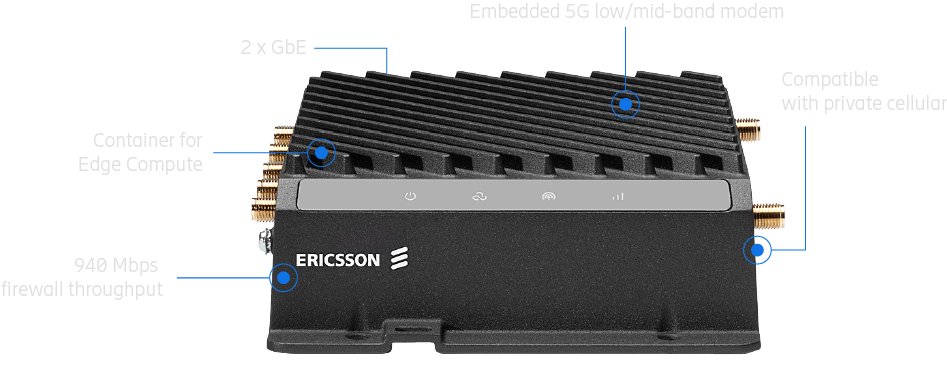

Cradlepoint R980 compact ruggedized metal 5G router with SMA antenna connectors, Ethernet ports and USB port.

Cradlepoint R980 Ruggedized 5G Router with Wi-Fi 6 and 5-Year TAA NetCloud Mobile Essentials Plan

Name: Cradlepoint R980 Ruggedized 5G Router with Wi-Fi 6 and 5-Year TAA NetCloud Mobile Essentials Plan
Brand: Cradlepoint
SKU: TAA-MB05-R980-5GD-A
Price: 1787.05 USD
Availability: InStock

Cradlepoint|

MPN: TAA-MB05-R980-5GD-A

UPC: 0840292719248

In Stock

$1,787.05$1,902.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 22% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Embedded 5G NR (NSA/SA) modem with LTE Advanced Pro Cat 19 fallback, 4x4 MIMO and 3GPP Release 16
Dual 4FF SIM slots plus MFF2 eSIM hardware for up to eight carrier profiles
5G network slicing with up to four DNN/PDN instances
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6, 2 x GbE LAN/WAN ports and 1 x USB 2.0 with screw lock
Active GNSS with GPS, Galileo, GLONASS and BeiDou

The Ericsson Cradlepoint R980 is a ruggedized 5G router for mobile and IoT deployments where temperature extremes, vibration and hazardous locations rule out ordinary equipment. This part number, TAA-MB05-R980-5GD-A, is the TAA-compliant U.S. Federal Government SKU. It bundles the R980 with Wi-Fi with a 5-year Ericsson NetCloud Mobile Essentials plan. The hardware ships without an AC power supply or antennas. It has four SMA cellular connectors for external 600 MHz–6 GHz paddle antennas, two RP-SMA Wi-Fi connectors and one SMA GNSS connector. The embedded 3GPP Release 16 modem covers 5G NR low- and mid-band in both NSA and SA modes, with LTE Advanced Pro Category 19 fallback and 4x4 MIMO. Peak rates reach up to 3.4 Gbps downlink and 550 Mbps uplink on NSA. The router offers two 4FF SIM slots and MFF2 eSIM hardware for up to eight carrier profiles, with over-the-air carrier switching planned for future NetCloud OS releases. 5G network slicing supports up to four DNN/PDN instances. Public safety certifications include FirstNet Trusted, T-Mobile T-Priority and Verizon Frontline Network Slice. On the local side, the R980 provides two switchable GbE ports, dual-band concurrent Wi-Fi 6 with WPA3, and a screw-lock USB 2.0 port. Active multi-constellation GNSS supports location tracking. The IP64 metal housing operates from -30 °C to 70 °C and is rated for Class I Div 2 locations. It meets MIL-STD-810H shock and vibration standards and carries NFPA 130 and BSS 7239 ratings for rail. It runs on 9–36 VDC with ignition sensing and ISO 7637-2 transient protection. The Essentials plan covers NetCloud Manager management and software updates for the full term. It also includes 24x7 support and a limited lifetime warranty while the subscription is active. NetCloud Advanced, NetCloud Exchange and SASE services can be added.

Ideal For

In-vehicle 5G and Wi-Fi 6 for police, fire and EMS fleets on FirstNet, T-Priority and Verizon Frontline networks
Light rail and transit deployments that require NFPA 130 and BSS 7239 ratings
Connectivity in Class I Div 2 hazardous locations such as oil, gas and utility sites
Segmenting critical applications with 5G network slicing and SASE/SD-WAN services
U.S. Federal Government mobile and IoT programs that require TAA-compliant hardware

Why This Product

1Adds MFF2 eSIM hardware and 5G network slicing, which are features built for 3GPP Release 16 networks
2Rated for hazardous locations (Class I Div 2) and rail fire safety (NFPA 130, BSS 7239) in a 601 g metal housing
3Uses external SMA antennas (not included), so antenna choice and placement can suit each vehicle
4This TAA SKU includes a 5-year NetCloud Mobile Essentials term; the R980 is also offered with 1- and 3-year terms

Gnss

Power	2.9–3.15 VDC supply; 100 mA max current
Accuracy	Autonomous 1 meter
Protocols	NMEA 0183; TAIP
Frequencies	L1
Sensitivity	Acquisition -148 dBm; Tracking -161 dBm; Cold start -146 dBm
Update Rate	1 Hz (once per second)
Constellations	GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time To First Fix	30 seconds (cold start)

Power

Features	ISO 7637-2 reverse polarity and transient protection; ignition sensing
Required	9–36 VDC; 3 A fuse for 9–24 VDC, 2 A fuse above 24 VDC; 4-pin 2x2 Molex micro-fit; 24 VDC nominal for light rail
Consumption	Sleep 15 mW; Idle 8 W; Typical 11 W; Heavy 13 W
Ac Power Supply	No AC power supply included

General

Mpn	TAA-MB05-R980-5GD-A
Brand	Cradlepoint (Ericsson Enterprise Wireless)
Model	Cradlepoint R980
Region	United States: Federal Government
Fips Model	Non-FIPS model
Service Plan	5-Year NetCloud Mobile Essentials Plan
Taa Compliant	TAA compliant
Shipping Weight	2.28 lb shipping weight
Subscription Term	5 years
Hardware Configuration	R980 with Wi-Fi, 5G modem, 4FF SIM slots and embedded eSIM; no AC power supply or antennas

Cellular

3g	WCDMA/UMTS/HSPA+
Sms	SMS supported
Esim	Up to eight carrier profiles
Mimo	4x4 MIMO
3g Bands	1, 2, 4, 5, 8, 19
Antennas	SMA female connectors for external 600 MHz–6 GHz paddle antennas (not included)
Gnss Gps	Active GNSS: GPS, Galileo, GLONASS, BeiDou
Lte Bands	FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation	5G FR1: DL up to 256 QAM, UL up to 256 QAM
Peak Rates	NSA up to 3.4 Gbps down / 550 Mbps up; SA up to 2.4 Gbps / 450 Mbps; LTE up to 1.6 Gbps / 200 Mbps
Regulatory	FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ); UKCA (UK)
Technology	5G NR low/mid-band (600 MHz–6 GHz), NSA and SA; LTE Advanced Pro Cat 19 fallback; dual 4FF SIM; MFF2 eSIM; network slicing; 3GPP Release 16
5g Nr Bands	NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (746-756), n14 (758-768), n18 (860-875), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (717-728), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n75 (1500), n76 (1427-1432), n77 (3700), n78 (3500), n79 (4900)
Transmit Power	5G NR PC3 23 dBm ± 2, PC1.5 29 dBm ± 2; LTE PC3 23 dBm ± 2, PC2 26 dBm ± 2 (typical conducted)
Network Slicing	Up to four DNN/PDN instances
Carrier Aggregation	5G NR only: DL 2 CA / UL 1 CA; ENDC: DL 4 LTE + 1 NR / UL 2 LTE + 2 NR; LTE only: DL 5 CA / UL 2 CA
Private Cellular Network	Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards	PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications	ESN (4G); FirstNet Trusted™; T-Mobile Connecting Heroes; T-Mobile T-Priority; Verizon Frontline Verified; Verizon Frontline Network Slice
Network Operator Certifications	AT&T; T-Mobile; Verizon

Physical

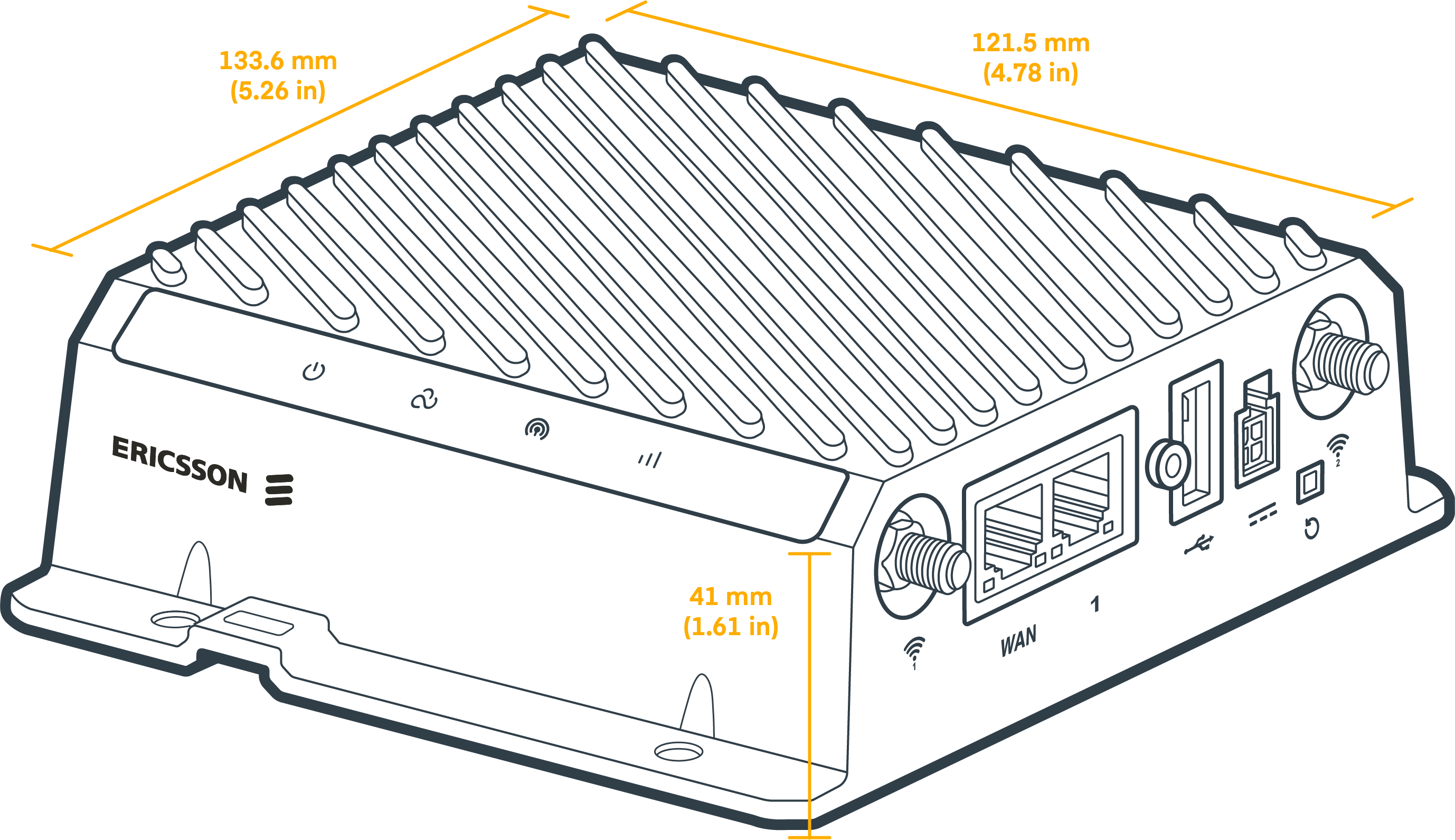

Size	133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)
Weight	601 g (1 lb 5.2 oz)

Interfaces

Wifi	2x2 MU-MIMO Wi-Fi 6 with DFS, dual-band concurrent; AP, client and Wi-Fi as WAN; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified
Modem	Embedded 5G NR FR1/4G LTE modem; 4 x SMA cellular connectors; 2 x 4FF SIM slots; 1 x MFF2 eSIM
Ethernet	2 x GbE RJ45 (LAN/WAN switchable)
Gnss Gps	1 x SMA GNSS antenna connector
Bluetooth	N/A
Expansion	1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock for secure connections

Wifi Power

Ic	2.4 GHz 26.42; 5180–5250 MHz 16.48; 5250–5350 MHz 18.33; 5470–5725 MHz 22.17; 5725–5835 MHz 23.14 dBm conducted
Fcc	2.4 GHz 26.42; 5180–5250 MHz 21.63; 5250–5350 MHz 21.20; 5470–5725 MHz 22.17; 5725–5835 MHz 23.14 dBm conducted
Rcm	2.4 GHz 13.91; 5180–5250 MHz 18.04; 5250–5320 MHz 17.92; 5500–5700 MHz 21.48; 5725–5835 MHz 23.14 dBm conducted
Ce Ukca	2.4 GHz 13.91; 5180–5250 MHz 18.04; 5250–5320 MHz 17.92; 5500–5700 MHz 21.48 dBm conducted

Performance

Stateful Firewall	940 Mbps
Concurrent Sessions	32,000 (TCP)
Layer2 Layer3 Vlans	Up to 64
Typical Client Count	50
Ips Application Aware	940 Mbps
Concurrent Vpn Tunnels	20
Client Traffic Analytics	100 Mbps
Point To Point Ipsec Vpn	200 Mbps
Sase Secure Connect Sdwan	85 Mbps

Reliability

Calculated Mtbf

1,407,191 hours (Telcordia SR332 at 25 °C)

Environmental

Humidity	Operating 10% to 95%; Storage 5% to 95%
Temperature	Operating -30 °C to 70 °C (-22 °F to 158 °F); Storage -40 °C to 85 °C (-40 °F to 185 °F)
Ingress Protection	IP64 (dust tight and splashing water)

Certifications

Safety	UL/cUL; CB Scheme; EN 62368-1
Vehicle	E-Mark; SAE J1455
Security	FIPS 140-3 Level 1 module in process (R980 FIPS models only)
Shock Vibration	MIL-STD-810H Method 514.8 Annex C-1 Cat 4 (Vibration); Method 516.8 Procedures I and V (Shock)
Hazardous Locations	Class I Div 2
Flame Smoke Toxicity	BSS 7239
Substance Compliance	WEEE; RoHS; REACH; California Prop 65
North American Fire Safety	NFPA 130

Cloud Services

Support	Support for the full term (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty	Limited lifetime warranty while subscribed to an active NetCloud Service plan
Service Plans	NetCloud Mobile; NetCloud Ruggedized IoT
Service Add Ons	NetCloud Exchange; NetCloud Advanced
Software Updates	Software updates via NetCloud Manager for the full subscription term
Device Management	NetCloud Manager for the full subscription term

Edge Computing

Cpu	Dual-core ARMv8 64-bit
Memory	Up to 921 MB (NetCloud Container Orchestrator allocation)
Applications	Docker containerized applications
Flash Storage	Up to 8 GB (NetCloud Container Orchestrator allocation)

Product Summary

Poe	No
Wifi	Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category	Mobile, IoT
Gps Gnss	Active
5g Status	5G Embedded
Bluetooth	No
Usb Ports	1
Throughput	940 Mbps (Firewall)
Form Factor	Ruggedized metal
Vpn Tunnels	20
Serial Ports	Yes — with adapter
Ethernet Ports	2 GbE (LAN/WAN switchable)
Cloud Management	Yes
Special Features	Container, SDK, serial port with accessory cable
Dual Modem Support	Yes — with captive modem
Subscription Terms	Series subscription terms: 1, 3 & 5 years
Operating Temperature	-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity	5G & Cat 19 LTE
Private Cellular Network	Yes – CBRS, 4G LTE, 5G
Network Operator Standards	PTCRB (U.S.), GCF (global)

Purchasing this for your business?

Business account holders on Server Components typically save 22% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint R980 Datasheet

1.6mb

R980 Data Sheet

Frequently Asked Questions

Are antennas or a power supply included with TAA-MB05-R980-5GD-A?▾

No. This configuration ships without an AC power supply or antennas. The R980 uses four SMA connectors for external 600 MHz–6 GHz cellular paddle antennas, two RP-SMA Wi-Fi connectors and one SMA GNSS connector.

Can the R980 switch carriers with eSIM?▾

The R980 has MFF2 eSIM hardware that holds up to eight carrier profiles, alongside two 4FF SIM slots. Over-the-air carrier switching through eSIM is slated to become functional in future NetCloud OS releases.

Does it support 5G standalone and network slicing?▾

Yes. The Release 16 modem supports 5G NSA and SA and offers network slicing with up to four DNN/PDN instances. It carries Verizon Frontline Network Slice certification.

Where can the R980 be installed?▾

It suits vehicles, light rail and harsh sites. It has an IP64 housing, -30 °C to 70 °C operation, MIL-STD-810H shock and vibration ratings, Class I Div 2 hazardous location rating, and E-Mark, SAE J1455, NFPA 130 and BSS 7239 certifications.

What does the 5-year Essentials plan include?▾

It includes NetCloud Manager management and software updates for the full term. Support covers phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. It also includes a limited lifetime warranty while the subscription is active.
