Cradlepoint R920 Ruggedized Cat 7 LTE Wi-Fi 6 Router

Name: Cradlepoint R920 Ruggedized Cat 7 LTE Wi-Fi 6 Router
Brand: Cradlepoint
SKU: TC03-0920-C7A-NN
Price: 1216.73 USD
Availability: InStock

Cradlepoint|

MPN: TC03-0920-C7A-NN

UPC: 840292703612

In Stock

$1,216.73$1,295.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Thursday, Nov 19

Authorized Dealer — Full manufacturer warranty

Save 21% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Cat 7 LTE with 300 Mbps cellular capability for remote WAN access
2 configurable GbE ports for wired LAN and WAN connections
Concurrent dual-band Wi-Fi 6 with AP, client and Wi-Fi as WAN modes
940 Mbps stateful firewall and 200 Mbps point-to-point IPsec VPN throughput
20 concurrent VPN tunnels and 130,000 concurrent TCP sessions

Connect remote industrial equipment, kiosks and building automation systems through an embedded Cat 7 LTE modem with 300 Mbps cellular capability. Cradlepoint TC03-0920-C7A-NN combines the R920 router with a 3-year NetCloud Ruggedized IoT Essentials subscription, an AC power supply, two cellular antennas and two Wi-Fi antennas. This configuration includes Wi-Fi and AC power, distinguishing it from packages intended for different power arrangements or service plans. Its metal enclosure supports operation from -30 °C to 75 °C, while Band 48 CBRS support enables use on compatible private LTE networks. Attach wired devices through two Gigabit Ethernet ports that can each serve as LAN or WAN connections. Concurrent 2.4 GHz and 5 GHz Wi-Fi 6 radios support 2x2 MU-MIMO, with radio rates of 574 Mbps and 1.2 Gbps respectively. Access point, wireless client and Wi-Fi as WAN modes accommodate different site connections. Stateful firewall throughput reaches 940 Mbps; point-to-point IPsec VPN throughput reaches 200 Mbps, with support for 20 concurrent VPN tunnels and 130,000 TCP sessions. These performance figures describe separate functions, rather than guaranteed cellular download speeds. Manage endpoints, distribute policies and receive software updates through NetCloud Manager throughout the subscription term. A dual-core 64-bit ARMv8 processor supports Docker containerized applications, with up to 921 MB of memory and 8 GB of flash available for edge computing. Embedded Bluetooth Low Energy 5.1, active GNSS and a locking USB connection extend local integration options. An optional managed expansion accessory adds a second LTE or 5G modem and serial connectivity; the supplied router uses LTE.

Ideal For

Remote kiosks connecting Ethernet equipment over LTE while providing a local Wi-Fi network.
Building automation and utility sites requiring cellular connectivity in environments from -30 °C to 75 °C.
Industrial IoT installations using compatible Band 48 CBRS private LTE networks.
Edge installations running Docker containerized applications alongside routed cellular connections.

Why This Product

1Wi-Fi-equipped configuration with concurrent 2.4 GHz and 5 GHz Wi-Fi 6 radios.
2Cat 7 LTE configuration with 300 Mbps cellular capability and Band 48 CBRS support.
3Includes a 3-year Ruggedized IoT Essentials plan rather than a Mobile service package.
4Includes AC power and cellular and Wi-Fi antennas for powered IoT installations.

Power

Ignition Sensing	Ignition sensing with automatic on and time-delay off
Idle Power Consumption	9 W
Sleep Power Consumption	15 mW
Typical Power Consumption	14.5 W
Heavy Load Power Consumption	15.2 W
Included Adapter Output Voltage	12 V
Included Power Supply Cable Length	1.5 m

Wi-Fi

DFS	Dynamic Frequency Selection supported
Standard	Wi-Fi 6 / IEEE 802.11ax
Authentication	WPA, WPA2 and WPA3 Personal; WPA2 and WPA3 Enterprise; Open
Operating Modes	Access point, wireless client and Wi-Fi as WAN
5 GHz Radio Rate	1.2 Gbps
2.4 GHz Radio Rate	574 Mbps
Roaming Assistance	802.11k in AP mode only; 802.11v
Radio Configuration	Concurrent 2.4 GHz and 5 GHz radios with 2x2 MU-MIMO
Wi-Fi Antenna Connectors	2 RP-SMA Wi-Fi antenna connectors
IC Conducted Transmit Power	2.4 GHz: 23.18 dBm; 5,150–5,250 MHz: 22.7 dBm; 5,250–5,350 MHz: 17.16 dBm; 5,470–5,725 MHz: 20.9 dBm; 5,725–5,850 MHz: 22.17 dBm
FCC Conducted Transmit Power	2.4 GHz: 23.18 dBm; 5,150–5,250 MHz: 21.73 dBm; 5,250–5,350 MHz: 22.17 dBm; 5,470–5,725 MHz: 20.79 dBm; 5,725–5,850 MHz: 20.97 dBm
Europe Conducted Transmit Power	2.4 GHz: 14.23 dBm; 5,150–5,250 MHz: 17.03 dBm; 5,250–5,350 MHz: 17.12 dBm; 5,500–5,700 MHz: 22.05 dBm
Australia And New Zealand Conducted Transmit Power	2.4 GHz: 14.23 dBm; 5,150–5,250 MHz: 17.03 dBm; 5,250–5,350 MHz: 17.12 dBm; 5,500–5,700 MHz: 22.05 dBm; 5,475–5,825 MHz: 22.18 dBm

Cellular

Embedded Modem	Embedded Cat 7 LTE modem
Private Cellular	Band 48 CBRS private LTE support
Cellular Capability	300 Mbps
Second Modem Support	Second LTE or 5G modem supported through an optional managed expansion accessory
Cellular Antenna Connectors	2 SMA cellular antenna connectors

Identity

UPC	840292703612
Brand	Cradlepoint
Model	R920
Manufacturer	Ericsson Enterprise Wireless / Cradlepoint
Manufacturer Part Number	TC03-0920-C7A-NN

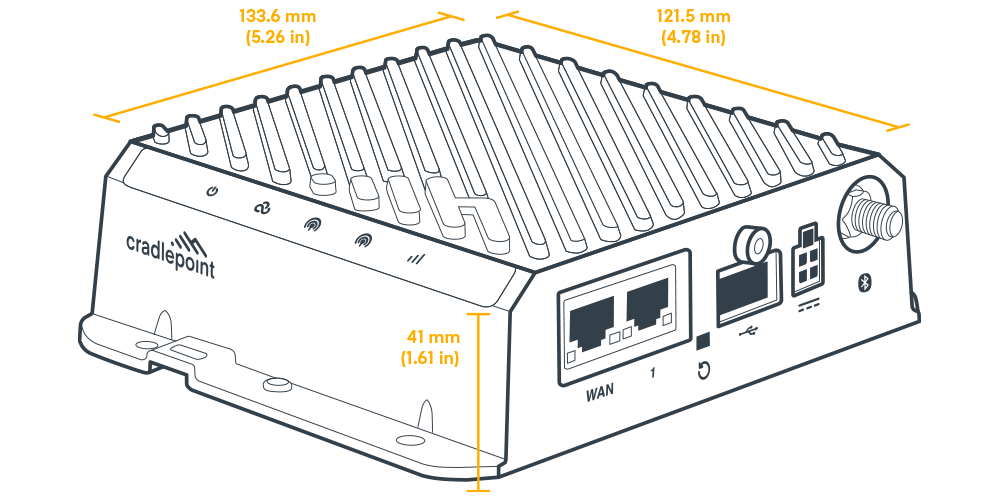

Physical

Depth	4.78 in / 121.5 mm
Width	5.26 in / 133.6 mm
Height	1.61 in / 41 mm
Form Factor	Ruggedized metal enclosure
Device Weight	595 g / approximately 1.31 lb
Shipping Weight	3.40 lb

Edge Computing

Processor	Dual-core 64-bit ARMv8 processor
Available Memory	Up to 921 MB; allocation depends on container resource configuration
Available Flash Storage	Up to 8 GB; allocation depends on container resource configuration
Applications And Integration	Docker containerized applications, connectors, SDKs and API integration

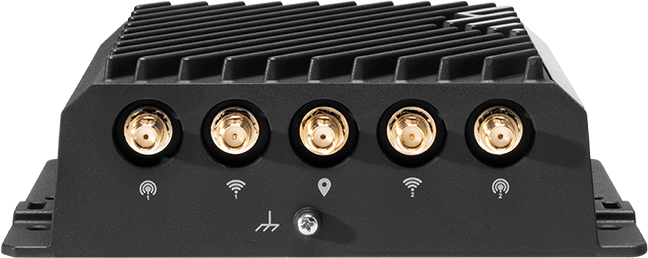

Included Antennas

Wi-Fi Antennas	2 charcoal dual-band Wi-Fi antennas, 2.4 GHz and 5 GHz, RP-SMA connectors, 194 mm long
Cellular Antennas	2 charcoal cellular antennas, 600 MHz–6 GHz, SMA connectors, 180 mm long

Bluetooth And GNSS

GNSS	Active GNSS/GPS
Bluetooth	Embedded Bluetooth Low Energy 5.1
GNSS Protocol	NMEA 0183
GNSS Constellations	Simultaneous GPS, Galileo, GLONASS, BeiDou and QZSS tracking
GNSS Antenna Connector	1 SMA GNSS antenna connector
Bluetooth Antenna Connector	1 RP-SMA Bluetooth antenna connector
Cold Start Time To First Fix	32 seconds
Bluetooth Maximum Transmit Power	10 dBm

Package And Service

Support	Included for the full 3-year subscription term
Included Plan	NetCloud Ruggedized IoT Essentials
Warranty Type	Limited lifetime hardware warranty while an active NetCloud Service subscription is maintained
Software Updates	Included for the full 3-year subscription term
Device Management	NetCloud Manager for the full 3-year subscription term
Included Hardware	Router, AC power supply, 2 cellular antennas and 2 Wi-Fi antennas
Subscription Term	3 years

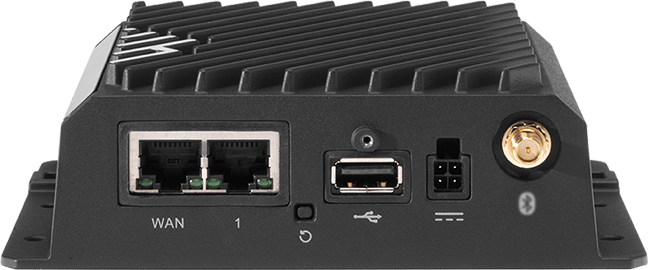

Ethernet And Interfaces

PoE	No PoE support
USB	1 USB 2.0 Type A port with screw lock
GPIO	1 two-pin GPIO connection shared with the DC power connector
USB Output	5 V, 500 mA, 2.5 W
Ethernet Ports	2 Gigabit Ethernet ports, LAN/WAN switchable
Power Connector	2x2 Molex Micro-Fit locking connector, 3 mm
Integrated Serial Ports	0 integrated serial ports; serial connectivity available through an optional managed expansion accessory

Performance And Security

Concurrent VPN Tunnels	20 concurrent VPN tunnels
Concurrent TCP Sessions	130,000 concurrent TCP sessions
Additional Network Services	Supports optional NetCloud Exchange services for Zero Trust Network Access and cellular-optimized SD-WAN
Included Firewall Capability	Stateful zone-based firewall
Stateful Firewall Throughput	940 Mbps
Point-To-Point IPsec VPN Throughput	200 Mbps
IPS Application Aware Services And Client Analytics Performance	940 Mbps platform performance; applicable service entitlement required

Environment And Reliability

Calculated MTBF	637,911 hours, Telcordia SR332 at 25 °C
Operating Temperature	-30 °C to 75 °C / -22 °F to 167 °F

Standards And Certifications

Rail	EN 61373 Category 1, Class B, railway rolling stock
Safety	UL/cUL, CB Scheme and EN 62368-1
Vehicle	E-Mark; SAE J1455 operating sinusoidal vibration, Category 2
Certified Carriers	AT&T and Sprint
Hazardous Locations	Class I, Division 2
Shock And Vibration	MIL-STD-810G Method 514.6, Annex C-2.1, Category 4 vibration; Section 2.2.2, Procedure 1 shock and vibration
Wi-Fi Certification	Wi-Fi Alliance Certified
Substance Compliance	WEEE, RoHS, RoHS-2 and California Prop 65
Network Operator Standards	PTCRB for the U.S.; GCF global

Purchasing this for your business?

Business account holders on Server Components typically save 21% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint R920 Datasheet

1.9mb

Frequently Asked Questions

What is the difference between R920 and TC03-0920-C7A-NN?▾

R920 names the router model. TC03-0920-C7A-NN is the ordering code for the Cat 7 LTE configuration with Wi-Fi, an AC power supply, cellular and Wi-Fi antennas, and a 3-year NetCloud Ruggedized IoT Essentials subscription.

Does this R920 package include antennas and a power supply?▾

Yes. The package includes an AC power supply, two cellular antennas and two Wi-Fi antennas. The cellular antennas use SMA connectors and cover 600 MHz to 6 GHz. The dual-band Wi-Fi antennas use RP-SMA connectors and support 2.4 GHz and 5 GHz.

Is this R920 a 5G router?▾

The supplied router contains a Cat 7 LTE modem with 300 Mbps cellular capability. It supports adding a second LTE or 5G modem through an optional managed expansion accessory. The included modem provides LTE connectivity; 5G requires additional hardware.

What management services are included with the 3-year Essentials plan?▾

The NetCloud Ruggedized IoT Essentials package includes NetCloud Manager device management, software updates and support for the full 3-year subscription term. The router provides a stateful zone-based firewall. NetCloud Advanced and NetCloud Exchange are separate service options.
