Cradlepoint S400 Cat 6 LTE Wi-Fi IoT router with cellular and Wi-Fi antennas

Cradlepoint S400 LTE Wi-Fi Router with 3-Year NetCloud Plan

Name: Cradlepoint S400 LTE Wi-Fi Router with 3-Year NetCloud Plan
Brand: Cradlepoint
SKU: TBV3-0400-C6-LA-M
Price: 662.40 USD
Availability: InStock

Cradlepoint|

MPN: TBV3-0400-C6-LA-M

Low Stock (1 left)

$662.40$705.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Thursday, Nov 19

Authorized Dealer — Full manufacturer warranty

Save 21% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Dual SIM slots support carrier selection through one Cat 6 LTE modem.
Single-radio Wi-Fi 5 supports 150 Mbps at 2.4 GHz or 433 Mbps at 5 GHz.
Secure Connect provides encrypted connections and least-privilege access policies.
Up to 64 VLANs support network segmentation.
9–33 VDC input and 802.3af PoE provide alternative power options.

Connect remote IoT equipment through cellular, Ethernet or Wi-Fi with the Cradlepoint S400 package TBV3-0400-C6-LA-M. This Mexico configuration combines a Cat 6 LTE modem, Wi-Fi, AC power supply and antennas with a 3-year NetCloud IoT Essentials plus Advanced subscription. Dual 4FF SIM slots support SIM-based carrier selection through one embedded modem. The built-in Gigabit Ethernet port switches between LAN and WAN roles, while the single Wi-Fi 5 radio operates on either 2.4 GHz or 5 GHz, one band at a time. Place the compact plastic enclosure in a kiosk, digital-signage cabinet or light industrial control installation. Its IP30 housing supports operation from -20 °C to 60 °C. Power options include 9–33 VDC input and 802.3af PoE; the package supplies an AC adapter. An optional DIN rail bracket supports control-cabinet mounting. One expansion slot accepts an optional serial, dual Fast Ethernet or GPIO module, allowing the router to connect equipment requiring interfaces beyond its built-in Ethernet port. Passive GNSS supports location reporting for portable IoT equipment. Manage routing, device groups, configurations and troubleshooting through NetCloud Manager. Included Secure Connect applies zero trust access policies so connected devices communicate with authorized resources through encrypted tunnels. The S400 supports 95 Mbps stateful firewall throughput, 20 Mbps point-to-point IPsec VPN throughput, 5 concurrent VPN tunnels and up to 64 VLANs. Its typical IoT client count is 25. Within the family, this package specifically combines Wi-Fi, Mexico regional ordering and Essentials plus Advanced coverage for 3 years.

Ideal For

Mexico digital-signage installations connecting a display controller over Ethernet while administrators manage connectivity remotely through NetCloud.
Retail kiosks using cellular WAN connectivity and Wi-Fi for local IoT endpoints.
Light industrial monitoring cabinets connecting control equipment through optional serial or GPIO expansion and optional DIN rail mounting.
Portable IoT equipment using GNSS location reporting and centrally controlled access to monitoring applications.

Why This Product

1Mexico regional package with Cat 6 LTE, Wi-Fi, AC power supply and antennas.
23-year Essentials plus Advanced subscription combines cloud management with zero trust connectivity.
3Wi-Fi-equipped configuration adds a single radio selectable between 2.4 GHz and 5 GHz.
4Included AC power supply supports mains-powered installations; PoE and DC input offer additional power options.

GNSS

Accuracy	2 m autonomous open-sky accuracy, CEP-50
Receiver	Passive GNSS multiplexed with cellular antenna; no antenna power provided
Frequency	L1
Protocols	NMEA 0183 and TAIP
Update Rate	1 Hz, once per second
Constellations	GPS, Galileo, GLONASS and BDS
Tracking Sensitivity	-159 dBm
Cold Start Acquisition	30 seconds cold-start time to first fix
Acquisition Sensitivity	-147 dBm
Reacquisition Sensitivity	-159 dBm

Power

PoE Input	PoE input from an 802.3af Type 1, 15 W PSE
Sleep Mode	Sleep mode not supported
DC Input Range	9–33 VDC
Fuse Above 12 VDC	2 A fuse for installations above 12 VDC
Fuse For 9–12 VDC	3 A fuse for 9–12 VDC installations
Idle DC Consumption	3.3 W
Heavy DC Consumption	5.8 W
Electrical Protection	Reverse polarity and transient voltage protection, ISO 7637-2
Typical DC Consumption	4.1 W

Wi-Fi

Standard	Wi-Fi 5, 802.11ac
Authentication	WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise and Open
Frequency Bands	2.4 GHz or 5 GHz, non-concurrent
Radio Management	Global Optimized Wi-Fi and International SDR
Antenna Connector	1 RP-SMA Wi-Fi antenna connector
Radio Configuration	Single-radio, single-stream 1 × 1 operation
Maximum 5 GHz Link Rate	433 Mbps at 5 GHz
Maximum 2.4 GHz Link Rate	150 Mbps at 2.4 GHz
Client Assistance Standards	802.11k and 802.11v

Support

Training	Online training included with the service
Warranty Type	Limited lifetime hardware warranty while an eligible NetCloud Service Plan subscription remains active
Support Coverage	Live and online support for the full 3-year subscription term
Software And Firmware Updates	Software and firmware updates for the full subscription term

Cellular

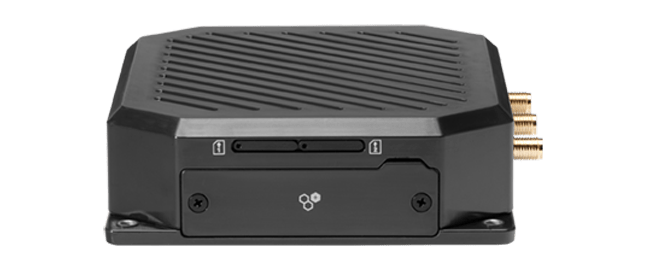

SIM Slots	2 SIM slots, 4FF form factor
5G Support	4G LTE; no 5G support
Technology	Embedded Cat 6 4G LTE modem
Carrier Selection	SIM-based automatic carrier selection
Dual Modem Support	Single embedded modem; no dual modem support
Cellular Antenna Connectors	2 SMA cellular antenna connectors
Ordering Configuration Rate	150 Mbps Cat 6 configuration

Physical

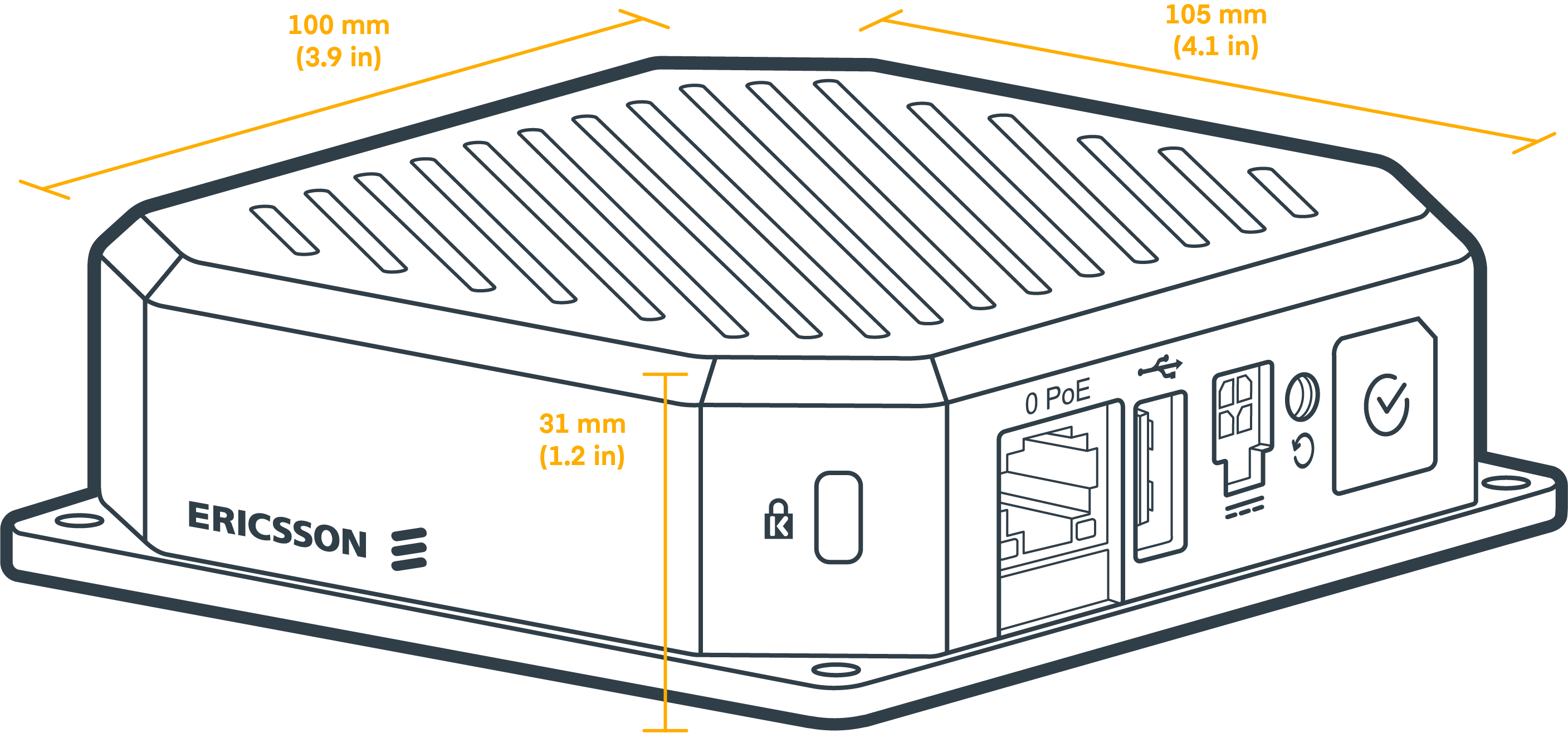

Dimensions	100 × 105 × 31 mm (3.9 × 4.1 × 1.2 inches)
Form Factor	Compact semi-ruggedized router with plastic housing
Device Weight	221 g (7.8 oz)
Shipping Weight	1.23 lb
Device Supported	Ethernet and Wi-Fi IoT endpoints, including kiosk controllers, digital signs and monitoring equipment
Mounting Accessories	DIN rail and drop ceiling brackets available separately

Performance

Concurrent Sessions	32,000 concurrent sessions
Concurrent VPN Tunnels	5 concurrent VPN tunnels
Typical IoT Client Count	25 typical IoT clients
Layer 2 And Layer 3 VLANs	Up to 64 VLANs
Stateful Firewall Throughput	95 Mbps
Point-To-Point IPsec VPN Throughput	20 Mbps

Reliability

Calculated MTBF With DB9 Module	1,712,886 hours, Telcordia SR332 at 25 °C
Calculated MTBF With GPIO Module	1,343,279 hours, Telcordia SR332 at 25 °C
Calculated MTBF With Ethernet Module	1,659,720 hours, Telcordia SR332 at 25 °C
Calculated MTBF Without Expansion Module	1,828,355 hours, Telcordia SR332 at 25 °C

Environmental

Shock Tests	MIL STD 810H Method 516.8, Procedures I and V
Vibration Test	MIL STD 810H Method 514.8, Annex C-1, Category 4
Storage Humidity	5%–95% non-condensing
Ingress Protection	IP30
Operating Humidity	5%–95% non-condensing
Storage Temperature	-20 °C to 70 °C (-4 °F to 158 °F)
Operating Temperature	-20 °C to 60 °C (-4 °F to 140 °F)

Identity And Package

Model	S400
Manufacturer	Ericsson Cradlepoint
Regional Package	North America: Mexico
Included Hardware	S400 router with Wi-Fi, AC power supply and antennas
Subscription Term	3 years
Included Subscription	NetCloud IoT Essentials plus Advanced
Included Wi-Fi Antenna	1 RP-SMA Wi-Fi antenna, 2.4/5 GHz, 184 mm
Manufacturer Part Number	TBV3-0400-C6-LA-M
Power Supply Cable Length	1.5 m
Included Cellular Antennas	2 SMA cellular antennas, 600 MHz–6 GHz, 180 mm
Included Power Supply Output	12 VDC AC power supply

Ethernet And Expansion

USB	1 USB 2.0 Type-A port
Expansion Slots	1 expansion module slot
USB Power Output	5 V, 500 mA, 2.5 W
Built-In Ethernet	1 Gigabit Ethernet RJ45 port, LAN/WAN selectable
Optional GPIO Expansion	Optional GPIO module with 20-pin, 2 × 10 Molex Micro-Fit 3.0 connector
Optional Serial Expansion	Optional DB9 RS232 module with hardware flow control
Optional Ethernet Expansion	Optional dual Fast Ethernet module with 2 LAN/WAN-selectable RJ45 ports

Management And Security

Deployment	Cloud-managed zero-touch deployment
Integrations	NetCloud SDK, API and partner integrations
Remote Access	Authorized remote access for monitoring and maintenance
Cloud Management	NetCloud Manager for the subscription term
Centralized Operations	Group policies, configuration, dashboards, reports, analytics and troubleshooting
Zero Trust Connectivity	Secure Connect with encrypted tunnels, microsegmentation and least-privilege access policies

Purchasing this for your business?

Business account holders on Server Components typically save 21% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint S400 Datasheet

1.1mb

S400 Data Sheet

Frequently Asked Questions

What is included with TBV3-0400-C6-LA-M?▾

The package includes a Cradlepoint S400 Cat 6 LTE router with Wi-Fi, an AC power supply, two cellular antennas, one Wi-Fi antenna and a 3-year NetCloud IoT Essentials plus Advanced subscription. This ordering code selects the Mexico regional package.

Does the S400 provide simultaneous 2.4 GHz and 5 GHz Wi-Fi?▾

No. The S400 uses one Wi-Fi 5 radio that operates on either 2.4 GHz or 5 GHz at a time. Maximum radio link rates are 150 Mbps at 2.4 GHz and 433 Mbps at 5 GHz; these are Wi-Fi link rates, separate from cellular and firewall throughput.

Are the extra Ethernet ports and serial interface built in?▾

The router has one built-in Gigabit Ethernet RJ45 port selectable for LAN or WAN use. Additional interfaces require an optional expansion module. The single expansion slot accepts a dual Fast Ethernet module, a DB9 RS232 serial module or a GPIO module.

What management, security and support does the 3-year subscription include?▾

NetCloud IoT Essentials plus Advanced provides centralized management, policy configuration, monitoring and troubleshooting. Secure Connect supplies encrypted zero trust connections and controlled access to authorized resources. The service includes support, online training and software updates; hardware warranty coverage depends on maintaining an eligible active NetCloud subscription.
