| Features | ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF) |
| Connector | 4-pin 2x2 Molex micro-fit |
| Consumption Idle | 11 W (idle) |
| Dc Input Voltage | 9–36 VDC steady state (in-line fuse required for vehicle installations) |
| Consumption Heavy | 22 W (heavy) |
| Consumption Sleep | 15 mW (sleep) |
| Fuse Requirements | 3 A fuse for 9–24 VDC; 2.5 A fuse for >24 VDC |
| Light Rail Nominal | 24 VDC nominal for light rail applications |
| Consumption Typical | 19 W (typical) |
| Mpn | TAA-MB05-19005GB-GA |
| Upc | 810007809502 |
| Plan | 5-Year NetCloud Mobile Performance Essentials Plan |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |

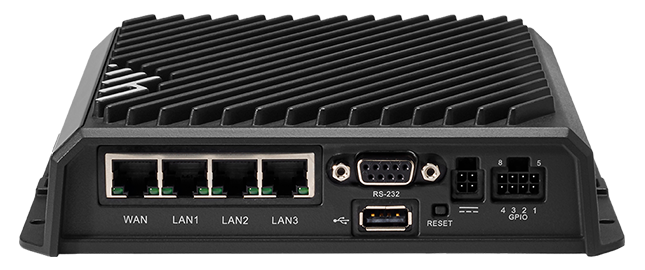

| Model | Cradlepoint R1900 |
| Region | United States Federal Government |
| Taa Compliant | TAA compliant |
| Subscription Term | 5 years |
| Hardware Configuration | 5G with Wi-Fi and 4FF SIM; no AC power supply or antennas |
| Shipping Weight | 6.32 lb |
| Antennas Included | Antennas not included |
| Ac Power Supply Included | AC power supply not included |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 4x4 MIMO |
| 3g Bands | 1, 2, 3, 4, 5, 6, 8, 9, 19 |
| Gnss Gps | Discrete active GPS with dead reckoning |
| Nr Bands | n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Tx Power | NR 23 dBm ±1.5; ENDC 20 dBm ±1; LTE 23 dBm ±1; LTE HPUE 25 dBm ±1 (B41 standalone only) |
| Lte Bands | FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48 |
| Modulation | 5G FR1: 256 QAM downlink and uplink (uplink 256 QAM on particular carrier equipment) |
| Peak Rates | Up to 4.14 Gbps down / 660 Mbps up |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA and 4G LTE; LTE Cat 20; dual 4FF SIM; 3GPP Rel. 15 |
| Carrier Aggregation | LTE only: DL 7 CA / UL 2 CA; LTE + 5G NR ENDC: DL 1 CA / UL 1 CA |
| Gcf Global Operators | GCF member operator directory |
| Private Cellular Network | Yes, including FCC Part 96 CBRS Band 48 |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (worldwide) |
| Public Safety Certifications | ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Ptcrb North America Operators | PTCRB operator list |
| Network Operator Certifications | AT&T, EE, Telstra, T-Mobile, Verizon |
| Power | 3.1–3.8 V supply; 30 mA max current |
| Accuracy | Autonomous 1 meter |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 (1559–1606 MHz) |
| Sensitivity | Acquisition -147 dBm; tracking -165 dBm; reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou (concurrent reception) |
| Time To First Fix | 30 seconds (cold start) |
| Weight | 0.98 kg (2.15 lb) |

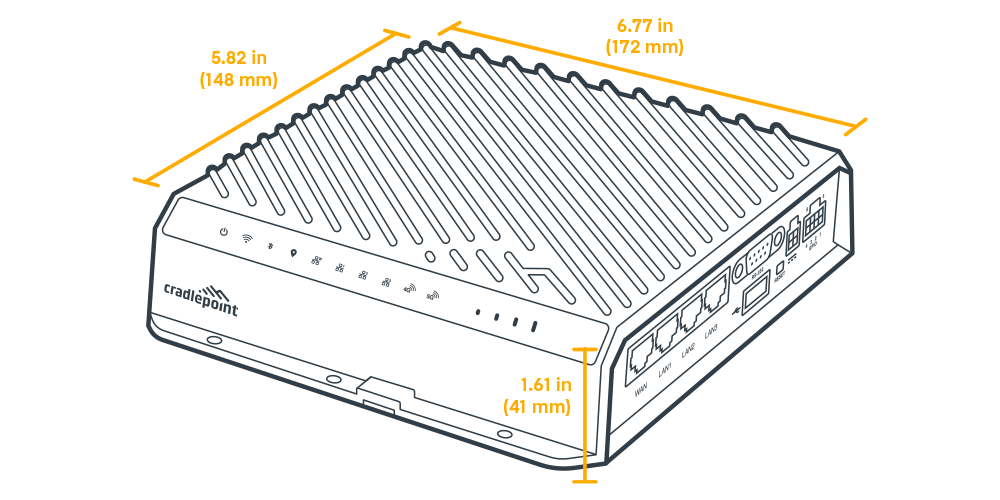

| Dimensions | 172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in) |
| Poe | Optional RX30 PoE switch: 4 x 802.3bt Type 3 (up to 60 W per port), 60 W total budget |
| Wifi | Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) / 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified |

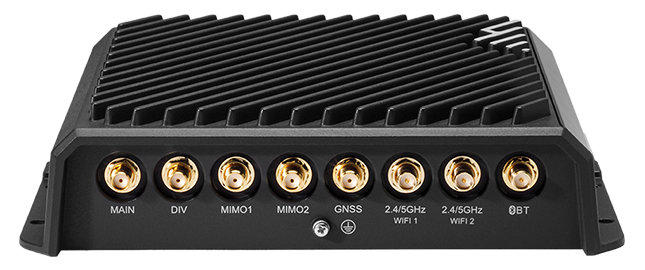

| Modem | Embedded 5G NR FR1 low/mid-band and LTE Cat 20 modem; 4 x SMA cellular connectors |
| Ethernet | 4 x GbE (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Bluetooth | Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA connector |
| Expansion Console | USB 2.0 Type A (5 V, 500 mA); DB9 RS-232; 8-pin GPIO (2x4 Molex micro-fit); optional RX30-POE or RX30-MC accessories |
| Eu | 2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm conducted |
| Fcc | 2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm conducted |
| Japan | 2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm conducted |
| Canada | 2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00; 5660–5825 MHz 21.89 dBm conducted |
| Global Safe Mode | 2.4 GHz 14 dBm conducted |
| Vlans | Up to 64 Layer 2/Layer 3 VLANs |
| Ipsec Vpn | 400 Mbps point-to-point IPsec VPN |
| Sase Sd Wan | SASE/Secure Connect/SD-WAN: 400 Mbps IPsec; 600 Mbps microtunnel |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 32,000 |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | 340,644 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Operating Humidity | 5% to 95% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Rail | EN 45545-2:2020 HL3; EN 50121-3-2 (surge 0.5/1 kV Criteria A, 1.5 kV Criteria C); EN 50155 Class S1 |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Vehicle | E-Mark, SAE J1455 |
| Security | FIPS 140-3 Level 1 module in process (R1900 FIPS models only) |
| Shock Vibration | MIL-STD-810G Section 2.2.2, Procedure 1 (shock, vibration) |
| Hazardous Locations | Class I Div 2 |
| Flame Smoke Toxicity | BSS 7239 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| North American Fire Safety | NFPA 130 |
| Support | Support for the full subscription term (Essentials: phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5) |
| Warranty | Limited lifetime warranty with an active NetCloud Service plan |
| Service Plans | NetCloud Service for Mobile Performance |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB (NetCloud Container Orchestrator adjustable) |
| Applications | Docker containerized applications |
| Flash Storage | Up to 6 GB (NetCloud Container Orchestrator adjustable) |
| Poe | Yes, with RX30-PoE |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Category | Mobile |
| Gps Gnss | Discrete active GNSS with dead reckoning |
| Bluetooth | Yes, embedded Bluetooth 5.2 |
| Status 5g | 5G embedded |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Ruggedized metal |
| Vpn Tunnels | 20 |
| Serial Ports | 1 |
| Ethernet Ports | 4 GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add 4 GbE PoE ports, or 4 GbE ports and a second modem |
| Dual Modem Support | Yes, with RX30-MC |
| Subscription Terms | 1, 3 & 5 years |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | 5G/4G dual connectivity |
| Private Cellular Network | Yes: CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
It includes the Cradlepoint R1900 router (5G with Wi-Fi and 4FF SIM) and a 5-year Ericsson NetCloud Mobile Performance Essentials plan. The AC power supply and antennas are not included.
No. The RX30-POE (four 802.3bt PoE ports, 60 W total budget) and the RX30-MC (four GbE ports plus a second modular modem) are optional managed accessories sold separately.
The embedded modem connects to LTE Advanced Pro Category 20 automatically when 5G is unavailable.
Yes. It is the TAA-compliant ordering option for the United States Federal Government market.
The plan covers NetCloud Manager device management and software updates for the full 5-year term. It includes 24x7 support and a limited lifetime warranty while the subscription is active. A NetCloud Mobile Performance Advanced plan can be added at any time for threat management, web filtering, analytics and advanced GNSS features.
