| Poe Class | 802.3at Class 4 PD (30 W) |
| Poe Input | 802.3at PSE Type 2 (30 W) |
| Dc Input Cable | 380 mm (14.96 in) non-removable cable, 4-pin 2x2 Molex Micro-Fit |
| Power Features | Ignition sensing (automatic ON & time-delay OFF) |
| Consumption Idle | Idle: 8 W |
| Dc Input Voltage | 9–36 VDC steady state |
| Fuse 9 To 24 Vdc | 3 A fuse for 9–24 VDC installations |
| Fuse Over 24 Vdc | 2.5 A fuse for > 24 VDC installations |
| Consumption Heavy | Heavy: 17 W |
| Consumption Sleep | Sleep: 50 mW |
| Consumption Typical | Typical: 14.5 W |
| Power Input Options | One of: DC input or 802.3at PoE |
| Mpn | MB05-2105-5GB-GA |
| Upc | 840292702417 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |
| Model | R2105 (R2100 Series) |
| Region | All Regions |
| Taa Model | Standard (non-TAA) SKU |
| Fips Model | Standard (non-FIPS) model |
| Manufacturer | Ericsson Enterprise Wireless |
| Package Plan | 5-Year NetCloud Mobile Performance Essentials Plan |
| Product Status | Active |
| Subscription Term | 5 years |
| Hardware Configuration | R2105 5G router with Wi-Fi (Mobile); 4FF SIM not included; integrated antennas; no AC power supply |
| Included | R2105 router + 5-year NetCloud Mobile Performance Essentials plan |
| Sim Card | 4FF SIM optional, not included |
| Documentation | Cradlepoint R2100 Datasheet |
| Ac Power Supply | No AC power supply included |
| Shipping Weight | 5.03 lb |
| Sms | Yes |
| Mimo | 4x4 MIMO |
| Antennas | 4 internal cellular antennas |
| Bands 3g | 1, 2, 4, 5, 6, 8, 9, 19 |
| Gnss Gps | Passive GNSS |
| Legacy 3g | WCDMA/UMTS/HSPA+ |
| Sim Slots | Dual SIM slots, 4FF (nano) form factor |
| Modulation | 5G FR1: DL/UL up to 256 QAM (carrier-equipment dependent) |
| Technology | 5G FR1 NSA/SA and 4G LTE Advanced Pro Cat 20 |
| Bands 5g Nr | NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Peak Uplink | Up to 660 Mbps |
| 3gpp Release | 3GPP Release 15 |
| Tx Power Lte | LTE bands: 23 dBm ± 1 (typical conducted) |
| Bands Lte Fdd | FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600) |
| Bands Lte Tdd | TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500) |
| Peak Downlink | Up to 4.14 Gbps |
| Tx Power Endc | LTE + 5G NR EN-DC: 20 dBm ± 1 (typical conducted) |
| Tx Power 5g Nr | 5G NR bands: 23 dBm ± 1.5 (typical conducted) |
| Tx Power Lte Hpue | LTE HPUE: 25 dBm ± 1 (B41 standalone mode only) |
| Carrier Aggregation Lte | LTE only: DL up to 7CA; UL up to 2CA |
| Carrier Aggregation Endc | LTE + 5G NR EN-DC: DL 1CA; UL 1CA |
| Private Cellular Network | Yes, includes FCC Part 96 (CBRS Band 48) |
| Weight | 1.46 kg (3 lb 4 oz) |

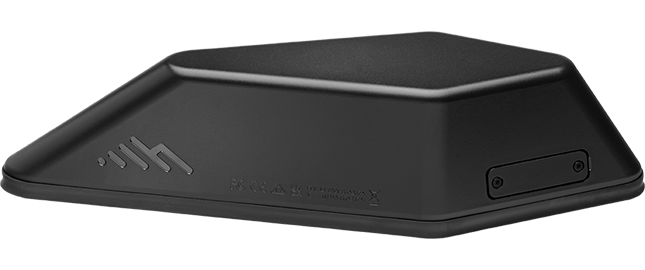

| Housing | Polycarbonate, aerodynamic ruggedized casing |
| Mounting | Exterior mount on vehicle roof or IoT cabinet enclosure |

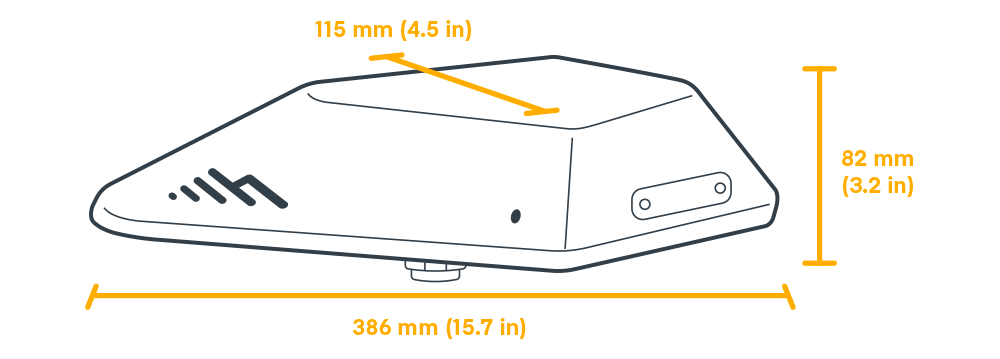

| Dimensions | 115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in) |
| Wifi | Dual-radio, dual-band concurrent 2.4/5 GHz; 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; 5 GHz limited to client mode in the EU |
| Modem | Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem |

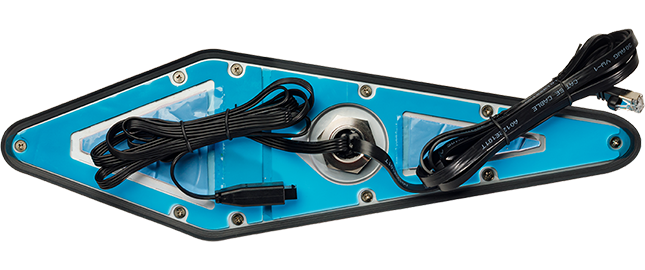

| Ethernet | 1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded CAT5e flat cable, male RJ45 |
| Gnss Gps | Passive GNSS (multiplexed with internal cellular antennas) |
| Bluetooth | N/A |
| Expansion Console | N/A |
| Fcc | 2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP |
| Canada | 2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP |
| European Union | 2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP |
| Global Safe Mode | 2.4 GHz 20.0 dBm EIRP |
| Vlans | Up to 64 Layer 2/Layer 3 VLANs |
| Stateful Firewall | 900 Mbps |
| Concurrent Sessions | 32,000 (TCP) |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 10 |
| Ipsec Vpn Point To Point | 300 Mbps |
| Ips App Aware Client Analytics | 650 Mbps (IPS/Application Aware Services/Client Analytics) |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Calculated Mtbf | 1,895,792 hours (Telcordia SR332 at 25 °C) |
| Shock Vibration | MIL-STD-810G Sec. 2.2.2 Procedure 1 (Shock, Vibration); Procedure 5 (Shock) |
| Storage Humidity | 5% to 95% |
| Impact Protection | IK09 (protected against 10 joules impact) |
| Ingress Protection | IP67 (dust tight and water immersion up to 1 meter) |
| Operating Humidity | 5% to 95% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Corrosion Resistance | IEC60068-2-11 corrosion resistance (salt mist) |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Rail | N/A |
| Safety | CB Scheme; IEC/EN 62368-1 |
| Vehicle | E-Mark; SAE J1455 Category 2 |
| Security | FIPS 140-3 Level 1 in process (R2100 FIPS models only; not this SKU) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ) |
| Shock Vibration | MIL-STD-810G Sec. 2.2.2 Procedures 1 and 5 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Public Safety Certifications | FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Support | Support for the full subscription term (phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5) |
| Training | Access to Enterprise Wireless University |
| Warranty | Limited lifetime warranty with an active NetCloud Service plan |
| Service Plans | NetCloud Service for Mobile Performance; NetCloud Service for Ruggedized IoT |
| Service Add Ons | NetCloud Exchange; Ericsson NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full subscription term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 8 GB |
| Poe | 802.3at |
| Wifi | Dual-radio, dual-band, concurrent; 2x2 MU-MIMO Wi-Fi 6 with DFS |
| Gps Gnss | Passive |
| Status 5g | 5G Embedded |
| Throughput | 900 Mbps (Firewall) |
| Form Factor | Polycarbonate |
| Vpn Tunnels | 10 |
| Ethernet Ports | 1 x 2.5 GbE RJ45 |
| Cloud Management | Yes |
| Special Features | External mounting for best reception with no signal loss |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Wireless Connectivity | Dual Connectivity; 5G & Cat 20 LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S. & Canada), GCF (worldwide) |
| Subscription Terms Available | 1, 3 & 5 years (this SKU: 5 years) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. It has dual 4FF SIM slots, but the SIM is not included, and no AC power supply is included. It runs from a 9–36 VDC vehicle or cabinet supply through its Molex Micro-Fit cable, or from 802.3at PoE.
Yes. It can be deployed as a captive modem for supported Cradlepoint controlling routers. NetCloud Manager then treats it as an internal modem and manages both units as a single entity, with no separate licence. For select controlling routers, it can also act as an additional Wi-Fi source.
For the full 5-year term, it covers NetCloud Manager device management and software updates. It also includes 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5), access to Enterprise Wireless University, and a limited lifetime hardware warranty while the subscription is active.
Coverage and location mapping is a feature of the NetCloud Advanced Mobile Performance service. An Advanced licence can be added at any time to the Essentials plan.
The housing is rated IP67 and IK09, with IEC60068-2-11 salt-mist corrosion resistance and MIL-STD-810G shock and vibration ratings. It operates from -30 °C to 70 °C and carries E-Mark and SAE J1455 Category 2 vehicle certifications.
