| Input | 9–33 VDC steady state input |
| Features | Reverse polarity and transient protection (ISO 7637-2); ignition sensing |
| Consumption | Idle 9 W; typical 13 W; heavy 14.5 W |
| Mpn | Part number: TB05-0700C4D-NA |
| Upc | 840292705548 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |
| Model | Cradlepoint S700 |
| Region | North America (U.S. and Canada) |
| Taa Sku | No |
| Fips Model | No |
| Manufacturer | Ericsson Enterprise Wireless |
| Service Plan | 5-Year NetCloud IoT Essentials Plan |
| Product Status | Manufacturer status: Active |
| Subscription Term | 5-year subscription term |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi |
| Contents | S700 router with Wi-Fi and 5-year NetCloud IoT Essentials Plan |
| Shipping Weight | 1.60 lb |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Gnss | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 MIMO |
| Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| 3g Bands | 3G bands 2, 4, 5 |
| Antennas | SMA female; 600 MHz–6 GHz paddle antennas (included only with certain packages) |
| Lte Bands | LTE FDD B2/4/5/12/13/14/66/71 |
| Modulation | Up to 16 QAM |
| Regulatory | FCC, IC |
| Technology | Cat 4 LTE (Rel. 11), DC-HSPA+; dual 4FF SIM; SIM-based auto-carrier selection |
| Peak Rates Lte | LTE: 150 Mbps down / 50 Mbps up |
| Peak Rates Wcdma | WCDMA: 42.2 Mbps down / 5.76 Mbps up |
| Carrier Aggregation | N/A |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Weight | 516 g (18.2 oz) |

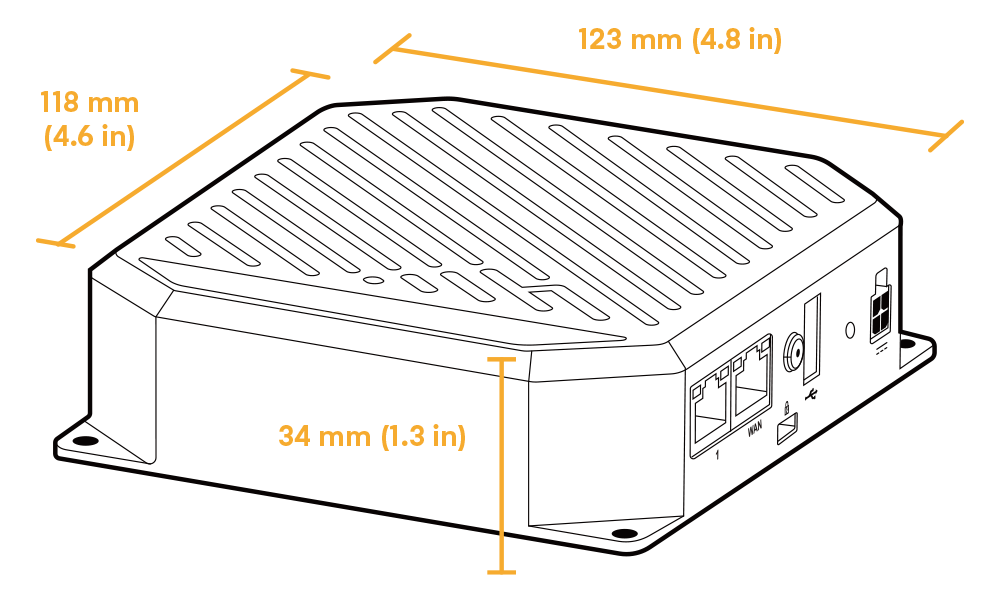

| Dimensions | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Construction | Aluminum housing |
| Wifi | Concurrent 2.4/5 GHz 2x2 Wi-Fi 6; 574 Mbps + 1.2 Gbps; 2 x RP-SMA; WPA3; Wi-Fi Alliance Certified |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x 1 GbE RJ45, LAN/WAN switchable |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Fcc | 2.4 GHz 35.66; 5150–5250 26.59; 5250–5350 25.33; 5470–5725 25.15; 5750–5825 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz 19.99; 5180–5240 22.38; 5260–5320 22.32; 5500–5700 27.45 dBm EIRP |
| Vlans | Layer 2 / Layer 3 VLANs: up to 64 |
| Ipsec Vpn | Point-to-point IPsec VPN: 50 Mbps |
| Stateful Firewall | 480 Mbps |
| Concurrent Sessions | 100,000 |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Ips App Aware Client Analytics | IPS / application aware services / client analytics: 480 Mbps |
| Mtbf | S700-C4D MTBF: 428,000 hours (Telcordia SR332 at 25 °C) |
| Humidity | 10–90% operating; 5–95% storage |
| Ingress Protection | IP30 |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Rail | EN 61373 Category 1, Class B (rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | SAE J1455-2006 operating sinusoidal vibration, Cat. 2 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; not this SKU) |
| Shock Vibration | EN 61373 Cat. 2; MIL-STD-810H 514.8 (vibration) and 516.8 (shock) |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support for the full term |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | Add-ons: NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software updates for the full term |
| Device Management | NetCloud Manager for the full term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps (firewall) |
| Form Factor | Metal |
| Vpn Tunnels | 5 |
| Serial Ports | 0 |
| Ethernet Ports | 2 x GbE |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 aluminum housing |
| Dual Modem Support | No |
| Subscription Terms | 3 or 5 years (IoT products) |
| Wireless Connectivity | LTE |
| Private Cellular Network | 4G LTE (no CBRS) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
NetCloud Manager device management and software updates for the full five years, 24x7 support, and a limited lifetime hardware warranty while the subscription is active. NetCloud Advanced can be added at any time.
The North America modem covers LTE bands 2, 4, 5, 12, 13, 14, 66 and 71 and is certified on AT&T, T-Mobile and Verizon, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline.
The S700 runs dual-radio, concurrent 2x2 Wi-Fi 6 at up to 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz, with WPA3 Personal and Enterprise security.
Yes. It accepts 9–33 VDC with reverse polarity and transient protection and supports ignition sensing with automatic on and time-delay off.
No. The S700 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink.
