| Radios | Dual-radio, dual-band concurrent |
| Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Standard | Wi-Fi 6 (802.11ax), 2x2 MIMO |
| Rate 5ghz | 1.2 Gbps (5 GHz) |
| Rate 2 4ghz | 574 Mbps (2.4 GHz) |
| Certification | Wi-Fi Alliance Certified |
| Antenna Connectors | 2 x RP-SMA Wi-Fi antenna connectors |
| Input | 9-33 VDC steady state input |
| Protection | Reverse polarity and transient voltage protection (ISO 7637-2) |
| Consumption | Idle 9 W / Typical 13 W / Heavy 14.5 W |
| Ignition Sensing | Ignition sensing (automatic ON, time-delay OFF) |
| Mpn | TBA5-0700C4E-GM |
| Upc | 840292705463 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 (S700-C4E) |
| Region | North America (U.S., Canada, Mexico); Worldwide (Australia, Canada, EU, Philippines, Singapore, New Zealand, UK) |
| Product Status | Active |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi, AC power supply and antennas |
| Documentation | Cradlepoint S700 Datasheet |
| Shipping Weight | 2.00 lb |
| Included Accessories | AC power supply and antennas included |
| 3g | UMTS/HSPA+ |
| Sim | Dual 4FF (nano) SIM, SIM-based auto-carrier selection |
| Sms | Yes |
| Gnss | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 MIMO |
| 3g Bands | 1, 2, 4, 5, 6, 8, 19 |
| Antennas | SMA female; external 600 MHz–6 GHz paddle antennas (Qty 2, certain packages only) |
| Gsm Edge | B2, B3, B5, B8 |
| Modulation | Up to 16 QAM |
| Regulatory | FCC, IC, CE, RCM |
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+ |
| Lte Fdd Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| Lte Tdd Bands | B38, B39, B40, B41 |
| Lte Peak Rates | 150 Mbps down / 50 Mbps up |
| Transmit Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Wcdma Peak Rates | 42.2 Mbps down / 5.76 Mbps up |
| Carrier Aggregation | N/A |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada), GCF (Worldwide) |
| Network Operator Certifications | Verizon |
| Public Safety Network Certifications | N/A |
| Weight | 516 g (18.2 oz) |

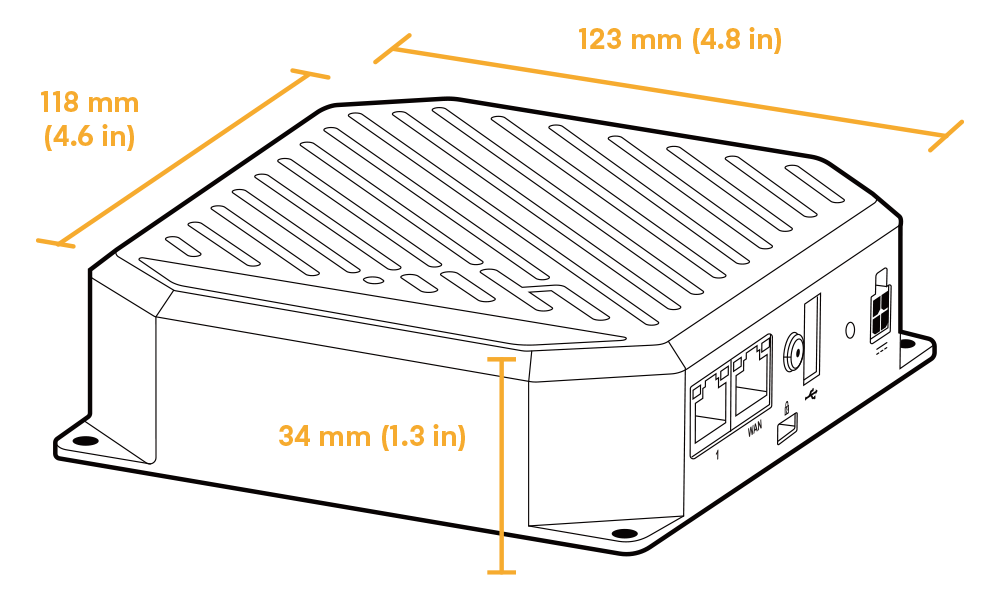

| Dimensions | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Construction | Aluminum housing |
| Modem | Embedded Cat 4 LTE modem, 2 x SMA cellular connectors |
| Ethernet | 2 x 1 GbE RJ45, LAN/WAN switchable |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Fcc | 2.4 GHz 35.66; 5150–5250 26.59; 5250–5350 25.33; 5470–5725 25.15; 5750–5825 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz 19.99; 5180–5240 22.38; 5260–5320 22.32; 5500–5700 27.45 dBm EIRP |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 480 Mbps |
| Concurrent Sessions | 100,000 |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Point To Point Ipsec Vpn | 50 Mbps |
| Ips Application Aware Client Analytics | 480 Mbps |
| Mtbf | S700-C4E: 423,399 hours (Telcordia SR332 at 25 °C) |
| Plan | Ericsson NetCloud IoT Essentials + Advanced Plans |
| Term | 5-year term |
| Support | Phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5 |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP30 |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Rail | EN 61373 Category 1, Class B |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Vehicle | SAE J1455-2006, Category 2 Section 4.10.4.1 |
| Shock Vibration | EN 61373 Cat 2; MIL-STD-810H 514.8 (vibration) and 516.8 (shock) |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager, full term |
| Device Management | NetCloud Manager, full term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps firewall throughput |
| Serial Ports | 0 |
| Ethernet Ports | 2 x GbE |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 aluminum housing |
| Dual Modem Support | No |
| Wireless Connectivity | LTE |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
The S700 router with Wi-Fi, an AC power supply and antennas, bundled with a 5-year NetCloud IoT Essentials + Advanced subscription.
No. It uses an embedded Cat 4 LTE modem rated at 150 Mbps down and 50 Mbps up, with DC-HSPA+ fallback.
Yes. The S700 accepts 9-33 VDC input with reverse polarity and transient protection, and it has ignition sensing for automatic on and time-delayed off.
For the full 5-year term it covers NetCloud Manager device management, software updates and 24x7 support. The hardware warranty is limited lifetime while the subscription remains active.
Cradlepoint lists it for North America (U.S., Canada and Mexico) and worldwide markets including Australia, the European Union, the Philippines, Singapore, New Zealand and the United Kingdom.
