| Input | 9-33 VDC steady state input |
| Features | Reverse polarity and transient voltage protection (ISO 7637-2); ignition sensing (automatic ON, time-delay OFF) |
| Consumption Idle | 9 W idle |
| Consumption Heavy | 14.5 W heavy |
| Consumption Typical | 13 W typical |
| Mpn | TBA5-0700C4D-NA |
| Upc | 840292705425 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 |
| Region | North America (U.S. & Canada) |
| Fips Model | Non-FIPS model |
| Service Plan | 5-Year NetCloud IoT Essentials + Advanced Plans |
| Product Status | Active |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi |
| Weight | 516 g (18.2 oz) |

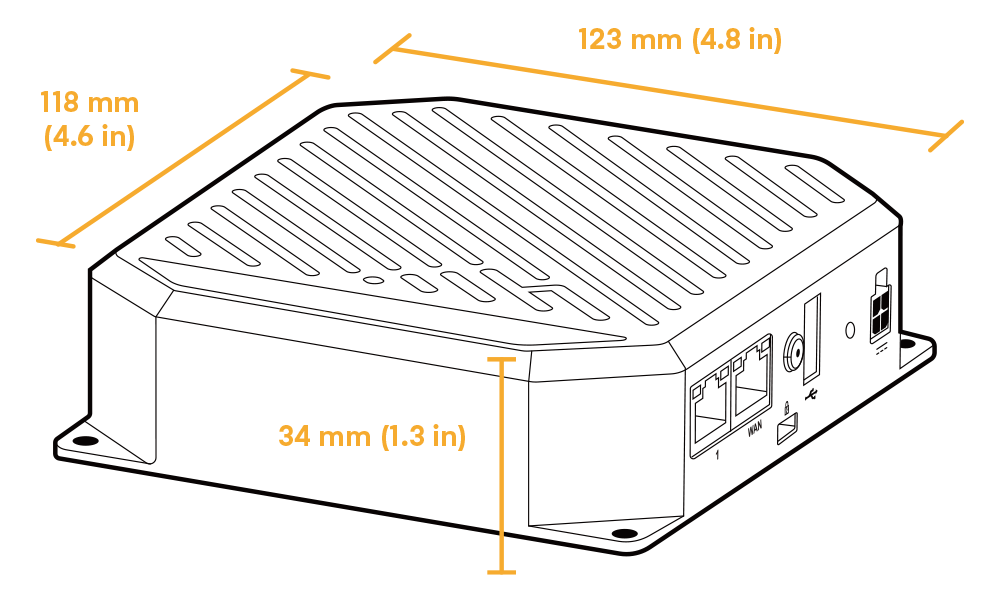

| Dimensions | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Construction | Aluminum housing |
| Shipping Weight | 1.60 lb |
| Wifi | Dual-radio, dual-band, concurrent 2.4 GHz and 5 GHz; 2x2 MIMO 802.11ax Wi-Fi 6 |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Expansion | 1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W) |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Wifi Data Rate | 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz) |
| Wifi Certification | Wi-Fi Alliance Certified |
| Wifi Antenna Connectors | 2 x RP-SMA Wi-Fi antenna connectors |
| Fcc | 2.4 GHz: 35.66; 5150–5250 MHz: 26.59; 5250–5350 MHz: 25.33; 5470–5725 MHz: 25.15; 5750–5825 MHz: 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz: 19.99; 5180–5240 MHz: 22.38; 5260–5320 MHz: 22.32; 5500–5700 MHz: 27.45 dBm EIRP |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 480 Mbps |
| Concurrent Sessions | 100,000 (TPC) |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Point To Point Ipsec Vpn | 50 Mbps |
| Ips Application Aware Client Analytics | 480 Mbps |
| Mtbf | S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP30 |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| 3g | WCDMA/UMTS/HSPA+ |
| Sim | Dual 4FF SIM slots with SIM-based auto-carrier selection |
| Sms | Yes |
| Gnss | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 MIMO |
| 3g Bands | 2, 4, 5 |
| Antennas | SMA female; external 600 MHz - 6 GHz paddle antennas (Qty 2, included only with certain packages) |
| Lte Bands | LTE FDD B2, B4, B5, B12, B13, B14, B66, B71 |
| Modulation | Up to 16 QAM |
| Regulatory | FCC (U.S.); IC (Canada) |
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+ |
| Lte Peak Rates | 150 Mbps down / 50 Mbps up |
| Transmit Power | LTE 23 dBm ± 2, DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Wcdma Peak Rates | 42.2 Mbps down / 5.76 Mbps up |
| Carrier Aggregation | N/A |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Public Safety Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Rail | EN 61373 Category 1, Class B (Railway rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | SAE J1455-2006 Operating Sinusoidal Vibe, Category 2 Section 4.10.4.1 |
| Shock Vibration | EN 61373 Cat. 2 (Vibration); MIL-STD-810H 514.8 Annex C-1 Cat. 4 (Vibration); MIL-STD-810H 516.8 Procedures 1 and V (Shock); MIL-STD-810H 516.8 4.6.6 Procedure V |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Support included for the full subscription term |
| Warranty | Limited lifetime warranty for as long as an active NetCloud Service plan is licensed |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps (Firewall) |
| Form Factor | Metal |
| Vpn Tunnels | 5 |
| Serial Ports | 0 |
| Ethernet Ports | 2 GbE |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing |
| Dual Modem Support | No |
| Subscription Terms | 3 or 5 years (relevant for IoT products only) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — 4G LTE (No CBRS) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. The S700 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink.
The S700 router hardware for the U.S. and Canada plus 5-year NetCloud IoT Essentials and Advanced plans. This is the router-only configuration. The TBA5-0700C4D-NN kit adds an AC power supply and antennas.
The North American modem is certified on AT&T, T-Mobile and Verizon. It also carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.
Yes. It accepts a 9-33 VDC steady state input, has reverse polarity and transient voltage protection (ISO 7637-2), and supports ignition sensing with automatic on and time-delay off.
Essentials packages include 24x7 support for the full subscription term. The hardware is covered by a limited lifetime warranty for as long as it holds an active NetCloud Service subscription.
