Create Free Business Account| Accuracy | 2 m autonomous at open sky (CEP-50) |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 |
| Sensitivity | Acquisition -147 dBm, Tracking -159 dBm, Reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Antenna Power | GNSS Antenna Power: Passive (no power provided) |
| Constellations | GPS, Galileo, GLONASS, BDS |
| Time To First Fix | 30 seconds (cold start) |
| Sdr | Global Optimized Wi-Fi & International SDR |
| Radio | Single-radio, dual-band, non-concurrent (2.4 GHz or 5 GHz) |
| Roaming | 802.11k, 802.11v |
| Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Standard | 1x1 MIMO 802.11ac Wi-Fi 5 |
| Data Rates | 150 Mbps (2.4 GHz), 433 Mbps (5 GHz) |
| Certification | Wi-Fi Alliance Certified |
| Antenna Connector | Wi-Fi Antenna Connector: 1 x RP-SMA |
| Poe | 802.3af PSE Type 1 (15 W) |
| Sleep | Not supported |
| Fusing | 3 A for 9–12 VDC installs, 2 A for > 12 VDC installs |
| Dc Input | 9–33 VDC |
| Protection | Reverse polarity and transient voltage (ISO 7637-2) |
| Consumption Idle | Idle Consumption (DC): 3.3 W |
| Consumption Heavy | Heavy Consumption (DC): 5.8 W |
| Consumption Typical | Typical Consumption (DC): 4.1 W |
| Mpn | Manufacturer Part Number: TBV5-0400-C6-LA-M |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S400 |
| Region | North America: Mexico |
| Package Plan | 5-Year NetCloud IoT Essentials + Advanced Plans |
| Product Type | Cloud-managed, semi-ruggedized secure appliance and router for IoT |
| Product Status | Manufacturer Product Status: Active |
| Subscription Term | 5 years |
| Cellular Generation | 4G LTE (no 5G) |
| Documentation | Cradlepoint S400 Datasheet |
| Shipping Weight | 1.23 lb |
| Hardware Configuration | Cat 6 (150 Mbps) with Wi-Fi, AC power supply, and antennas |
| Weight | 221 g (7.8 oz) |

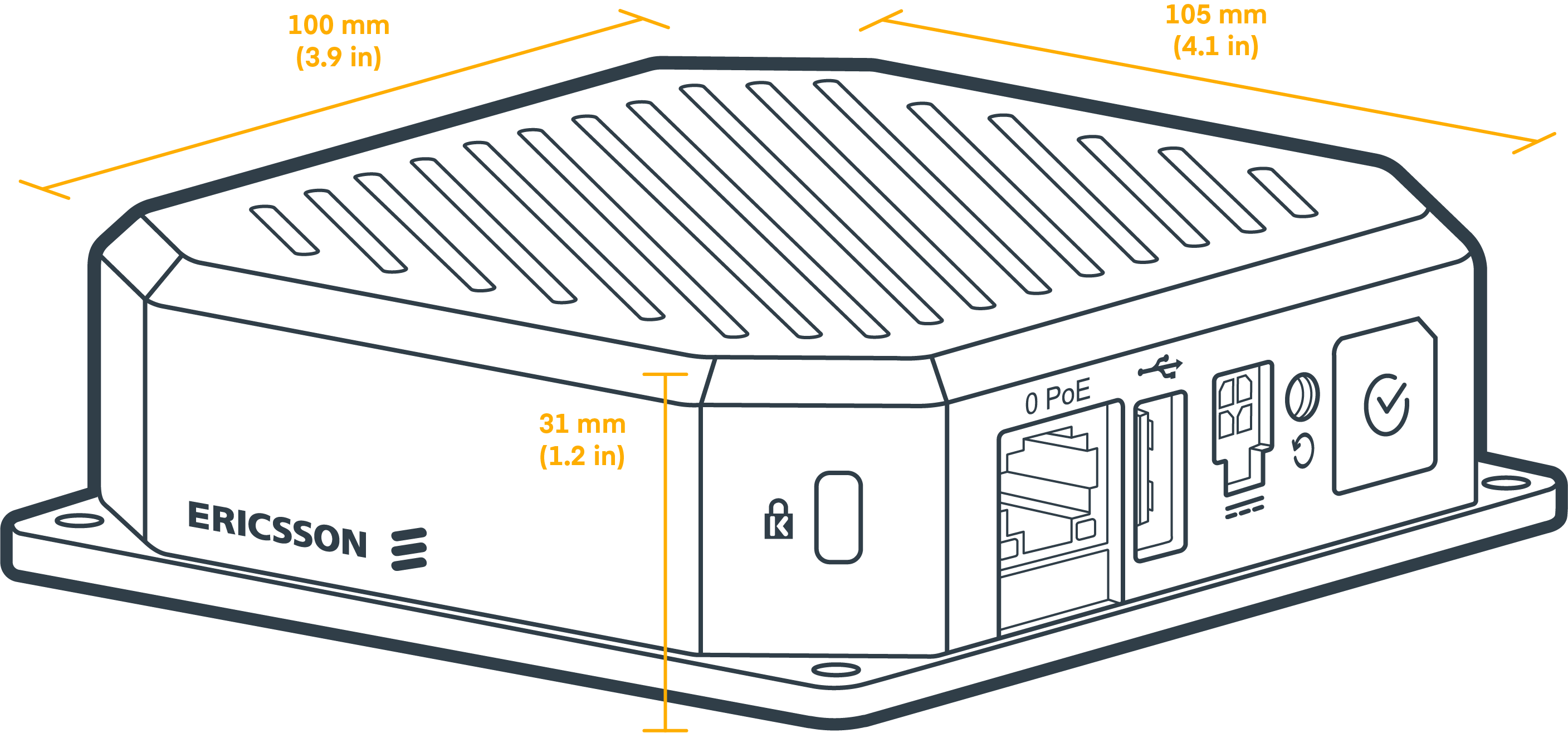

| Dimensions | Size: 100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in) |
| Construction | Plastic housing |
| Usb | 1 x USB 2.0 Type A (output 5 V, 500 mA, 2.5 W) |
| Gnss | Passive GNSS (multiplexed with cellular antenna) |

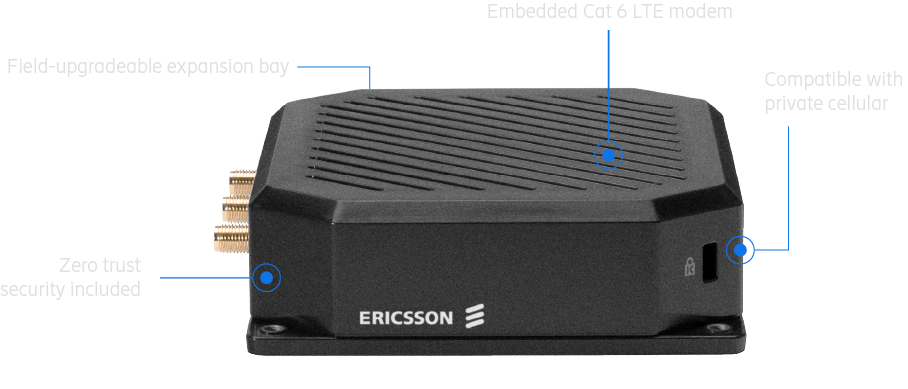

| Modem | Embedded Cat 6 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 1 x GbE RJ45 (LAN/WAN selectable) |
| Gpio Module | 20-pin (2 x 10) Molex Micro-Fit 3.0 connector |
| Serial Module | DB-9, RS232 with hardware flow control |
| Expansion Slot | 1 x expansion module slot |
| Dual Ethernet Module | Ethernet Module: 2 x FE RJ45 (LAN/WAN selectable) |
| Ce | 2.4 GHz 17.50 dBm; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 11.50 dBm |
| Ic | 2.4 GHz 19.60 dBm; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 14.38 dBm |
| Fcc | 2.4 GHz 19.60 dBm; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 14.38 dBm |
| Rcm | 2.4 GHz 17.50 dBm; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5850 14.38 dBm |
| Ukca | 2.4 GHz 17.50 dBm; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 16.12 dBm |
| Global Safe Mode | 2.4 GHz 14 dBm conducted |
| Vlans | Layer 2 / Layer 3 VLANs: Up to 64 |
| Ipsec Vpn | Point-to-Point IPsec VPN: 20 Mbps |
| Stateful Firewall | 95 Mbps |
| Concurrent Sessions | 32,000 |
| Typical Iot Clients | Typical IoT Client Count: 25 |
| Concurrent Vpn Tunnels | 5 |
| Mtbf Base | MTBF (S400): 1,828,355 hours (Telcordia SR332 at 25 °C) |
| Mtbf Db9 Module | MTBF with DB9 Module: 1,712,886 hours |
| Mtbf Gpio Module | MTBF with GPIO Module: 1,343,279 hours |
| Mtbf Ethernet Module | MTBF with Ethernet Module: 1,659,720 hours |
| Humidity | 5%–95% non-condensing, operating and storage |
| Ingress Protection | IP30 |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |

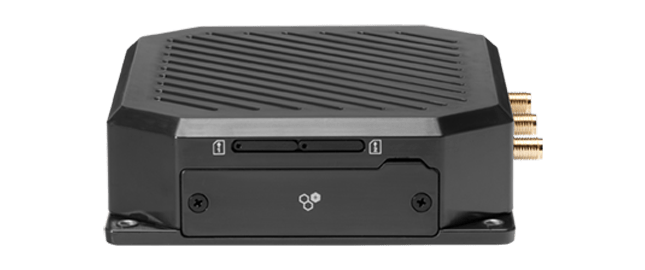

| Sim | Dual 4FF SIM slots, SIM-based auto-carrier selection |
| Sms | Yes |
| Gnss | Modem GNSS: Active GNSS; GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 |
| Antennas | SMA female, external 600 MHz–6 GHz paddle antennas (Qty 2) |
| Dual Modem | No |
| Technology | Cat 6 LTE (3GPP Rel. 11) |
| Output Power | LTE 23 dBm ± 2 (typical conducted) |
| Peak Rates Lte | LTE Peak Rates (datasheet): 300 Mbps download / 50 Mbps upload |
| Carrier Aggregation | Downlink up to 2 CA, Uplink up to 1 CA (not listed for datasheet variant 3) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Security | N/A |
| Regulatory | FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ), UKCA (UK), ANATEL (Brazil), IFT (Mexico), SUBTEL (Chile), MCMC (Malaysia), IMDA (Singapore) |
| Hazardous Locations | Class I Div 2 (North America), ATEX 2 (Europe) |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Shock Vibration Humidity | MIL-STD-810H 514.8 Annex C-1 Cat 4; 516.8 Proc I; 516.8 Proc V |
| Support | Full term; phone 24-hour weekdays + weekend emergency, web 24x7, chat 24x5 |
| Warranty | Limited lifetime with an active NetCloud Service Plan |
| Service Plan | NetCloud Service for IoT, Essentials + Advanced |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Variant 1 Details | No 3G; up to 16 QAM; CBRS Band 48 (FCC Part 96); AT&T, T-Mobile, Verizon certified |
| Variant 2 Details | DC-HSPA+ fallback on 3G bands 1, 3, 5, 8; HSPA+ 42 / 5.76 Mbps; DL 64 QAM, UL 16 QAM |
| Variant 3 Details | DC-HSPA+ on 3G bands 2, 4, 5, 8; no CA; DL 64 QAM, UL 16 QAM; AT&T, T-Mobile, Verizon certified |
| Variant 4 Details | No 3G; up to 16 QAM; CBRS Band 48 (FCC Part 96) |
| Variant 1 Lte Bands | FDD B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71; TDD B41, B48 |
| Variant 2 Lte Bands | FDD B1, B3, B5, B7, B8, B20, B28, B32; TDD B38, B40, B41, B42, B43 |
| Variant 3 Lte Bands | Variant 3 LTE Bands (FCC/IC/CE, PTCRB + GCF): FDD B2, B4, B5, B7, B8, B25, B28, B66; TDD B42, B43 |
| Variant 4 Lte Bands | Variant 4 LTE Bands (FCC/IC, PTCRB + GCF): FDD B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71; TDD B41, B48 |
Business account holders on Server Components typically save 22% vs. retail pricing. Create a free account to see your price.
No. TBV5-0400-C6-LA-M is the North America: Mexico regional configuration of the S400. It carries IFT (Mexico) certification among others.
The S400 router with Wi-Fi, an AC power supply and antennas, plus a 5-year NetCloud IoT Essentials + Advanced subscription that covers NetCloud Manager, software updates and support for the full term.
No. The S400 uses an embedded Cat 6 LTE modem with dual SIM slots and 2x2 MIMO; it has no 5G modem.
It accepts 9–33 VDC input with reverse-polarity and transient voltage protection, or 802.3af PoE (Type 1, 15 W). Typical consumption is 4.1 W.
Cradlepoint hardware is covered by a limited lifetime warranty for as long as it has an active NetCloud Service Plan subscription.
