| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 |
| 3g Bands | 2, 4, 5 |
| Antennas | SMA female; 2 x external 600 MHz-6 GHz paddle antennas |
| Gnss Gps | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Lte Bands | LTE FDD B2, B4, B5, B12, B13, B14, B66, B71 |
| Modulation | Up to 16 QAM |
| Peak Rates | LTE 150/50 Mbps; WCDMA 42.2/5.76 Mbps |
| Regulatory | FCC (U.S.); IC (Canada) |
| Technology | Cat 4 LTE (Rel. 11), DC-HSPA+; dual 4FF SIM; auto-carrier selection |
| Carrier Aggregation | N/A |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Public Safety Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Features | Reverse polarity and transient voltage protection (ISO 7637-2); ignition sensing |
| Required | 9-33 VDC steady state input |
| Consumption | Idle 9 W; typical 13 W; heavy 14.5 W |
| Mpn | TAA-TB03-0700C4D-NN |
| Upc | 840292705753 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 |
| Region | United States Federal Government ordering option |
| Taa Compliant | TAA compliant |
| Product Status | Active |
| Plan | 3-Year NetCloud IoT Essentials Plan |
| Support | Phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5 |
| Shipping Weight | 1.60 lb |
| Subscription Term | 3 years |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi, AC power supply, and antennas |

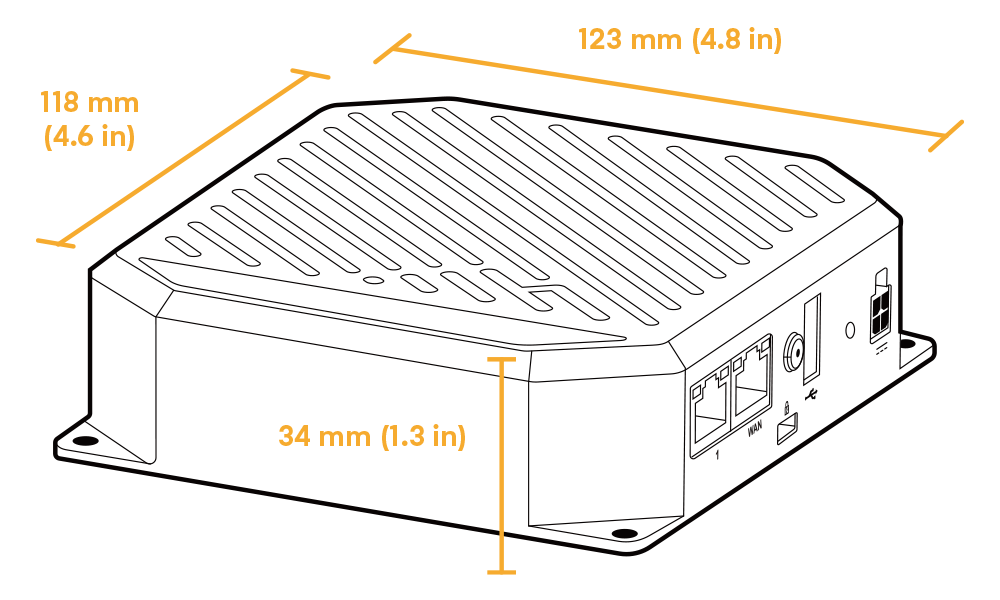

| Size | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Weight | 516 g (18.2 oz) |
| Construction | Aluminum housing |
| Wifi | Dual-band concurrent 2x2 Wi-Fi 6, 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz), 2 x RP-SMA |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; Wi-Fi Alliance Certified |
| Fcc | 2.4 GHz 35.66; 5150–5250 26.59; 5250–5350 25.33; 5470–5725 25.15; 5750–5825 26.22 dBm EIRP |
| Rest Of World | RoW: 2.4 GHz 19.99; 5180–5240 22.38; 5260–5320 22.32; 5500–5700 27.45 dBm EIRP |
| L2 L3 Vlans | Up to 64 |
| Stateful Firewall | 480 Mbps |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Concurrent Sessions Tpc | 100,000 |
| Point To Point Ipsec Vpn | 50 Mbps |
| Ips App Aware Client Analytics | 480 Mbps |
| Calculated Mtbf | S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C) |
| Humidity | Operating 10%-90%; storage 5%-95% |
| Temperature | Operating -20 °C to 60 °C; storage -40 °C to 85 °C |
| Ingress Protection | IP30 |
| Rail | EN 61373 Category 1, Class B (railway rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | SAE J1455-2006 Operating Sinusoidal Vibe, Cat. 2 Sec. 4.10.4.1 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only) |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Shock Vibration Humidity | EN 61373 Cat. 2; MIL-STD-810H 514.8 (vibration); MIL-STD-810H 516.8 (shock) |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty while subscribed to an active NetCloud plan |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps (Firewall) |
| Form Factor | Metal |
| Vpn Tunnels | 5 |
| Serial Ports | 0 |
| Ethernet Ports | 2 x GbE |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing |
| Dual Modem Support | No |
| Subscription Terms | 3 or 5 years (IoT products) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — 4G LTE (No CBRS) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. The S700 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink, plus DC-HSPA+ fallback.
This package includes the S700 Cat 4 router with Wi-Fi, an AC power supply and antennas. It also includes a 3-year NetCloud IoT Essentials plan with NetCloud Manager, software updates and 24x7 support.
This North American modem variant carries AT&T, T-Mobile and Verizon network certifications. It also holds FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.
Yes. It accepts 9-33 VDC input with reverse polarity and transient voltage protection, and it supports ignition sensing. It is tested to SAE J1455, EN 61373 and MIL-STD-810H shock and vibration methods.
Cradlepoint hardware carries a limited lifetime warranty for as long as it holds a subscription to an active Ericsson NetCloud Service plan.
