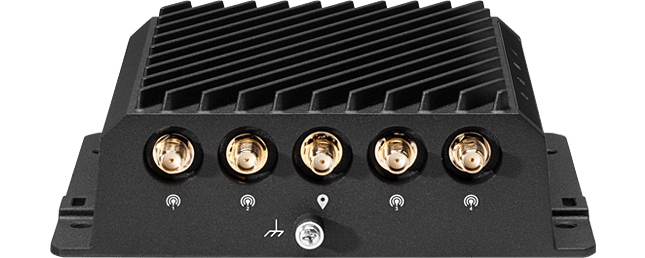

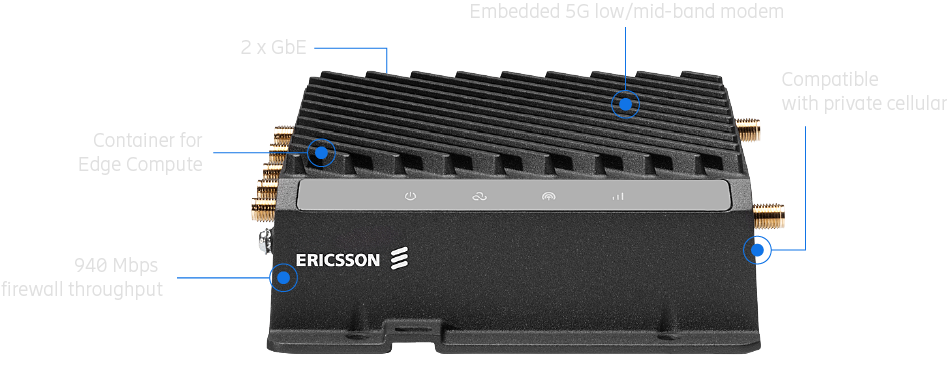

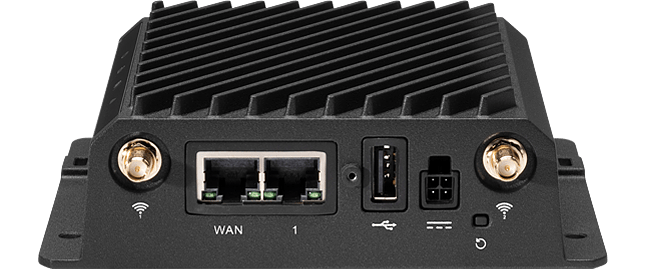

Cradlepoint R980 ruggedized 5G router in a compact metal housing with SMA antenna connectors and Ethernet ports.

Cradlepoint R980 5G Ruggedized Router with Wi-Fi 6 and 3-Year TAA NetCloud Mobile Essentials Plan

Name: Cradlepoint R980 5G Ruggedized Router with Wi-Fi 6 and 3-Year TAA NetCloud Mobile Essentials Plan
Brand: Cradlepoint
SKU: TAA-MB03-R980-5GD-A
Price: 1386.80 USD
Availability: InStock

Cradlepoint|

MPN: TAA-MB03-R980-5GD-A

UPC: 0840292719231

In Stock

$1,386.80$1,476.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 22% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Embedded 5G NR (SA/NSA) and LTE Advanced Pro Cat 19 modem, 3GPP Release 16, with 5G network slicing
Dual 4FF SIM slots plus embedded MFF2 eSIM hardware supporting up to eight carrier profiles
Dual-band, dual-concurrent 2x2 MU-MIMO Wi-Fi 6 and 2 x GbE RJ45 LAN/WAN switchable ports
IP64 ruggedized metal housing, -30 °C to 70 °C operating range, Class I Div 2, E-Mark and MIL-STD-810H shock/vibration
9–36 VDC input with ISO 7637-2 transient protection and ignition sensing

The Ericsson Cradlepoint R980 is a ruggedized, secure 5G router for mobile, in-vehicle and IoT deployments. This part number, TAA-MB03-R980-5GD-A, combines the R980 hardware (5G modem, Wi-Fi, two 4FF SIM slots and embedded eSIM) with a 3-year Ericsson NetCloud Mobile Essentials plan. It is a TAA-compliant ordering option for the U.S. Federal Government. The kit does not include an AC power supply or antennas. The embedded 3GPP Release 16 modem supports 5G NR standalone and non-standalone networks across 600 MHz to 6 GHz, with LTE Advanced Pro Category 19 fallback. It is rated for peak downlink rates up to 3.4 Gbps on NSA. Network slicing supports up to four DNN/PDN instances. The MFF2 eSIM hardware holds up to eight carrier profiles, and over-the-air carrier switching becomes functional with future NetCloud OS releases. The modem carries AT&T, T-Mobile and Verizon certifications, as well as FirstNet Trusted, Verizon Frontline and T-Mobile public safety certifications. It also supports private CBRS Band 48 networks. The R980 is built for harsh locations. Its metal housing is rated IP64 and holds Class I Div 2, E-Mark, SAE J1455 and NFPA 130 approvals, along with MIL-STD-810H shock and vibration testing. It accepts 9–36 VDC with ISO 7637-2 transient protection and ignition sensing. Active multi-constellation GNSS supports location tracking. A dual-core ARMv8 CPU runs Docker containers at the edge. Rated throughput is 940 Mbps for the stateful firewall and 200 Mbps for IPsec VPN. The Essentials plan includes NetCloud Manager device management and software updates for the full term. It also includes 24x7 support and a limited lifetime warranty while the subscription is active. A NetCloud Mobile Advanced plan can be added at any time. A Cradlepoint R980 datasheet is available for this product.

Ideal For

Public safety and first-responder vehicles on FirstNet, Verizon Frontline or T-Mobile priority networks
Federal agency fleet and mobile command deployments that require TAA-compliant procurement
Light rail and transit connectivity that needs NFPA 130 and BSS 7239 compliance
Ruggedized IoT and hazardous-location sites (Class I Div 2) that run containerized edge applications
Private CBRS or 5G network deployments with network slicing for critical traffic

Why This Product

13GPP Release 16 modem with 5G SA/NSA, network slicing and MFF2 eSIM hardware alongside dual 4FF SIM slots
2Compact 601 g IP64 housing with a -30 °C to 70 °C operating range and a calculated MTBF of 1,407,191 hours
3Two GbE ports, 940 Mbps firewall throughput and a 50-client typical capacity
4TAA-compliant 3-year Essentials bundle for U.S. Federal Government ordering

Power

Features	ISO 7637-2 reverse polarity and transient protection; ignition sensing (auto ON, time-delay OFF)
Connector	4-pin 2x2 Molex micro-fit
Consumption Idle	8 W (idle)
Dc Input Voltage	9–36 VDC steady state (in-line fuse required for vehicle installations)
Consumption Heavy	13 W (heavy)
Consumption Sleep	15 mW (sleep)
Fuse Requirements	3 A fuse for 9–24 VDC; 2 A fuse for >24 VDC
Light Rail Nominal	24 VDC nominal for light rail applications
Consumption Typical	11 W (typical)

General

Mpn	TAA-MB03-R980-5GD-A
Plan	3-Year NetCloud Mobile Essentials Plan
Brand	Cradlepoint (Ericsson Enterprise Wireless)
Model	Cradlepoint R980
Region	United States: Federal Government
Taa Compliant	TAA compliant
Subscription Term	3 years
Hardware Configuration	R980 with Wi-Fi, 5G modem, 4FF SIM slots and embedded eSIM; no AC power supply or antennas

Package

Shipping Weight	2.28 lb
Antennas Included	Antennas not included
Ac Power Supply Included	AC power supply not included

Cellular

3g	WCDMA/UMTS/HSPA+
Sms	Yes
Esim	Up to eight carrier profiles
Mimo	4x4 MIMO
3g Bands	1, 2, 4, 5, 8, 19
Antennas	SMA female; external 600 MHz–6 GHz paddle antennas (not included)
Gnss Gps	Active GNSS: GPS, Galileo, GLONASS, BeiDou
Nr Bands	n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (746-756), n14 (758-768), n18 (860-875), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (717-728), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n75 (1500), n76 (1427-1432), n77 (3700), n78 (3500), n79 (4900)
Tx Power	NR PC3 23 dBm ±2; NR PC1.5 29 dBm ±2; LTE PC3 23 dBm ±2; LTE PC2 26 dBm ±2 (typical conducted)
Lte Bands	FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation	5G FR1: 256 QAM downlink and uplink
Regulatory	FCC, IC, CE, RCM, UKCA
Technology	5G NR low/mid-band and 4G LTE, 600 MHz–6 GHz; NSA and SA; LTE Cat 19 fallback; dual 4FF SIM; MFF2 eSIM; network slicing; 3GPP Rel. 16
Peak Rates Sa	SA: up to 2.4 Gbps down / 450 Mbps up
Peak Rates Lte	LTE: up to 1.6 Gbps down / 200 Mbps up
Peak Rates Nsa	NSA: up to 3.4 Gbps down / 550 Mbps up
Network Slicing	Up to four DNN/PDN instances
Carrier Aggregation	5G NR only: DL 2 CA / UL 1 CA; ENDC: DL 4 LTE + 1 NR / UL 2 LTE + 2 NR; LTE only: DL 5 CA / UL 2 CA
Gcf Global Operators	GCF member operator list
Private Cellular Network	Yes, including FCC Part 96 CBRS Band 48
Network Operator Standards	PTCRB (U.S., Canada); GCF (worldwide)
Public Safety Certifications	ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, T-Mobile T-Priority, Verizon Frontline Verified, Verizon Frontline Network Slice
Ptcrb North America Operators	PTCRB operator list
Network Operator Certifications	AT&T, T-Mobile, Verizon

Gnss Gps

Power	2.9–3.15 VDC supply; 100 mA max current
Accuracy	Autonomous 1 meter
Protocols	NMEA 0183, TAIP
Frequencies	L1
Sensitivity	Acquisition -148 dBm; tracking -161 dBm; cold start -146 dBm
Update Rate	1 Hz (once per second)
Constellations	GPS, Galileo, GLONASS, BeiDou (concurrent reception)
Time To First Fix	30 seconds (cold start)

Physical

Weight	601 g (1 lb 5.2 oz)

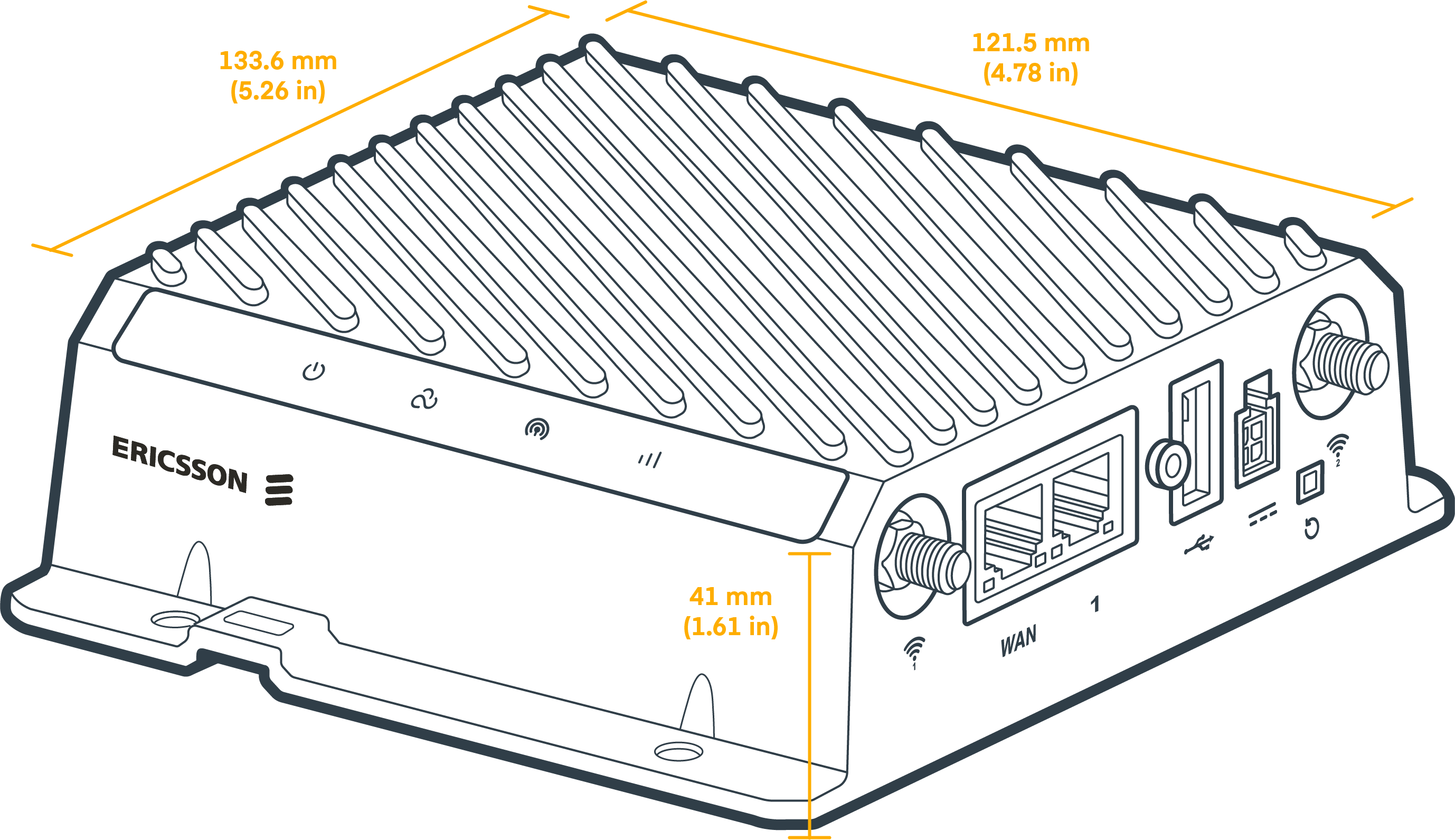

Dimensions	133.6 x 121.5 x 41 mm (5.26 x 4.78 x 1.61 in)

Interfaces

Wifi	Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; AP, client and Wi-Fi as WAN modes; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified
Modem	Embedded 5G NR FR1/4G LTE modem; 4 x SMA cellular connectors; 2 x 4FF SIM slots; 1 x MFF2 eSIM
Ethernet	2 x GbE RJ45 (LAN/WAN switchable)
Gnss Gps	1 x SMA GNSS antenna connector
Bluetooth	N/A
Expansion	1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) with screw lock

Wifi Power

Ic	2.4 GHz 26.42 dBm; 5180–5250 MHz 16.48; 5250–5350 MHz 18.33; 5470–5725 MHz 22.17; 5725–5835 MHz 23.14 dBm conducted
Fcc	2.4 GHz 26.42 dBm; 5180–5250 MHz 21.63; 5250–5350 MHz 21.20; 5470–5725 MHz 22.17; 5725–5835 MHz 23.14 dBm conducted
Rcm	2.4 GHz 13.91 dBm; 5180–5250 MHz 18.04; 5250–5320 MHz 17.92; 5500–5700 MHz 21.48; 5725–5835 MHz 23.14 dBm conducted
Ce Ukca	2.4 GHz 13.91 dBm; 5180–5250 MHz 18.04; 5250–5320 MHz 17.92; 5500–5700 MHz 21.48 dBm conducted

Performance

Vlans	Up to 64 Layer 2/Layer 3 VLANs
Ipsec Vpn	200 Mbps point-to-point IPsec VPN
Sase Sd Wan	85 Mbps SASE/Secure Connect/SD-WAN
Stateful Firewall	940 Mbps
Typical Client Count	50
Ips Application Aware	940 Mbps
Concurrent Vpn Tunnels	20
Concurrent Tcp Sessions	32,000
Client Traffic Analytics	100 Mbps

Reliability

Calculated Mtbf

1,407,191 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity	5% to 95%
Ingress Protection	IP64 (dust tight and splashing water)
Operating Humidity	10% to 95%
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety	UL/cUL, CB Scheme, EN 62368-1
Vehicle	E-Mark, SAE J1455
Security	FIPS 140-3 Level 1 module in process (R980 FIPS models only)
Shock Vibration	MIL-STD-810H 514.8 Annex C-1 Cat 4 (vibration); 516.8 Procedures I and V (shock)
Hazardous Locations	Class I Div 2
Flame Smoke Toxicity	BSS 7239
Substance Compliance	WEEE, RoHS, REACH, California Prop 65
North American Fire Safety	NFPA 130

Cloud Services

Support	Support for the full subscription term (Essentials: phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5)
Warranty	Limited lifetime warranty with an active NetCloud Service plan
Service Plans	NetCloud Service for Mobile; NetCloud Service for Ruggedized IoT
Service Add Ons	NetCloud Exchange, NetCloud Advanced
Software Updates	Via NetCloud Manager for the full term
Device Management	NetCloud Manager for the full term

Edge Computing

Cpu	Dual-core ARMv8 64-bit
Memory	Up to 921 MB (NetCloud Container Orchestrator adjustable)
Applications	Docker containerized applications
Flash Storage	Up to 8 GB (NetCloud Container Orchestrator adjustable)

Product Summary

Poe	No
Wifi	Dual-band, dual-concurrent 802.11ax (Wi-Fi 6)
Category	Mobile, IoT
Gps Gnss	Active
Bluetooth	No
Status 5g	5G embedded
Usb Ports	1
Throughput	940 Mbps (firewall)
Form Factor	Ruggedized metal
Vpn Tunnels	20
Serial Ports	Yes, with adapter
Ethernet Ports	2 GbE (LAN/WAN switchable)
Cloud Management	Yes
Special Features	Container, SDK, serial port with accessory cable
Dual Modem Support	Yes, with captive modem
Subscription Terms	1, 3 & 5 years
Operating Temperature	-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity	5G & Cat 19 LTE
Private Cellular Network	Yes: CBRS, 4G LTE, 5G
Network Operator Standards	PTCRB (U.S.), GCF (global)

Purchasing this for your business?

Business account holders on Server Components typically save 22% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint R980 Datasheet

1.6mb

R980 Data Sheet

Frequently Asked Questions

What does TAA-MB03-R980-5GD-A include?▾

It includes the Cradlepoint R980 router with Wi-Fi, a 5G modem, two 4FF SIM slots and embedded eSIM hardware. It is bundled with a 3-year Ericsson NetCloud Mobile Essentials plan. The AC power supply and antennas are not included.

Who is this SKU intended for?▾

It is the TAA-compliant ordering option for the United States Federal Government market.

Does the R980 support carrier switching with eSIM?▾

The R980 has embedded MFF2 eSIM hardware that supports up to eight carrier profiles. Cradlepoint states that over-the-air carrier switching will be functional with future NetCloud OS releases. The two physical 4FF SIM slots can be used today.

What power does the R980 need?▾

It accepts 9–36 VDC through a 4-pin Molex micro-fit connector. Vehicle installations require an in-line fuse: 3 A for 9–24 VDC and 2 A above 24 VDC. The router has ISO 7637-2 transient protection and ignition sensing.

What does the Essentials plan cover?▾

The plan covers NetCloud Manager device management and software updates for the full 3-year term. It includes 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5) and a limited lifetime warranty while the subscription is active. A NetCloud Mobile Advanced plan can be added at any time.
