| Sms | Yes |
| Mimo | 4x4 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |
| Gnss Gps | Discrete active GPS with dead reckoning |
| Nr Bands | 5G NR (NSA/SA): n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
| Tx Power | 5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41) (typical conducted) |
| Lte Bands | FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48 |
| Modulation | Up to 256 QAM downlink and uplink (carrier dependent) |
| Peak Rates | Up to 4.14 Gbps down / 660 Mbps up |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Release 15 |
| Three G Bands | 1, 2, 3, 4, 5, 6, 8, 9, 19 |
| Carrier Aggregation | LTE: 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL |
| Gcf Global Operators | GCF members directory |
| Private Cellular Network | Yes, CBRS Band 48 (FCC Part 96) |
| Network Operator Standards | PTCRB (U.S., Canada), GCF (worldwide) |
| Public Safety Certifications | ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Ptcrb North America Operators | PTCRB operators |
| Network Operator Certifications | AT&T, EE, Telstra, T-Mobile, Verizon |
| Fuse | 3 A fuse for 9–24 VDC; 2.5 A fuse above 24 VDC |
| Dc Input | 9–36 VDC steady state (in-line fuse required for vehicle installations) |
| Features | ISO 7637-2 reverse polarity/transient protection; ignition sensing |
| Connector | 4-pin 2x2 Molex micro-fit |
| Light Rail | 24 VDC nominal for light rail applications |
| Consumption | Sleep 15 mW, idle 11 W, typical 19 W, heavy 22 W |
| Mpn | TAA-MB03-19005GB-GA |
| Upc | 810007809496 |
| Plan | 3-Year NetCloud Mobile Performance Essentials Plan |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R1900 |
| Region | United States Federal Government |
| Fips Model | Non-FIPS model |
| Taa Compliant | TAA compliant |
| Product Status | Active |
| Shipping Weight | 6.32 lb |
| Subscription Term | 3 years |
| Hardware Configuration | 5G with Wi-Fi, 4FF SIM; no AC power supply or antennas included |
| Power | 3.1–3.8 V supply, 30 mA max |
| Accuracy | Autonomous 1 meter |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 (1559–1606 MHz) |
| Sensitivity | Acquisition -147 dBm, tracking -165 dBm, reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou (concurrent) |
| Time To First Fix | 30 seconds (cold start) |

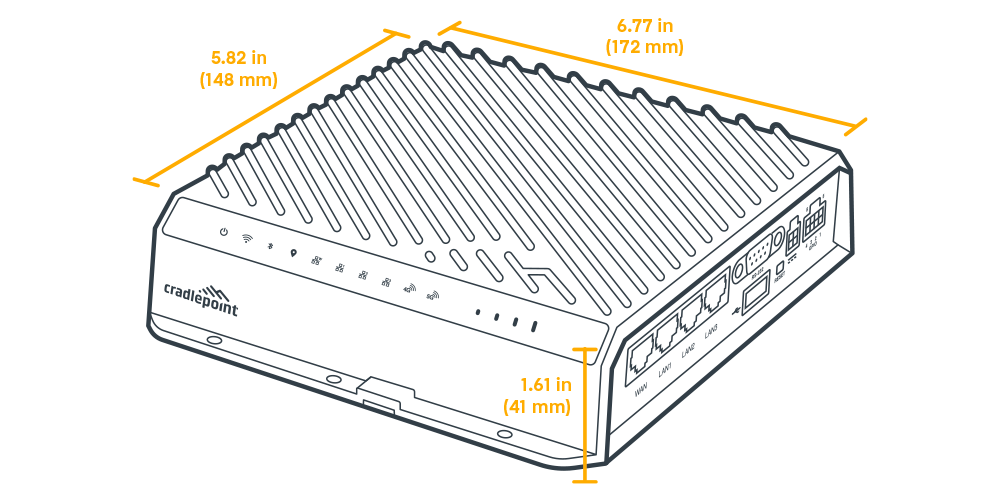

| Size | 172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in) |
| Weight | 0.98 kg (2.15 lb) |
| Poe | Optional RX30 PoE switch: 4 x 802.3bt Type 3 (up to 60 W per port), 60 W total budget |
| Wifi | 2x2 MU-MIMO Wi-Fi 6 with DFS, 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz), 2 x RP-SMA, WPA3, 802.11k/v, Wi-Fi Alliance Certified |
| Modem | Embedded 5G NR FR1 low/mid-band + LTE Cat 20 modem; 4 x SMA cellular antenna connectors |
| Ethernet | 4 x GbE (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Bluetooth | Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA connector |
| Expansion Console | USB 2.0 Type A (5 V, 500 mA), DB9 RS-232, 8-pin GPIO; optional RX30-POE or RX30-MC |
| Eu | 2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm (conducted) |
| Fcc | 2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm (conducted) |
| Japan | 2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm (conducted) |
| Canada | 2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm (conducted) |
| Global Safe Mode | 2.4 GHz 14 dBm (conducted) |
| Stateful Firewall | 940 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 32,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | 340,644 hours (Telcordia SR332 at 25 °C) |
| Humidity | 5% to 95% operating and storage |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Rail | EN 45545-2:2020 HL3, EN 50121-3-2, EN 50155 Class S1 |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Vehicle | E-Mark, SAE J1455 |
| Security | FIPS 140-3 Level 1 module in process (FIPS models only; this SKU is non-FIPS) |
| Shock Vibration | MIL-STD-810G, Section 2.2.2, Procedure 1 (shock, vibration) |
| Hazardous Locations | Class I Div 2 |
| Flame Smoke Toxicity | BSS 7239 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| North American Fire Safety | NFPA 130 |
| Support | Support for the full subscription term (phone, web 24x7, chat 24x5) |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | Ericsson NetCloud Service for Mobile Performance |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 6 GB |
| Poe | Yes, with RX30-PoE |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 (802.11ax) |
| Category | Mobile |
| Gps Gnss | Discrete active GNSS with dead reckoning |
| Bluetooth | Yes, embedded Bluetooth 5.2 |
| Status 5g | 5G Embedded |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Ruggedized metal |
| Vpn Tunnels | 20 |
| Serial Ports | 1 |
| Ethernet Ports | 4 x GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add 4 GbE PoE ports or 4 GbE and second modem |
| Dual Modem Support | Yes, with RX30-MC |
| Subscription Terms | 1, 3 & 5 years available |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | 5G/4G Dual Connectivity |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.

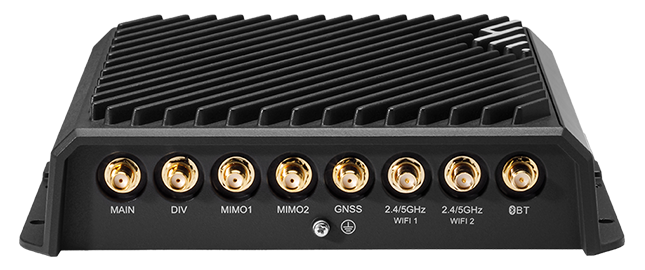

No. This configuration ships without an AC power supply or antennas. The R1900 has 4 x SMA cellular connectors, 2 x RP-SMA Wi-Fi connectors, 1 x RP-SMA Bluetooth connector and 1 x SMA GNSS connector for the antennas of your choice. It runs on 9–36 VDC vehicle power through a 4-pin Molex micro-fit connector.
It includes NetCloud Manager cloud management, software updates and 24x7 support for the full 3-year term. Phone support runs 24 hours on weekdays with emergency response on weekends, web support is 24x7 and chat is 24x5. The hardware carries a limited lifetime warranty while an active NetCloud plan is in place. A NetCloud Mobile Performance Advanced plan can be added at any time.
Yes, with the optional RX30-MC accessory. It adds a modular second modem and four GbE ports for simultaneous dual-carrier connectivity. The built-in modem also has dual 4FF SIM slots.
Yes. TAA-MB03-19005GB-GA is the TAA-compliant ordering option for the United States Federal Government. It is a non-FIPS model.
The embedded modem automatically connects to Category 20 LTE when the vehicle moves outside 5G coverage. It also supports 3G WCDMA/HSPA+ bands.
