| Power | 3.1 V supply; 20 mA max current (1200M-B) |
| Accuracy | Horizontal <2 m (50%), <5 m (95%) |
| Protocols | NMEA 0183 |
| Frequencies | L5 |
| Sensitivity | Tracking -159 dBm (1200M-B) |
| Constellations | GPS, Galileo, GLONASS, BeiDou |
| Time To First Fix | 32 seconds (cold start) |
| Modes | AP, Wireless Client, Wi-Fi as WAN |
| Ssids | Multiple SSIDs |
| Radios | Tri-radio, dual-band concurrent (2.4/5 GHz) |
| Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, WEP Auto, Open |
| Certification | Wi-Fi Alliance Certified |
| Silver Sma Rates | Silver SMAs: 574 Mbps (2.4 GHz) and 1.2 Gbps (5 GHz) |
| Gold Sma 2x2 Rate | Gold SMAs 2x2: 574 Mbps (2.4 GHz) |
| Gold Sma 4x4 Rate | Gold SMAs 4x4: 1.733 Gbps (5 GHz) |
| Radio Configuration | Two 2x2 MU-MIMO 802.11n + one 4x4 MU-MIMO 802.11ac Wave 2 (Wi-Fi 5) |
| Input | 9–36 VDC (3A fuse for 9–24 VDC, 2.5A fuse above 24 VDC); optional 12 VDC 3A AC adapter (not included) |
| Features | Reverse polarity and transient protection (ISO 7637-2); ignition sensing |
| Consumption | Idle 8 W; typical 14 W; heavy 24 W |
| Mpn | TAA-MAA3-1700120B-NA |
| Poe | No PoE |
| Upc | UPC 810007809335 |
| Brand | Ericsson Cradlepoint |

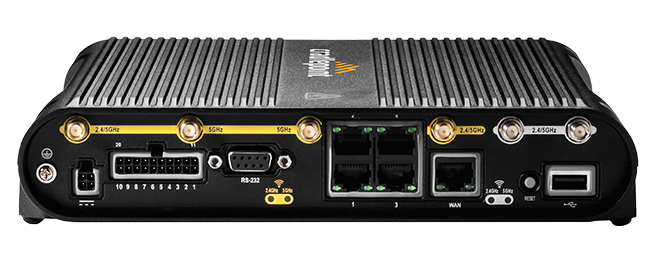

| Model | Cradlepoint IBR1700 |
| Category | Mobile / in-vehicle router |
| 5g Status | 5G-enabled with Cradlepoint 5G Adapter (optional) |
| Form Factor | Ruggedized metal |
| Cloud Management | Cloud managed (NetCloud Manager) |
| Special Features | Discrete GPS with dead reckoning; serial port with OBD-II functionality |
| Dual Modem Support | Dual-modem support |
| Wireless Connectivity | Gigabit-Class LTE |
| Fips | Non-FIPS model |
| Plan | 3-Year NetCloud Mobile Essentials + Advanced Plans |
| Region | United States Federal Government |
| Taa Compliant | TAA compliant |
| Subscription Term | 3 years |
| Hardware Configuration | Cat 18 (1200 Mbps) with Wi-Fi; no AC power supply or antennas |
| Available Subscription Terms | Series offered in 1, 3 & 5 year terms |
| Weight | 1.7 kg (3 lb 7 oz) |

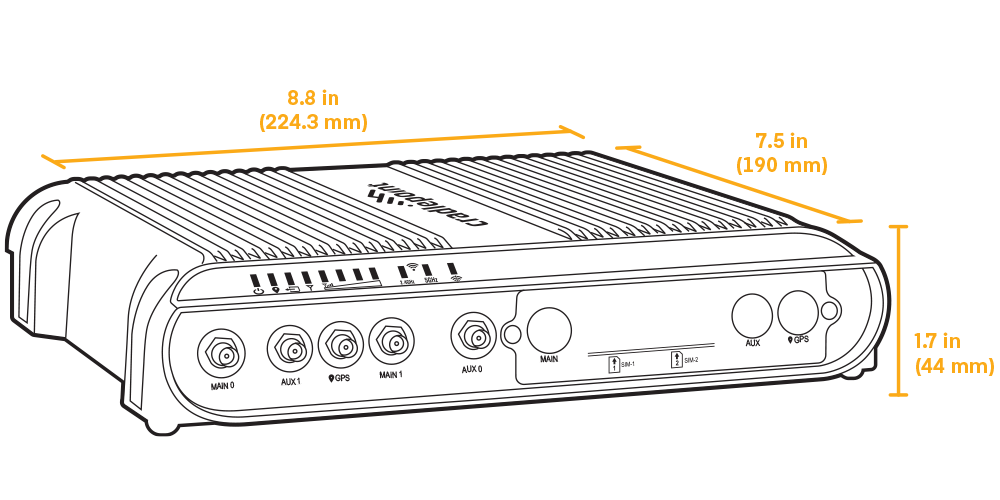

| Dimensions | 224.3 × 190 × 44 mm (8.8 × 7.5 × 1.7 in) |
| Usb | 1 x USB 2.0 Type A (5V, 500mA, 2.5W) |
| Gpio | 1 x GPIO connector |
| Modem | Embedded 1200M-B modem, 4 x SMA cellular connectors; optional MC400 second modem |
| Serial | 1 x RS-232 serial port |
| Ethernet | 5 x GbE (LAN/WAN switchable) |
| Modem Slot | 1 x MC400 modular modem slot (300 Mbps peak) |
| Gnss Connector | 1 x SMA GPS antenna connector |
| Wifi Antenna Connectors | 6 x RP-SMA Wi-Fi antenna connectors |
| Fcc | 2.4 GHz 29.2 dBm; 5150–5250 MHz 29.0 dBm; 5725–5850 MHz 30.0 dBm (conducted) |
| Eu Rest Of World | EU/RoW: 2.4 GHz 17.3 dBm; 5180-5240 MHz 17.8 dBm (conducted) |
| Australia New Zealand | AU/NZ: Radio 1 (2x2) 2.4 GHz 30.9 dBm, 5180-5240 19.5, 5260-5320 19.5, 5500-5700 26.3, 5745-5825 29.1; Radio 2 (4x4) 5180-5240 18.0, 5260-5320 18.0, 5500-5700 25.0, 5745-5825 30.5 dBm |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Ipsec Vpn | 20 Mbps point-to-point IPsec VPN |
| Stateful Firewall | 940 Mbps stateful firewall |
| Typical Client Count | 30 typical clients |
| Concurrent Vpn Tunnels | 10 concurrent VPN tunnels |
| Concurrent Tcp Sessions | 32,000 concurrent TCP sessions |
| Mtbf | 286,853 hours (Telcordia SR332 at 25 °C) |
| Humidity | 5%–95% operating and storage |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| 3g | WCDMA/DC-HSPA+ |
| Sms | SMS supported |
| Gnss | Discrete active GPS with dead reckoning |
| Mimo | 4x4 MIMO |
| 3g Bands | 3G bands 1, 2, 4, 5, 8, 9, 19 |
| Antennas | SMA male connectors for external 600 MHz–6 GHz paddle antennas (not included in this SKU) |
| Modulation | Up to 256-QAM |
| Regulatory | FCC, IC, CE, RCM |
| Technology | Cat 18 LTE Advanced Pro, dual 2FF SIM, SIM-based auto-carrier selection, 3GPP Rel. 12 |
| Peak Uplink | LTE 150 Mbps; DC-HSPA+ 5.76 Mbps |
| Lte Fdd Bands | B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600) |
| Lte Tdd Bands | B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500) |
| Peak Downlink | LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps |
| Transmit Power | LTE 23 dBm ± 1; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Carrier Aggregation | Up to 5CA downlink, 2CA uplink |
| Private Cellular Network | yes, FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Network Operator Certifications | AT&T, Verizon |
| Public Safety Network Certifications | IBR1700 series public safety certifications: Verizon Frontline, ESN, FirstNet Trusted (by modem) |
| Safety | UL/cUL, CB Scheme, EN 62368-1, e-Mark |
| Security | FIPS 140-2 Inside on IBR1700-FIPS models only (not this SKU) |
| Substance Compliance | WEEE, RoHS, RoHS-2, California Prop 65 |
| Shock Vibration Humidity | MIL-STD-810G; SAE J1455 |
| Support | Support for the full subscription term (phone 24h weekdays with weekend emergency response, web 24x7, chat 24x5) |
| Warranty | Limited lifetime hardware warranty with an active NetCloud plan |
| Service Plans | NetCloud Service for Mobile |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full subscription term |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. This configuration is the Cat 18 (1200 Mbps) model with Wi-Fi and ships without an AC power supply or antennas. The router runs on 9-36 VDC vehicle power. An optional 12 VDC 3A AC adapter and external 600 MHz–6 GHz cellular antennas are sold separately.
It is a Gigabit-class LTE router with a Cat 18 LTE Advanced Pro modem. It is 5G-ready: it can control a Cradlepoint 5G adapter in captive mode and accept a future modular 5G modem in its expansion slot.
Advanced adds threat management, web filtering, application visibility, analytics and advanced GNSS/GPS features to the Essentials package. These features include location tracking and cellular coverage maps. Essentials provides NetCloud Manager cloud management, software updates and 24x7 support for the full 3-year term.
The TAA-MAA3-1700120B-NA part number is Cradlepoint's TAA-compliant ordering option for the United States Federal Government market. It combines the IBR1700 router with 3 years of NetCloud Mobile Essentials + Advanced service.
Cradlepoint hardware is covered by a limited lifetime warranty for as long as it holds an active NetCloud Service Plan subscription, such as the 3-year plan included here.
