| Input | 9–33 VDC steady state input |
| Features | Reverse polarity and transient protection (ISO 7637-2); ignition sensing |
| Consumption | Idle 9 W; typical 13 W; heavy 14.5 W |
| Mpn | Part number: TB03-0750C4D-NA |
| Upc | 840292702639 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |
| Model | Cradlepoint S750 (S700 series) |
| Region | North America (U.S. and Canada) |
| Taa Sku | No |
| Fips Model | No |
| Manufacturer | Ericsson Enterprise Wireless |
| Service Plan | 3-Year NetCloud IoT Essentials Plan |
| Product Status | Manufacturer status: Active |
| Subscription Term | 3-year subscription term |
| Hardware Configuration | Cat 4 (150 Mbps) without Wi-Fi |
| Contents | S750 router and 3-year NetCloud IoT Essentials Plan |
| Shipping Weight | 1.60 lb |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Gnss | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 MIMO |
| Power | LTE 23 dBm ± 2; HSPA+ 23 dBm ± 1 (typical conducted) |
| 3g Bands | 3G bands 2, 4, 5 |
| Antennas | SMA female; 600 MHz–6 GHz paddle antennas (included only with certain packages) |
| Lte Bands | LTE FDD B2/4/5/12/13/14/66/71 |
| Modulation | Up to 16 QAM |
| Regulatory | FCC, IC |
| Technology | Cat 4 LTE (Rel. 11), DC-HSPA+; dual 4FF SIM; SIM-based auto-carrier selection |
| Peak Rates Lte | LTE: 150 Mbps down / 50 Mbps up |
| Peak Rates Wcdma | WCDMA: 42.2 Mbps down / 5.76 Mbps up |
| Carrier Aggregation | N/A |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Weight | 516 g (18.2 oz) |

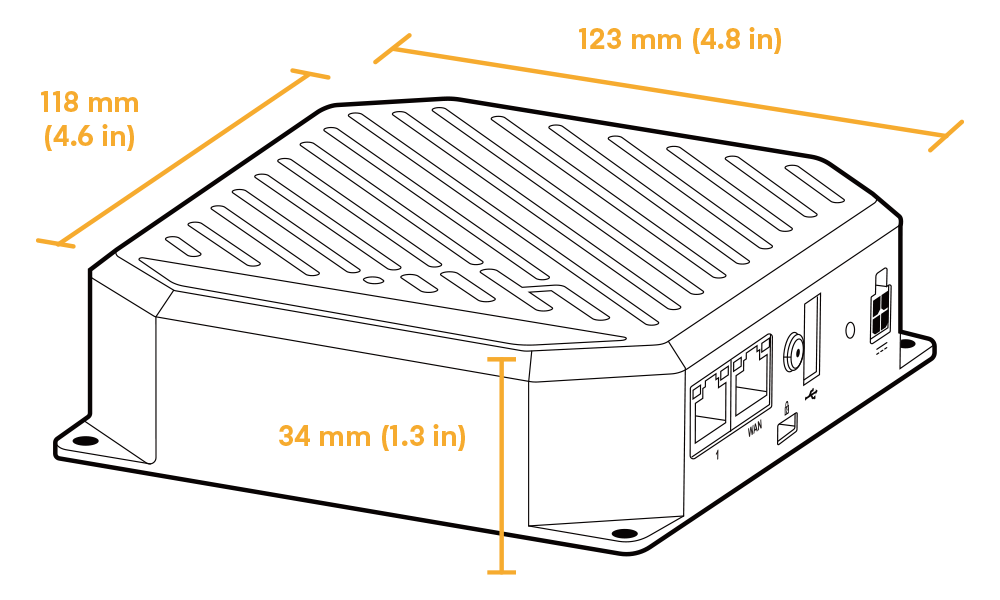

| Dimensions | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Construction | Aluminum housing |
| Wifi | None (S750) |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x 1 GbE RJ45, LAN/WAN switchable |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Vlans | Layer 2 / Layer 3 VLANs: up to 64 |
| Ipsec Vpn | Point-to-point IPsec VPN: 50 Mbps |
| Stateful Firewall | 480 Mbps |
| Concurrent Sessions | 100,000 |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Ips App Aware Client Analytics | IPS / application aware services / client analytics: 480 Mbps |
| Mtbf | S750-C4D MTBF: 483,373 hours (Telcordia SR332 at 25 °C) |
| Humidity | 10–90% operating; 5–95% storage |
| Ingress Protection | IP30 |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Rail | EN 61373 Category 1, Class B (rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | SAE J1455-2006 operating sinusoidal vibration, Cat. 2 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; not this SKU) |
| Shock Vibration | EN 61373 Cat. 2; MIL-STD-810H 514.8 (vibration) and 516.8 (shock) |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support for the full term |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | Add-ons: NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software updates for the full term |
| Device Management | NetCloud Manager for the full term |
| Poe | No |
| Wifi | Not included |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps (firewall) |
| Form Factor | Metal |
| Vpn Tunnels | 5 |
| Serial Ports | 0 |
| Ethernet Ports | 2 x GbE |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 aluminum housing |
| Dual Modem Support | No |
| Subscription Terms | 3 or 5 years (IoT products) |
| Wireless Connectivity | LTE |
| Private Cellular Network | 4G LTE (no CBRS) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. This SKU is configured as Cat 4 (150 Mbps) without Wi-Fi. Local devices connect through its two Gigabit Ethernet ports or USB.
The North America modem holds AT&T, T-Mobile and Verizon certifications, plus FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.
It accepts 9–33 VDC with reverse polarity and transient voltage protection, and supports ignition sensing with automatic on and time-delay off for vehicle installs.
Cradlepoint covers the hardware with a limited lifetime warranty for as long as it has an active NetCloud Service subscription, so renewing the plan keeps the warranty in effect.
No. It uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps downlink and 50 Mbps uplink.
