| Features | Reverse polarity and transient protection (ISO 7637-2); ignition sensing (auto ON, time-delay OFF) |
| Required | 9-33 VDC steady state input |
| Consumption | Idle 9 W; typical 13 W; heavy 14.5 W |
| Mpn | TBA3-0700C4E-GM |
| Upc | 840292705456 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 |
| Region | Global: North America (U.S., Canada, Mexico) and worldwide markets (Australia, EU, Philippines, Singapore, New Zealand, UK) |
| Service Plan | 3-Year NetCloud IoT Essentials + Advanced Plans |
| Subscription Term | 3 years |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi, AC power supply, and antennas |
| Contents | S700 router (Wi-Fi), AC power supply, antennas, 3-year NetCloud IoT Essentials + Advanced |
| Documentation | Cradlepoint S700 datasheet |
| Shipping Weight | 2.00 lb |

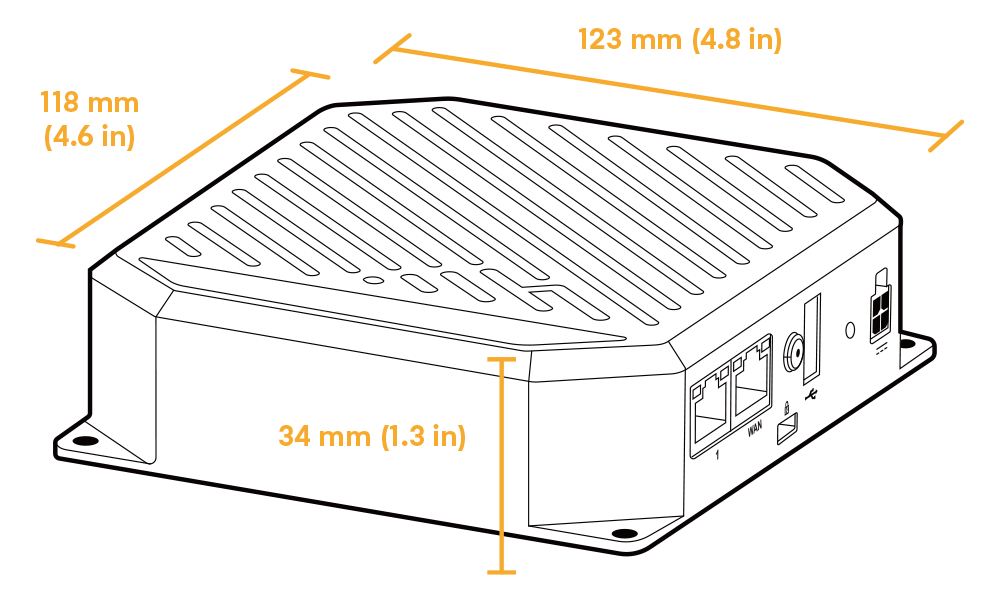

| Size | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Weight | 516 g (18.2 oz) |
| Construction | Aluminum housing |
| Wifi | Dual-radio, dual-band concurrent 2x2 Wi-Fi 6; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; Wi-Fi Alliance Certified |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output) |
| Fcc | 2.4 GHz 35.66; 5150–5250 MHz 26.59; 5250–5350 MHz 25.33; 5470–5725 MHz 25.15; 5750–5825 MHz 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz 19.99; 5180–5240 MHz 22.38; 5260–5320 MHz 22.32; 5500–5700 MHz 27.45 dBm EIRP |
| Stateful Firewall | 480 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Concurrent Sessions Tpc | 100,000 |
| Point To Point Ipsec Vpn | 50 Mbps |
| Ips Application Aware Client Analytics | 480 Mbps |
| Calculated Mtbf | S700-C4E: 423,399 hours (Telcordia SR332 at 25 °C) |
| Humidity | Operating 10-90%; storage 5-95% |
| Temperature | Operating -20 °C to 60 °C; storage -40 °C to 85 °C |
| Ingress Protection | IP30 |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Umts 3g | UMTS/HSPA+ |
| Antennas | SMA female; external 600 MHz-6 GHz paddle antennas (qty 2, included only with certain packages) |
| Bands 3g | 3G bands 1, 2, 4, 5, 6, 8, 19 |
| Gnss Gps | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Gsm Edge | GSM/EDGE B2, B3, B5, B8 |
| Lte Bands | LTE FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28; LTE TDD B38/39/40/41 |
| Modulation | Up to 16 QAM |
| Peak Rates | LTE 150 Mbps down / 50 Mbps up; WCDMA 42.2 Mbps down / 5.76 Mbps up |
| Regulatory | FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ) |
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+; dual 4FF SIM slots; SIM-based auto-carrier selection |
| Carrier Aggregation | N/A |
| Gcf Global Operators | GCF members directory |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada), GCF (Worldwide) |
| Ptcrb North America Operators | PTCRB operators |
| Network Operator Certifications | Verizon |
| Public Safety Network Certifications | N/A |
| Rail | EN 61373 Category 1, Class B (railway rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | SAE J1455-2006 Operating Sinusoidal Vibe, Cat. 2 Sec. 4.10.4.1 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only) |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Shock Vibration Humidity | EN 61373 Cat. 2 vibration; MIL-STD-810H 514.8 vibration; MIL-STD-810H 516.8 shock |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 (802.11ax) |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps (Firewall) |
| Form Factor | Metal |
| Vpn Tunnels | 5 |
| Serial Ports | 0 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing |
| Dual Modem Support | No |
| Subscription Terms | 3 or 5 years (IoT products) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — 4G LTE (No CBRS) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
The Cradlepoint S700 router with Wi-Fi, an AC power supply and antennas. It also includes a 3-year NetCloud IoT Essentials + Advanced subscription.
It is a global SKU. It is listed for North America (U.S., Canada and Mexico) and worldwide markets including Australia, the European Union, the Philippines, Singapore, New Zealand and the United Kingdom.
Yes. The Cat 4 LTE modem has dual 4FF SIM slots with SIM-based auto-carrier selection.
Cradlepoint rates stateful firewall and IPS/application-aware throughput at 480 Mbps, and point-to-point IPsec VPN at 50 Mbps.
