| Mpn | 311135 |
| Brand | Wilson Electronics |
| Color | White |
| Antenna Type | Directional Panel |

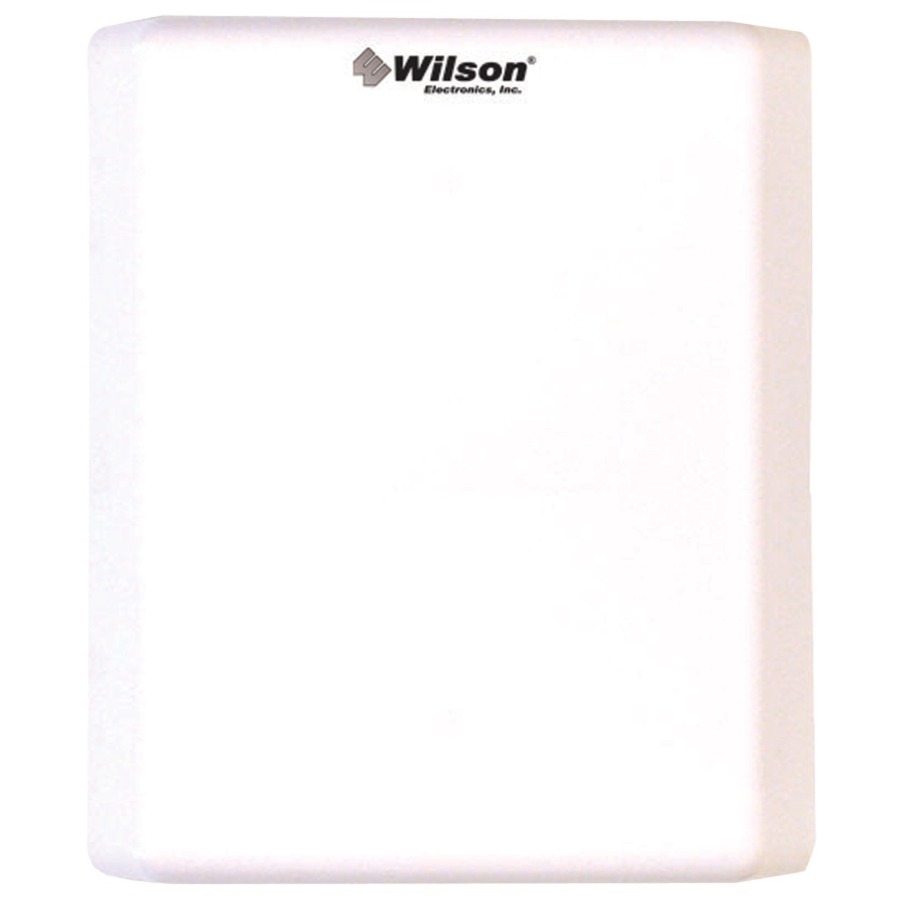

| Product Name | Indoor Wall Mount Antenna (N-Female) |
| Mounting | Wall, Hardware Included |
| Pigtail Length | 9 in with N-Female |
| Commonly Used With | weBoost Connect 4G-X |
| Vswr | 1.5:1 |
| Power | 50 W |
| Weight | 1.33 lb |
| Impedance | 50 Ohm |
| Connectors | N-Female |
| Dimensions | 8.27 x 7.09 x 1.73 in / 21 x 18 x 4.39 cm |
| Ground Plane | Built-in |
| Polarization | Vertical |
| Frequency 700 800 | 700-800 MHz: 5.2 dB |
| Frequency 824 894 | 824-894 MHz: 4.4 dB |
| Frequency 880 960 | 880-960 MHz: 4.2 dB |
| Beamwidth Vertical | 50°/45° |
| Frequency 1710 1880 | 1710-1880 MHz: 10.1 dB |
| Frequency 1850 1990 | 1850-1990 MHz: 10.6 dB |
| Frequency 2110 2170 | 2110-2170 MHz: 8.2 dB |
| Beamwidth Horizontal | 70°/60° |
| Impedance | 50 Ohm |
| Dimensions | 9.75 x 2.88 x 7.75 in |
Business account holders on Antennas typically save 21% vs. retail pricing. Create a free account to see your price.
Choose the panel when coverage needs to reach a specific direction, such as a corridor or work zone. A dome spreads signal in all directions.
The manufacturer notes it is commonly used with the weBoost Connect 4G-X.
It has a 9 in. pigtail with an N-Female connector and a 50 Ohm impedance.
Yes, mounting hardware is included.
