| Mpn | 304412 |
| Brand | Wilson Electronics |
| Color | White |
| Warranty | 2 Years |

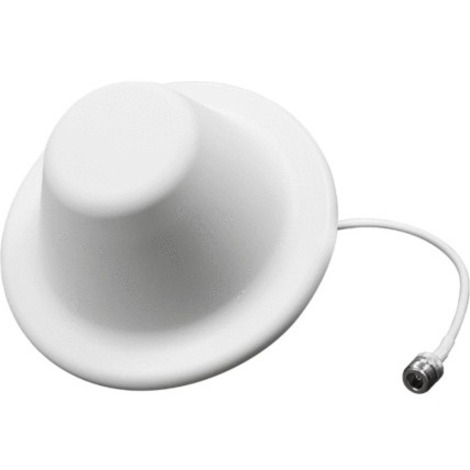

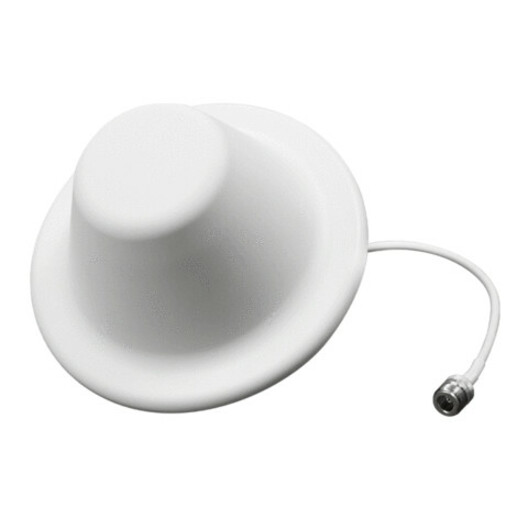

| Product Name | 4G Dome Ceiling Antenna (50 Ohm) |
| Gain | 2 dBi (698-960 MHz) / 4 dBi (1710-2700 MHz) |
| Vswr | <2 |
| Impedance | 50 Ohm |
| Polarization | Vertical |
| Frequency Range | 698-960 / 1710-2700 MHz |
| Vertical Beamwidth | 60° |
| Maximum Input Power | 50 W |
| Horizontal Beamwidth | 360° |
| Lightning Protection | DC Ground |
| Rohs | Compliant |
| Weight | 0.63 lb / 0.28 kg |
| Connector | N-Female |
| Dimensions | 7.3 x 3.3 in / 185 x 85 mm |
| Cable Length | 11.9 in / 300 mm |
| Ground Plane | Built-in |
| Radome Material | ABS |
| Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Weight | 0.63 lb |
| Frequency | 700-2700 MHz |
| Impedance | 50 Ohm |
| Dimensions | 6.38 x 6.38 x 6.38 |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
It is a 50 Ohm antenna with an N-Female connector, designed to connect to building cell phone signal boosters and modems such as weBoost and WilsonPro 50 Ohm systems.
The 304412 is 50 Ohm with an N-Female connector. The 304419 is the 75 Ohm version with an F-Female connector.
The manufacturer states that it works for all U.S. and Canada cell carriers across 698-960 and 1710-2700 MHz.
Yes. The manufacturer provides a 2-year warranty.
