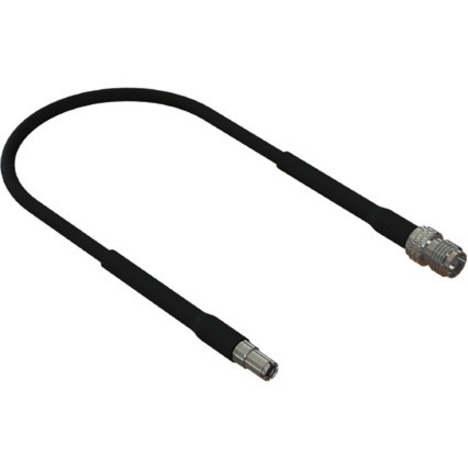

Panorama C74-SJ-010-TS9 SMA Female to TS9 Male RG174 Adapter Cable, 100 mm

TS9 is a compact antenna connector used on some mobile hotspots, USB modems and similar small cellular devices. Most external antennas and extension cables, however, end in SMA. The Panorama C74-SJ-010-TS9 closes that gap. The TS9 male end plugs into the device's antenna port, and the SMA female end accepts a standard SMA male antenna lead. The pigtail is 100 mm (3.90 in) long. It is built on Panorama's C74 cable (part SR1-174-XLPE), an RG174-type coax with a cross-linked polythene dielectric and a slim 2.8 mm diameter. The short flexible lead sits between the device and the heavier antenna cable, so the small TS9 port is not the only thing holding the cable's weight. The jacket is black. Use it to add an external roof, window or panel antenna to a compact cellular device with a TS9 port. This can improve reception in vehicles, site trailers, rural homes or buildings where the device's internal antenna struggles. Use one pigtail per antenna port; devices with two TS9 ports need two pigtails for a MIMO antenna. Panorama publishes a C74 cable datasheet for this cable type.
