Create Free Business Account| Upc | 5019738658082 |
| Brand | Panorama Antennas |
| Cable Family | Panorama CS240 Ultra-Low Loss 6.1 mm, Double Screened (FRZH) |
| Product Type | Coaxial cable assembly |
| Manufacturer Part Number | C240N-10SP |
| Shipping Weight | 1.35 lb |
| Cable Length | 10 m (32.81 ft) |
| Connector End 1 | N-type male (plug) |
| Connector End 2 | SMA male (plug) |
| Diameter | 3.81 mm (0.15 in) |
| Material | Foam polyethylene |
| Max Loss 2ghz | No greater than 0.38 dB per 1 m at 2 GHz |
| Impedance 1ghz | 50 Ω ± 2 Ω at 1 GHz |
| Impedance 2ghz | 50 Ω ± 4 Ω at 2 GHz |
| Velocity Factor | 84% |
| Braid Resistance | Less than 16 mΩ per 1 m |
| Shielding Effectiveness | <-90 dB (IEC 61196-1) |
| Colour | Black |
| Diameter | 6.10 mm (0.24 in) |
| Material | AlphaGary Megolon S540NS |
| Operating Temperature | -40 °C to +80 °C (-40 °F to 176 °F) |
| Flammability Approvals | EN45545-2 HL3 | UN ECE R118.03 (E11*118R03/00*1306*00) |
| Min Bend Radius One Time | 20 mm (0.78 in) one time |
| Min Bend Radius Repeated | 60 mm (2.36 in) repeated |
| Diameter | 1.42 mm (0.05 in) |
| Material | Solid copper |
| Diameter | 4.52 mm (0.17 in) |
| Material | Tin-plated copper braid |
| Wire Coverage | No less than 93% |
| Diameter | 3.94 mm (0.15 in) |
| Material | Bonded aluminium foil |
Business account holders on Specialty Cables typically save 16% vs. retail pricing. Create a free account to see your price.

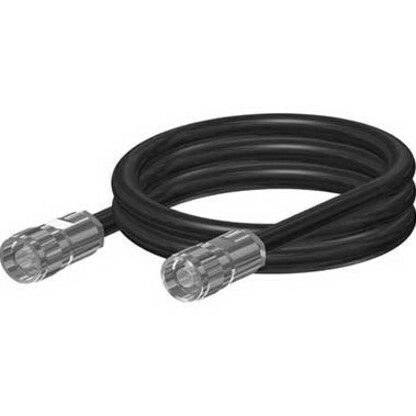

One end has an N-type male plug and the other an SMA male plug. It links an antenna with an N-type connector to equipment with an SMA antenna port.
The assembly is 10 m, or about 32.8 ft.
Panorama describes the CS240 cable as suitable for longer runs in 4G/5G and Wi-Fi installations. Its loss is rated at no greater than 0.38 dB per metre at 2 GHz.
Yes. Panorama states the CS240 cable is compliant for both internal and external installations, with an operating range of -40 °C to +80 °C.
The minimum bend radius is 20 mm (0.78 in) for a one-time bend and 60 mm (2.36 in) for repeated bending.
