The Panorama C240N-5SP-5GC is the -5GC variant of Panorama's C240N-5SP assembly. It has an N-type male connector on one end and an SMA male connector on the other. It links N-type female antenna ports or leads to SMA female ports on cellular routers, gateways and Wi-Fi equipment. Panorama builds CS240 assemblies for mobile and fixed installations that need a longer cable run.

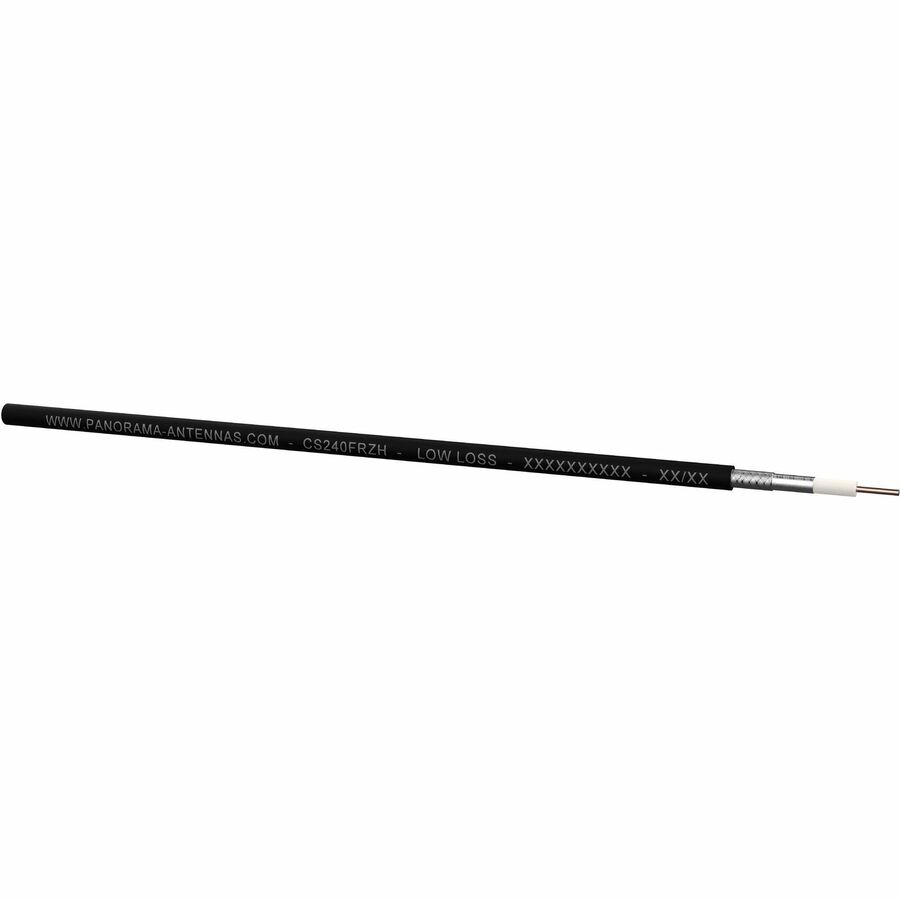

The CS240 cable is ultra-low-loss, double-shielded and solid-core, with a 6.1 mm (0.24 in) diameter. Attenuation is no greater than 0.38 dB per metre at 2 GHz. Impedance is 50 Ω ± 2 Ω at 1 GHz and 50 Ω ± 4 Ω at 2 GHz. The screen pairs a tin-plated copper braid of at least 93% coverage with bonded aluminium foil, giving shielding effectiveness better than -90 dB under IEC 61196-1. Braid resistance is less than 16 mΩ per metre, and the velocity factor is 84%.
The black FRZH jacket is flame retardant and halogen free, made from AlphaGary Megolon S540NS low-smoke TPE. It meets EN45545-2 HL3 and UN ECE R118.03 and is rated for internal and external installations. The operating range is -40°C to +80°C (-40°F to 176°F). The minimum bend radius is 20 mm (0.78 in) for a one-time bend and 60 mm (2.36 in) for repeated flexing. Panorama's CS240 cable datasheet documents the full layer-by-layer construction.
