Panorama SAB-324-2 Dual Sharkee Antenna Mounting Adapter

Name: Panorama SAB-324-2 Dual Sharkee Antenna Mounting Adapter
Brand: Panorama
SKU: SAB-324-2
Price: 31.25 USD
Availability: BackOrder

Panorama|

MPN: SAB-324-2

UPC: 5055416079442

Available on Backorder

$31.25$41.90

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-955-1644 for Sales

Save 9% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Silicone-rubber roof-rib boot with black finish
Extended adhesive conductive pads for ground-plane coupling
Fixed panel-mount installation
Roof-contour fit for 2020 Ford Explorer and Interceptor vehicles
2.5 mm additional height above the standard antenna ground plane

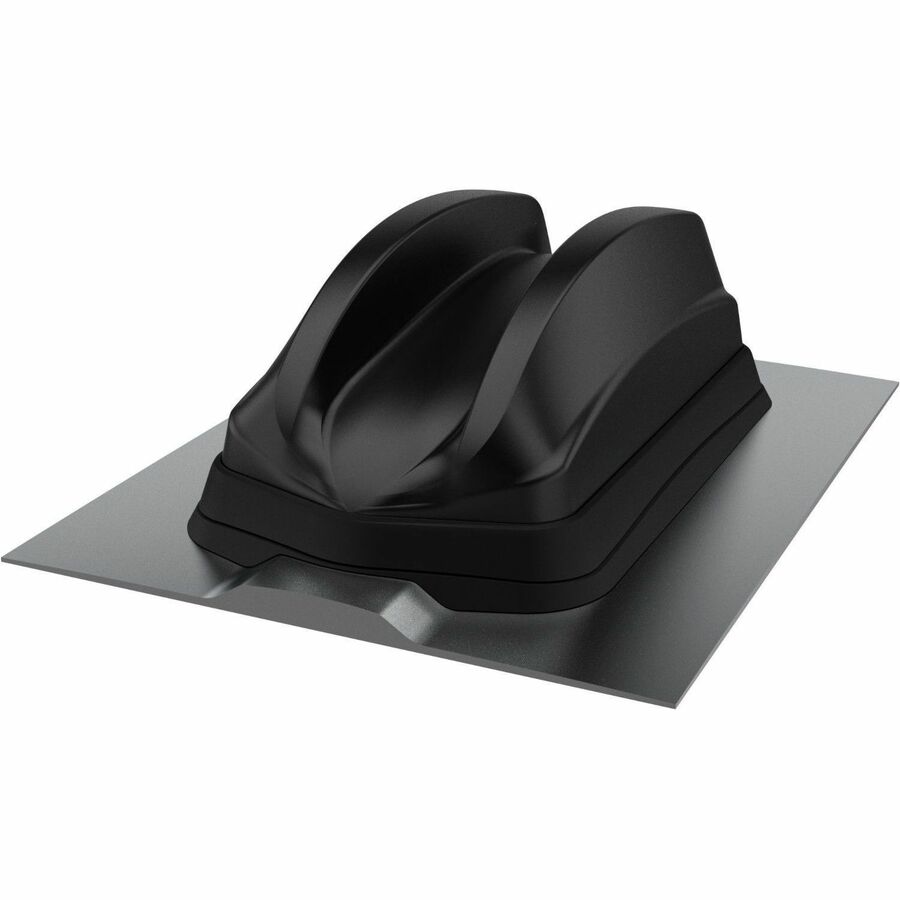

Fit a compatible Dual Sharkee MiMo antenna to the raised roof-rib peak of a 2020 Ford Explorer or Interceptor. The SAB-324-2 is a black, panel-mounted adaptor kit made for the GPSD4, FIND4 and SHK[G]4-6-60[-X] Dual Sharkee antenna series. Its silicone-rubber boot conforms to the roof-rib contour, seals the antenna mounting hole and adds 2.5 mm of height above the normal antenna ground-plane position. Extended adhesive conductive pads maintain electrical coupling between the antenna installation and the vehicle ground plane. This makes the adaptor appropriate where the roof rib prevents a standard antenna base from sitting directly and evenly against the vehicle panel. The 255 mm long by 152 mm wide boot provides a shaped interface between the antenna and the Ford roof profile while presenting a finished exterior installation. Use the adaptor to assess a prospective roof-rib location and mark the required mounting-hole position before installation. Mount it where ambient temperature is above 50 °F (10 °C), and maintain at least 300 mm (1 ft) of clearance from other conductive objects on the mounting panel. Fixed panel mounting keeps the assembly in place on the vehicle roof while the flexible silicone material follows the rib contour.

Ideal For

Installing a Dual Sharkee MiMo antenna on the raised roof rib of a 2020 Ford Explorer.
Outfitting a 2020 Ford Interceptor with a GPSD4, FIND4 or SHK[G]4-6-60[-X] antenna where the roof contour requires an adaptor.
Marking and preparing an antenna mounting-hole location on a compatible Ford roof panel.

Why This Product

1Shaped specifically for the roof-rib peak of 2020 Ford Explorer and Interceptor vehicles.
2Supports the Dual Sharkee GPSD4, FIND4 and SHK[G]4-6-60[-X] antenna series.
3Uses extended conductive adhesive pads to preserve ground-plane coupling.
4Adds 2.5 mm above the standard antenna ground-plane position.

Compatibility

Compatible Antenna Series	GPSD4, FIND4 and SHK[G]4-6-60[-X] Dual Sharkee antenna series
Compatible Vehicle Models	Ford Explorer / Interceptor 2020

Mounting Data

Mounting Type	Fixed panel mount
Mounting Method	Panel mounting
Recommended Installation Temperature	Above 10 °C (50 °F)
Minimum Clearance From Conductive Objects	300 mm (1 ft)

Mechanical Data

Color	Black
Width	152 mm (5.98 in)
Height	2.5 mm (0.10 in)
Length	255 mm (10.04 in)
Material	Silicone rubber

Distributor Data

UPC	5055416079442
Shipping Weight	0.55 lb

Purchasing this for your business?

Business account holders on Mounts, Arms & Stands typically save 9% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-324-2 Datasheet

0.6mb

Panorama Installation Instructions: SW3-1071-_SAB-324-2

1.9mb

Frequently Asked Questions

What is the Panorama SAB-324-2 used for?▾

The Panorama SAB-324-2 adapts the roof-rib peak of a 2020 Ford Explorer or Interceptor for a compatible Dual Sharkee MiMo antenna. Its silicone-rubber boot conforms to the roof contour, seals the mounting hole and provides the interface needed for a finished antenna installation.

What is included with the SAB-324-2?▾

The kit comprises a black silicone-rubber mounting boot and extended adhesive conductive pads. Together, these parts support placement of a compatible Dual Sharkee antenna on the Ford roof rib while maintaining coupling between the antenna installation and the vehicle ground plane.

Which antennas work with the SAB-324-2 adaptor?▾

The adaptor supports the Panorama GPSD4, FIND4 and SHK[G]4-6-60[-X] Dual Sharkee antenna series. It is intended for antennas from these series when they must be mounted at the roof-rib peak of a 2020 Ford Explorer or Interceptor.

What installation clearance does the SAB-324-2 require?▾

Keep the adaptor at least 300 mm (1 ft) away from other conductive objects on the mounting panel to support antenna performance. Installation is recommended when the temperature is above 10 °C (50 °F), allowing the boot and adhesive pads to fit properly.
