Panorama SAB-315 white marine antenna mount adapter

Panorama SAB-315 Marine Antenna Mount Adapter

Name: Panorama SAB-315 Marine Antenna Mount Adapter
Brand: Panorama
SKU: SAB-315
Price: 25.24 USD
Availability: InStock

Panorama|

MPN: SAB-315

In Stock

$25.24$33.08

Request for QuoteCall 224-955-1644 for Sales

Free 2-3 Day Shipping on orders $50+Ordered on its own: $18.67 ground shipping. Add $50 or more to your cart and it ships free.Arrives by Friday, Nov 13

Order within 13h 40m to get it by Friday, Nov 13

Authorized Dealer — Full manufacturer warranty

Save 9% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

1-inch 14 TPI (2A) marine-mount interface
3 x M6 antenna attachment points
Straight-through and side-exit cable routing
Weatherproof ASA and marine-grade stainless steel
SMA connector feed-through support
2.5 mm socket-set locking screw

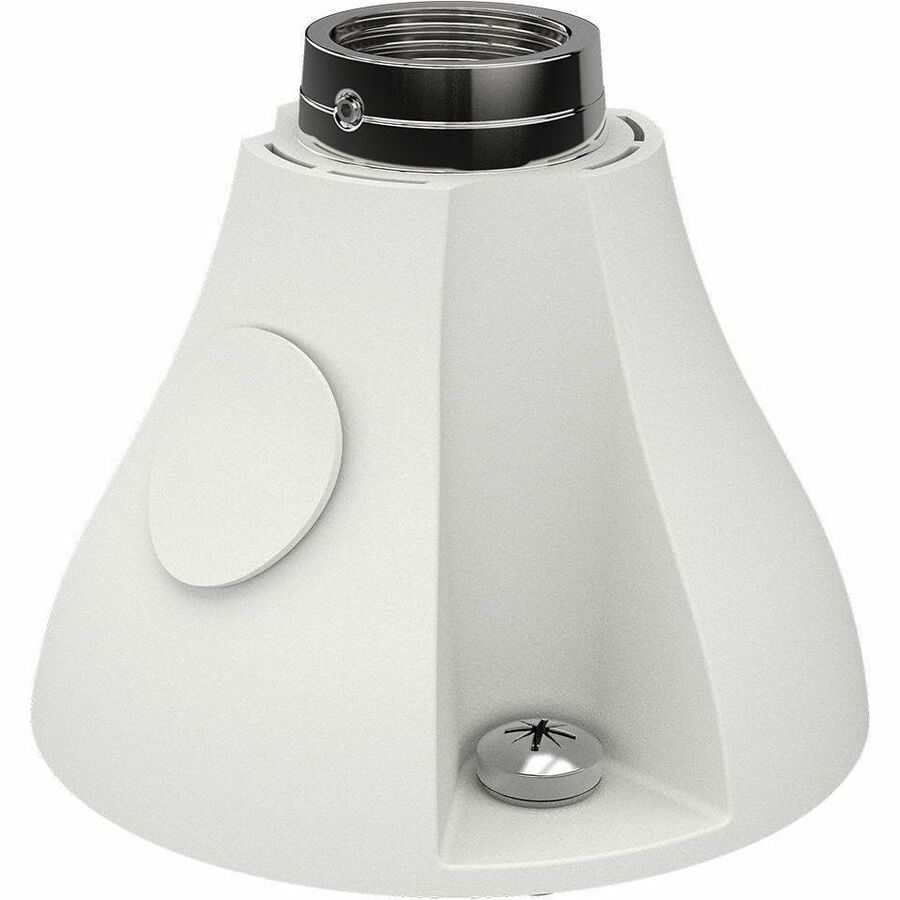

Convert a compatible BS[G]M omnidirectional antenna to a standard 1-inch 14 TPI marine mounting interface. The Panorama SAB-315 adaptor assembly connects the antenna through three M6 pan-head Pozidriv screw positions and secures to a 1-inch 14 TPI (2A) mount with a 2.5 mm socket-set grub screw. It provides the mechanical interface needed when replacing or fitting an antenna onto an existing marine mount. Weatherproof ASA plastic and marine-grade stainless-steel construction suit exposed marine and coastal installations. The white adaptor measures 87 mm in diameter and 70 mm high, with an operating-temperature range of -40 to +80 °C. Its marine-material construction supports installations exposed to changing weather, salt air, and vibration associated with boat-mounted antenna locations. Select the cable path to match the mounting method. Cables can pass straight through the threaded mounting bush for deck installations, or exit through the side hole for ratchet, mast, or rail mounts. The assembly supports SMA connector feed-through; other connector types may require fitting after installation or the use of an appropriate adapter. It is intended specifically for the BS[G]M antenna range and standard 1-inch 14 TPI marine mounts, including compatible ratchet mounts.

Ideal For

Retrofitting a compatible BS[G]M omnidirectional antenna onto an existing 1-inch 14 TPI boat-deck mount.
Installing an antenna on a ratchet mount where the cable must exit through the adaptor side port.
Mounting a marine antenna on a mast or rail installation requiring side-routed cabling.
Replacing an antenna mounting interface while retaining a standard threaded marine mount.

Why This Product

1Adapts the BS[G]M omnidirectional antenna range to a standard 1-inch 14 TPI marine mount.
2Provides both through-bush and side-exit cable-routing options.
3Uses three M6 antenna attachment points and a 2.5 mm locking grub screw.
4Combines weatherproof ASA plastic with marine-grade stainless steel.

Shipping

Shipping Weight

1.50 lb

Mechanical

Colour	White
Height	70 mm (2.76 in)
Diameter	87 mm (3.43 in)
Material	Weatherproof ASA plastic and marine-grade stainless steel
Locking Screw	2.5 mm socket-set grub screw
Antenna Interface	3 x M6 pan-head Pozidriv screws

Installation

Cable Routing

Straight through mounting bush or side-exit hole

Compatibility

Mount Interface	1-inch 14 TPI (2A) marine mount
Compatible Antenna Range	BS[G]M omnidirectional antenna range
Supported Connector Feed-Through	SMA

Environmental

Operating Temperature

-40 to +80 °C (-40 to +176 °F)

Purchasing this for your business?

Business account holders on Mounts, Arms & Stands typically save 9% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-315 Datasheet

0.4mb

Panorama Installation Instructions: SW3-1031 - SAB-315

1.3mb

Frequently Asked Questions

How do I confirm SAB-315 is the right part for my deployment?▾

Confirm that the antenna is from the compatible BS[G]M omnidirectional range and that the intended mount has a standard 1-inch 14 TPI (2A) threaded interface. Also select a deck, ratchet, mast, or rail mounting method that suits the required cable-routing path.

What is included with SAB-315?▾

SAB-315 is an adaptor assembly for mounting a compatible BS[G]M antenna to a standard 1-inch 14 TPI marine mount. Its assembly provides the threaded mount interface, three M6 antenna attachment positions, a locking grub screw, and cable-routing paths.

How can cables be routed through the marine adaptor?▾

For deck mounting, cables can pass directly through the 1-inch 14 TPI mounting bush. For ratchet, mast, or rail mounting, cables can exit through the side hole. The adaptor supports SMA connector feed-through; other connector types may need fitting after mounting.

What environmental conditions can the adaptor handle?▾

The adaptor uses weatherproof ASA plastic and marine-grade stainless steel for marine and coastal locations. Its specified operating-temperature range is -40 to +80 °C. These materials support antenna mounting where the assembly will be exposed to outdoor marine conditions.
