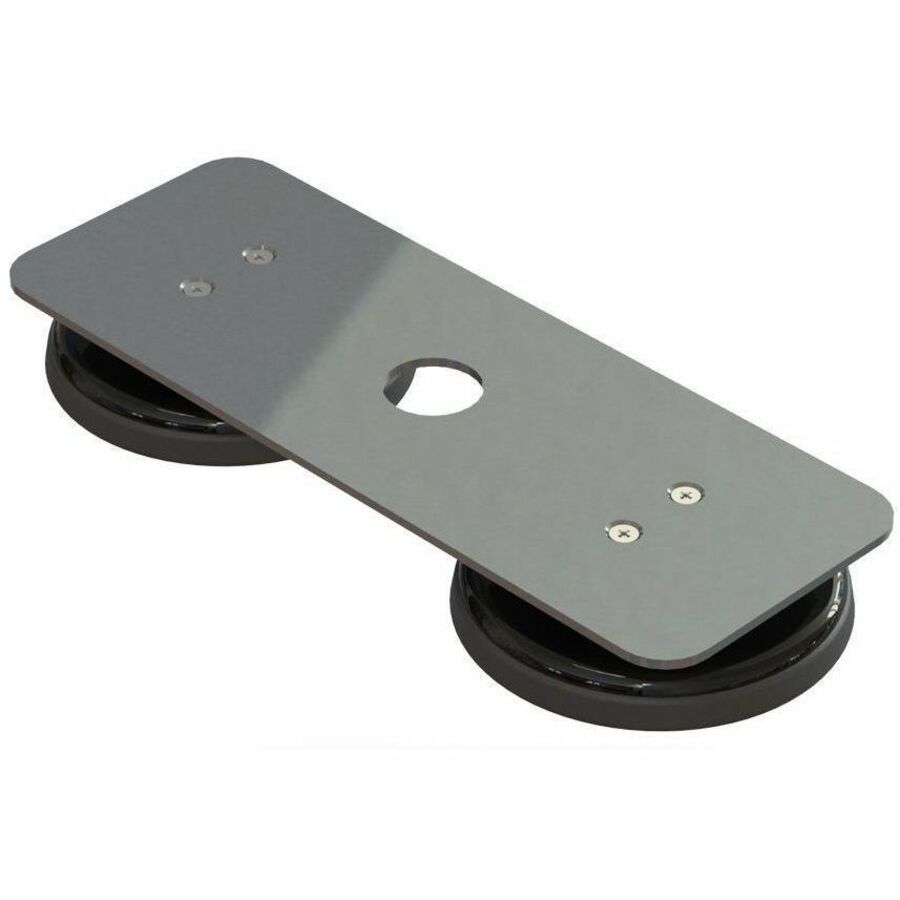

Panorama SAB-224 black magnetic mount adapter plate for SharkFin antennas

Panorama SAB-224 Magnetic Mount Adapter for Sharkee SharkFin Antennas

Name: Panorama SAB-224 Magnetic Mount Adapter for Sharkee SharkFin Antennas
Brand: Panorama
SKU: SAB-224
Price: 50.08 USD
Availability: InStock

Panorama|

MPN: SAB-224

In Stock

$50.08$67.10

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Friday, Nov 13

Order within 12h 54m to get it by Friday, Nov 13

Authorized Dealer — Full manufacturer warranty

Save 9% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Magnetic mount adapter for GPSD/GPSDC/FINDC SharkFin antennas
Two heavy-duty, automotive-grade magnets on an aluminium alloy plate
No-drill, temporary mounting for trials and drive-testing
Compatible with FINB, GPSD-7-27, GPSD-7-27-24-58, GPSDC-7-27, GPSDC-7-27-24-58 and GPSDC kit with 5 m cables
183 x 73 mm, black

The Panorama SAB-224 lets fleet and engineering teams evaluate a SharkFin-style antenna on a vehicle before committing to a permanent roof installation. It is designed for the GPSD, GPSDC and FINDC range. Listed compatible part numbers include the FINB, GPSD-7-27, GPSD-7-27-24-58, GPSDC-7-27, GPSDC-7-27-24-58 and the GPSDC kit with 5 m cables. The adapter uses two heavy-duty, automotive-grade magnets fitted to an aluminium alloy plate. It attaches quickly anywhere on a steel vehicle surface, so you can compare antenna positions and measure real-world cellular and GNSS performance without drilling holes or damaging the vehicle. It measures 183 x 73 mm and is black. The SAB-224 is a temporary mounting solution. It does not provide a suitable ground plane if a VHF or UHF whip is part of the antenna configuration, so it is best used to test the cellular, Wi-Fi and GNSS functions of the antenna. Typical users include public-safety agencies, mass-transit operators and utilities running antenna trials before fleet-wide rollouts. Panorama publishes a datasheet for the SAB-224.

Ideal For

Antenna trials before permanent fleet installation
Drive-testing cellular and GNSS performance
Temporary mounting on public-safety vehicles
Evaluations on transit and utility vehicles

Why This Product

1Two automotive-grade magnets for secure temporary placement
2Made for the GPSD/GPSDC/FINDC SharkFin range
3No drilling needed during antenna evaluation

General

Mpn	SAB-224
Brand	Panorama Antennas
Magnets	2 heavy-duty automotive-grade magnets
Product Type	Magnetic Mount Solution for Trials and Drive-Testing
Plate Material	Aluminium alloy plate

Package

Shipping Weight

1.35 lb

Gps Data

Number Of Gps Elements

Compatibility

Antennas

Panorama FINB, GPSD-7-27, GPSD-7-27-24-58, GPSDC-7-27, GPSDC-7-27-24-58, GPSDC Kit with 5 m cables

Mounting Data

Mounting Methods	Magnetic
Mounting Type Temp	Magnetic

Approvals Data

Sar Touchsafe	No
Ib Wave Vex File Available	No

Electrical Data

Uhf Elements	No
Wifi Elements	No
Cellular Lte Elements	No

Mechanical Data

Width	73 mm (2.87 in)
Colour	Black
Length	183 mm (7.20 in)

Purchasing this for your business?

Business account holders on Mounts, Arms & Stands typically save 9% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-224 Datasheet

1.0mb

Frequently Asked Questions

Which antennas does the SAB-224 fit?▾

The GPSD/GPSDC/FINDC SharkFin range, including FINB, GPSD-7-27, GPSD-7-27-24-58, GPSDC-7-27, GPSDC-7-27-24-58 and the GPSDC kit with 5 m cables.

Is it meant for permanent installation?▾

No. It is a temporary magnetic mount for trials and drive-testing.

Can I use it with a VHF or UHF whip?▾

It does not provide a suitable ground plane for a VHF or UHF whip in the antenna configuration.

How does it attach?▾

Two heavy-duty, automotive-grade magnets on an aluminium alloy plate hold it to the vehicle.
