Panorama C29FR-FP-2SP-GNSS 2m FME Male to SMA Male Low-Loss Coax Cable with GNSS Labels

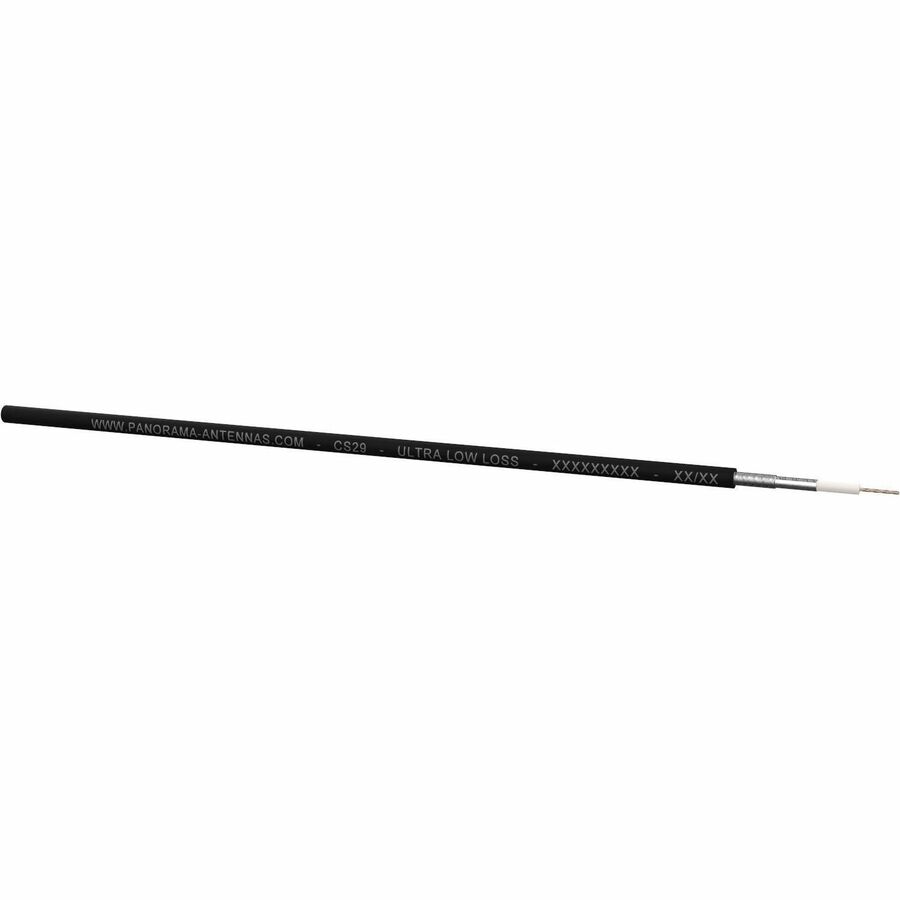

The C29FR-FP-2SP-GNSS connects an antenna to a nearby router, modem or GNSS receiver. At 2 m (6.6 ft), it has enough length to route around a cabinet, rack or vehicle interior without leaving excess cable to coil. Both ends are plugs, FME male and SMA male, and GNSS labels identify the lead during installation and later service. The assembly uses Panorama's CS29FR cable (part SR1-029-FRZH-B), which has two layers of shielding. An aluminium foil inner screen sits under a tin-plated copper braid with no less than 95% coverage. Together they give shielding effectiveness better than -90 dB at 400 MHz, measured to IEC 61196-1. Impedance is 50 Ω ± 2 Ω at 1 GHz and 50 Ω ± 4 Ω at 2 GHz. Typical attenuation is 2.2 dB, 4 dB and 5.5 dB per 10 m at 400 MHz, 1 GHz and 2 GHz. Over this 2 m run the cable adds roughly 0.8 dB at 1 GHz, before connector losses. The black jacket is UV-stabilised, flexible Pacrel FRP5385B-1. It is flame retardant and halogen free, certified to ECE R118.03 (E11*118R03/00*1311*00), and compliant with EN 6722:2006 §12 and EN 45545-2 HL2 for safety-critical installations. Other ratings: • Operating temperature: -35 °C to +80 °C • Minimum bend radius: 25 mm for a one-time bend, 50 mm for repeated flexing • Voltage withstand: 1000 VDC • Jacket spark test: 3000 V RMS
