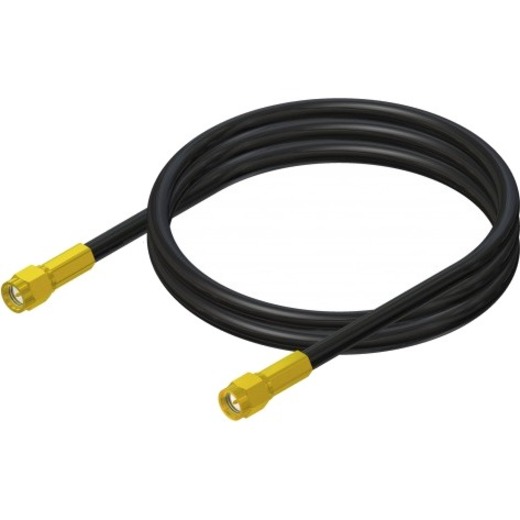

Panorama C29SP-5SJ 5 m CS29 Low-Loss Coax Extension Cable, SMA Male to SMA Female

The C29SP-5SJ is a 5 m (16.4 ft) Panorama Antennas extension cable with an SMA male connector on one end and an SMA female connector on the other. It extends the connection between an antenna and a router or modem when equipment and antenna sit farther apart than the original lead allows. Panorama describes the extra shielding of its CS29 cable as reducing loss at higher frequencies, making it well suited to 3G UMTS and 4G LTE. The cable is halogen free. The assembly uses CS29 cable (part SR1-029-B), a 5 mm (0.20 in) double-shielded design. A tin-plated copper braid with no less than 95% coverage sits over an aluminium foil inner shield. Typical attenuation is 2.2 dB per 10 m at 400 MHz, 4 dB per 10 m at 1 GHz and 5.5 dB per 10 m at 2 GHz. Shielding effectiveness is better than -95 dB to IEC 61196-1 at 400 MHz, and braid resistance is less than 160 mΩ per 10 m. Impedance is 50 Ω ± 2 Ω at 1 GHz and 50 Ω ± 4 Ω at 2 GHz. The stranded plain copper centre conductor and white cellular polyethylene dielectric keep the cable flexible for routing. The black TPE outer jacket is rated from -40°C to +80°C (-40°F to 176°F). The cable is rated for 1000 VDC voltage withstand and a 3000 V RMS jacket spark test. Panorama's CS29 cable datasheet provides the full construction and electrical data.
