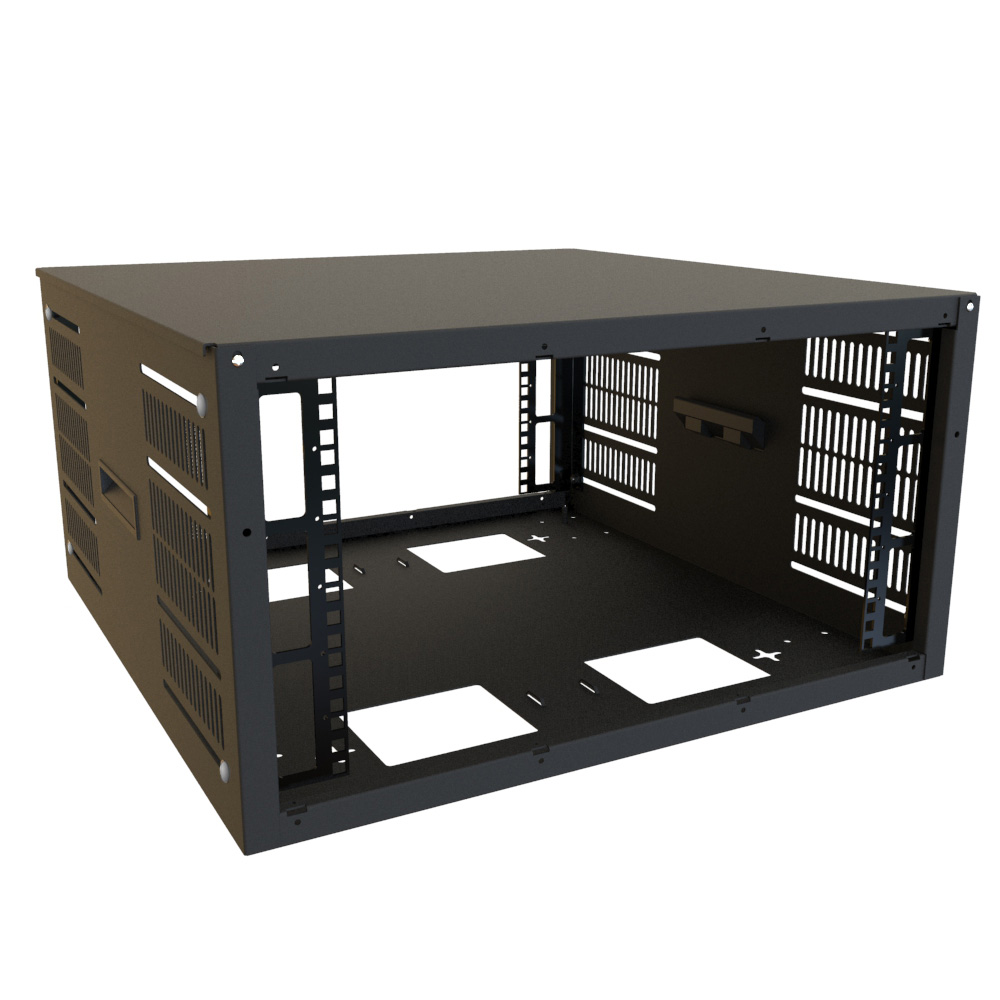

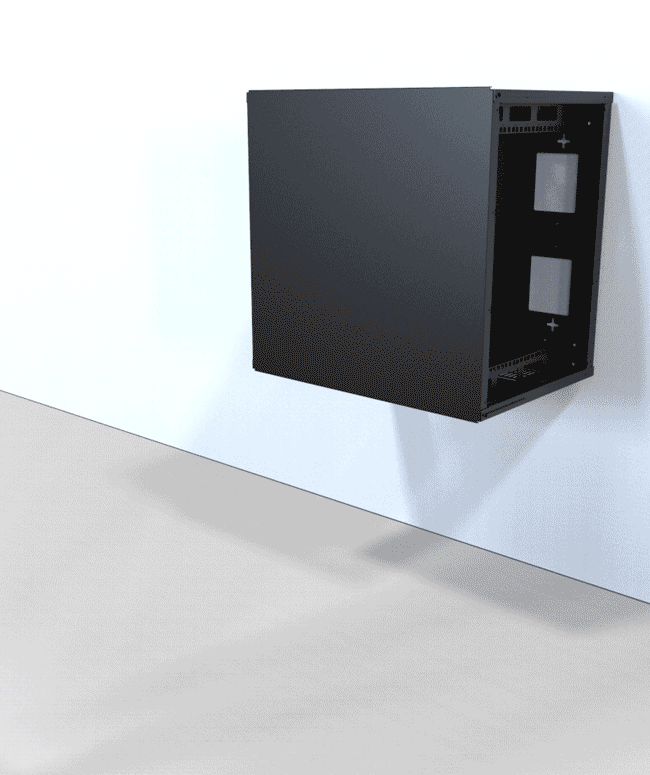

The SDC243U17BK is a 3U enclosed wall-mount rack cabinet built to securely house 19-inch rack equipment in space-constrained locations. It suits small network closets, retail and branch sites, telecom and low-voltage installations, and edge deployments where switches, patch panels or media converters must be protected from dust and tampering while keeping floor space free.
Construction is 16-gauge steel for the frame, cover and doors, with heavier 12-gauge rails. The four included mounting rails are square-hole type with 10-32 cage nuts and carry integrated rack unit markings for fast, repeatable equipment layout. The finish is a RAL9005 black powder coat that is GREENGUARD Gold, TSCA and RoHS compliant, providing a low-emitting, corrosion-resistant surface for indoor environments. The cabinet body is mild steel and the removeable cover ships installed.

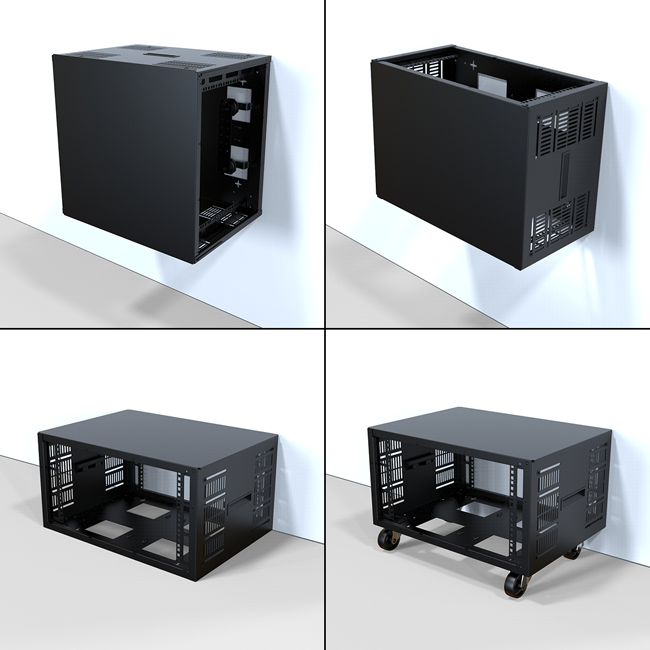

Overall dimensions of SDC243U17BK are 7.47 in high x 24.00 in wide x 17.50 in deep (190 x 610 x 445 mm), giving a usable mounting area of 5.25 in H x 19.00 in W x 15.50 in D. Mounting depth is adjustable from 7.22 in minimum to 16.01 in maximum. Static load ratings for the series are up to 150 lb wall or ceiling mounted and 800 lb freestanding. Shipping weight is 28 lbs (12.70 kg).

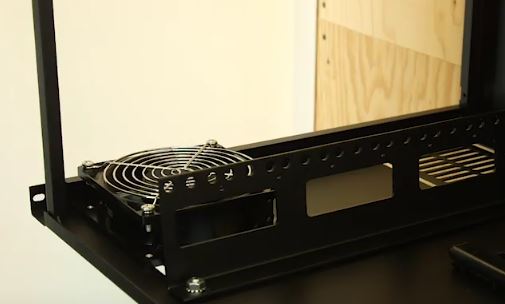

An accessory panel supports 2.5", 2.0", 1-3/4", 1-3/8", 1-1/8" and 7/8" conduit knockouts for flexible cable entry, and fan knockouts allow optional fan kits for active cooling. Optional 3U solid, vented, cable-entry/fan and conduit/fan cover panels and locking doors let the enclosure be configured for airflow or added protection.
Assembly hardware is included (mounting hardware to the wall is not). The cabinet is TAA compliant, RoHS and REACH compliant, USMCA compliant, and manufactured in North America.
| Series | SDC Series Multi-Mount Wall-Mount Rack Cabinet |
| Rack Type | Enclosed Wall Rack |
| Rack Units | 3U |
| Description | 3U 24W 17.5D Multi-Use Cabinet |
| Part Number | SDC243U17BK |
| Overall Depth | 17.50 in (445 mm) |
| Overall Width | 24.00 in (610 mm) |
| Overall Height | 7.47 in (190 mm) |
| Size H X W X D | 7.47 in x 24 in x 17.5 in (190 mm x 610 mm x 445 mm) |
| Mounting (Usable) Depth | 15.50 in (394 mm) |
| Mounting (Usable) Width | 19.00 in (483 mm) |
| Mounting (Usable) Height | 5.25 in (133 mm) |
| Width Including Cover Assembly | 24.34 in (618 mm) |
| UPC | 623980955650 |
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980955650 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/O Check Digit | 62398095565 |
| Rail Type | Square Hole with 10-32 Cage Nut |
| Rail Gauge | 12-gauge steel |
| Rail Quantity | 4 |
| Rack Unit Markings | Integrated on rails |
| Rail Mounting Width | 18.35 in (466 mm) — 19" mounting |
| Maximum Mounting Depth | 16.01 in |
| Minimum Mounting Depth | 7.22 in |
| Front Panel Opening Height | 5.28 in (134 mm) — 3U |
| Static Load Rating — Freestanding | 800 lb |
| Static Load Rating — Wall Or Ceiling Mounted | Up to 150 lb |
| Hardware Notes | Assembly hardware included; mounting hardware not included |
| Shipping Weight | 28 lbs (12.70 kg) |
| What'S Inside The Box | 1 enclosure with installed removeable cover; 4 mounting rails with hardware; 2 installed plastic handles; 10 10-32 screws and cage nuts (CAGKIT1032-10); 1 installation instructions |
| Cover | Removeable cover, installed |
| Finish | Black powder coat, painted black textured (GREENGUARD Gold, TSCA and RoHS compliant) |
| Handles | 2 installed plastic handles |
| Material | Mild Steel |
| Paint Color | RAL9005 Black |
| Cabinet Gauge | 16-gauge steel (frame, cover, doors) |
| Fan Provision | Knockouts for optional fan kits |
| Assembly Components | SDC Body (1), SDC Cover Assembly (1), Rail (4) |
| Conduit Knockouts (Accessory Panel) | 2.5", 2.0", 1-3/4", 1-3/8", 1-1/8", 7/8" |
| Suitability | Corrosion-resistant finish suitable for indoor environments |
| Standards | TAA compliant |
| Manufacturing | Manufactured in North America |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Business account holders on Wall Mount Cabinets typically save 26% vs. retail pricing. Create a free account to see your price.
It provides 3U of 19-inch rack mounting space, with a usable mounting area of 5.25 in high x 19.00 in wide x 15.50 in deep. Static load ratings for the series are up to 150 lb when wall or ceiling mounted and 800 lb freestanding.
Doors and cover panels are optional. For 3U cabinets the series offers a solid locking door (SDC3UD), vented locking door (SDC3UVD), cable entry/fan locking door (SDC3USD) and conduit/fan cover panel (SDC3UCFP).
The four included 12-gauge rails are square-hole type used with 10-32 cage nuts. Ten 10-32 screws and cage nuts are included in the box (replacement kit CAGKIT1032-10).
No. Assembly hardware is included, but mounting hardware for fastening the cabinet to the wall is not included.
Yes. The drawing lists a minimum mounting depth of 7.22 in and a maximum mounting depth of 16.01 in within the 17.50 in deep enclosure.
Yes. SDC243U17BK is TAA compliant, RoHS and REACH compliant, USMCA compliant, and manufactured in North America with a country of origin of Canada.
