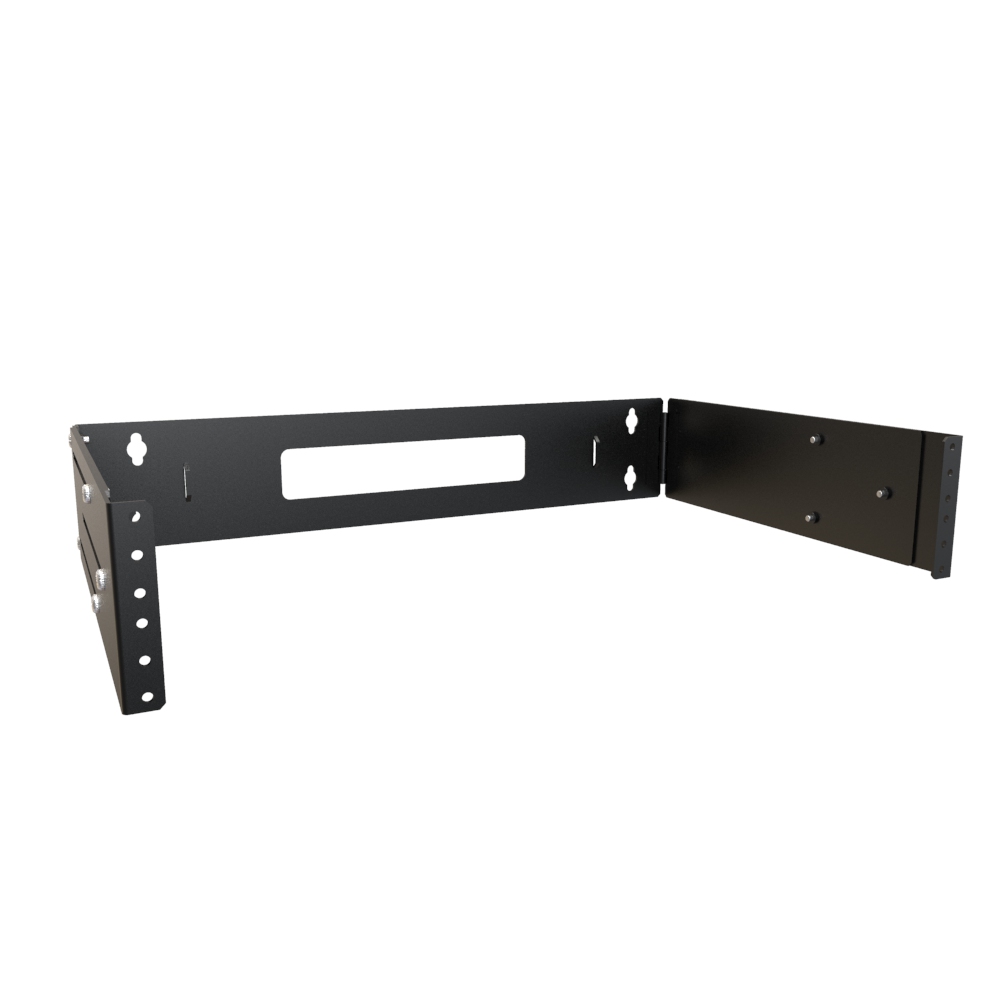

The APB19007BK1 is a 4U open wall rack from the APB Series, an adjustable depth hinged wall bracket for mounting 19-inch equipment in telecom and IT installations. It suits IT and AV integrators, structured cabling contractors and facilities teams who need to mount patch panels, switches and other lightweight rack gear on a wall or backboard instead of in a full cabinet.

Construction is 14-gauge mild steel with a 100 lb capacity, finished in a black powder coat (RAL9005 Black) that is GREENGUARD, TSCA and RoHS compliant. The hinged wall bracket design swings out to provide rear access for installation, servicing and cable management, and rear cable access with multiple tie points supports organized routing in wall-mounted installations.

This 4U size has an overall height of 6.88 in (175 mm) and an overall width of 19.39 in (493 mm), with a 19.00 in (483 mm) mounting width. Depth is adjustable from 12.00 in (305 mm) to 18.00 in (457 mm) so equipment of varying sizes can be accommodated without disassembly. One pair of 10-32 threaded 19-inch mounting rails is supplied and is EIA-310 compliant for standard rack equipment.

• Ships as a self-squaring, knock-down design for easier handling and simplified installation.
• Box contents include the rear wall-mounting hinged section, rear non-hinged section, two sliding rails, assembly instructions, 25 pcs 10-32 x 0.75 in rack mounting screws (SCREW1032-25) and 10 pcs 10-32 x 3/8 assembly hardware.
• Wall mounting hardware is not included; equipment mounting hardware is supplied.

APB19007BK1 is TAA-compliant and manufactured in North America (Country of Origin: CA), with USMCA, RoHS and REACH compliance for procurement and environmental documentation requirements.
