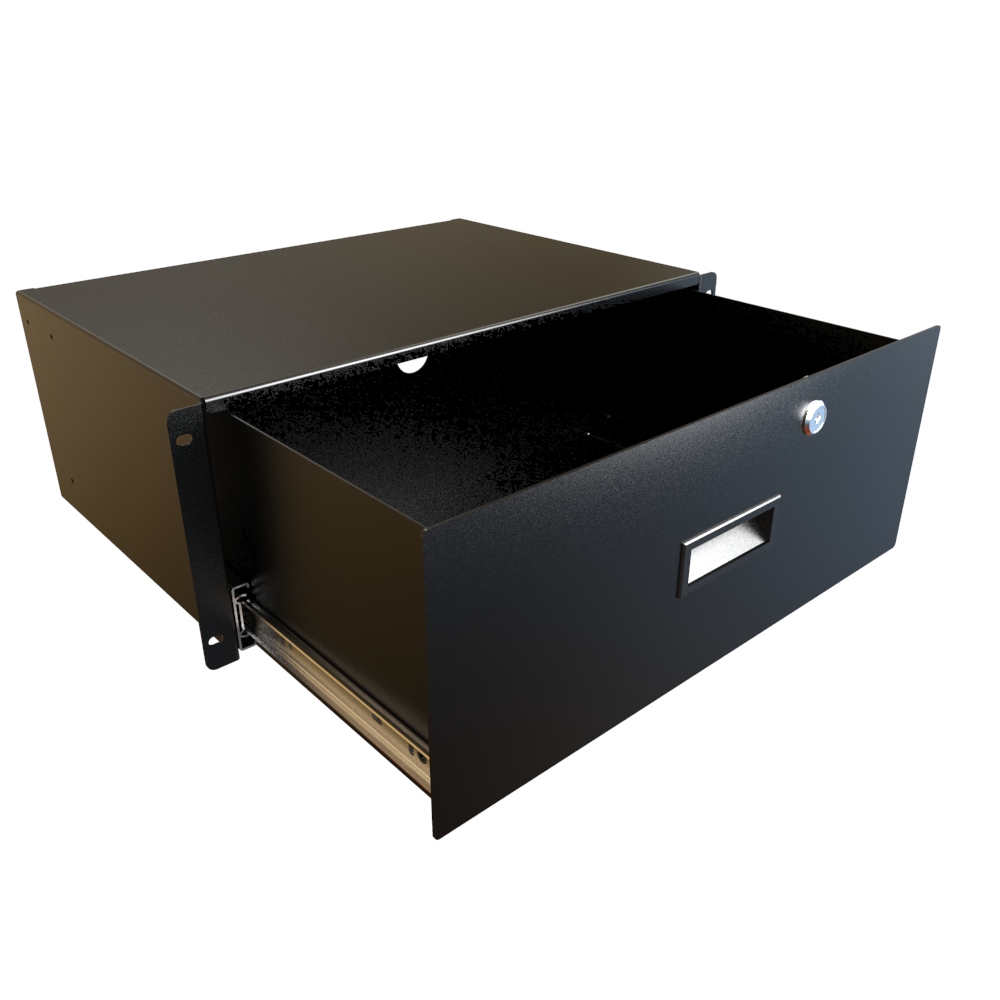

The RDRW1900816BK1 is a 5U locking rack storage drawer for standard 19-inch EIA-310-E racks and cabinets. It gives IT teams, AV and telecom integrators, and industrial maintenance crews a secure, lockable place to keep tools, test equipment, spare hardware, media and documentation right where the equipment lives, turning unused rack space into organized storage.

The RDRW Series is built from 14 and 16-gauge mild steel with a heavy-duty sliding drawer for smooth operation, a front locking pull handle with keyed lock, and rear support brackets that mount directly to the rear rack rails for added stability. This part number is finished in textured RAL9005 black powder coat, a finish that is GREENGUARD Gold Certified, TSCA and RoHS compliant. A light gray version is cataloged as RDRW1900816LG1.

Overall dimensions are 8.75 in (222 mm) high by 17.36 in (441 mm) wide by 16.25 in (413 mm) deep, occupying 5U of rack height. Usable interior space measures 8.14 in (207 mm) high by 15.33 in (389 mm) deep, and the slides provide 16.00 in (406 mm) of travel for full access to the contents. Load capacity is 129 lbs (58.5 kg); the series is rated up to 145 lb (66 kg) in 4-post installations and 60 lb (27 kg) in 2-post racks. Shipping weight is 30 lbs (13.61 kg).

Each RDRW1900816BK1 ships as a complete assembly with the drawer, two keys for the lock, eight 10-32 x 0.625 in screws, two rear drawer support brackets, four 8-32 Keps nuts and assembly and installation instructions. The drawer includes a cable pass-through in the rear and a rear bracket mounting range of 16.10 in to 21.88 in (409 mm to 556 mm). It is TAA-compliant, USMCA compliant, REACH and RoHS compliant, and manufactured in North America in an ISO 9001 certified facility.
