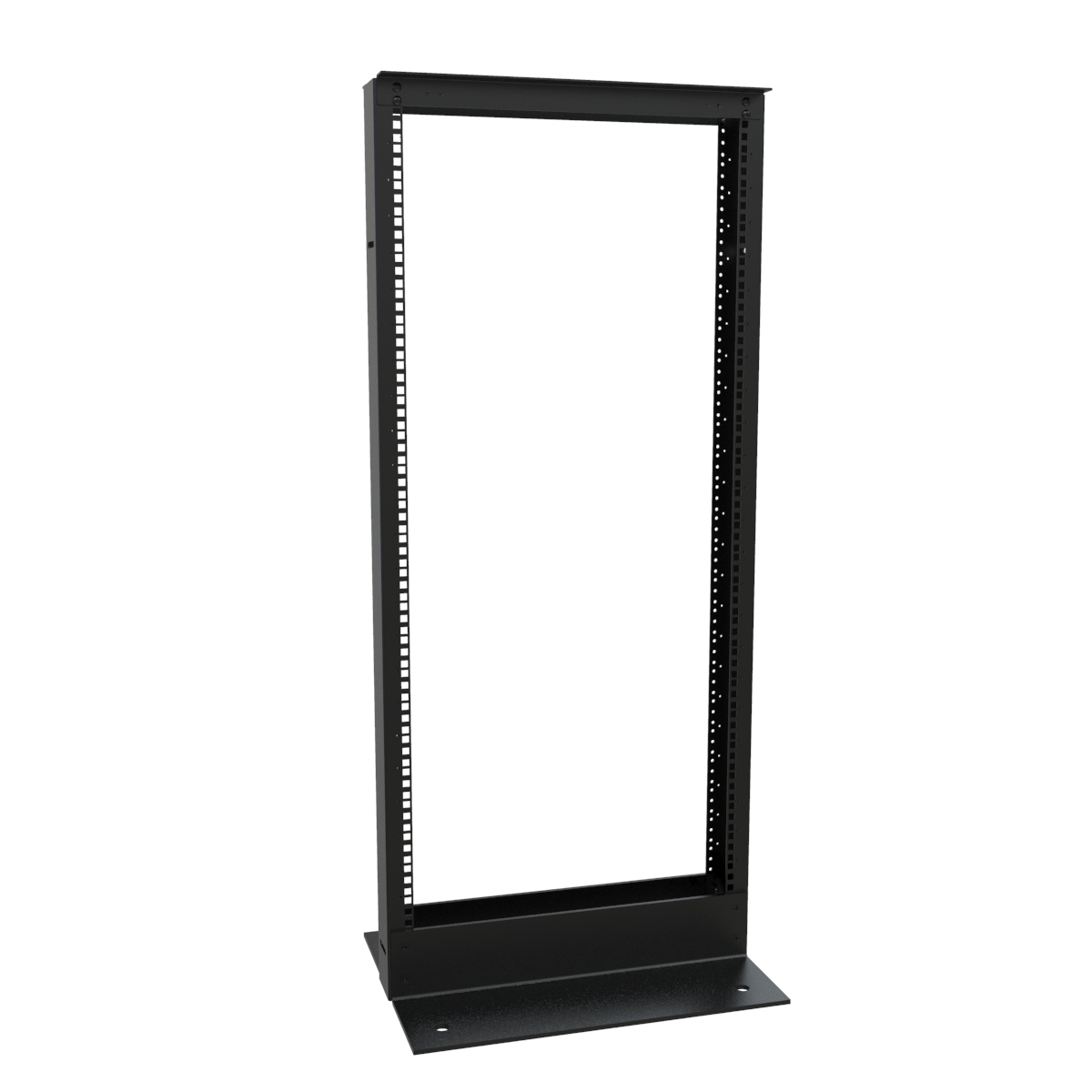

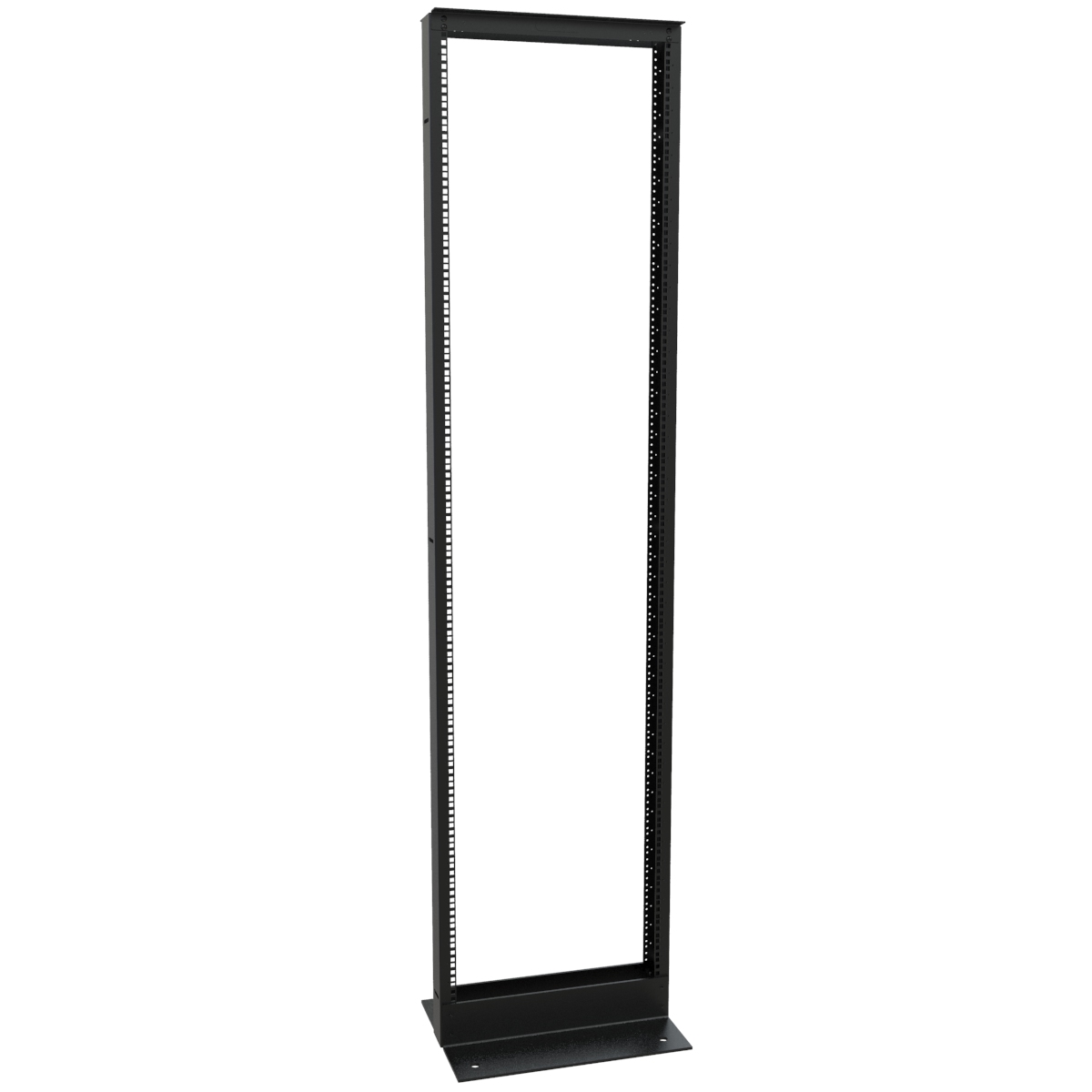

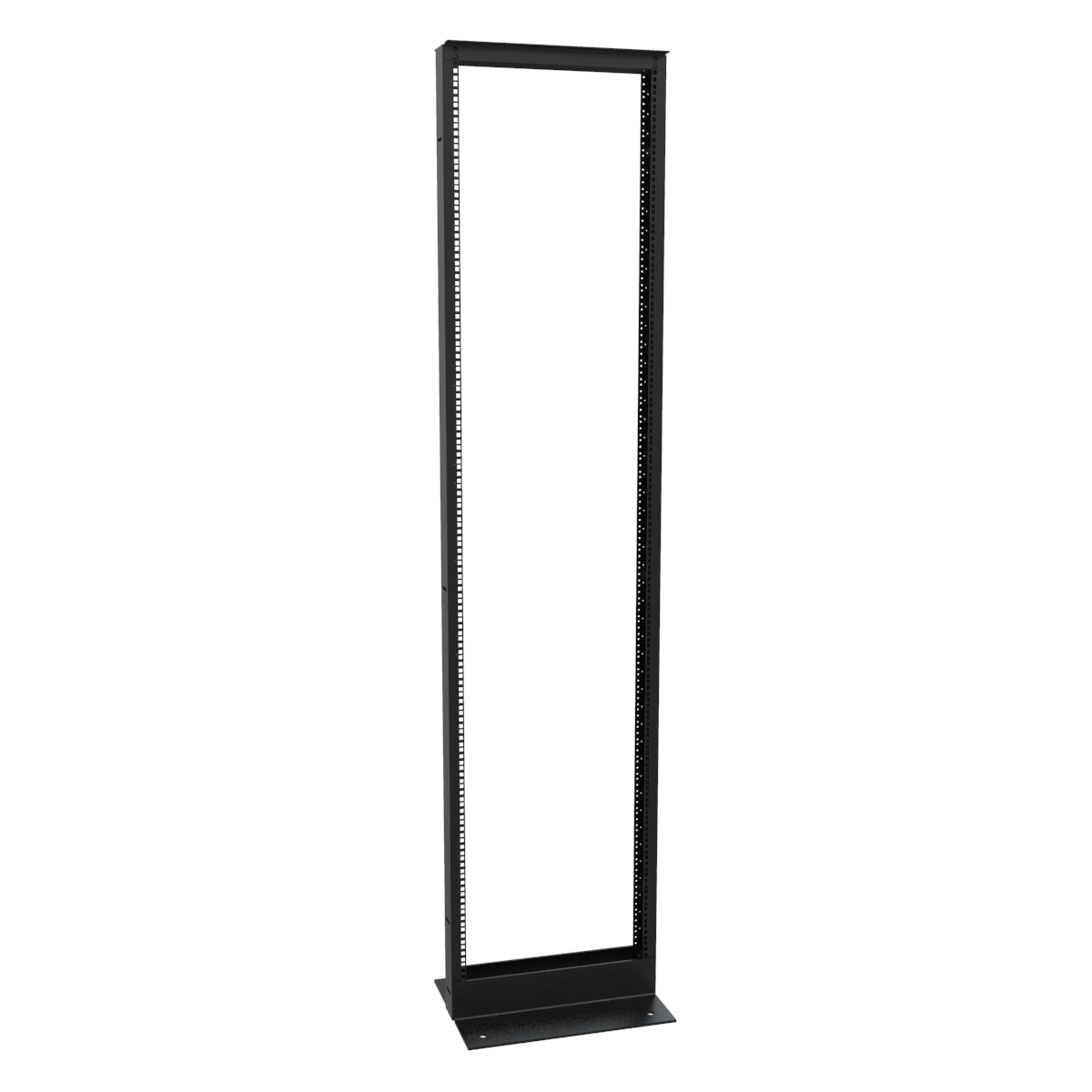

The RB-2PS1942BK is a 42U, 19-inch EIA-compliant 2-post open frame rack built for IT, telecom and structured cabling installations where equipment needs to stay fully accessible. It is part of the RB-2PS Series in the Rack Basics line, and ships knock-down (unassembled) so it is easier to move through doorways, elevators and tight service spaces before being built on site.
Construction is 12-gauge mild steel with a black powder coat finish, rated for a 1600 lb load. The frame is self-squaring, which simplifies assembly and helps keep the rails aligned during installation. Each upright carries a dual rail configuration: 12-24 threaded holes on one side and square holes on the reverse, so you can choose the mounting method that suits your hardware. A mounting hardware pack of 12-24 screws is included, along with the rails, top brackets, base angles and assembly fasteners.
Overall dimensions are 79.63 in x 20.00 in x 15.00 in (2,023 mm x 508 mm x 381 mm), with 42U of usable mounting space measuring 73.50 in (1867 mm) high by 19.00 in (483 mm) wide. Shipping weight is 64 lbs (29.03 kg).
Side ganging and accessory mounting provisions allow racks to be joined and integrated with cable management. Two RB-2PS1942BK racks can be converted into a four-post configuration using the Four Post Rack Kit (FPRK).
If you need a welded rack that ships fully assembled, the RB-2P Series is an alternative; for an aluminum frame, see the RB-2PA Series.
| Series | RB-2PS Series (Rack Basics) |
| Assembly | Shipped unassembled (knock-down); hardware included |
| Part Number | RB-2PS1942BK |
| Product Type | 2-Post Open Frame Rack, Knock-Down Design |
| Load Capacity | 1600 lb |
| Short Description | 42U 19IN 2-POST RACK ASSEMBLY |
| Overall Depth | 15.00 in (381 mm) |
| Overall Width | 20.00 in (508 mm) |
| Overall Height | 79.63 in (2023 mm) |
| Size H X W X D | 79.63 in x 20 in x 15 in (2,023 mm x 508 mm x 381 mm) |
| Base Depth (Bottom View) | 16.50 in (419 mm) |
| Base Width (Bottom View) | 20.25 in (514 mm) |
| Overall Height (Drawing, Front View) | 79.00 in (2007 mm) |
| UPC | 623980014630 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980014630 |
| UPC W/O Check Digit | 62398001463 |
| Expansion | Side ganging and accessory mounting provisions; convertible to four-post with two racks plus Four Post Rack Kit (FPRK) |
| Rail Type | Dual rail: 12-24 threaded holes one side, square holes on reverse |
| U Spacing | 1.75 in (44 mm) |
| Rack Units | 42U |
| Rail Standard | 19" EIA compliant |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 73.50 in (1867 mm) |
| Square Hole Size | .375 square |
| Included Hardware | 12-24 Quadrex truss head screws (8), 1/4-20 x 3/4 FH PH screws (8), 1/4-20 KEP nuts (8) |
| Included Components | RB-2PS rail RH (1), RB-2PS rail LH (1), RB-2PS top bracket (2), DC4R base angle (2) |
| Rail Height (Drawing) | 73.59 in (1869 mm), 42U |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 64 lbs (29.03 kg) |
| Country Of Origin | CA (manufactured in North America) |
| Gauge | 12-gauge steel |
| Finish | Black powder coat |
| Material | Mild Steel |
| Frame Design | Self-squaring open frame |
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Business account holders on Open Frame Racks typically save 40% vs. retail pricing. Create a free account to see your price.
No. It uses a knock-down design and ships unassembled, which makes shipping, handling and on-site installation easier than a welded rack. Assembly hardware is included and the frame is self-squaring to aid alignment.
Each rail has a dual configuration: 12-24 threaded holes on one side and square holes (.375 square) on the reverse, so you can choose the mounting method that matches your hardware. A pack of 12-24 screws is included.
The RB-2PS1942BK is built from 12-gauge steel and rated for a 1600 lb load.
42U of mounting space measuring 73.50 in (1867 mm) high by 19.00 in (483 mm) wide, within an overall footprint of 79.63 in x 20.00 in x 15.00 in (2,023 mm x 508 mm x 381 mm).
Yes. Purchasing two racks along with the Four Post Rack Kit (FPRK) converts this product into a four-post rack.
It is TAA-compliant and manufactured in North America, with a country of origin of Canada, plus RoHS, REACH and USMCA compliance and an ECCN of EAR99.
