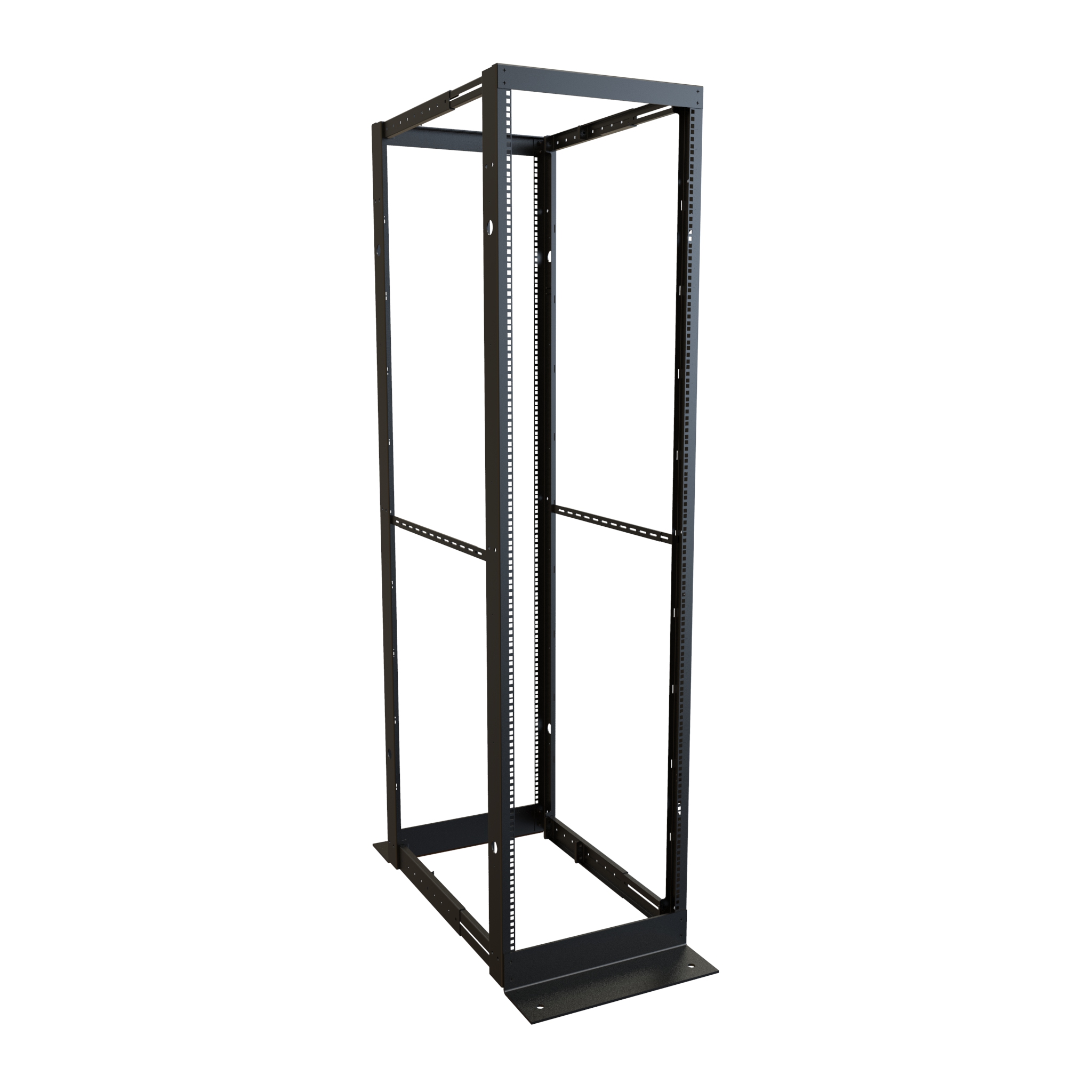

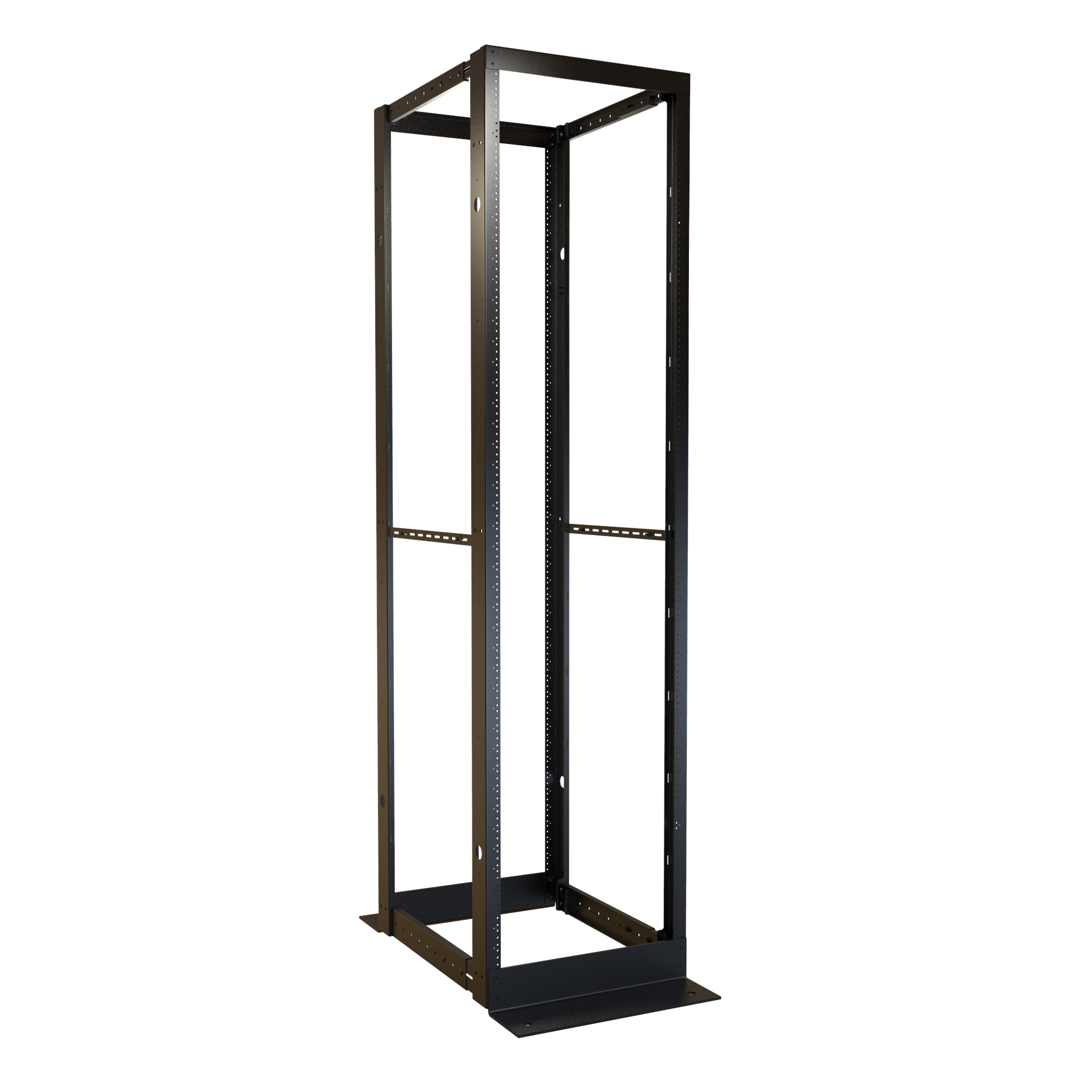

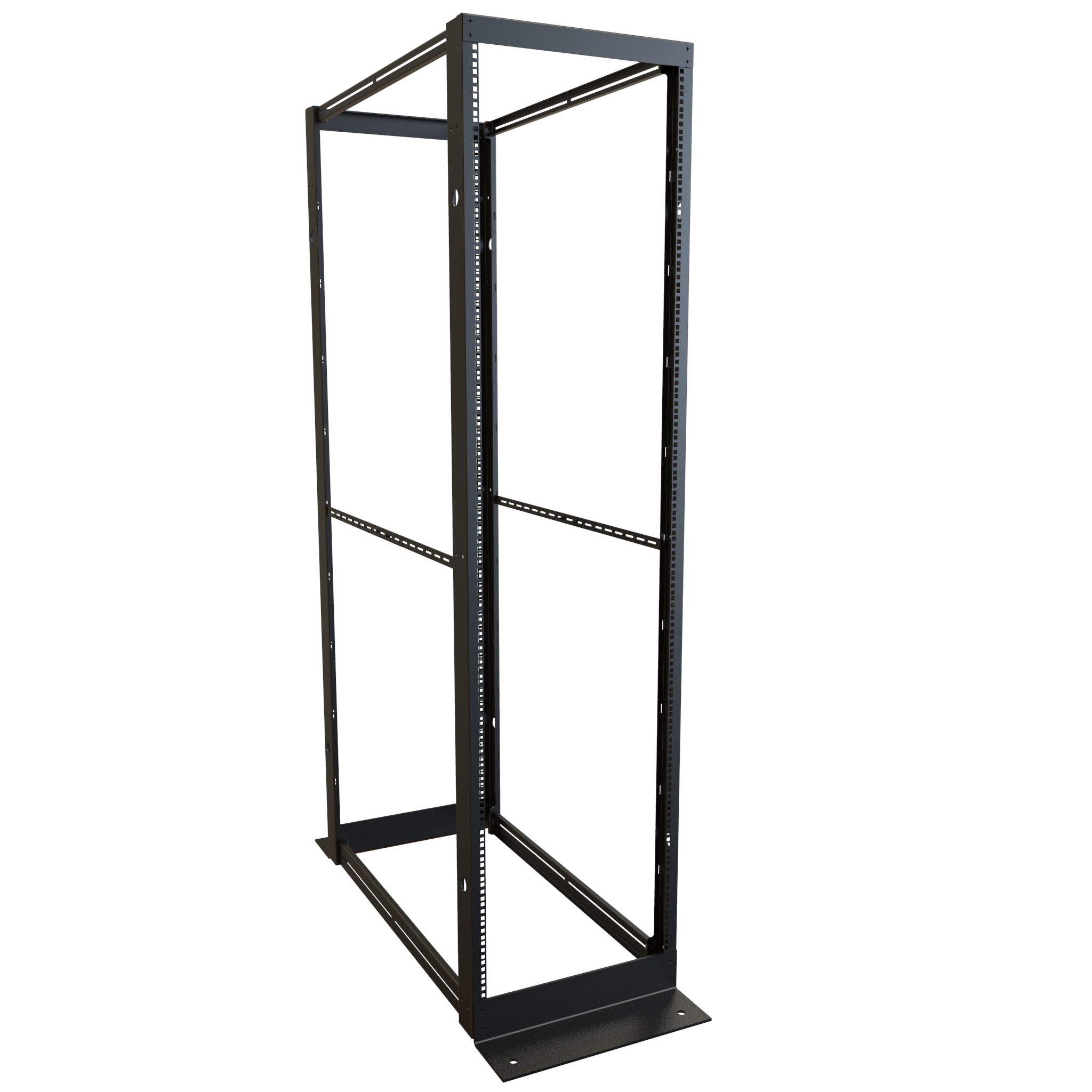

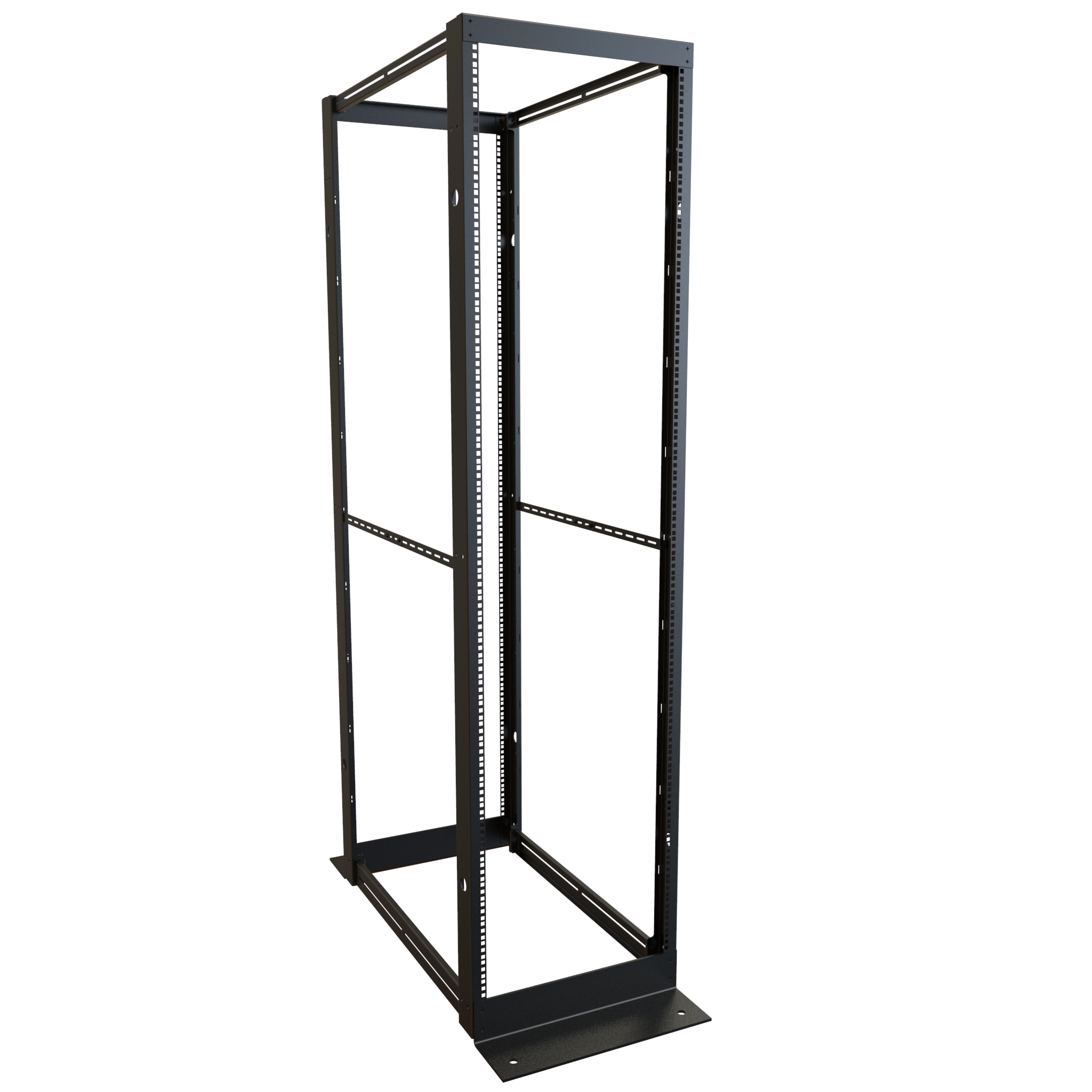

The DC4R24 is a 24U four-post open frame rack kit with a fully adjustable depth of 24 in to 36 in, intended for server, network and IT equipment in data rooms, network closets and homelab installations. Its open four-post frame distributes equipment weight across four mounting points while leaving the sides and top clear for cable routing and servicing.
Construction is 12-gauge welded steel rack rails with 1/4 in steel base angles, rated for a 2,000 lb static load. The mild steel frame is finished in a smooth RAL9005 black powder coat that is GREENGUARD, RoHS and REACH compliant. Two pairs of 19 in EIA-310-D compliant square-hole rails are supplied with marked rack unit dividers to speed equipment layout, along with a 50-pack of screws and 10-32 cage nuts. Integrated 10-32 ground studs at the front and rear (two studs per rail) support bonding and grounding of rack components.
Overall height is 48.13 in (1,222 mm) with a width of 20.50 in (521 mm); usable mounting height is 42.00 in (1,067 mm) at 19.00 in (483 mm) wide, and the mounting depth adjusts from 24.00 in (610 mm) to 36.00 in (914 mm). The base feet, when extended outward, add approximately 12 in of overall depth. Shipping weight is 75 lbs (34.02 kg).
DC4R24 ships knocked down for easier handling and protection, with self-centering, self-squaring hardware included for assembly. One set of two horizontal cable manager bars is included, and optional solid side panel DC4R2436SP, extra lacing bars (DC4RSHCM) and locking casters can be added. The rack is TAA compliant, USMCA compliant and manufactured in North America, supporting government procurement requirements.
| Series | DC4R Series - 4-Post Open Frame Rack (2,000 lb Capacity) |
| Assembly | Shipped knocked down; self-squaring design with self-centering hardware included |
| Rack Type | Open Frame Rack |
| Rack Units | 24U |
| Description | 24U 4-Post Rack Kit (24" to 36" overall depth) |
| Part Number | DC4R24 |
| Static Load Capacity | 2,000 lb |
| Overall Width | 20.50 in (521 mm) |
| Overall Height | 48.13 in (1,222 mm) |
| Base Height Detail | 0.62 in (16 mm) |
| Frame Width (Drawing) | 20.56 in (522 mm) |
| Extended Feet Allowance | Base feet extending outwards add approx. 12 inches of overall depth |
| Nominal Size (H X W X D) | 48.13 in x 20.5 in x 36 in (1,223 mm x 521 mm x 914 mm) |
| Adjustable Depth Range (Dim A) | 24 in - 36 in, fully adjustable |
| Grounding | Integrated 10-32 ground studs front and rear; 2 x 10-32 studs per rail (double stud right hand rail bottom, left hand rail top) |
| Locking Casters | RRLDCASTER - 800 lbs (362 kg) capacity; RRHDCASTER - 2,000 lbs (907 kg) capacity |

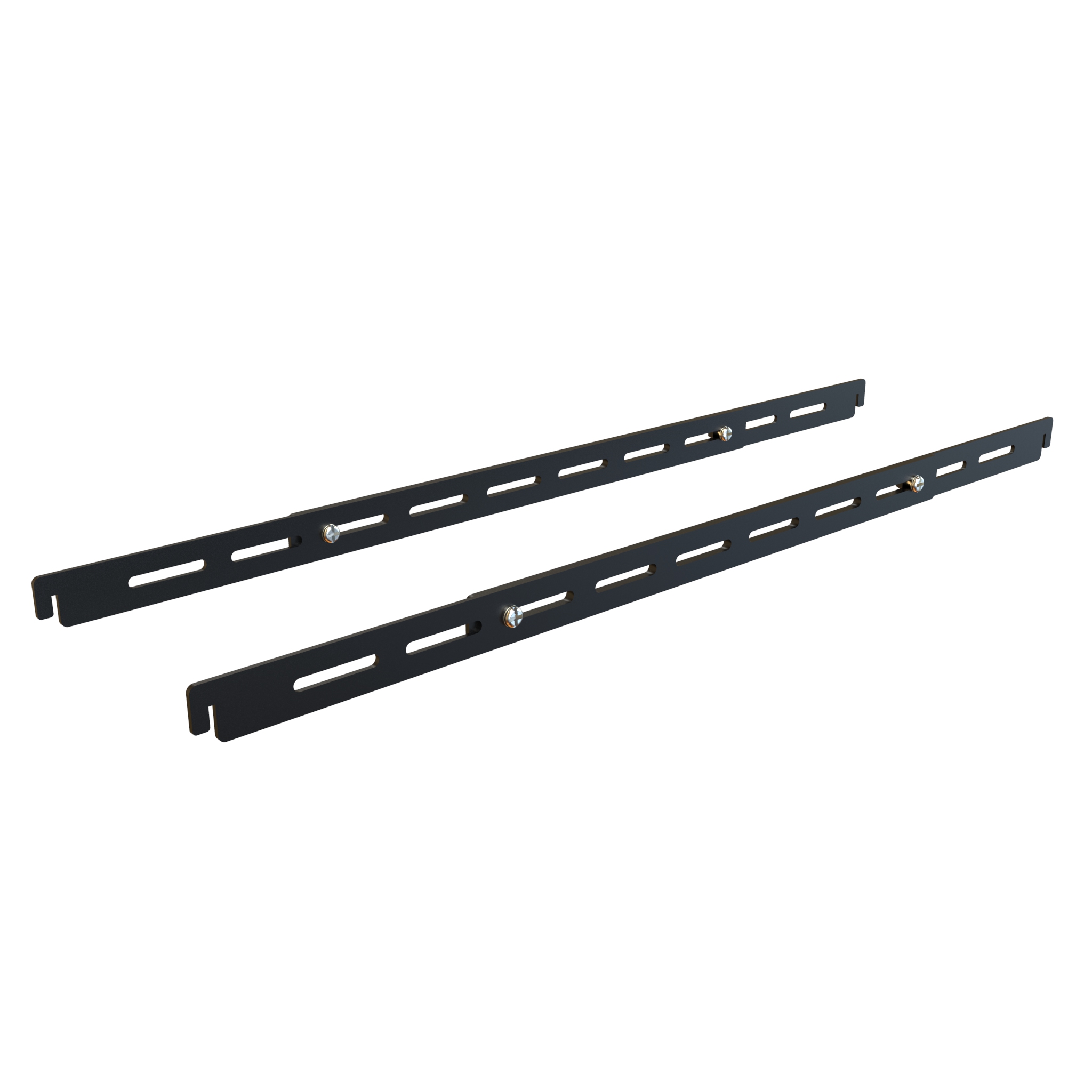

| Additional Lacing Bars | DC4RSHCM - Qty 2 additional lacing bars, 5 lbs (2.3 kg) |

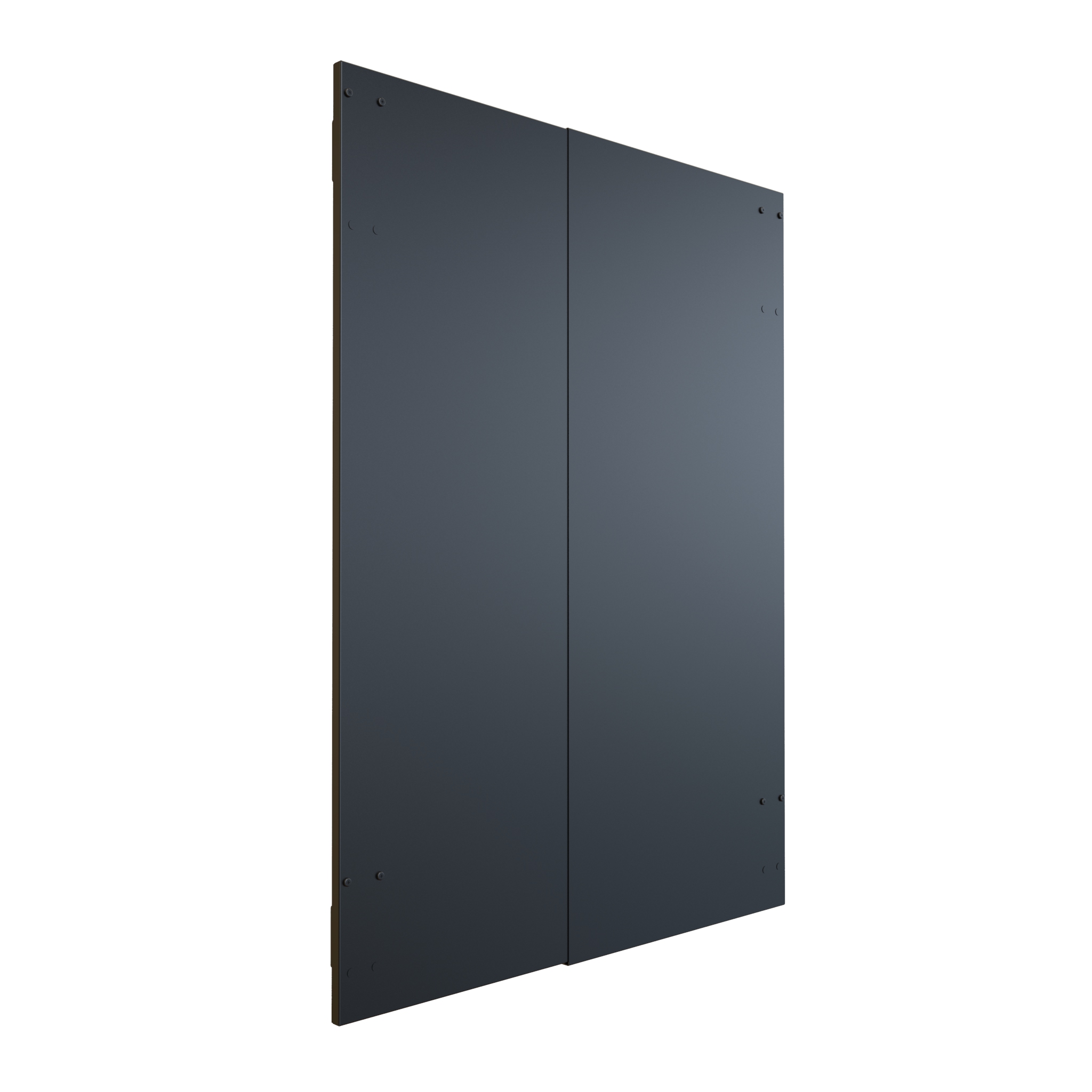

| Optional Solid Side Panel (Single) | DC4R2436SP |
| UPC | 623980040974 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980040974 |
| UPC W/O Check Digit | 62398004097 |
| Rail Type | Square Hole with 10-32 Cage Nuts |
| Mounting Width | 19.00 in (483 mm) |

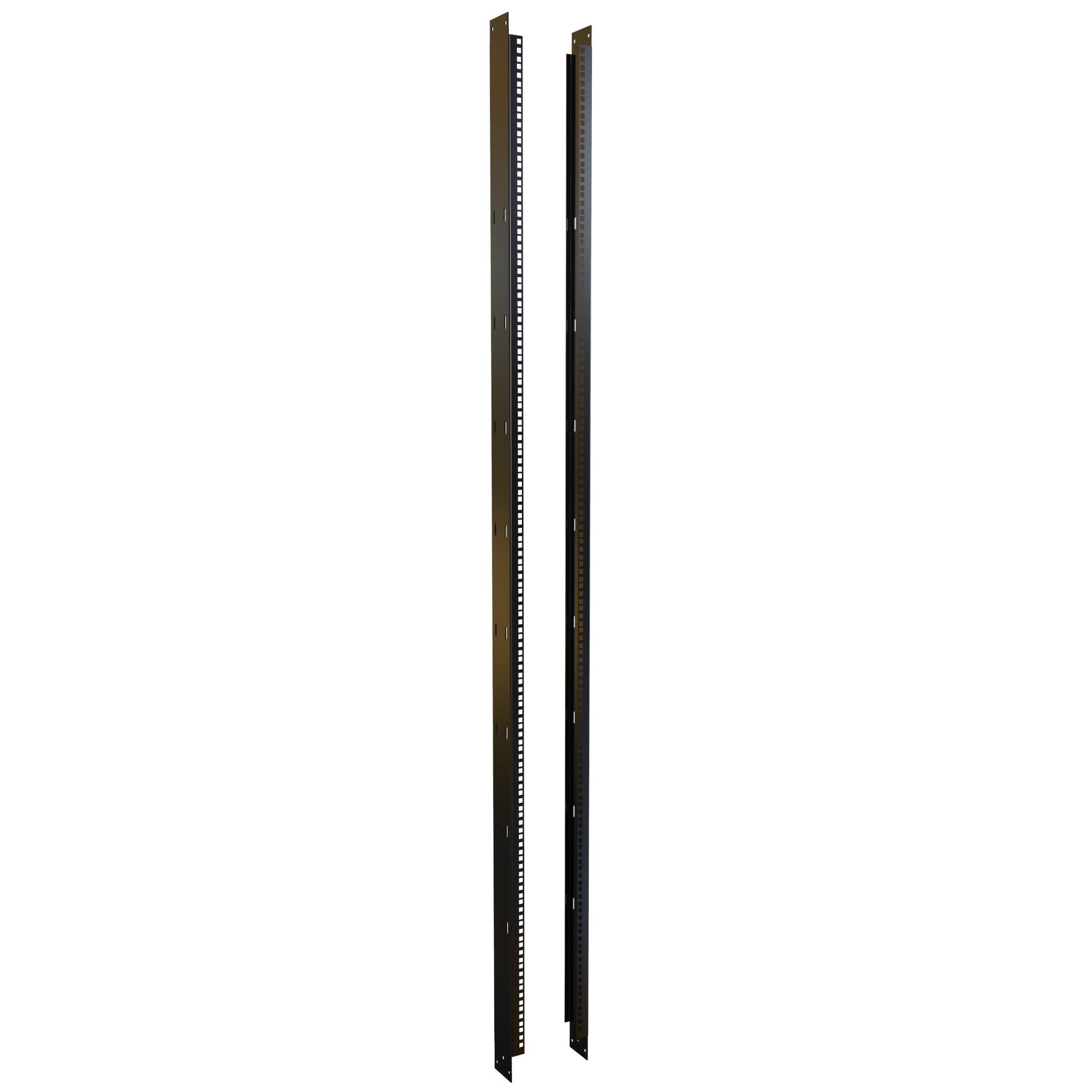

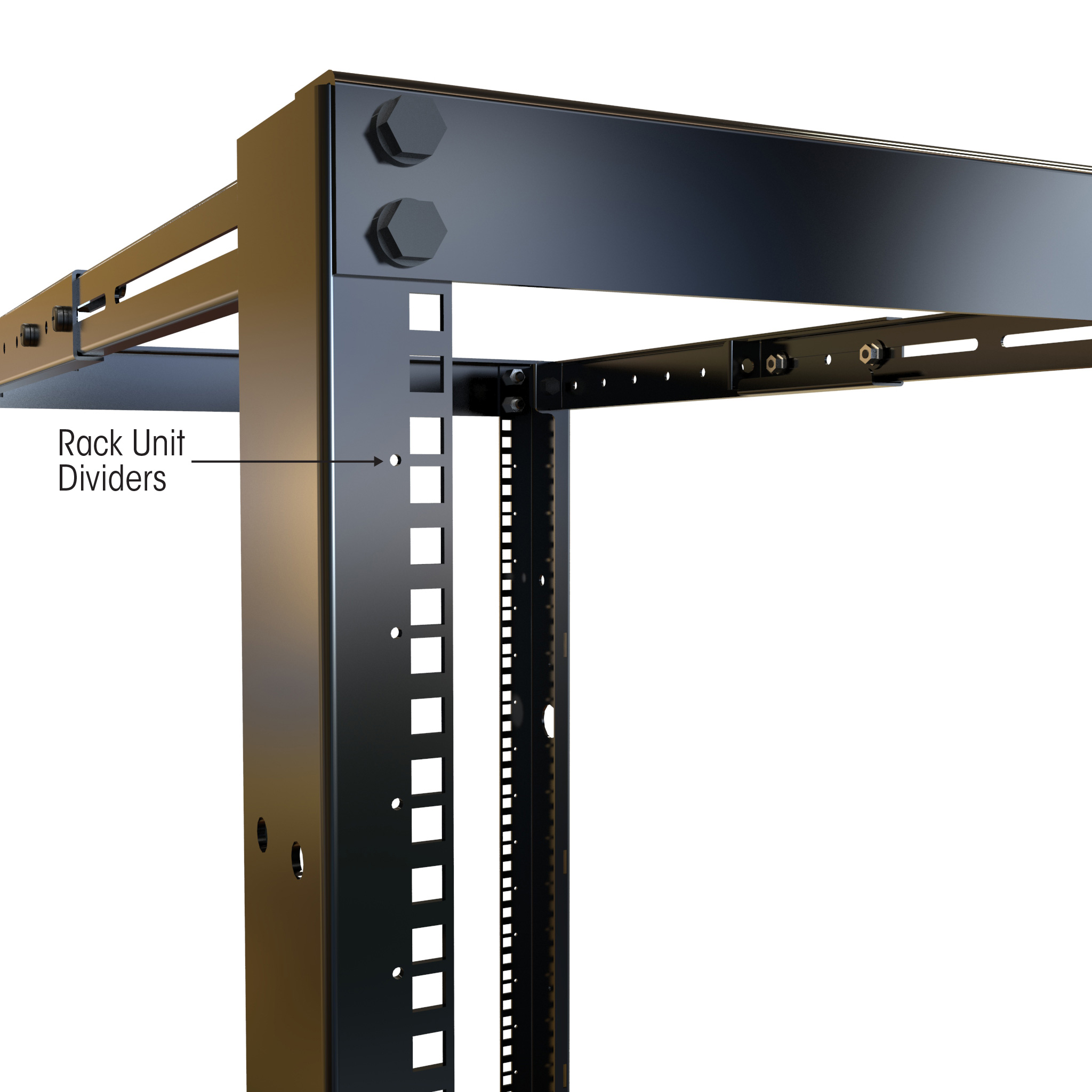

| Rails Supplied | Two (2) pairs of 19 in EIA-310-D compliant square-hole rails with marked rack unit dividers |
| Mounting Height | 42.00 in (1,067 mm) |
| Hardware Included | 50-pack of cage nuts and screws |
| Front Opening Width | 17.75 in (451 mm) |
| Maximum Mounting Depth | 36.00 in (914 mm) |
| Minimum Mounting Depth | 24.00 in (610 mm) |
| Cable Management Included | One (1) set of two (2) horizontal cable manager bars |
| Rail Height (24U, Drawing) | 42.13 in (1,070 mm) |
| 19 In Mounting Flange Dimension | 18.31 in (465 mm) |
| Packaging | Shipped knockdown for handling and protection |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 75 lbs (34.02 kg) |
| Country Of Origin | CA |
| Finish | Smooth black powder coat, painted black thin film |
| Material | Mild Steel |
| Base Angles | 1/4 in steel base angles |
| Paint Color | RAL9005 Black |
| Rail Construction | 12-gauge welded steel rack rails |
| ECCN | EAR99 |
| Standards | EIA-310-D compliant; TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, RoHS and REACH compliant powder coat |
Business account holders on Open Frame Racks typically save 40% vs. retail pricing. Create a free account to see your price.
The mounting depth is fully adjustable from 24.00 in (610 mm) to 36.00 in (914 mm). Note that base feet extending outwards add approximately 12 inches of overall depth.
The DC4R Series uses 12-gauge welded steel rack rails with 1/4 in steel base angles rated for a 2,000 lb static load.
It has two pairs of 19 in EIA-310-D compliant square-hole rails with marked rack unit dividers, and ships with a 50-pack of screws and 10-32 cage nuts.
No. It ships knocked down for handling and protection, with self-centering, self-squaring hardware included for assembly.
Yes. Integrated 10-32 ground studs are provided at the front and rear, with two 10-32 studs per rail for bonding and grounding of rack components.
The single solid side panel DC4R2436SP, additional lacing bars (DC4RSHCM, qty 2), and locking casters RRLDCASTER (800 lbs) or RRHDCASTER (2,000 lbs).
It is TAA compliant and USMCA compliant, manufactured in North America, with country of origin listed as CA.
