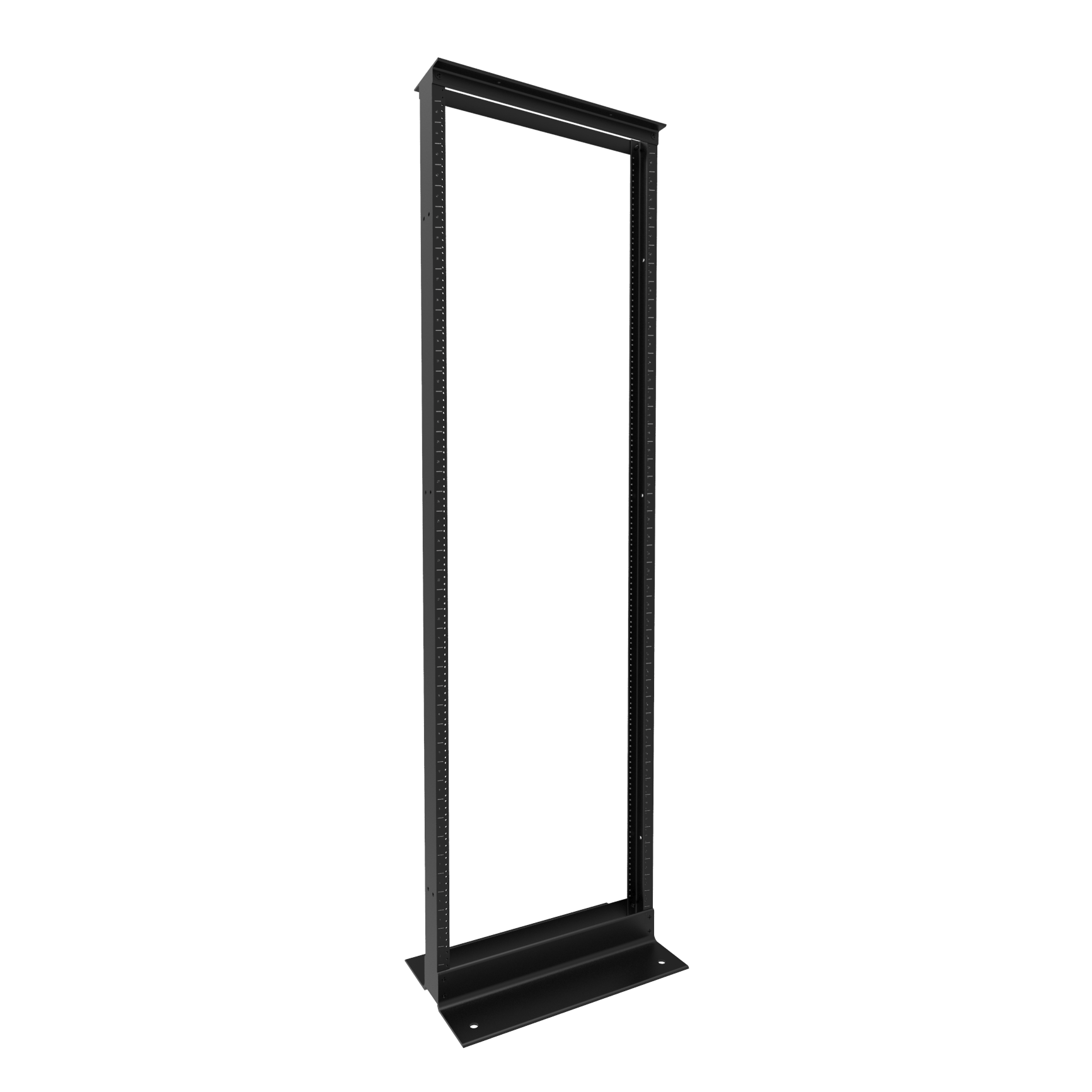

The RB-2PA1945NF is a 45U, 19-inch 2-post open frame rack built for IT, telecom and network installations where light weight and corrosion resistance matter. It ships knock-down for easier handling and protection in transit, with assembly hardware included, making it a practical choice for integrators, electricians and facilities teams working in data rooms, telecom spaces and network closets.
Construction is 6063 aluminum with a 1500 lb capacity, giving high strength at a shipping weight of just 30 lbs (13.61 kg). This version is supplied in a Natural Finish (unfinished) aluminum surface. The assembly consists of two 45U relay rack verticals, two 19-inch wide feet and two 19-inch top brackets.
Overall dimensions are 83.90 in x 20.25 in x 15.00 in (2,131 mm x 514 mm x 381 mm). Mounting dimensions are 78.75 in (2000 mm) high by 19.00 in (483 mm) wide, with #12-24 UNF tapped holes on standard E.I.A. spacing along 78.25 in (1988 mm) of rail for 45 rack units. Rails are tapped 12-24 on both sides, and a 30-pack of 12-24 mounting hardware is included.
The RB-2PA1945NF is part of the Rack Basics line and is RoHS and REACH compliant. Two racks can be converted into a four-post configuration using the Four Post Rack Kit (FPRK).
| Series | RB-2PA Series, 2-Post Open Frame Rack, Knock-Down Design (1,500 lb Capacity) |
| Assembly | Shipped knock-down; assembly hardware included |
| Rack Type | Open Frame Rack |
| Rack Units | 45U |
| Description | 45U 19W ALUM 2-POST NF RACK |
| Part Number | RB-2PA1945NF |
| Load Capacity | 1500 lb |
| Overall Depth | 15.00 in (381 mm) |
| Overall Width | 20.25 in (514 mm) |
| Overall Height | 83.90 in (2131 mm) |
| Inside Height (I/S) | 78.90 in (2004 mm) |
| Foot Width (Top View) | 16.50 in (419 mm) |
| Overall Size H X W X D | 83.9 in x 20.25 in x 15 in (2,131 mm x 514 mm x 381 mm) |
| UPC | 623980412023 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980412023 |
| UPC W/O Check Digit | 62398041202 |
| Standard | EIA-310-E compliant |
| Rail Type | Tapped 12-24 |
| Installation | Freestanding floor-mount |
| Rail Threads | #12-24 UNF, standard E.I.A. spacing, both sides of the rails |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 78.75 in (2000 mm) |
| EIA Spacing Length | 78.25 in (1988 mm) [45U] |
| Base Mounting Holes | 4X 0.75 in (19 mm) dia. and 4X 0.28 in (7 mm) dia. |
| Inside Rail Width (I/S) | 17.75 in (451 mm) |
| Mounting Flange Width (19" MTG) | 18.31 in (465 mm) |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 30 lbs (13.61 kg) |
| Country Of Origin | CN |
| Material | Aluminum (6063) |
| Components | 2x Relay Rack Vertical 45U, 2x Relay Rack Foot 19W, 2x Relay Rack Top Bracket 19W |
| Included Hardware | 30-pack of 12-24 mounting hardware; assembly hardware |
| Paint Color / Finish | Natural Finish (unfinished) |
| ECCN | EAR99 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | No |
Business account holders on Open Frame Racks typically save 40% vs. retail pricing. Create a free account to see your price.
The RB-2PA Series aluminum 2-post open frame rack is rated for up to 1500 lb capacity.
The rails are tapped #12-24 UNF on standard E.I.A. spacing (EIA-310-E compliant) on both sides of the rails, covering 78.25 in (1988 mm) for 45 rack units. A 30-pack of 12-24 mounting hardware is included.
No. It is shipped knock-down for ease of handling and protection, with assembly hardware included. The rack consists of two 45U verticals, two 19-inch feet and two 19-inch top brackets.
RB-2PA1945NF is supplied in a Natural Finish (unfinished) aluminum surface and is listed as available while supplies last; the RB-2PA1945BK offers the same 45U, 20.25 in wide, 15.00 in deep dimensions in black.
Yes. Two racks plus the Four Post Rack Kit (FPRK) convert this product into a four-post rack.
Overall dimensions are 83.90 in high x 20.25 in wide x 15.00 in deep (2,131 mm x 514 mm x 381 mm), with a mounting area of 78.75 in (2000 mm) by 19.00 in (483 mm).
