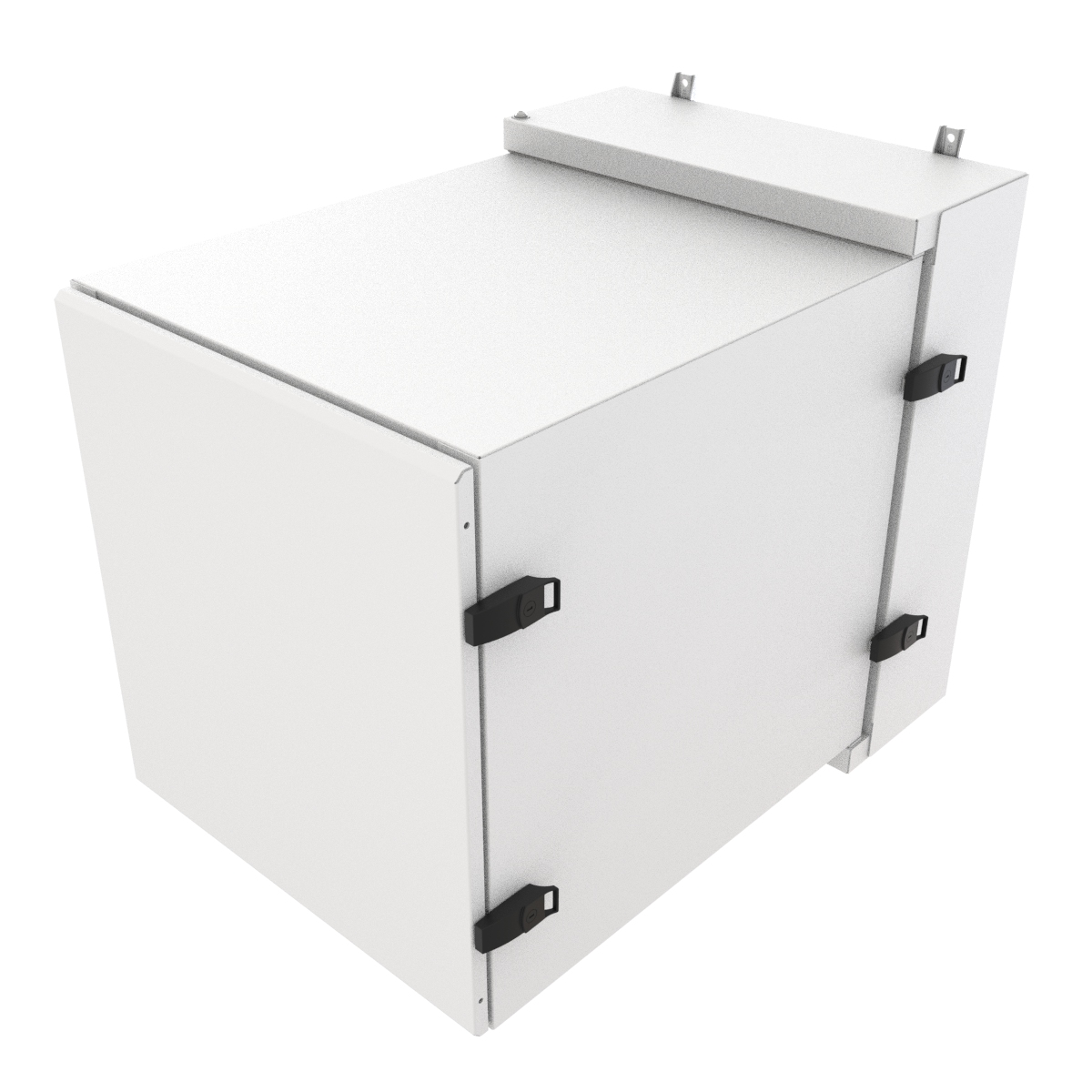

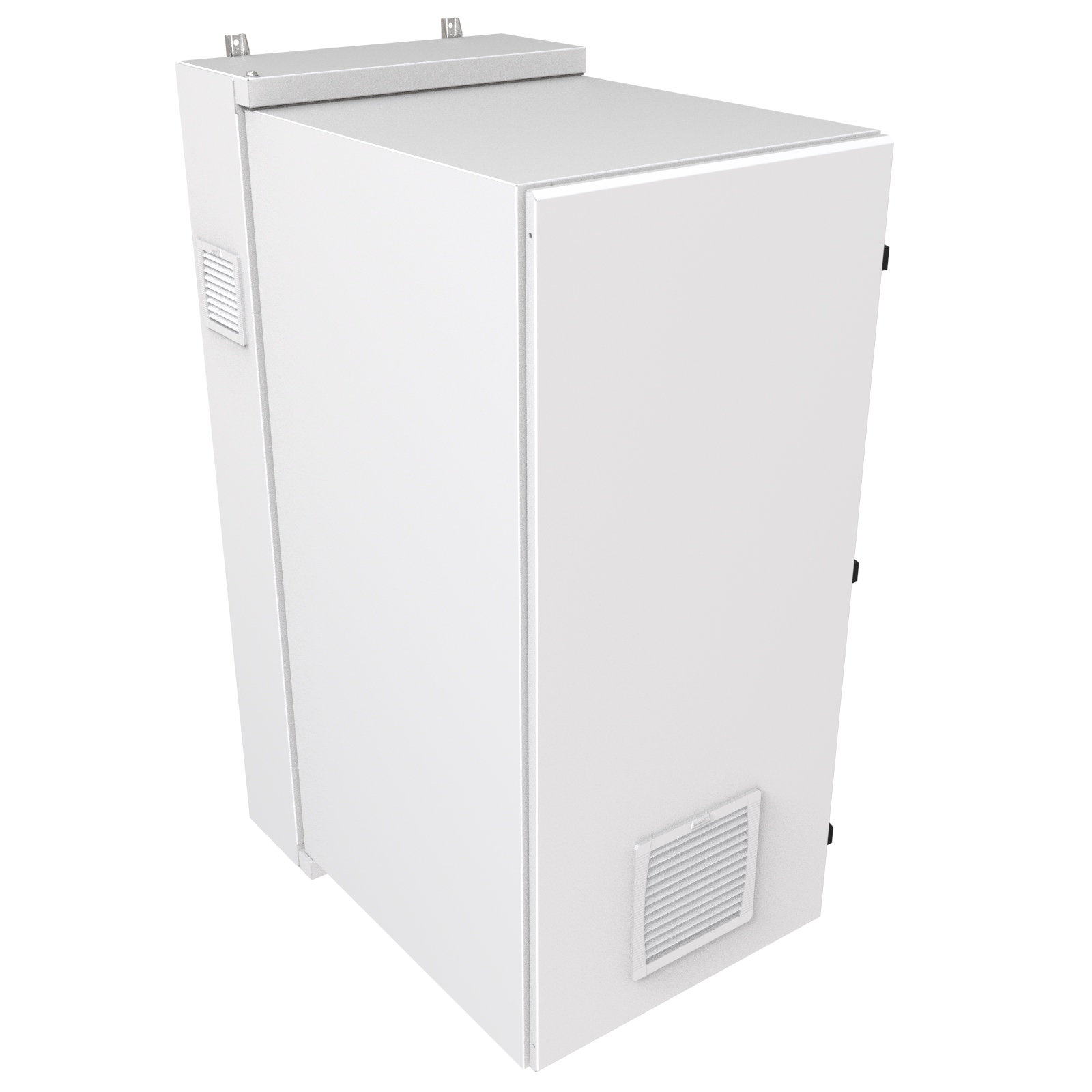

The NWC12U2436SFLG is a 12U enclosed wall-mount rack cabinet built for network and industrial equipment that has to survive dust, dirt and dripping liquids. It is the "F" (filtered) configuration of the NWC Series, supplied with a solid door and rear and door Type 12 filters that maintain the UL Type 12 rating and are compatible with the series fan kits. The finish is RAL7035 light gray powder coat, and the cabinet ships in Canada-made, TAA-compliant form for government and regulated procurement.
Construction is 14-gauge welded mild steel with a double-hinged cabinet design (19" rack compatible) that gives dual access to equipment for installation and service. Gasketed doors seal the enclosure, and the cabinet is UL2416 Type 12 rated to a 350 lb (158 kg) load and seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5). It was independently tested to IEC 60529, IP56, for protection against dust ingress and powerful water jets.
Overall dimensions are 31.77 in (807 mm) high x 24.50 in (622 mm) wide x 36.22 in (920 mm) deep, with 12U of usable mounting height (22.00 in / 559 mm) and 30.00 in (762 mm) of maximum equipment depth; rail-to-rail depth is 26.55 in (674 mm). Two pairs of adjustable, EIA-compliant 10-32 tapped mounting rails position equipment front and rear, and a starter hardware pack with SCREW1032-50 screws is included.
NWC12U2436SFLG also meets PCI DSS compliance requirements and is RoHS and REACH compliant, making it suited to edge computing, IDF and plant-floor deployments.
| Series | NWC Series Environmental Wall-Mount Cabinet, Type 12, IP56 (350 lb) |
| Door Type | Solid door included; filters ship inside cabinet |
| Rack Type | Enclosed Wall Rack |
| Rack Units | 12U |
| Part Number | NWC12U2436SFLG |
| Configuration | "F" Version - rear and door Type 12 filters included, compatible with fan kits |
| Short Description | 12U 24W 36D NWC SOLID FILTERS |
| Overall Depth | 36.22 in (920 mm) |
| Overall Width | 24.50 in (622 mm) |
| Overall Height | 31.77 in (807 mm) |
| Rail-To-Rail Depth | 26.55 in (674 mm) |
| Usable Depth Feature | With swing-out function |
| Usable Mounting Height | 22.00 in (559 mm) |
| Nominal Size (H X W X D) | 25.64 in x 24 in x 36 in (651 mm x 610 mm x 914 mm) |
| 19" Mounting Width (Tapped 10-32) | 18.35 in (466 mm) |
| Usable Mounting Depth / Max Equipment Depth | 30.00 in (762 mm) |
| Power Bar Mounting | Power bar mounting without using 'U' space |
| Bonding And Grounding | Dedicated bonding and grounding points for all cabinet components |
| UPC | 623980013640 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980013640 |
| UPC W/O Check Digit | 62398001364 |
| Rail Type | Tapped 10-32 |
| Wall Mounting | External mounting feet and rear pan design for wall installation and cable entry |
| Mounting Rails | Two (2) pairs of adjustable 10-32 threaded mounting rails, EIA compliant |
| Included Hardware | Starter hardware pack with SCREW1032-50 screws |
| Rack Compatibility | 19" rack compatible, double-hinged cabinet design for dual access |
| Static Load Rating | 350 lb (158 kg) per UL2416 |
| Seismic Dynamic Load Rating | 200 lb (90.72 kg), Ip = 1.5 |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 192 lbs (87.09 kg) |
| Country Of Origin | CA (manufactured in North America) |
| Hinges | Concealed hinges |
| Material | Mild Steel |
| Paint Color | RAL7035 Light Gray (light gray textured powder coat) |
| Construction | 14-gauge welded steel |
| Finish Compliance | GREENGUARD Gold, TSCA, RoHS compliant powder coat |
| Filters | Two (2) 6" exhaust filters T12 and one (1) 10" exhaust filter T12 |
| Sealing | Sealed enclosure with gasketed doors; protects against dust, dirt and dripping liquids |
| Enclosure Rating | UL Type 12 |
| Ingress Protection | Independently tested to IEC 60529, IP56 (dust ingress and powerful water jets) |
| ECCN | EAR99 |
| PCI DSS | Meets PCI DSS compliance requirements |
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Seismic Standards | IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, ASCE 7-10 |
| Load Rating Standard | UL2416 |
Business account holders on Wall Mount Cabinets typically save 26% vs. retail pricing. Create a free account to see your price.

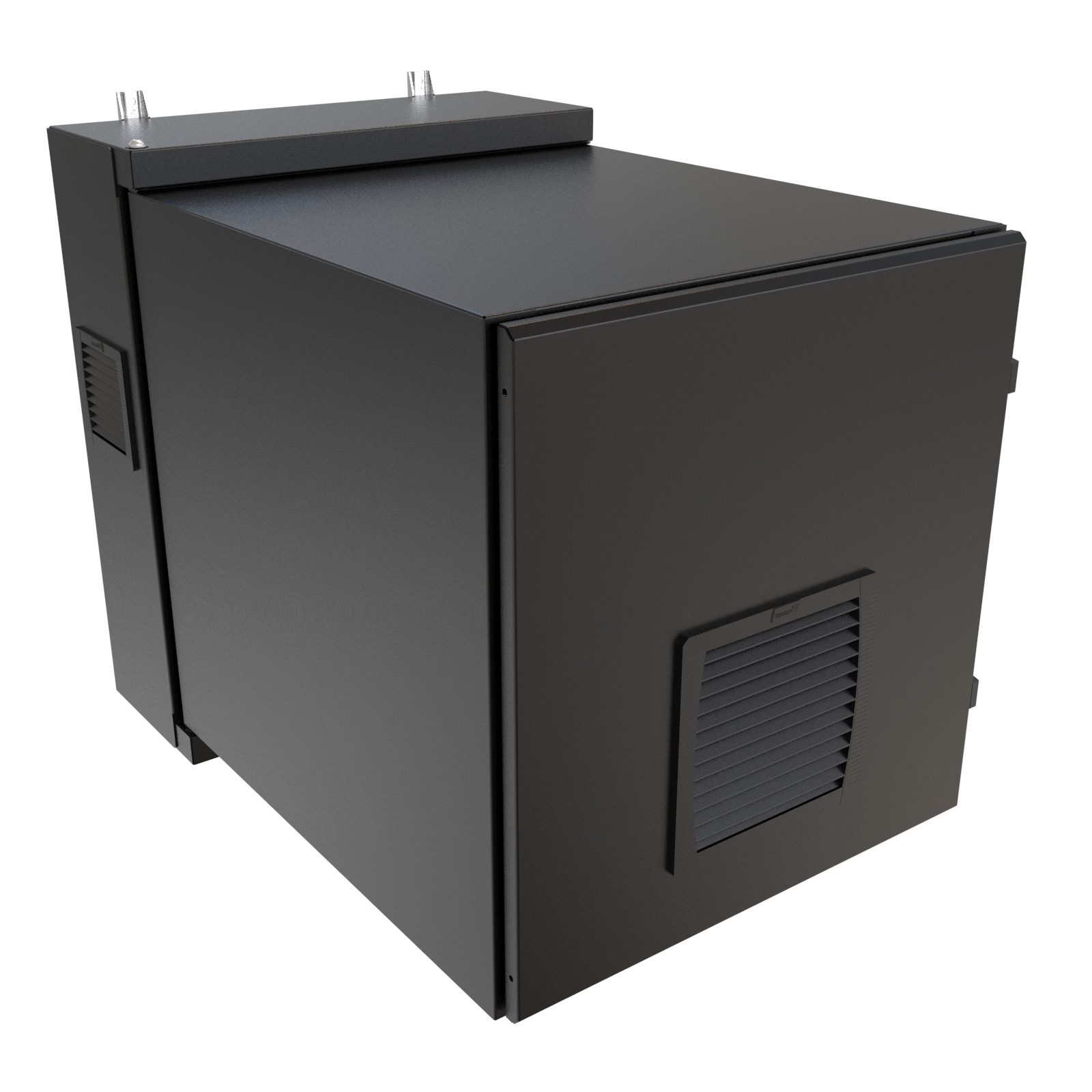

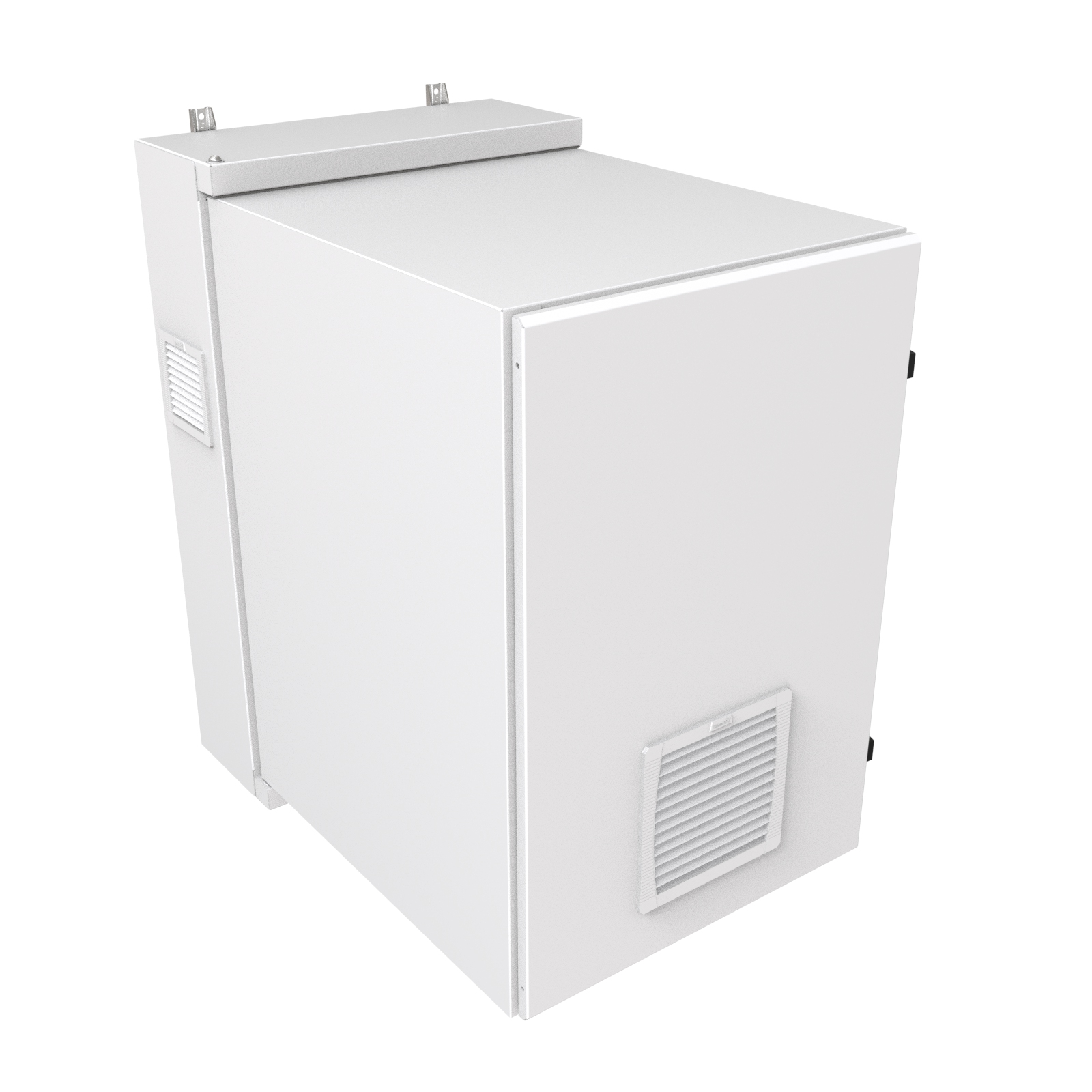

"F" is the filtered configuration. It includes rear and door filters that maintain the UL Type 12 rating and are compatible with fan kits. The filters ship inside the cabinet, and a solid door is included.
It is UL2416 Type 12 rated to a 350 lb (158 kg) load and seismic rated to 200 lb (90.72 kg) dynamic load at Ip = 1.5, in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
Usable mounting height is 22.00 in (559 mm) for 12U, and maximum equipment depth is 30.00 in (762 mm), with a rail-to-rail depth of 26.55 in (674 mm). Overall size is 31.77 in H x 24.50 in W x 36.22 in D.
The NWC Series lists DNFK1AC120 (intake or exhaust, no thermostat, 115 VAC, 105 CFM), DTFK1AC120E (exhaust, thermostat, 115 VAC, 105 CFM) and DTFK1AC150 (intake, thermostat, 115 VAC, 230 CFM) as fan options for "F" versions.
Two pairs of adjustable, EIA-compliant tapped 10-32 mounting rails are supplied, along with a starter hardware pack containing SCREW1032-50 screws. The cabinet is 19" rack compatible.
Yes. NWC12U2436SFLG is TAA-compliant and manufactured in North America (country of origin CA), meets PCI DSS compliance requirements, and is RoHS and REACH compliant.

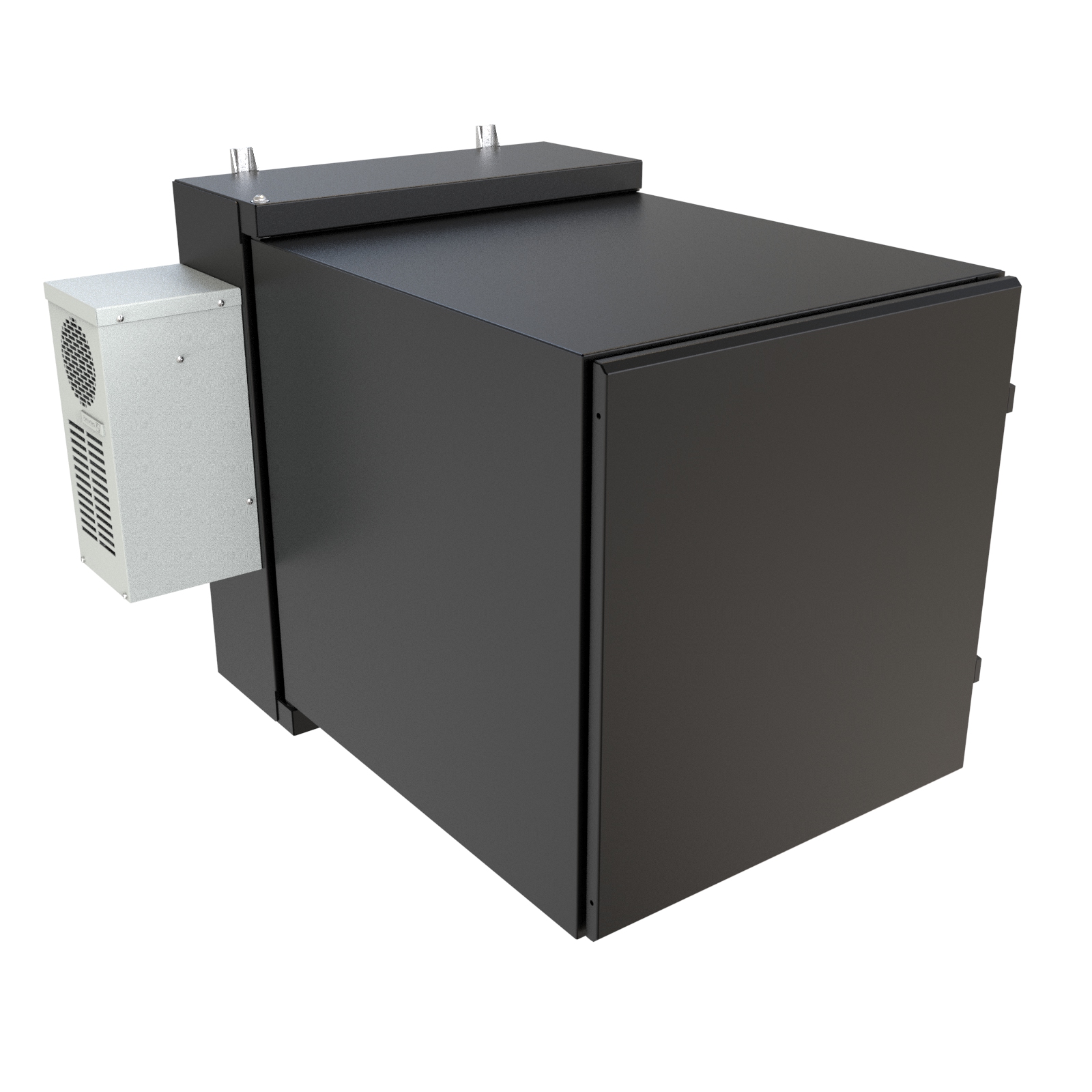

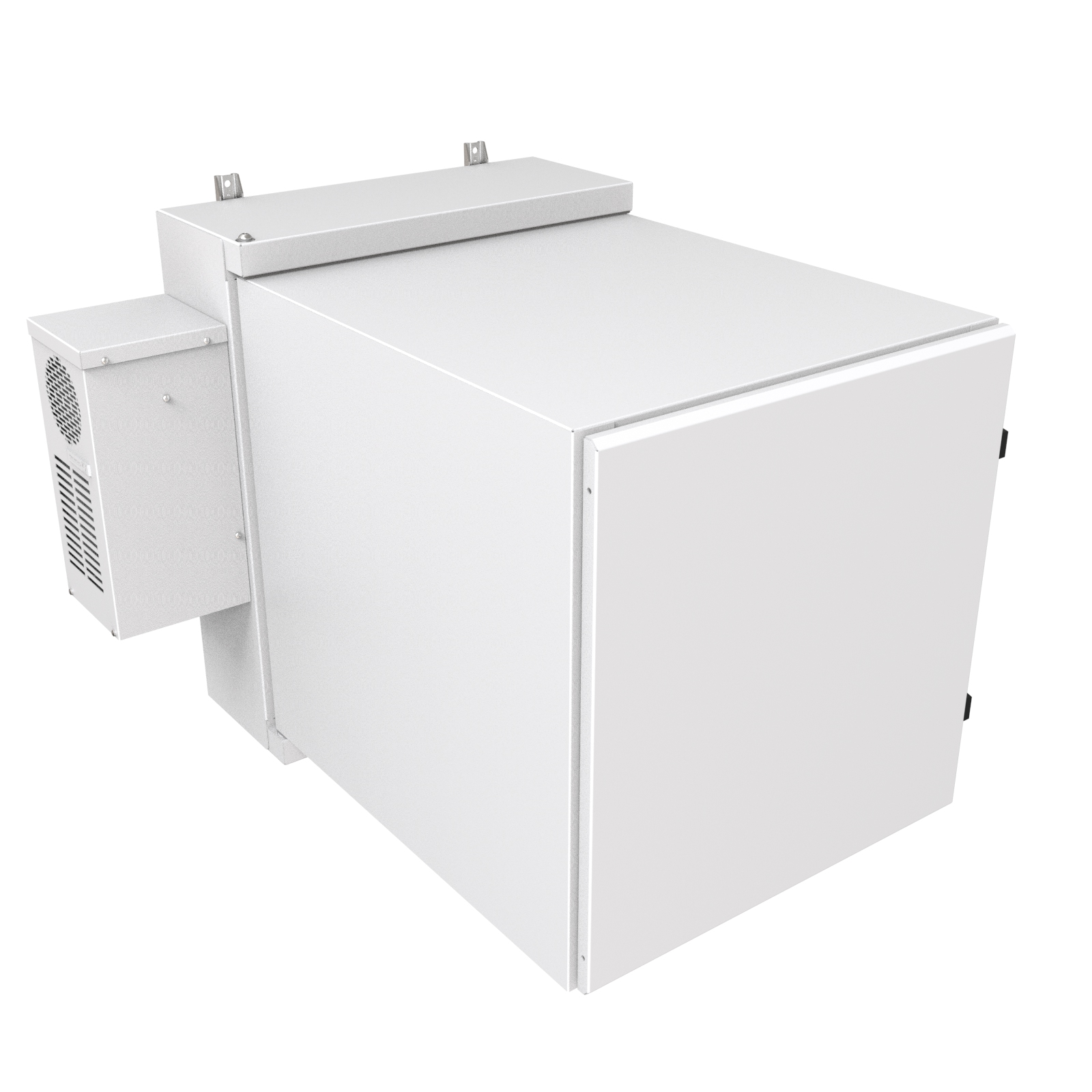

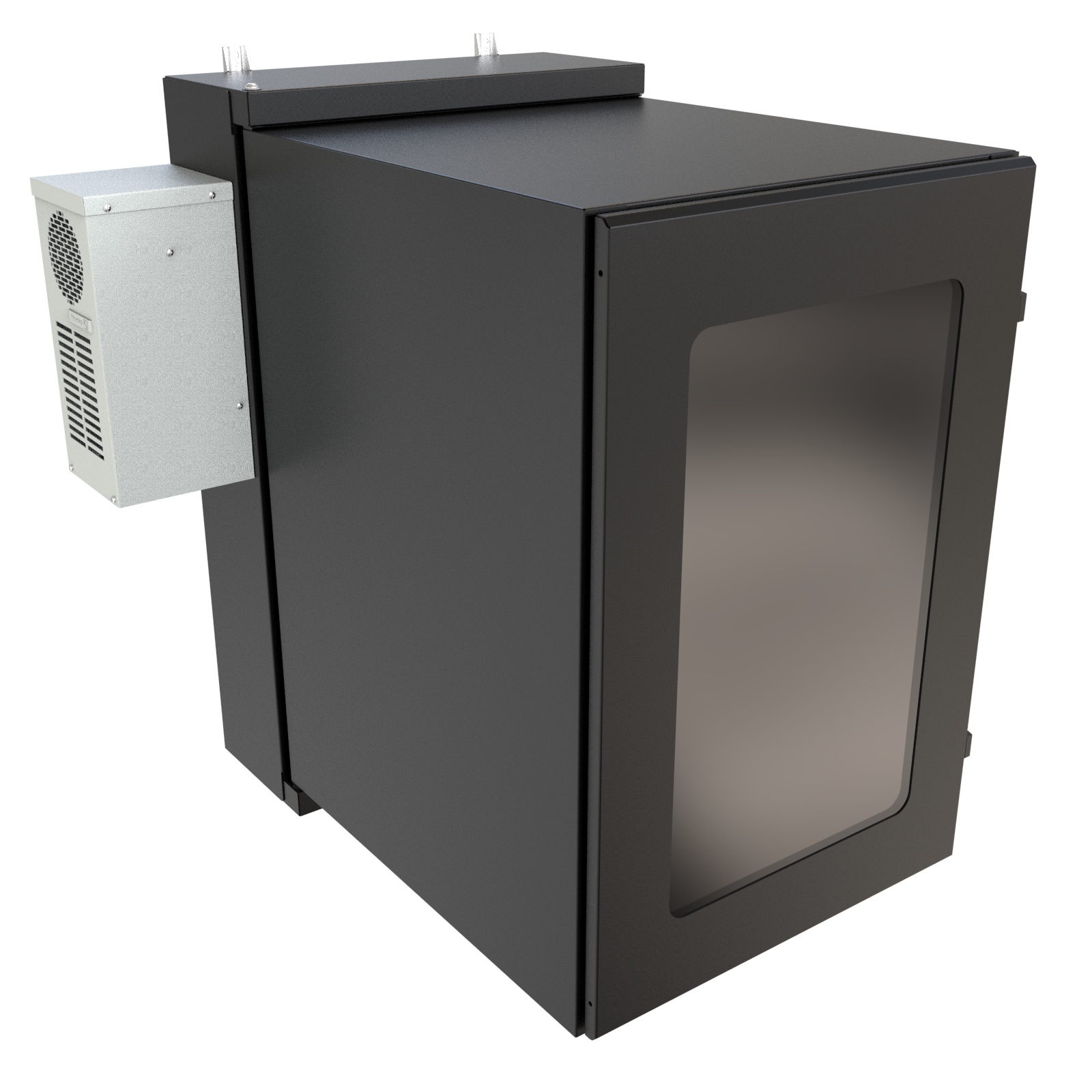

No. The air conditioner is supplied only on the "A" version, which ships with a 900-1300 BTU DTS3021A115LG unit. This part is the "F" filtered version.
