The HWMRPP32 is a rear pan panel sized for 32U HWM Series swing-out wall-mount rack cabinets. It is intended for IT, telecom and structured cabling installers who need a solid rear surface inside the cabinet for post mounting of hardware, patching components and accessories rather than leaving the rear section open.

The panel is fabricated from mild steel and supplied painted black. It measures 51.75 in (1314 mm) high by 11.58 in (294 mm) wide, with a 2.51 in (64 mm) profile depth shown on the right-side view, and uses 0.25 in (6 mm) diameter mounting holes. Mounting hardware is included with the panel, so no separate fastener kit is required to attach it.

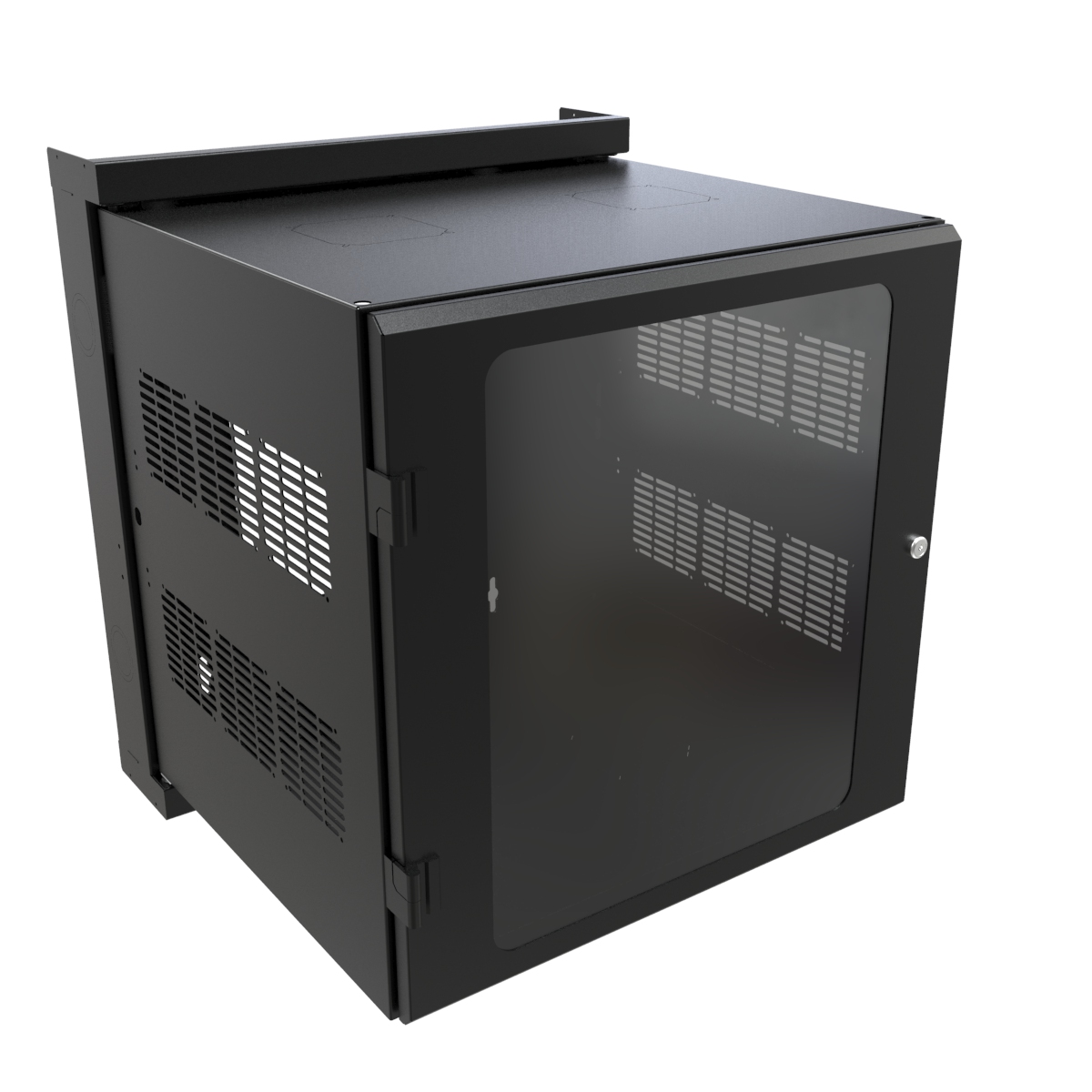

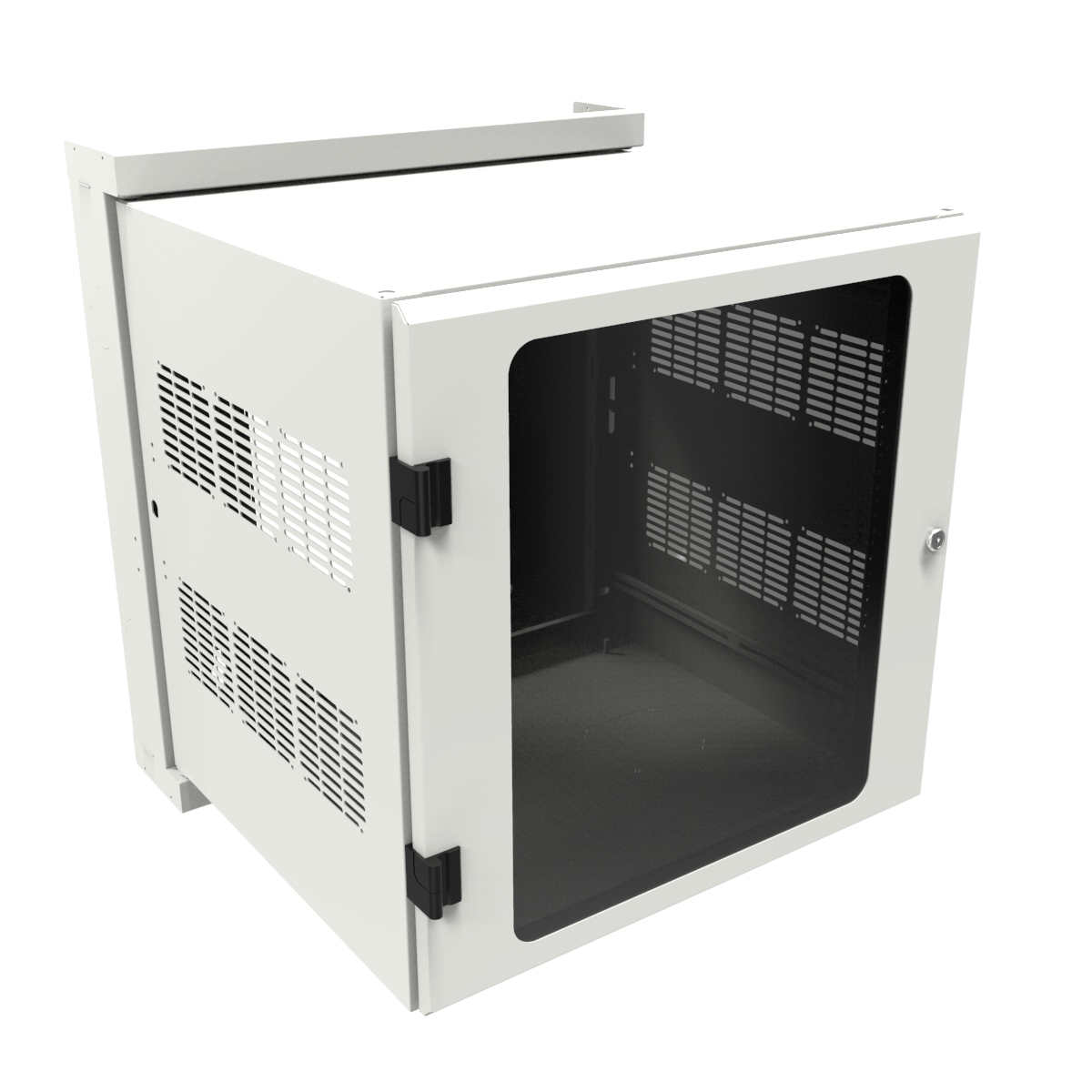

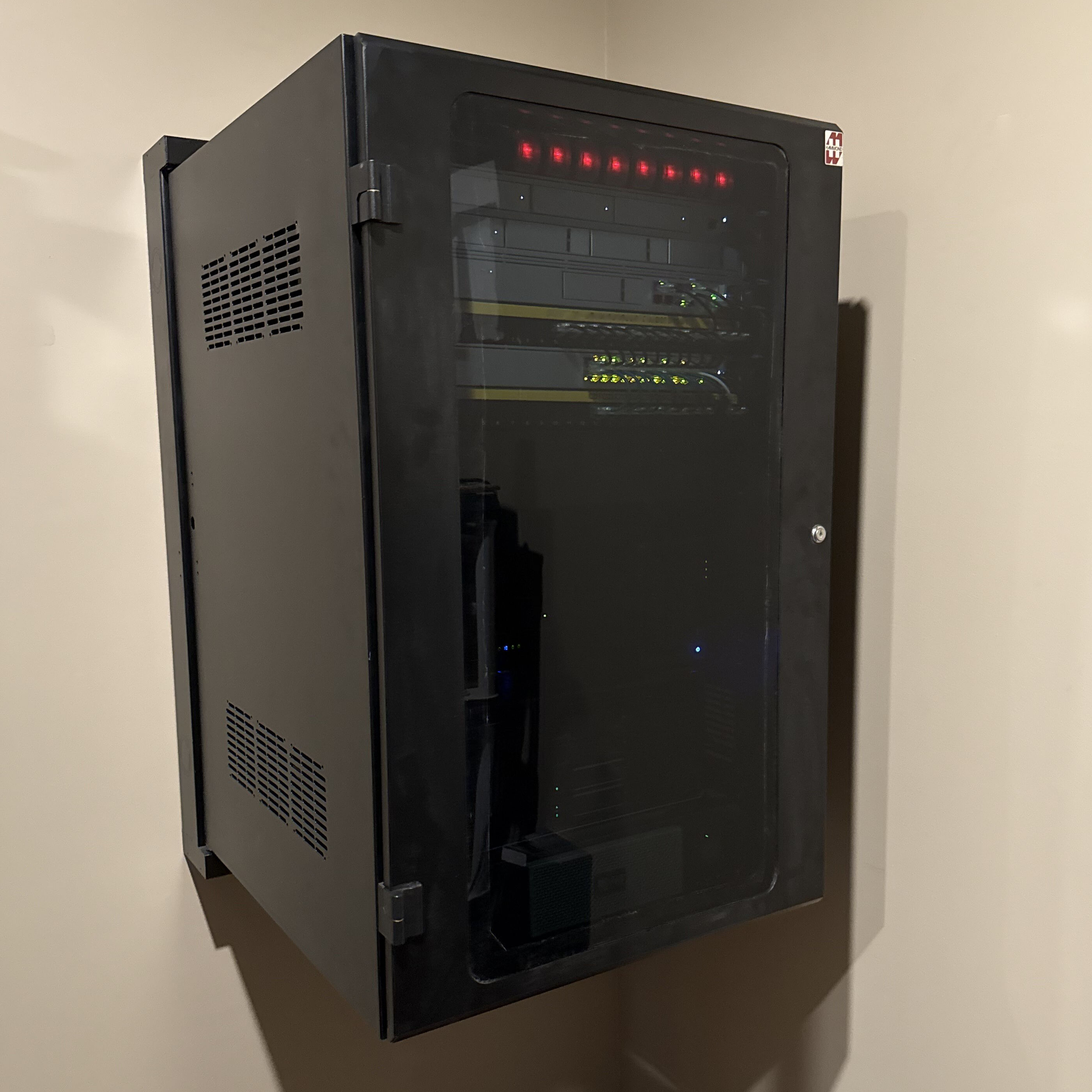

HWMRPP32 is listed in the HWM Series accessory table as the rear-pan panel for post mounting in 32U cabinets, alongside the HWMTR32U tapped 10-32 rail pair, HWMSR32U square hole rail pair and the VCT56 vertical cable manager. The HWM cabinets themselves are UL2416 listed swing-out wall-mount enclosures for 19-inch rack equipment with front and full rear access, so the rear pan can be reached for service once the body section is swung out.

Manufacturing and compliance data for this part includes a country of origin of Canada, USMCA compliance, RoHS and REACH compliance, ECCN EAR99, UL file number E474597 and standards listed as cULus, PCI, Zone 4 and TAA-compliant, supporting government, education and regulated procurement requirements.
