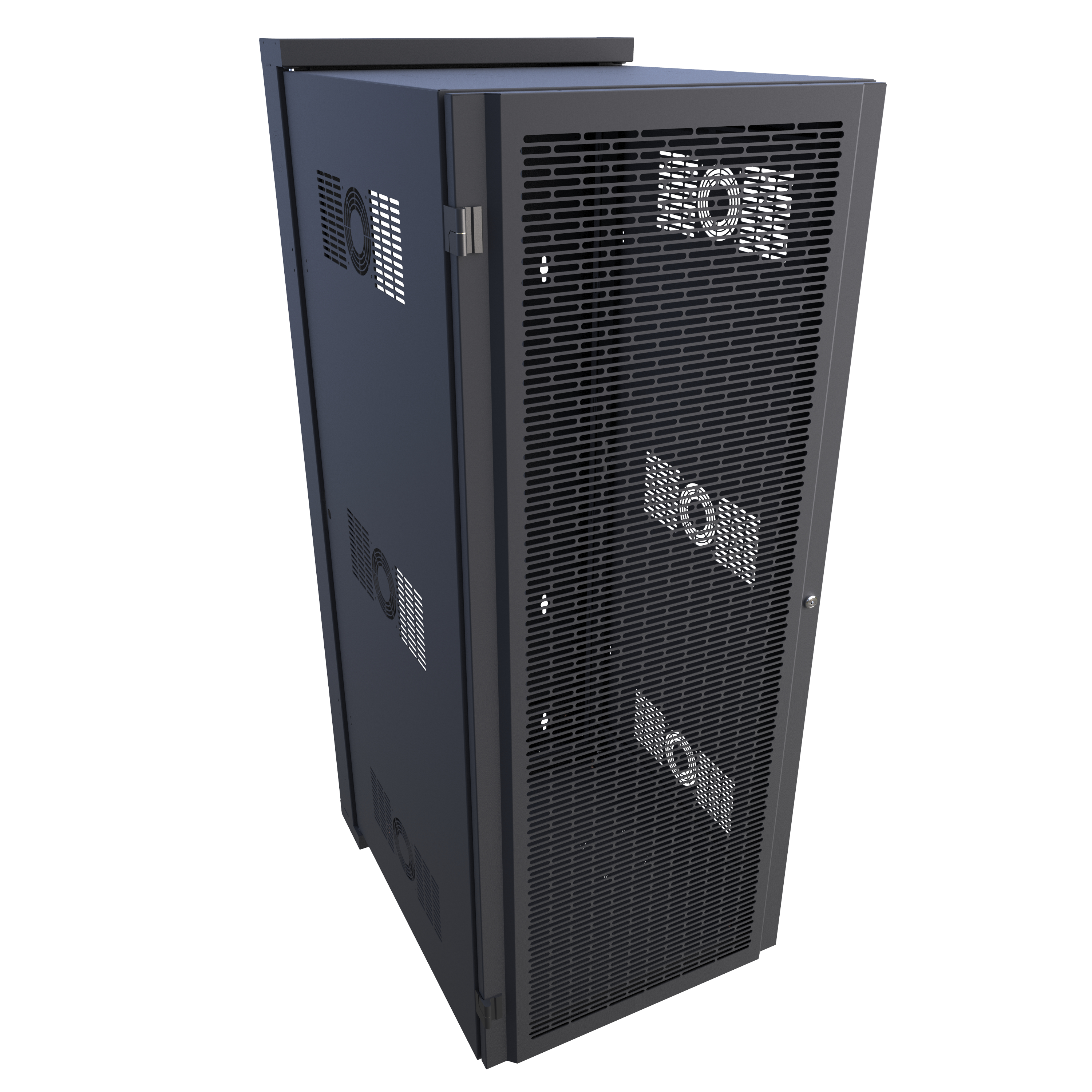

The HWM2432U26BK is a 32U enclosed swing-out wall-mount rack cabinet with a vented front door, finished in RAL9005 Black. It is built for IT and telecom installations that need a secure, enclosed 19-inch rack in a wall-mounted footprint while still allowing full rear access for cabling and servicing, making it suited to network closets, communication rooms, and government, education and commercial IT environments.

Construction is mild steel, with a 14-gauge welded rear section, 16-gauge center section and doors. The HWM Series is UL2416 listed with a 350 lb (159 kg) load rating and is seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. The powder coat finish is GREENGUARD Gold, TSCA and RoHS compliant, and the product is TAA-compliant and manufactured in North America (country of origin: CA).

Overall size is 62.75 in x 24.68 in x 31.7 in (1,594 mm x 627 mm x 805 mm) nominal, with the series table listing overall depth as 31.18 in (792 mm) and a 26 in center-section depth. Usable mounting dimensions are 56.00 in (1422 mm) high x 19.00 in (483 mm) wide x 28.85 in (733 mm) deep — the maximum equipment depth that lets the body section swing out unimpeded. Shipping weight is 196 lbs (88.90 kg).

HWM2432U26BK ships with one pair of adjustable 19-inch tapped 10-32 panel rails and a starter hardware pack with SCREW1032-50 screws. A heavy-duty spring-hinge mechanism with concealed hinges controls swing-out access, and the cabinet body is reversible so swing direction can be changed on site. Multiple cable entry knockouts, rear cable access, a fan knockout pattern for optional DNMF100AC115 or DNMF100AC230 fans, and power bar mounting that does not consume U space round out the installation features.
