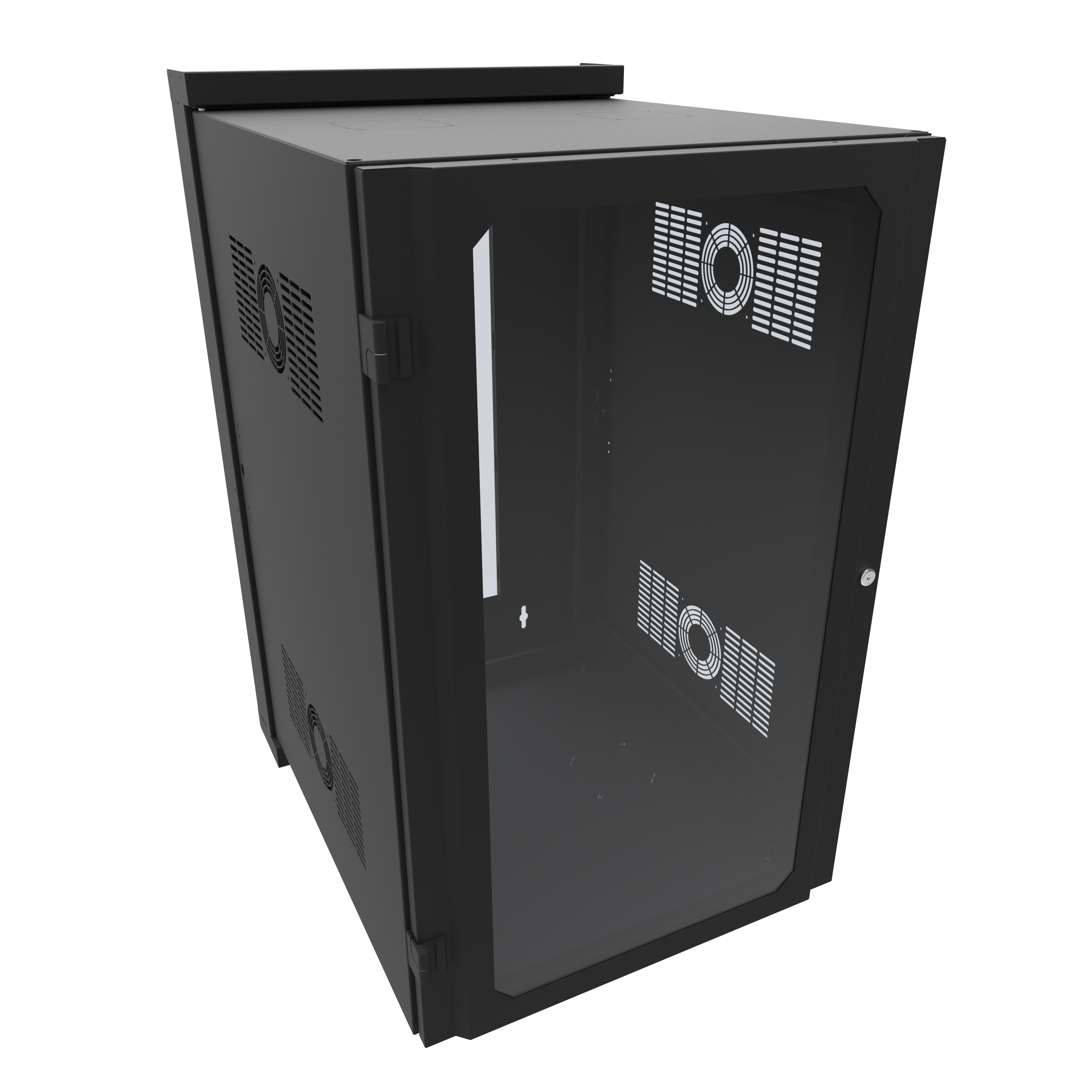

The HWM2420U26WDBK is a 20U enclosed swing-out wall-mount rack cabinet with a window front door, built for mounting 19-inch rack equipment in IT and telecom environments that need a secure enclosure plus full rear access. It suits network closets, data communication rooms and structured cabling installations where active equipment must be visible behind a closed door.

Construction is mild steel with a 14-gauge welded rear section and a 16-gauge center section and doors, finished in RAL9005 black textured powder coat. The assembly comprises the HWM rear section (24W 20U), the HWM centre section, a 20U window front door assembly and one pair of 19-inch tapped 10-32 panel rails. A heavy-duty spring-hinge mechanism with concealed hinges provides controlled swing-out access, and the cabinet body is reversible so the swing direction can be set on site.

Overall size for this part is listed at 41.75 in x 24.68 in x 31.7 in (1,060 mm x 627 mm x 805 mm) nominal, with drawing/table overall dimensions of 41.81 in (1062 mm) high, 24.68 in (627 mm) wide and 31.18 in (792 mm) deep over a 26 in deep center section. Usable mounting space is 35.00 in (889 mm) high, 19.00 in (483 mm) wide and 28.85 in (733 mm) deep — the maximum equipment depth that still lets the body section swing out unimpeded — with 30.85 in (784 mm) overall internal depth. Shipping weight is 153 lbs (69.40 kg).

HWM2420U26WDBK is UL2416 listed to a 350 lb (159 kg) load rating (UL File # E474597) and seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. Multiple double knockouts, a rear opening and power bar mounting that does not consume U space support cable routing and PDUs, while fan knockout patterns accept optional DNMF100AC115 or DNMF100AC230 fans.
