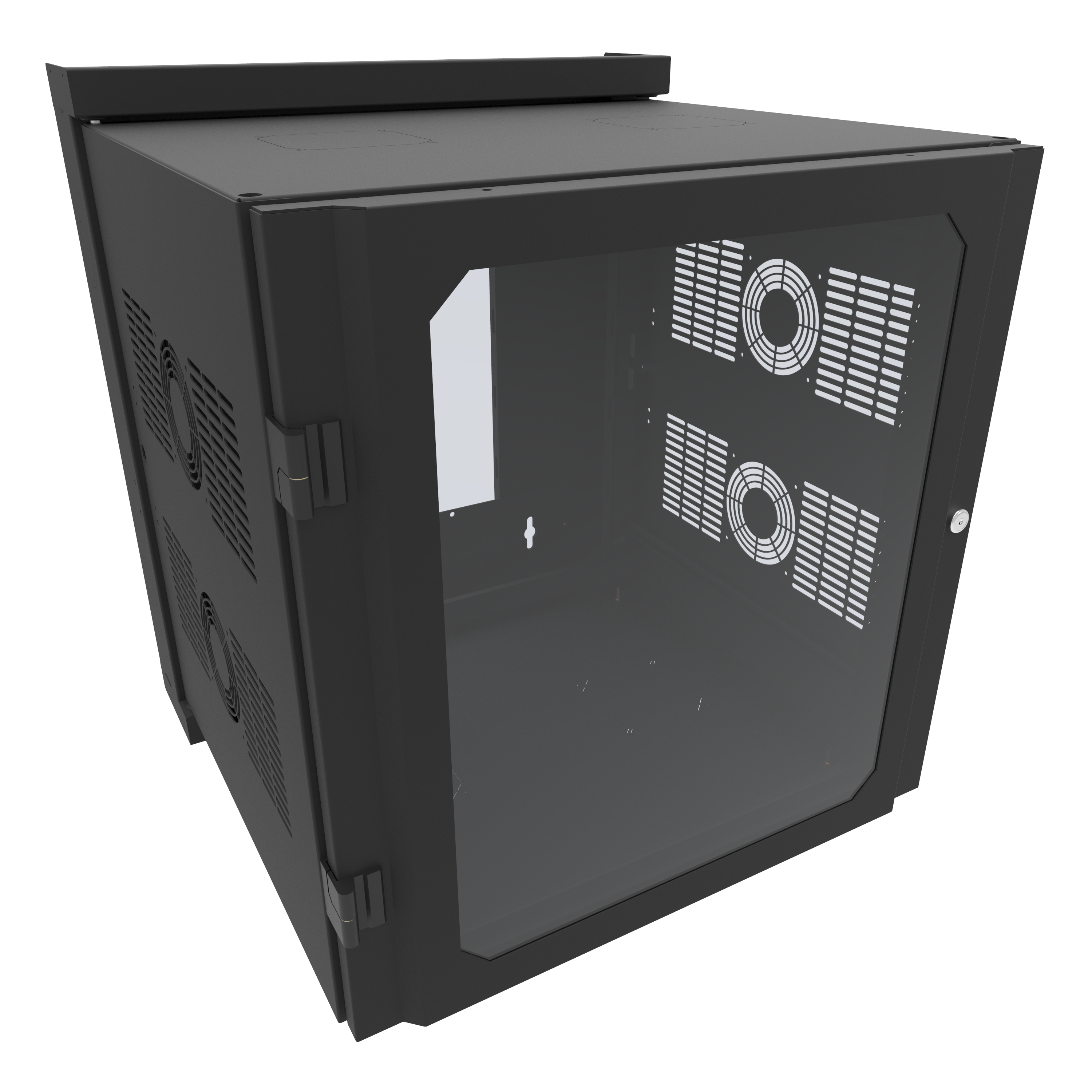

The HWM2412U20WDBK is a 12U enclosed swing-out wall-mount rack cabinet with a textured window front door, finished in RAL9005 black. It is built for IT and telecom installations that need 19-inch rack equipment secured on a wall while still allowing full rear access for cabling and servicing, making it suited to network closets, communication rooms and structured cabling environments with active equipment.
Construction is mild steel: a 14-gauge welded rear section with a 16-gauge center section and doors. The HWM Series is UL2416 listed to a 350 lb (159 kg) load rating (UL file E474597) and seismically rated to a 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. The powder coat finish is GREENGUARD Gold, TSCA and RoHS compliant, and the cabinet is TAA-compliant and manufactured in North America.
Overall dimensions are 27.81 in (706 mm) high x 24.68 in (627 mm) wide x 25.17 in (639 mm) deep, with a 20 in center section depth. Usable mounting space is 21.00 in (533 mm) high x 19.00 in (483 mm) wide with 22.85 in (580 mm) of usable depth, which is the maximum equipment depth that lets the body section swing out unimpeded. Shipping weight is 106 lbs (48.08 kg).
HWM2412U20WDBK ships with one pair of adjustable 19-inch 10-32 tapped panel rails and a starter hardware pack with SCREW1032-50 screws. A heavy-duty spring-hinge mechanism controls the swing-out action, the cabinet body is reversible on site to change swing direction, and multiple double knockouts plus a rear opening support structured cable routing. Fan knockout patterns accept optional DNMF100AC115 or DNMF100AC230 fans.
| Series | HWM Series |
| Rack Type | Enclosed Wall Rack |
| Rack Units | 12U |
| Part Number | HWM2412U20WDBK |
| Front Door Style | Window door (painted blank textured window door) |
| Long Description | 12U 24W 25.7D Swing Out Wall Cabinet w/ Window Door |
| Short Description | 12U 25D SWING-OUT WALL CABINET |
| Rear Opening | 14.98 in (381 mm) x 20.67 in (525 mm) |
| Overall Depth | 25.17 in (639 mm) |
| Overall Width | 24.68 in (627 mm) |
| Overall Height | 27.81 in (706 mm) |
| Center Section Depth | 20 in (508 mm) |
| Nominal Size (H X W X D) | 27.75 in x 24.68 in x 25.7 in (705 mm x 627 mm x 653 mm) |
| Overall Internal Space (Depth) | 24.97 in (634 mm) |
| Old Style Overall Depth Reference | 25.70 in |
| UPC | 623980562254 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980562254 |
| UPC W/O Check Digit | 62398056225 |
| Rail Type | Tapped 10-32 |
| Load Rating | 350 lb (159 kg) per UL2416 |
| Rails Included | One (1) pair of adjustable 19" tapped 10-32 panel rails |
| Seismic Rating | 200 lb (90.72 kg) dynamic load (Ip = 1.5) |
| Included Hardware | Starter hardware pack with SCREW1032-50 screws |
| Rack Compatibility | 19" rack equipment |
| Panel Opening Height | 21.00 in (533 mm) |
| Mounting (Usable) Depth | 22.85 in (580 mm) - maximum equipment depth that allows the body section to swing out unimpeded |
| Mounting (Usable) Width | 19.00 in (483 mm) |
| Mounting (Usable) Height | 21.00 in (533 mm) |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 106 lbs (48.08 kg) |
| Country Of Origin | CA (manufactured in North America) |
| Hinging | Concealed hinges; heavy-duty spring-hinge swing-out mechanism |
| Material | Mild Steel |
| Finish Type | Powder coat (GREENGUARD Gold, TSCA, RoHS compliant) |
| Paint Color | RAL9005 Black |
| Reversibility | Reversible cabinet body allows swing direction to be changed on-site |
| Rear Section Gauge | 14-gauge, welded |
| Assembly Components | HWM rear section 24W 12U (1); HWM centre section (1); HWM window door assembly 12U (1); 19" tapped panel rails pair (1) |
| Center Section And Doors Gauge | 16-gauge |
| Power Distribution | Power bar mounting without using 'U' space |
| Ventilation / Cooling | Fan knockout pattern for optional fans DNMF100AC115 or DNMF100AC230 |
| Cable Entry Knockouts (Sides) | 2X double knockout, Ø2.00 / Ø2.50, both sides |
| Cable Entry Knockouts (Top And Bottom) | 3X double knockout Ø2.00 / Ø3.00; 2X double knockout Ø1.12 / Ø1.38; 2X Ø0.62 knockout |
| ECCN | EAR99 |
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| UL Listing | UL2416 listed (350 lb load rating) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Seismic Standards | IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, ASCE 7-10 |
Business account holders on Wall Mount Cabinets typically save 26% vs. retail pricing. Create a free account to see your price.
Usable mounting depth is 22.85 in (580 mm). This is the maximum equipment depth that will still allow the body section of the cabinet to swing out unimpeded. The center section depth is 20 in and overall internal space is 24.97 in (634 mm).
The cabinet is UL2416 listed to 350 lb (159 kg) under UL file E474597, and is seismically rated to a 200 lb (90.72 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10.
Yes. One pair of adjustable 19" tapped 10-32 panel rails is included, along with a starter hardware pack containing SCREW1032-50 screws for equipment mounting.
Yes. The cabinet body is reversible, so the swing direction can be changed on site to suit the installation. A heavy-duty spring-hinge mechanism controls the swing-out access.
Yes. HWM2412U20WDBK is the RAL9005 Black version; HWM2412U20WDWH is the equivalent 12U window-door cabinet in RAL9003 White.
Listed options for a 12U cabinet include the HWMRPP12 rear-pan panel for post mounting, HWMTR12U tapped 10-32 rail pair, HWMSR12U square hole rail pair, WRPS12UWH steel or WRPS12UNF aluminum inner panel, the HWMSLOCK replacement front door lock, and optional DNMF100AC115 or DNMF100AC230 fans.
It is TAA-compliant and manufactured in North America (country of origin CA), which supports government procurement requirements, and it is RoHS, REACH and USMCA compliant.
